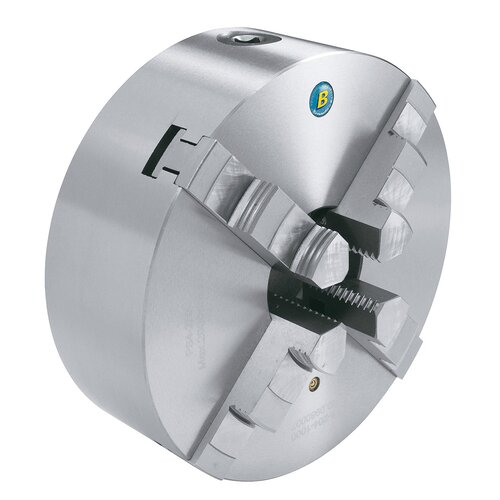

Bernardo 4-jaw chuck DK12, DIN 6350, DK12-80, cast iron

Art.Nr.: 21-0800

€193.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

Execution:

  • Standard 4-jaw chuck with high-quality cast iron body
  • With centre mount according to DIN 6350
  • Inclusive each 1 set hard inside and hard outside solid jaws



Application:

  • Suitable for turning lathes and grinding machines as well as milling devices



Standard accessories:

  • 1 set hard inside solid jaws DIJ-DK11
  • 1 set hard outside solid jaws DOJ-DK11

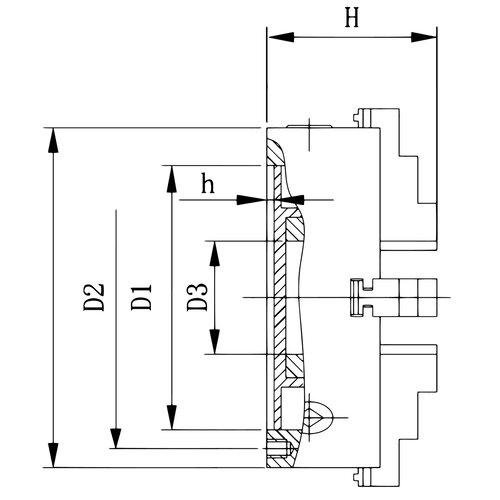

Product Specifications

D - chuck size

80

D1

56 mm

D2

67 mm

D3

16 mm

H

66,5 mm

H1

50 mm

h

4 mm

Mounting bolts

3 x M6

Max. speed

4000 rpm

Weight approx.

2 kg
