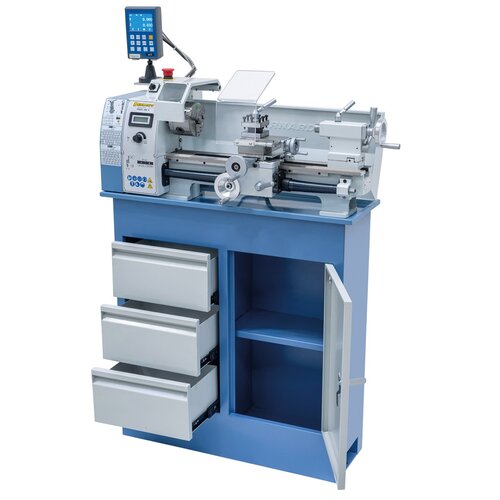

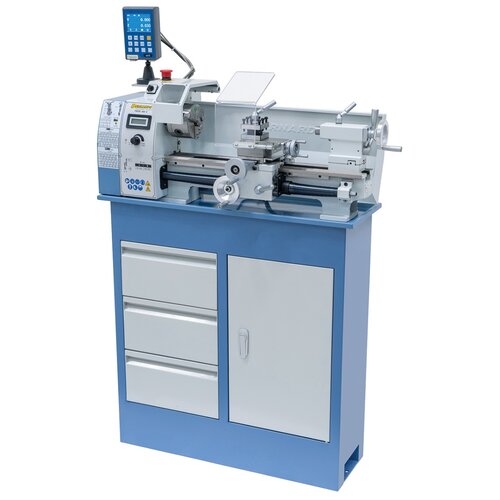

Bench lathe Profi 400 V / 230 V incl. 2-axis-digital readout DT 40
Art.Nr.: 03-10360The Profi 400 V table lathe comes complete with a stepless speed adjustment and digital display for convenient readout. The attractive price-to-performance ratio makes this model ideal for model makers and amateurs.
€1,776.00
incl. 20% VATAvailability
Product Properties
- Highly suitable for processing steel, non-ferrous materials or plastics
- Wide range of applications, such as face turning, straight turning, thread cutting etc.
- Change gears for metric thread cutting come standard
- High-quality ball bearing ensure concentricity of spindle nose (better than 0.015 mm)
- User-friendly arrangement of controls
- Complete with leadscrew for thread cutting and the automatic longitudinal feed
- Compact construction, ideal price-to-performance ratio
- Electronic, stepless speed setting allow ideal adjustment to each workpiece
Product Specifications
|
Distance between centers |
400 mm |
|
Center height |
100 mm |
|
Swing over bed |
200 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
50 - 1250 / 100 - 2500 rpm |
|
Longitudinal feed |
(3) 0,089 - 0,198 mm/rev. |
|
Metric thread |
(14) 0,3 - 3 mm |
|
Inch thread |
(10) 10 - 44 threads/1“ |
|

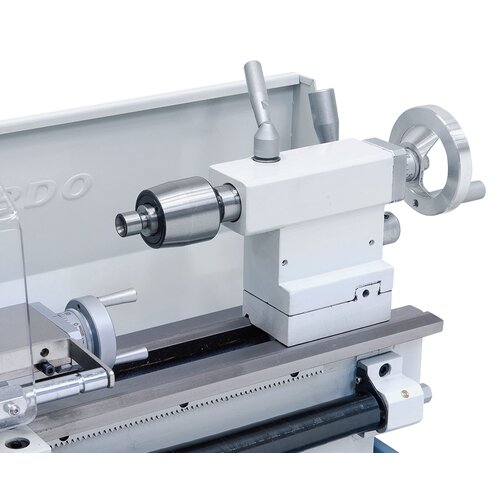

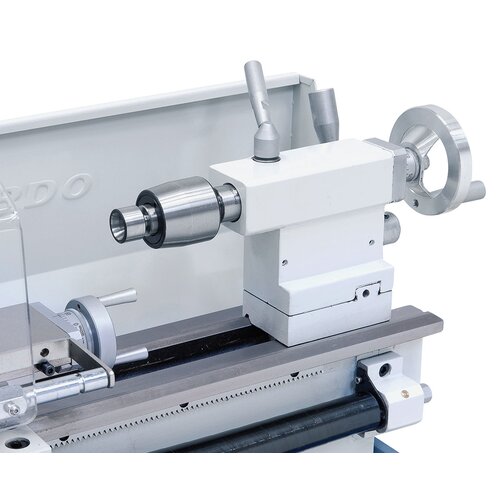

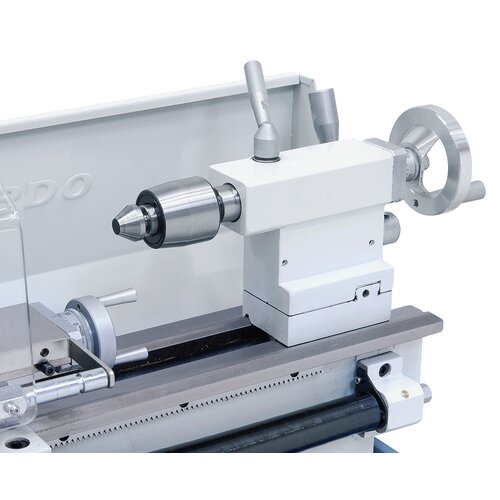

Travel of tailstock sleeve |
50 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,60 kW / 230 V |
|
Motor power input S6 40% |
0,80 kW / 230 V |
|
Machine dimension (W x D x H)* |
930 x 400 x 380 mm |
|
Weight approx. |
65 kg |
* without stand
Delivery Contents

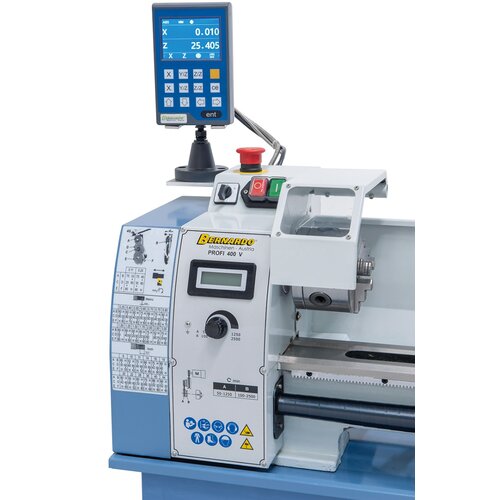

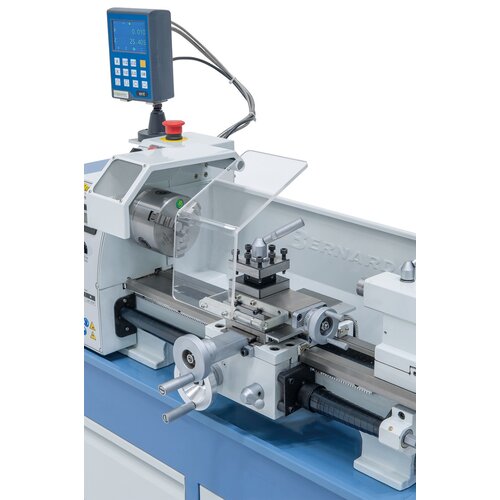

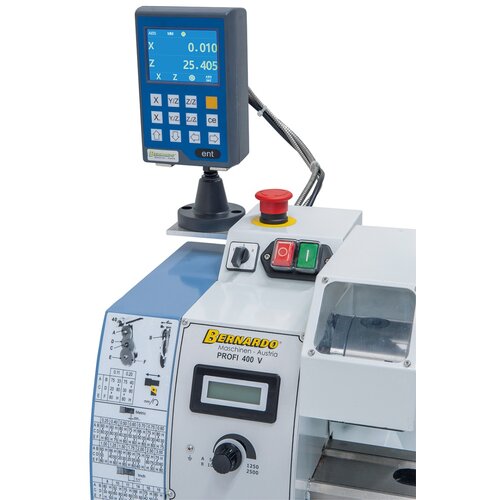

- 2-axis digital readout DT 40

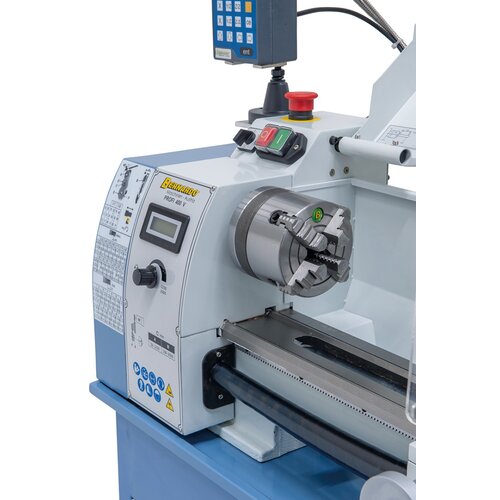

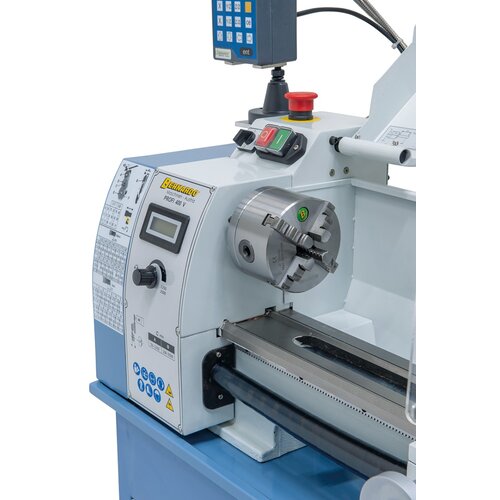

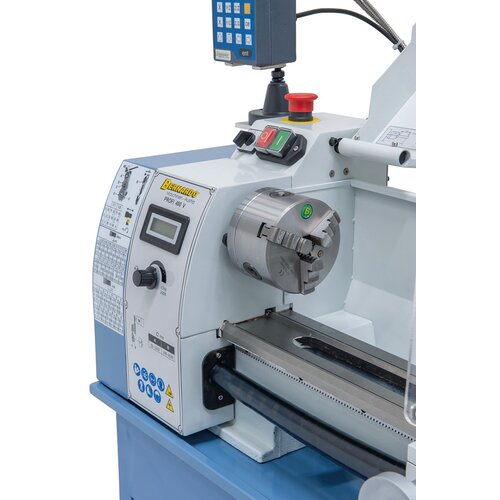

- 3-jaw chuck DK 11-100 mm

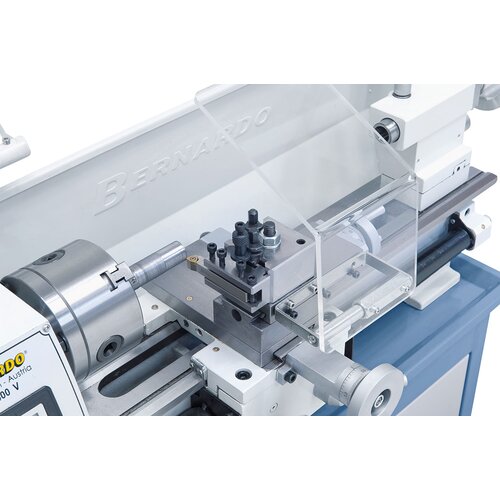

- 4-way tool post holder

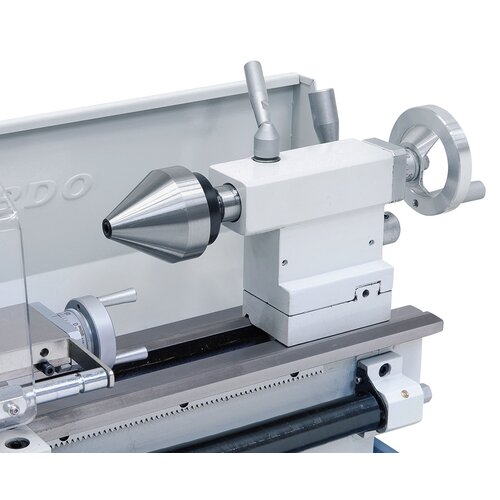

- Dead center

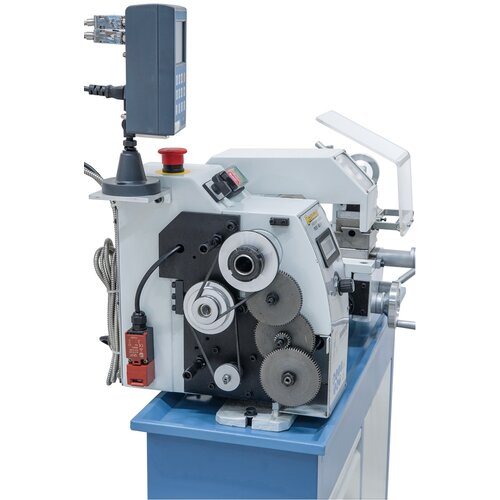

- Change gears
- Chuck guard
- Splash guard
- Chip tray
- Digital speed indication
- Tools
