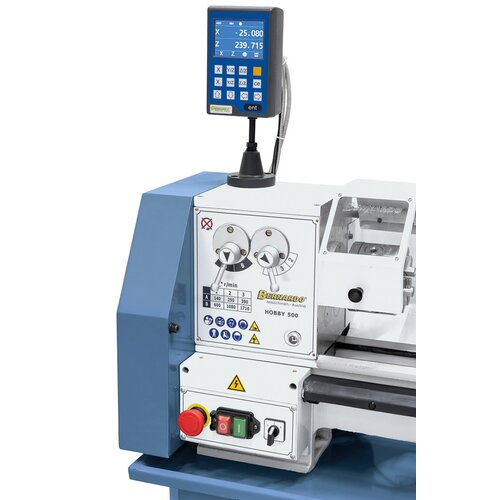

2-axis digital readout Bernardo DT 40 comes standard to guarantee high work comfort and more accuracy.
2-axis digital readout Bernardo DT 40 comes standard to guarantee high work comfort and more accuracy.

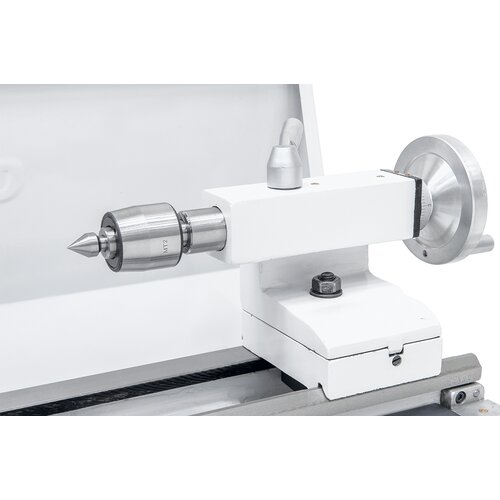

A live center type SMA incl. 7 interchangeable tips is available for universal applications.
A live center type SMA incl. 7 interchangeable tips is available for universal applications.

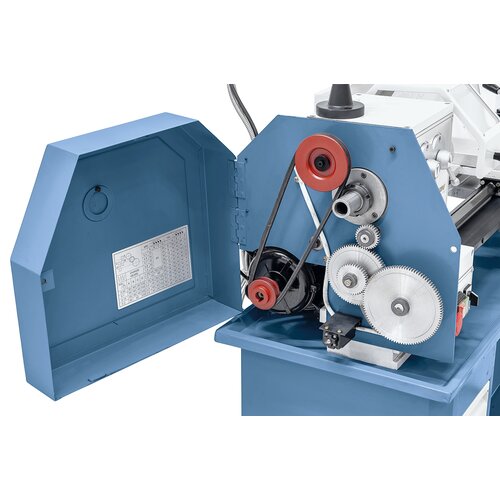

Serially equipped with change gears for thread cutting.
Serially equipped with change gears for thread cutting.

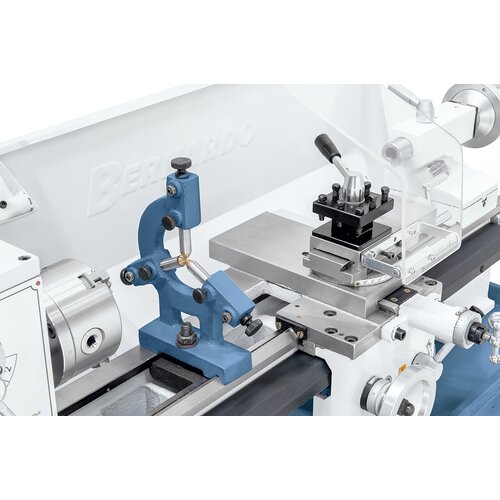

Steady rest with bronze guiding supports long workpieces.
Steady rest with bronze guiding supports long workpieces.

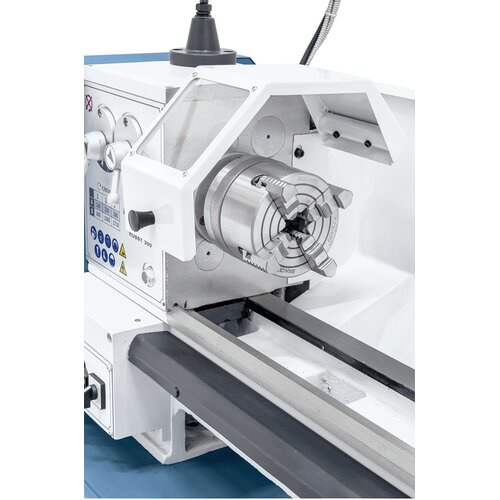

Independent chuck 100 mm ideal for clamping of asymmetric workpieces (optional)
Independent chuck 100 mm ideal for clamping of asymmetric workpieces (optional)

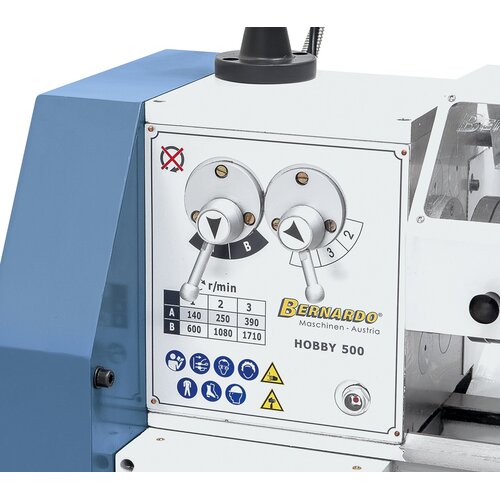

The control gear mounted on the head stock allows easy and quick speed change
The control gear mounted on the head stock allows easy and quick speed change

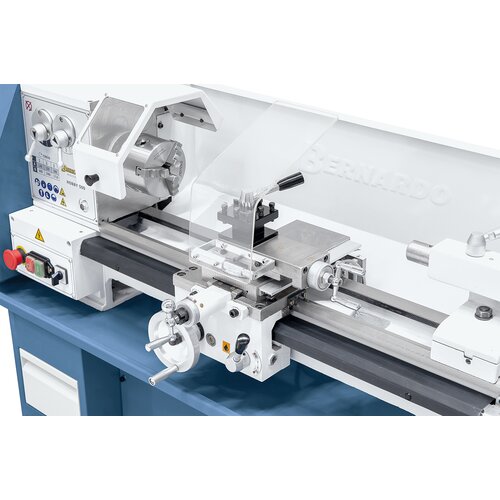

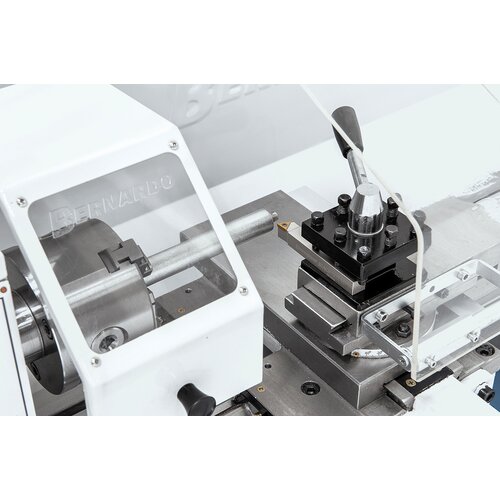

Smooth-running, precise apron with top support – adjustable gibs allow long life span.
Smooth-running, precise apron with top support – adjustable gibs allow long life span.

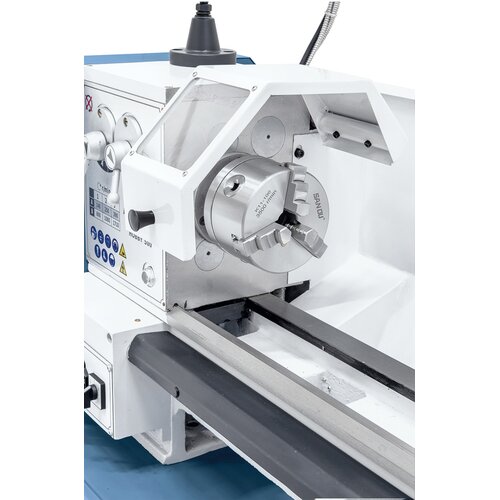

3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.
3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.
2-axis digital readout Bernardo DT 40 comes standard to guarantee high work comfort and more accuracy.
A live center type SMA incl. 7 interchangeable tips is available for universal applications.
Serially equipped with change gears for thread cutting.
Steady rest with bronze guiding supports long workpieces.
Independent chuck 100 mm ideal for clamping of asymmetric workpieces (optional)
The control gear mounted on the head stock allows easy and quick speed change
Smooth-running, precise apron with top support – adjustable gibs allow long life span.
3-jaw chuck 100 mm with hard inside and hard outisde solid jaws as standard equipment.

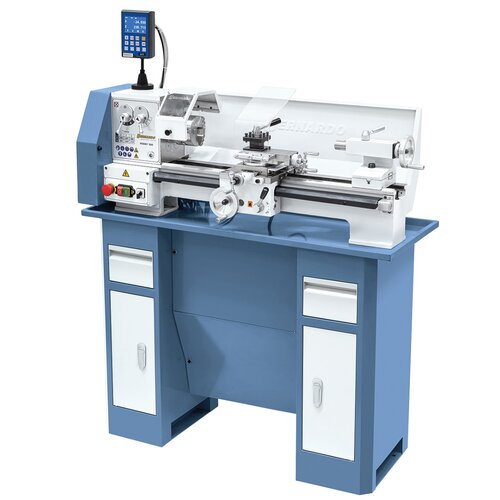

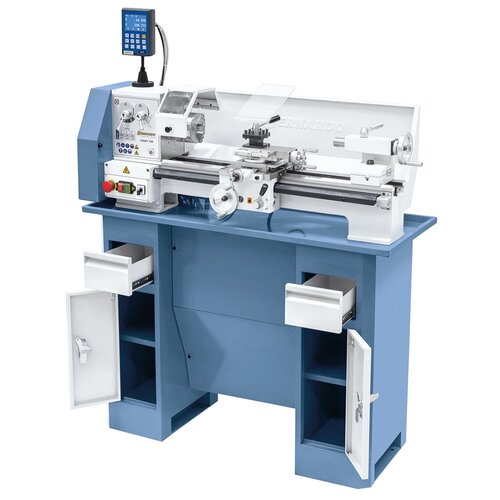

Bench lathe Hobby 500 / 230 V incl. 2-axis digital readout DT 40

Art.Nr.: 03-1071
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Hobby 500 turning lathe is equipped with a 6-step control gear to allow for quick speed change. The compact construction guarantees smooth running and precise work.

€2,184.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Control gear allows easy and quick speed change
  • Machine bed inductive hardened and polished
  • Guideways adjustable via gibs
  • Optimal price-performance-ratio
  • Very handy machine with leadscrew for thread cutting
  • Spindle bedded with 2 adjustable precision ball bearings
  • Tailstock can be adjusted for taper turning
  • Protective switch with undervoltage release
  • Solid and small construction

Product Specifications

Distance between centers

500 mm

Center height

110 mm

Swing over bed

220 mm

Spindle bore

20 mm

Taper at spindle bore

MT 3

Speed range

140 - 1710 rpm, 6 steps

Longitudinal feed

(4) 0,05 - 0,2 mm/rev.

Metric thread

(11) 0,4 - 3 mm

Inch thread

(11) 8 - 28 threads/1“

Travel of tailstock sleeve

45 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,55 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)*

1150 x 480 x 420 mm

Weight approx.

130 kg

* without stand

Delivery Contents

  • 2-axis digital readout DT 40
  • 3-jaw chuck 100 mm
  • Change gears
  • Dead center
  • 4-way tool post holder
  • Cross slide with top support
  • Chuck guard
