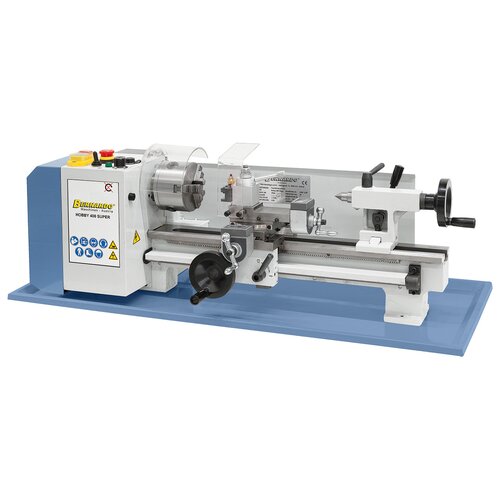

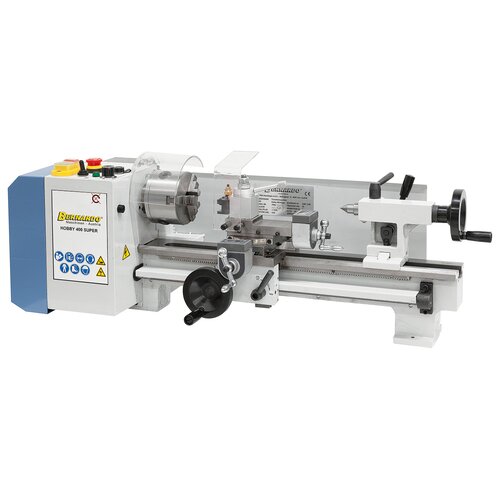

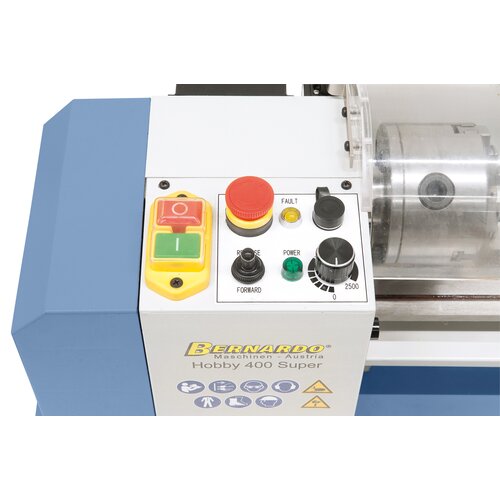

Bench lathe Hobby 400 Super
Art.Nr.: 03-1028BThe Hobby 400 Super table lathe features a brushless DC- motor, allowing smooth operation and a consistent spindle drive. The attractive price-benefit ratio makes this model ideal for model-makers and amateurs.
€1,380.00
incl. 20% VATAvailability
Product Properties
- High-quality bearings ensure high spindle concentricity (better than 0,015 mm)

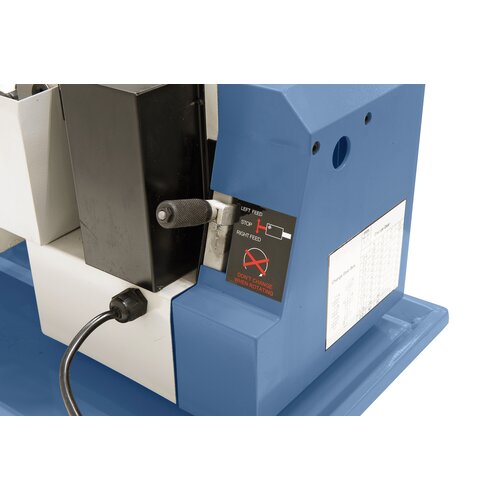

- Serially equipped with leadscrew for thread cutting and automatic longitudinal feed
- Ideal for working on steel, non-ferrous materials and plastics

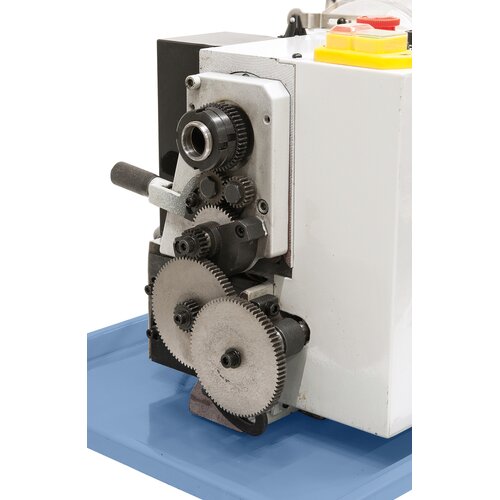

- Change gears in metal execution for metric thread cutting comes standard
- Application range includes: thread cutting, longitudinal, face and internal turning etc.
- DC-Motor allows ideal torque at low speed range
- Spindle bedded with 2 adjustable tapered roller bearings
- Powerful DC-Motor with drive of 500 W
- Only 1 speed range, no adjustment necessary
Product Specifications
|
Distance between centers |
400 mm |
|
Center height |
90 mm |
|
Swing over bed |
180 mm |
|
Swing over cross slide |
110 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
100 - 2500 rpm |
|
Longitudinal feed |
0,1 / 0,2 mm/rev. |
|
Metric thread (10) |
0,4 - 2,0 mm |
|
Travel of tailstock sleeve |
55 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,50 kW / 230 V |
|
Motor power input S6 40% |
0,70 kW / 230 V |
|
Machine dimension (W x D x H)* |
850 x 280 x 300 mm |
|
Weight approx. |
50 kg |

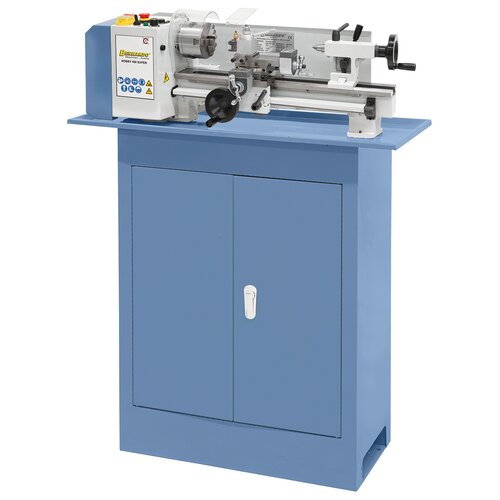

* without stand
Delivery Contents

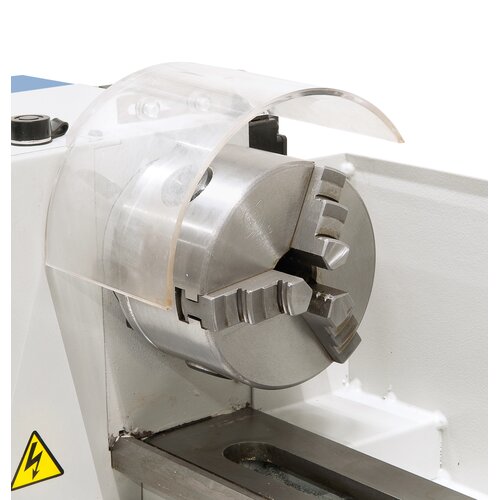

- 3-jaw chuck 100 mm
- Chuck guard
- Quick change tool holder size 5-4 with 4 inserts
- Change gears
- Splash guard
- Dead centre

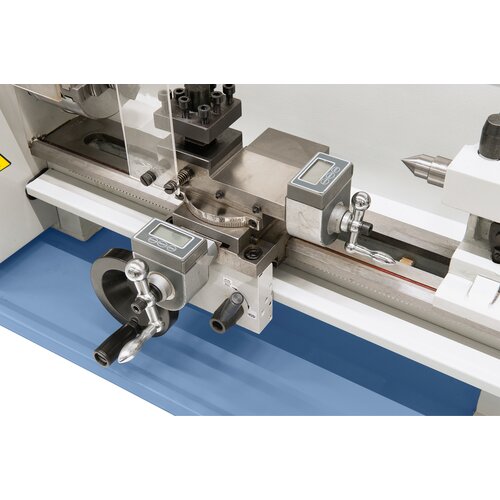

- Digital display for cross slide and top support
- Tools
