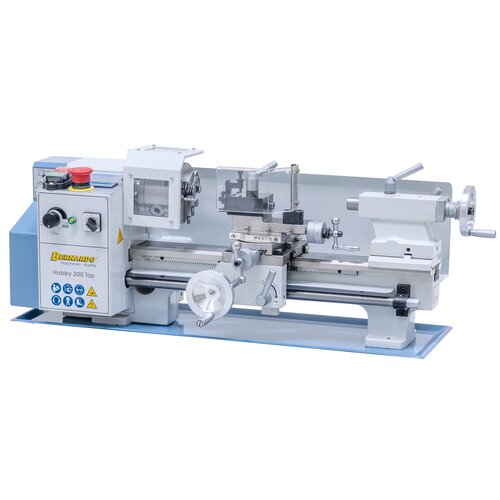

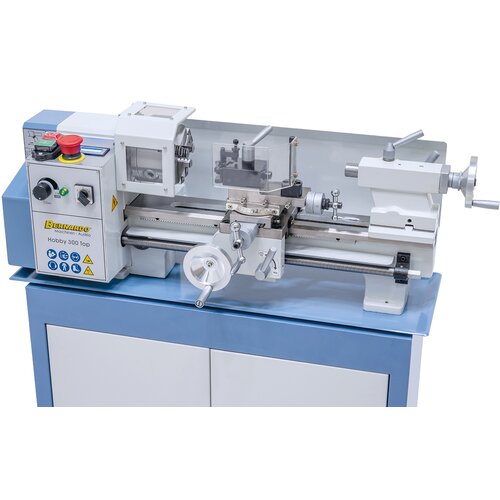

Bench lathe Hobby 300 Top / 230 V
Art.Nr.: 03-10242The Hobby 300 Top table lathe features a brushless DC- motor, allowing smooth operation and a consistent spindle drive. The attractive price-benefit ratio makes this model ideal for model-makers and amateurs.
€1,044.00
incl. 20% VATAvailability
Product Properties
- DC-Motor allows ideal torque at low speed range
- High-quality bearings ensure high spindle concentricity (better than 0,015 mm)
- Ideal for working on steel, non-ferrous materials and plastics
- Serially equipped with leadscrew for thread cutting and automatic longitudinal feed
- Spindle bedded with 2 adjustable tapered roller bearings
- Powerful DC-Motor with drive of 450 W

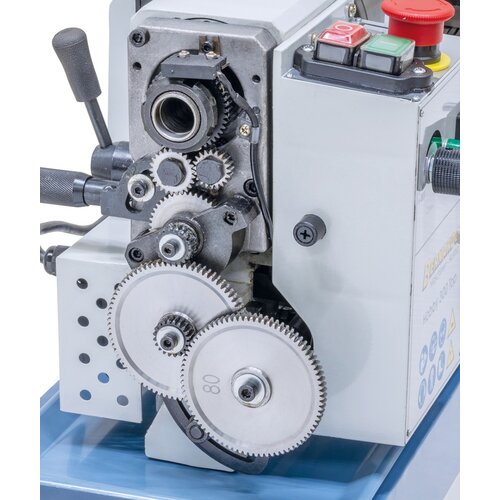

- Change gears in metal execution for metric thread cutting comes standard
- Application range includes: thread cutting, longitudinal, face and internal turning etc.
Product Specifications
|
Distance between centers |
300 mm |
|
Center height |
90 mm |
|
Swing over bed |
180 mm |
|
Swing over cross slide |
110 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
50 - 1100 / 120 - 2500 rpm |
|
Longitudinal feed |
0,1 / 0,2 mm/rev. |
|
Metric thread |
(9) 0,5 - 2,5 mm |
|

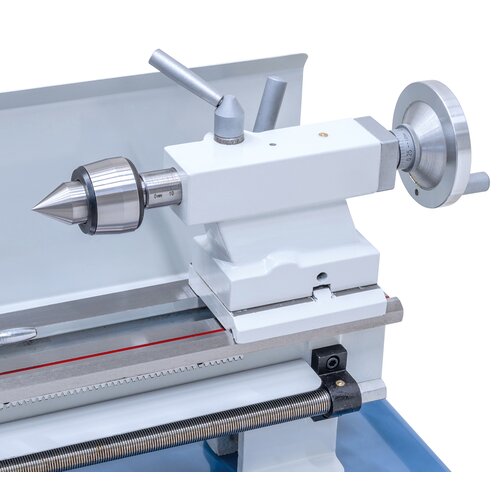

Travel of tailstock sleeve |
60 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,45 kW |
|
Motor power input S6 40% |
0,60 kW |
|
Machine dimension (W x D x H)* |
820 x 310 x 300 mm |
|
Weight approx. |
48 kg |

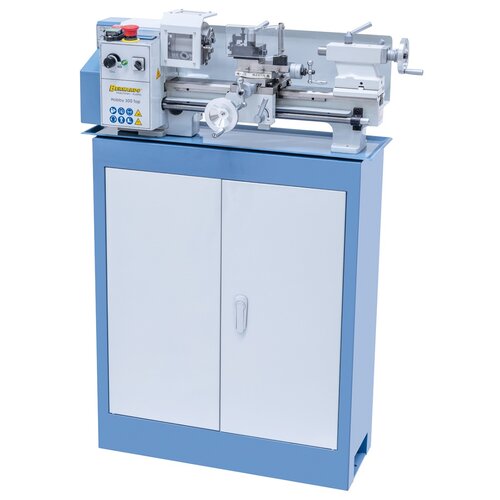

* without stand
Delivery Contents

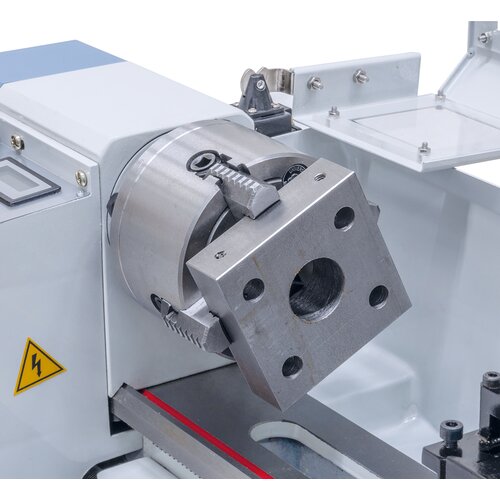

- 3-jaw chuck 100 mm

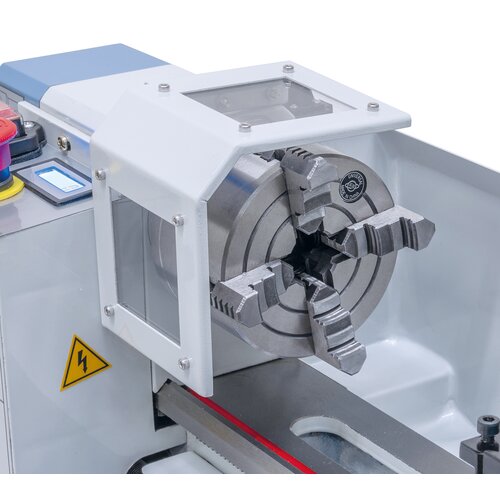

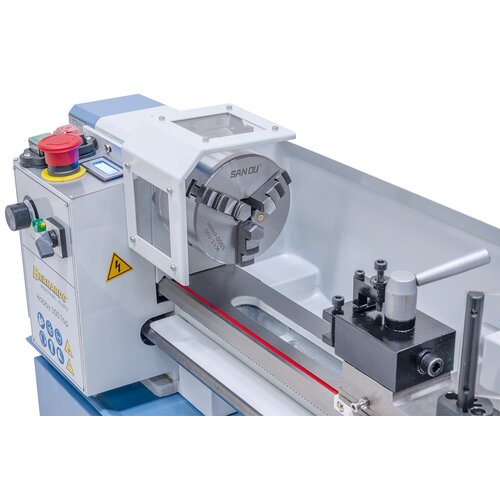

- Chuck guard

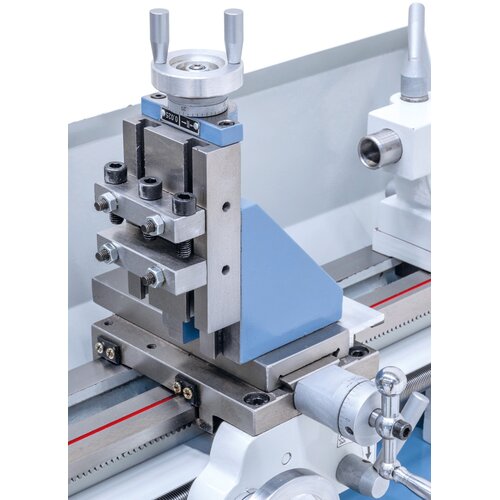

- Quick change tool holder with 4 inserts
- Change gears out of steel
- Splash guard

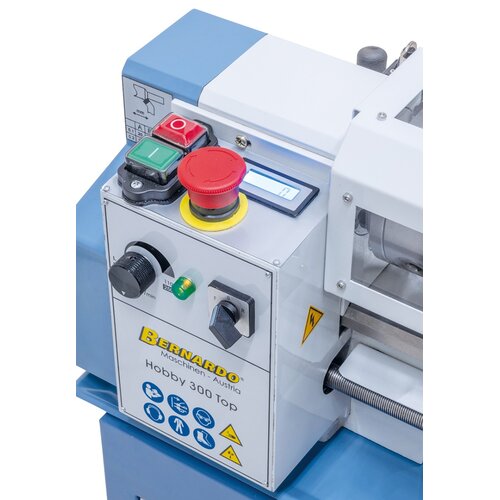

- Digital speed display
- Hand wheels in metal execution
- Dead centre
- Tools
