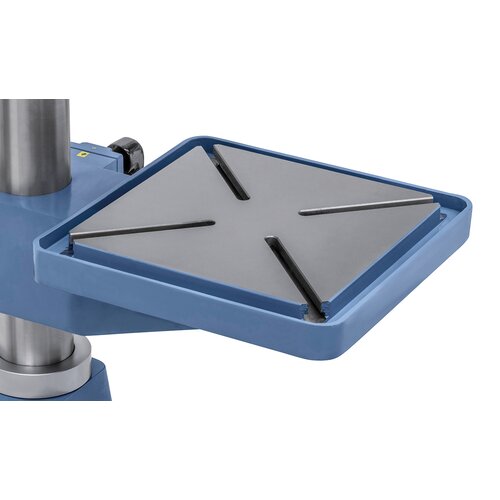

Polished work table features diagonal T-slots.

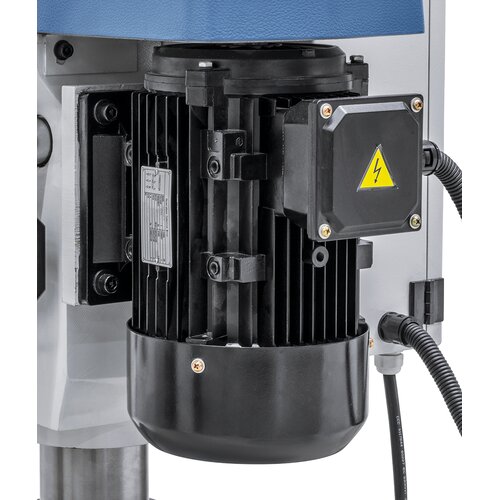

High quality and powerful drive motor.

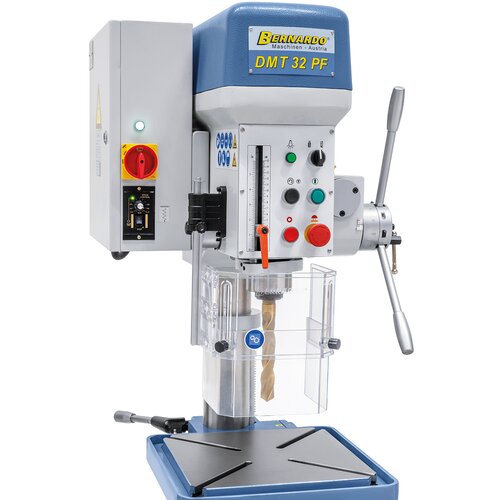

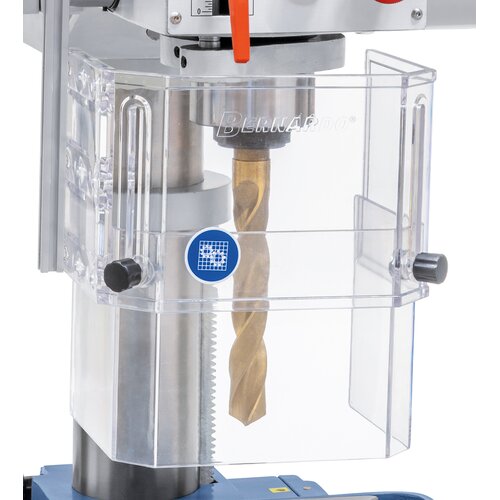

Height adjustable chuck guard and micro switch guarantees high safety standards.

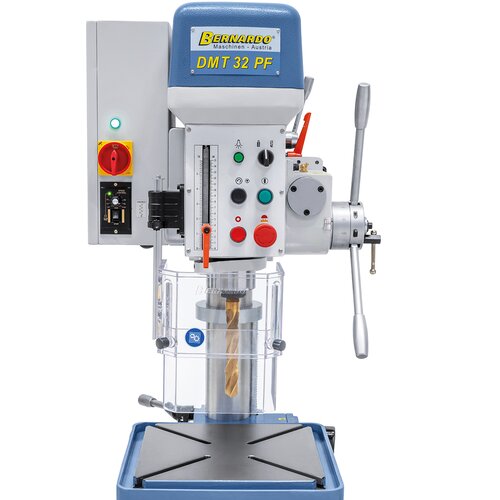

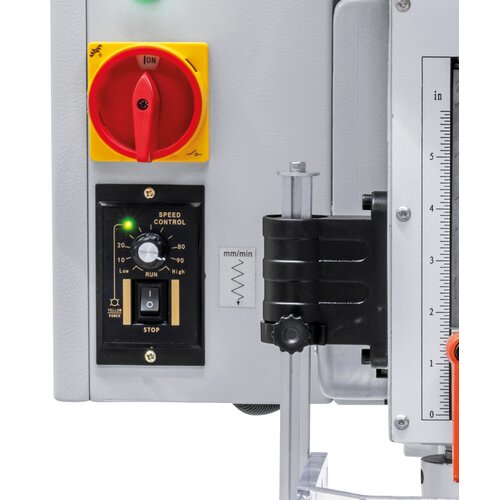

The desired feed speed is set using a potentiometer.

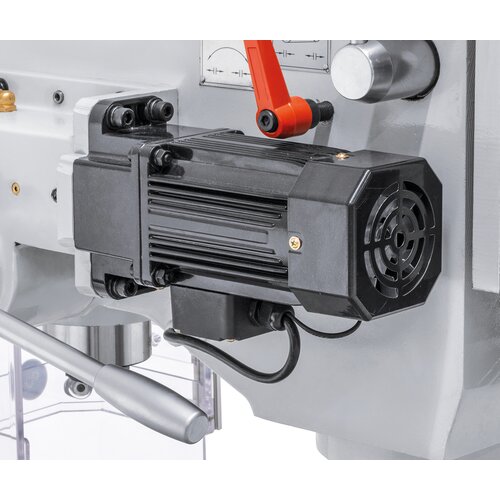

Stepless adjustable spindle feed with separate drive motor

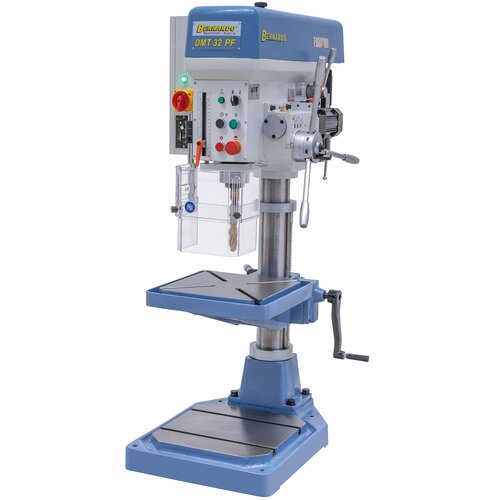

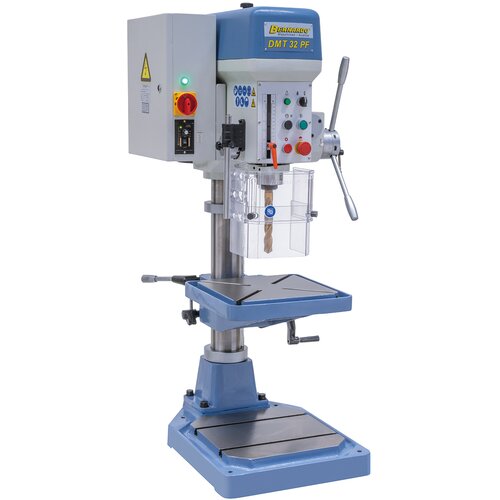

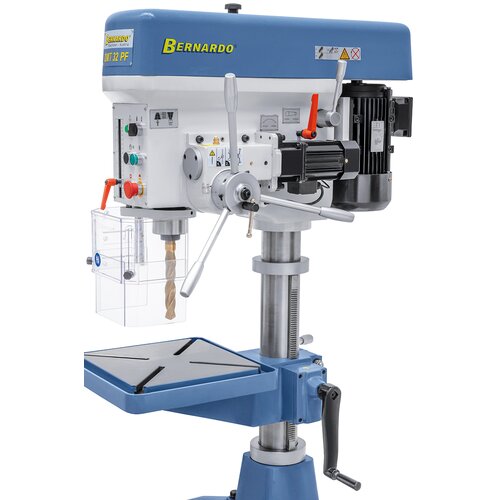

Bench drilling machine DMT 32 PF

Art.Nr.: 01-11867

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The DMT 32 PF bench drilling machine is serially equipped with a thread cutting device and an automatic drill feed.

€2,628.00

incl. 20% VAT

In Stock

Deliverable in 2-3 business days

Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Surface treated work table, height adjustable via gear rack and crank
Polished base plate features T-slots for mounting of large workpieces
Serially with automatic spindle feed

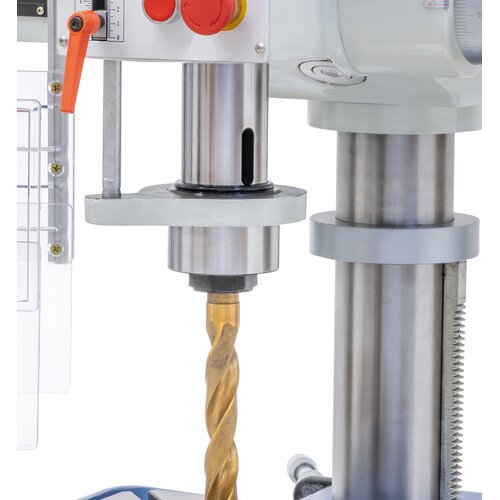

Adjustable drill depth stop allows accurate spindle feed
High concentricity ≤ 0,02 mm measured at spindle
Powerful motor even at continuous operation
Solid and powerful drilling machine for high demands
Including automatic reverse rotation for thread cutting

Drilling capacity max.	32 mm
Thread cutting max.	M 24
Morse taper	MT 3

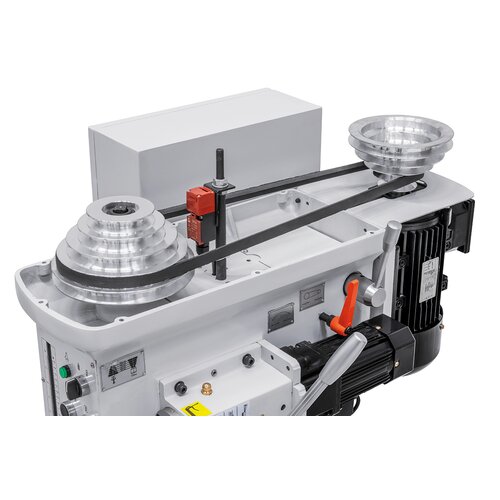

Spindle speed	(5) 320 - 1820 rpm
Distance spindle to column	265 m
Distance spindle to table max.	375 mm
Distance spindle to base	735 mm
Spindle stroke	150 mm
Spindle feed	0 - 100 mm/min
Column diameter	100 mm
Table size / T-slot size	332 x 332 mm / 14 mm
Working surface of base	400 x 380 mm
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (B x T x H)	560 x 920 x 1380 mm
Weight approx	262 kg
