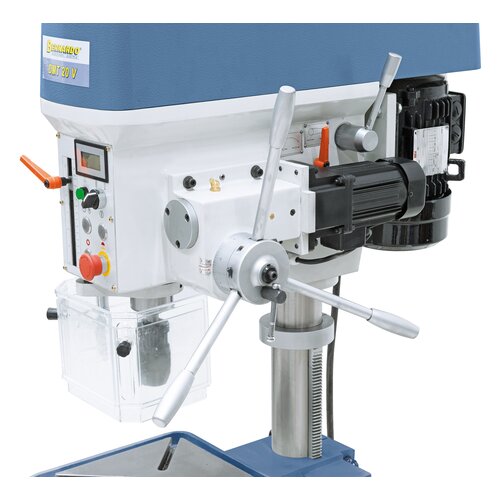

Stepless adjustable spindle feed with separate drive motor
Stepless adjustable spindle feed with separate drive motor

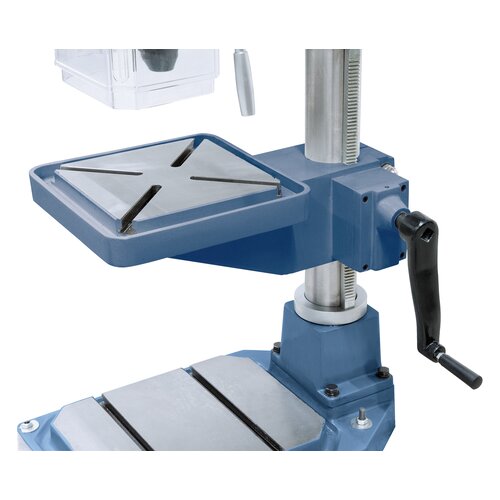

Polished work table features diagonal T-slots.
Polished work table features diagonal T-slots.

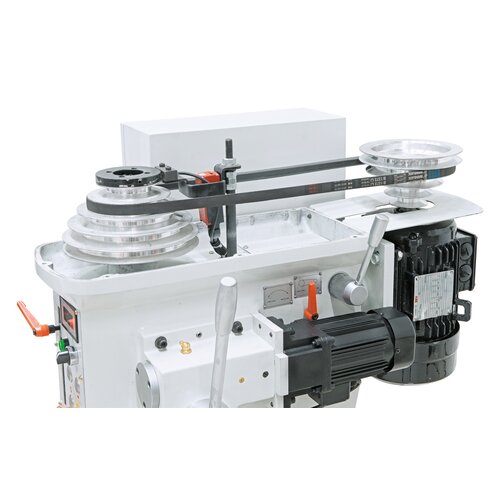

Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.
Stepless adjustable spindle feed with separate drive motor
Polished work table features diagonal T-slots.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allow for most efficient transmission.

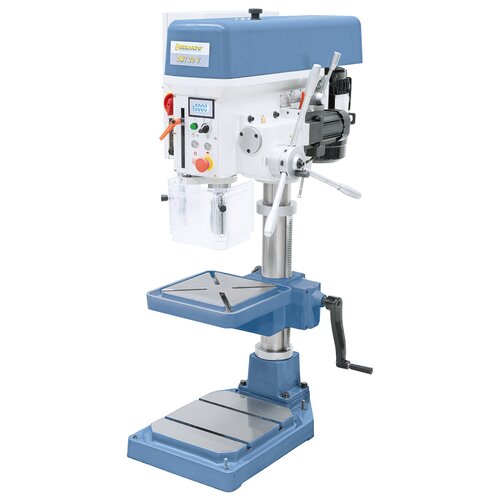

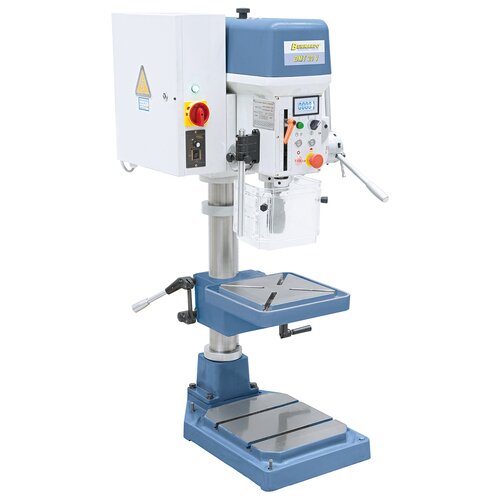

Bench drilling machine DMT 20 V

Art.Nr.: 01-1187
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The table drilling machine DMT 20 V offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.

€2,268.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Protective cover in accordance to CE standards, adjustable to various drill bit sizes
  • Surface treated work table, height adjustable via gear rack and crank
  • Polished base plate features T-slots for mounting of large workpieces
  • Serially with automatic spindle feed
  • Adjustable drill depth stop allows accurate spindle feed
  • High concentricity ≤ 0,02 mm measured at spindle
  • Powerful motor even at continuous operation
  • Solid and powerful drilling machine for high demands
  • Including automatic reverse rotation for thread cutting

Product Specifications

Drilling capacity max.

20 mm

Thread cutting max.

M16

Morse taper

MT 2

Spindle speeds

(5) 320 - 1820 rpm

Distance spindle to column

240 mm

Distance spindle to table max.

360 mm

Distance spindle to base

680 mm

Spindle stroke

135 mm

Spindle feed

0 - 110 mm/min

Column diameter

85 mm

Table size / T-slot size

252 x 252 mm / 14 mm

Working surface of base

367 x 305 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,5 kW / 400 V

Machine dimension (W x D x H)

470 x 880 x 1270 mm

Weight approx.

214 kg

Delivery Contents

  • Drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Automatic spindle feed

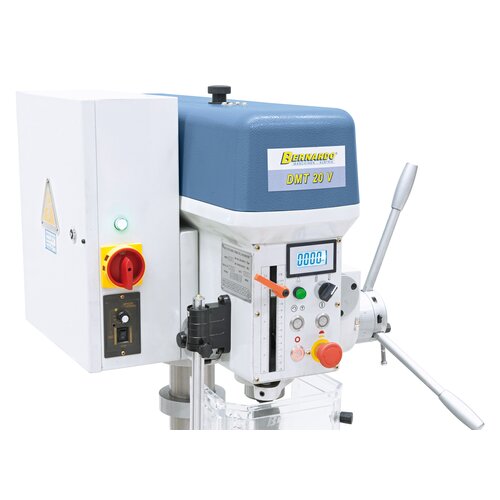

  • Digital readout of speeds
  • Thread cutting device
  • LED-machine light
  • Height adjustable protective cover
