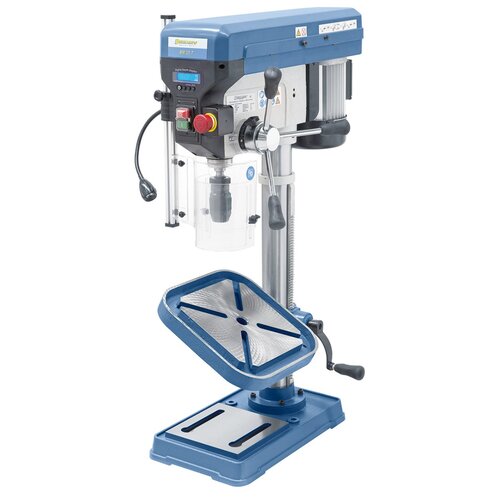

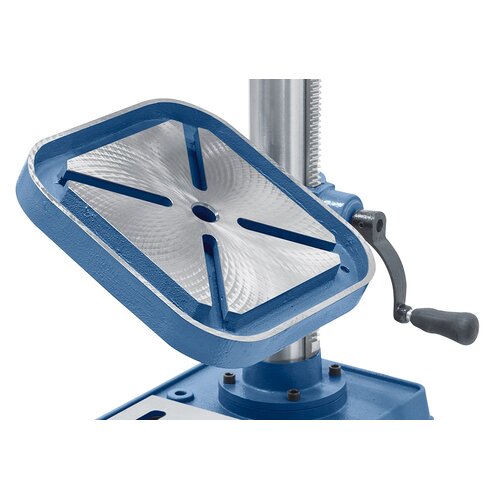

Drill table tilts -45° to +45° and swivels 360° around the column.
Drill table tilts -45° to +45° and swivels 360° around the column.

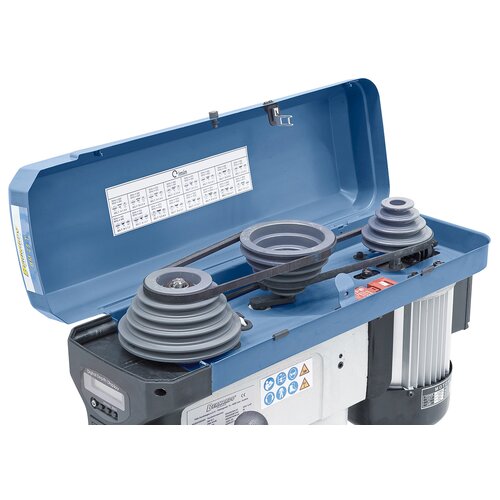

Balanced drive pulley guarantee smooth running
Balanced drive pulley guarantee smooth running

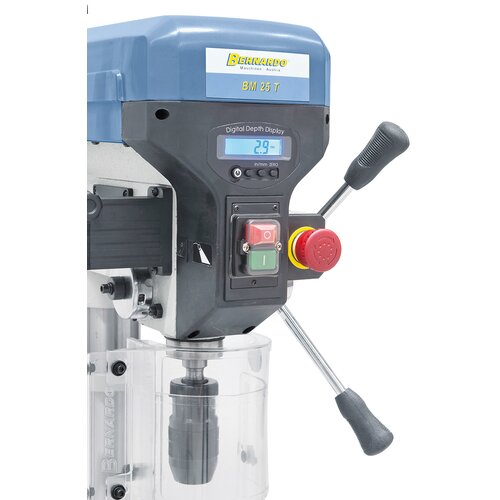

Digital display for drill depth increases comfort and convenience.
Digital display for drill depth increases comfort and convenience.
Drill table tilts -45° to +45° and swivels 360° around the column.
Balanced drive pulley guarantee smooth running
Digital display for drill depth increases comfort and convenience.

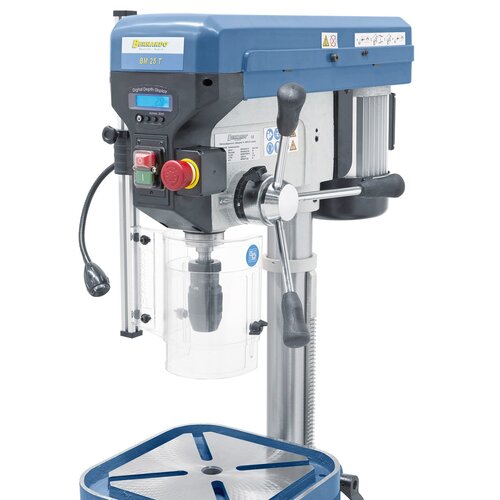

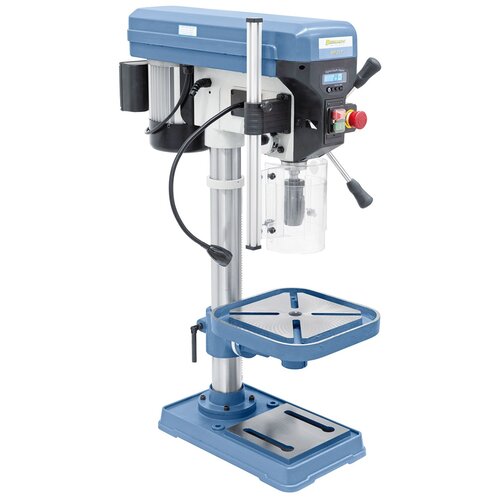

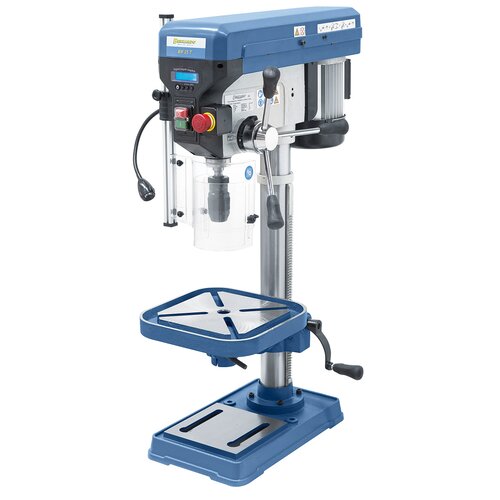

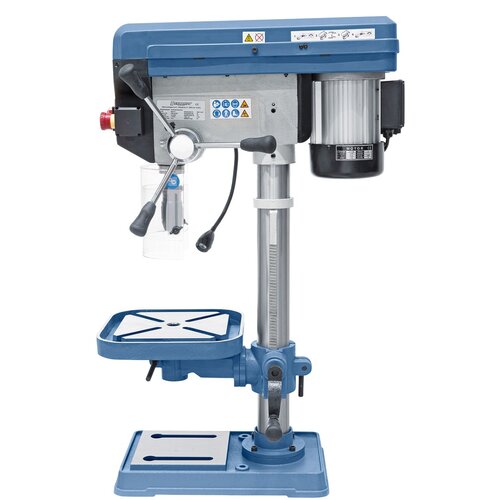

Bench drilling machine BM 25 T / 230 V

Art.Nr.: 01-1119

The solid drilling maschine BM 25 T with V-belt drive feature high torque at low speed. This model is predominantly used by craftsmen or training workshops.

€658.80

incl. 20% VAT

Availability

Deliverable Soon
Deliverable by Jul 6, 2025

Product Properties

  • Digital display for spindle stroke and LED-lamp come standard
  • Grey cast iron pulleys ensure smooth run
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), gear rack allows height adjustment
  • High performance aluminium motor in accordance with the IP 54 standard
  • Complete with high-quality keyless drill chuck
  • Polished machine base features T-slots
  • Clearly arranged handles ensure high comfort when working

Product Specifications

Drilling capacity steel

25 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed

(16) 220 - 2840 rpm

Distance spindle to column

180 mm

Drilling table tiltable

-45° to +45°

Distance spindle to table max.

415 mm

Distance spindle to base

605 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

305 x 305 mm / 16 mm

Working surface of base

205 x 205 mm

Motor power output S1 100%

0,75 kW / 230 V

Motor power input S6 40%

1,1 kW / 230 V

Machine dimension (W x D x H)

400 x 630 x 990 mm

Weight approx.

57 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • LED machine light
  • T-slot nuts
  • Height adjustable protective cover
  • Tools
