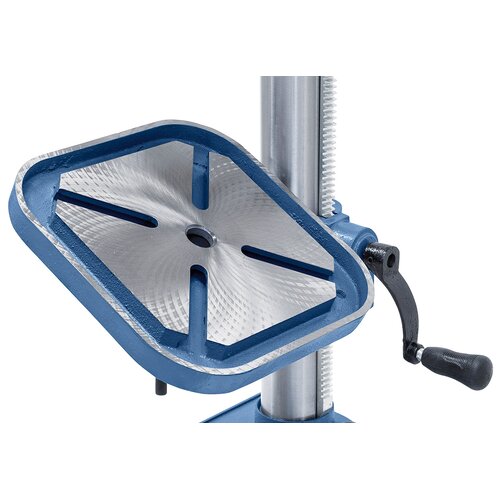

Drill table tilts -45° to +45° and swivels 360° around the column
Drill table tilts -45° to +45° and swivels 360° around the column

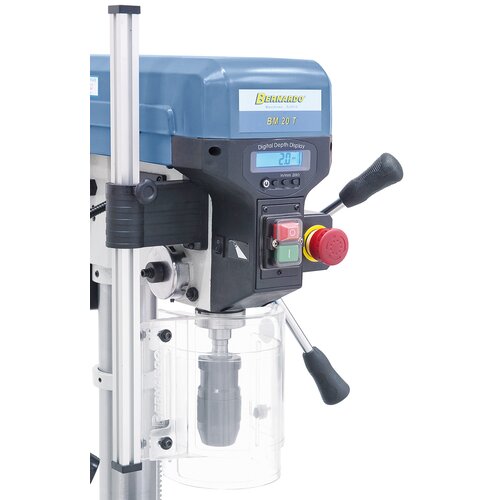

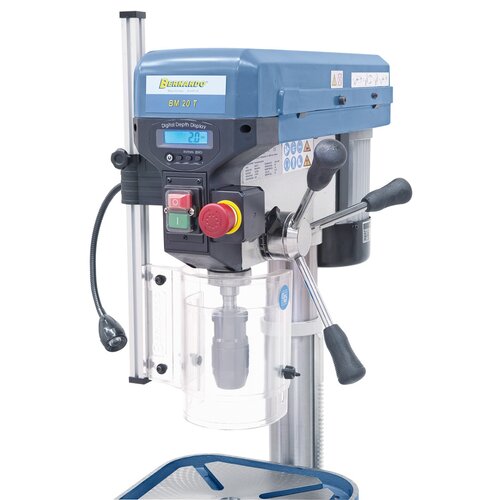

Digital display for drill depth increases comfort and convenience
Digital display for drill depth increases comfort and convenience

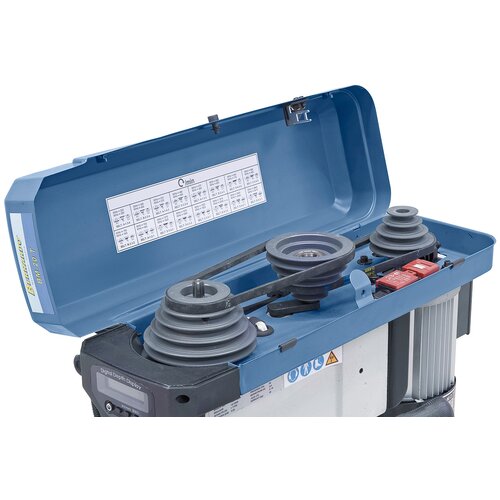

Balanced drive pulley guarantee smooth running
Balanced drive pulley guarantee smooth running
Drill table tilts -45° to +45° and swivels 360° around the column
Digital display for drill depth increases comfort and convenience
Balanced drive pulley guarantee smooth running

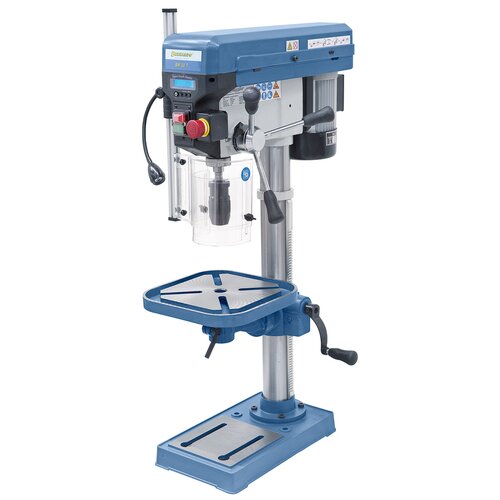

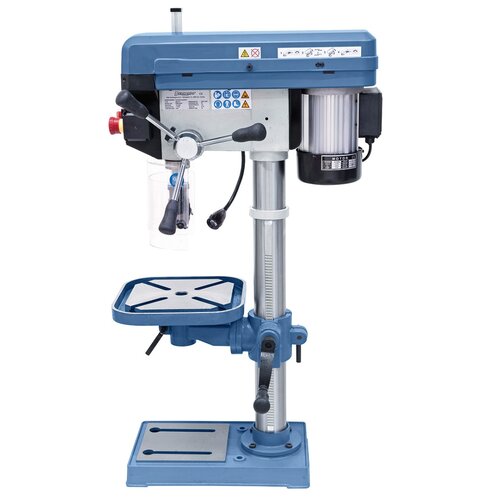

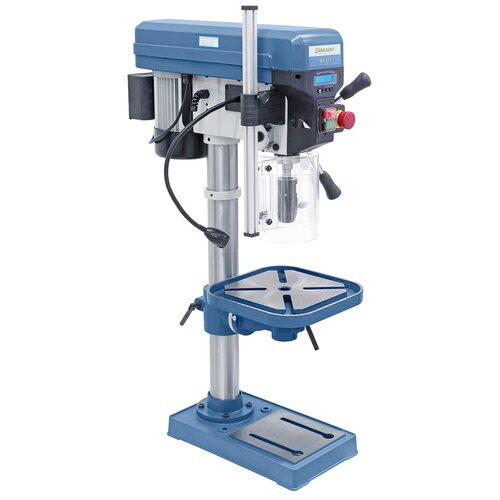

Bench drilling machine BM 20 T / 230 V

Art.Nr.: 01-1116
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The solid drilling maschine BM 20 T with V-belt drive feature high torque at low speed. This model is predominantly used by craftsmen or training workshops.

€612.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Digital display for spindle stroke and LED-lamp come standard
  • Grey cast iron pulleys ensure smooth run
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), gear rack allows height adjustment
  • High performance aluminium motor in accordance with the IP 54 standard
  • Complete with high-quality keyless drill chuck
  • Polished machine base features T-slots
  • Clearly arranged handles ensure high comfort when working

Product Specifications

Drilling capacity steel

20 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed

(16) 220 - 2840 rpm

Distance spindle to column

160 mm

Drilling table tiltable

-45° to +45°

Distance spindle to table max.

440 mm

Distance spindle to base

630 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

285 x 285 mm / 16 mm

Working surface of base

200 x 190 mm

Motor power output S1 100%

0,55 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)

400 x 590 x 980 mm

Weight approx.

45 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • LED machine light
  • T-slot nuts
  • Height adjustable protective cover
  • Tools
