Dust hood can easily be removed.
Continuous face grinding surface allows ideal grinding of long workpieces.
Complete with 2 belt speeds.
Tiltable protective cover increases grind surface.
Large contact and drive wheel
Includes quick clamping system for fast belt change.
Contact disc 70° - 74° Shore A, ideal for roughing.
Separate stop switch and big dimensioned protective glass for increased safety.
Comes complete with dust extraction outlet (diameter 100 mm).

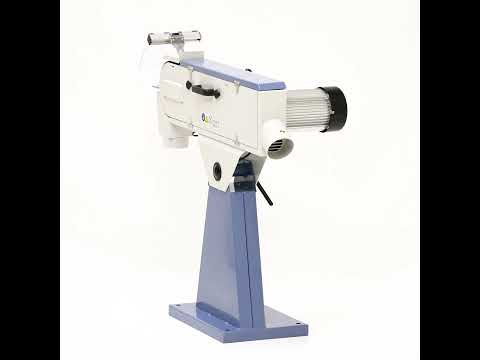

Belt sanding machine MS 75 x 2000 S-2 / 400 V
Art.Nr.: 05-1247The MS 75 x 2000 S-2 is a very economical and cost effective belt sanding machines. The powerful motor and the robust construction make this model ideal for professional workshops and in small series production.
€918.00
incl. 20% VATAvailability
Deliverable Soon
Deliverable by Jul 6, 2025
Product Properties
- Comes complete with 2 speed settings, optimal for grinding of stainless steel
- Universal use for grinding of edges, surfaces and round grinding
- Graphite coating on grinding surface increases sliding capacity of sanding belt
- Spring loaded device ensures consistent belt tension
- User-friendly belt change, fast and straightforward
- High belt speed guarantees brilliant sanding performance
- Quick adjustment for horizontal and inclined position
- Universal use for trade and industry
- Large face grinding surface with protective cover
- Includes fine adjustment for parallel belt run
Product Specifications
|
Belt dimensions |
75 x 2000 mm |
|
Belt speed |
14,5 / 29 m/sec. |
|
Contact disc Ø x W |
200 / 80 mm |
|
Belt sanding table |
460 x 75 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1,5 / 2,2 kW |
|
Motor power input S6 40% |
2,2 / 3,0 kW |
|
Voltage |
400 V |
|
Length |
1080 mm |
|
Width |
440 mm |
|
Height |
1000 mm |
|
Weight approx. |
67 kg |
Delivery Contents
- Sanding belt grit 80
- Folding protective glass
- Sanding and supporting table
- Workpiece fence
- Dust extraction outlet
- Motor protective switch
- Rubber coated grinding roller
- Graphite coating
- Stand
- Separate stop switch
