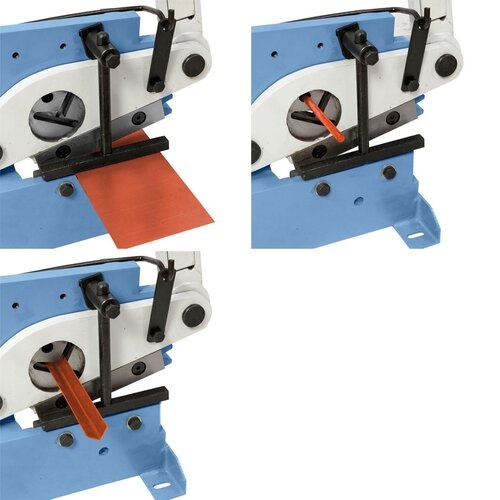

Examples of use
High-quality cutting tools made of tool steel ensure a clean cut.

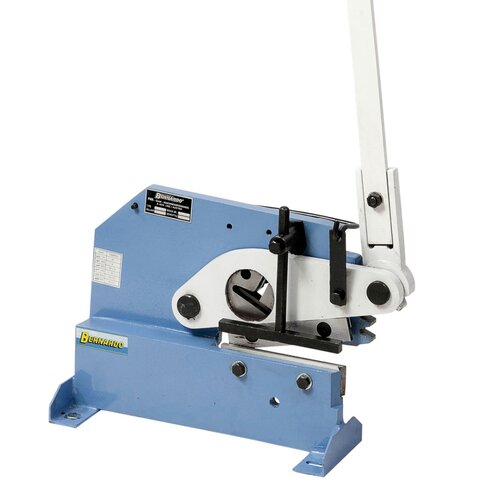

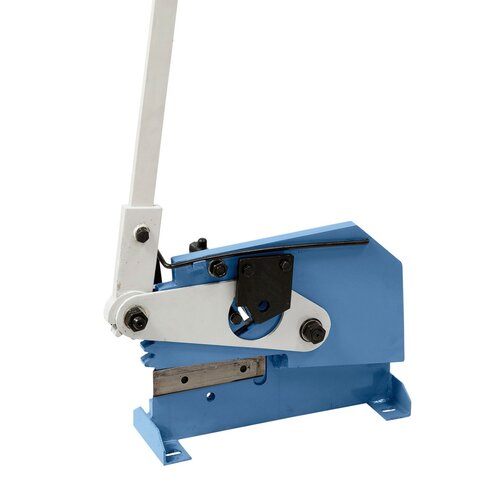

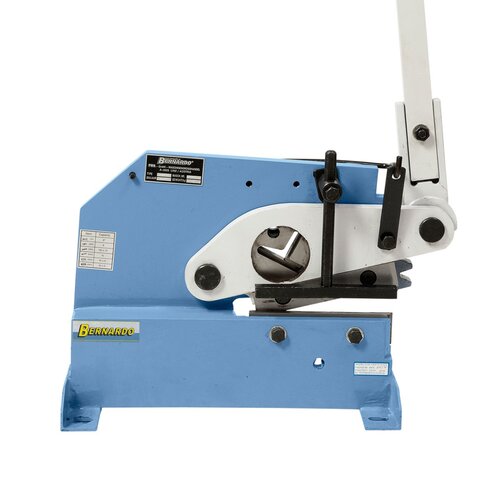

Bar and section shear PBS 16
Art.Nr.: 06-1590€554.40
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For shearing of sheet metal, flat, round and square steel, L- und T-Profilen
- Ideal universal scissors for craft and repair operations, but also suitable for schools and training workshops
- Ergonomically favorable machine body made of sturdy steel plates, incl. bores for stationary attachment

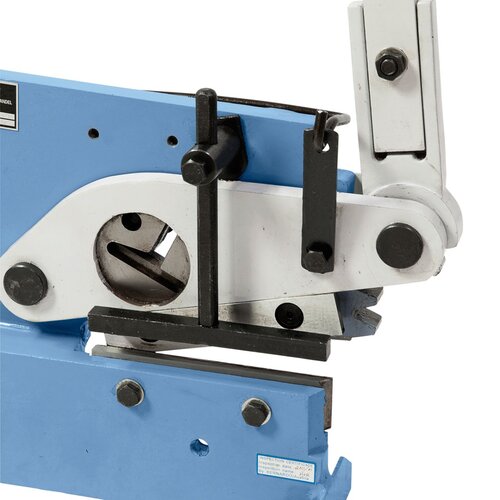

- Height adjustable downholder prevents twisting of the sheet during cutting
- Good view of the entire knife length, thus ensuring perfect work
- Knife made of tool steel, hardened and ground
- Power-saving cutting due to the favorable cutting geometry
Product Specifications
| Cutting length max. | 170 mm |
| Sheet steel max.* | 6 mm |
| Round material | 16 mm |
| Flat steel | 100 x 8 mm |
| L-steel | 40 x 6 mm |
| T-steel | 40 x 6 mm |
| Knife length | 200 mm |
| Machine dimension (W x D x H) | 160 x 530 x 1540** mm |
| Weight approx. | 44 kg |
| * Material strength 400 N/mm², not over the entire length | |
| ** incl. lever | |
