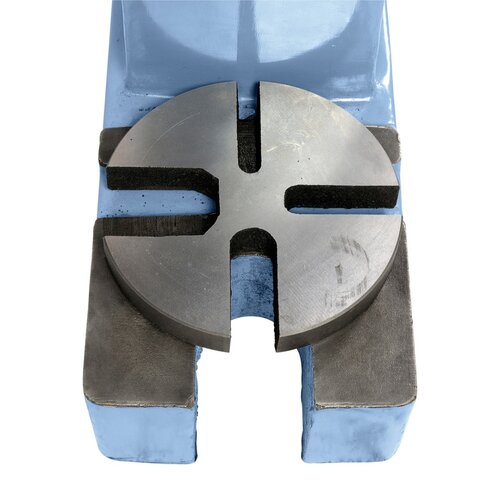

4-positionable base plate

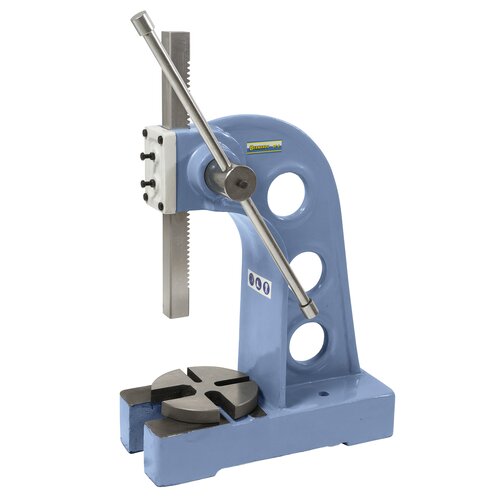

Arbor press DP 5
Art.Nr.: 06-1015€1,000.80
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For straightening, pressing, bending, mounting of gears, washers etc.
- The basic body of the model DP 5 is made of high quality gray cast iron
- For pressing in and out of bearings, bushes, ...
- Including mounting holes, ideal for mounting on a workbench
- Suitable for bushing, straightening, bending, broaching, ...
- Variable adjustable lever handle, depending on the required effort
- Ideal for repair shops and the general workshop area
Product Specifications
| Workpiece height max. | 445 mm |
| Distance spindle to column | 215 mm |
| Arbor dimensions | 50 x 50 x 645 mm |
| Turntable Ø | 257 mm |
| Turntable openings | 1 x 19 mm / 1 x 28 mm / 1 x 38 mm / 1 x 68 mm |
| Hand force (F1) | 60 kg / 588 N |
| Lever handle (H) | 800 mm |
| Force effect (F2) | 1560 kg / 15298 N |
| Machine dimension (W x D x H)* | 370 x 550 x 810 mm |
| Weight approx. | 160 kg |
* only machine body
