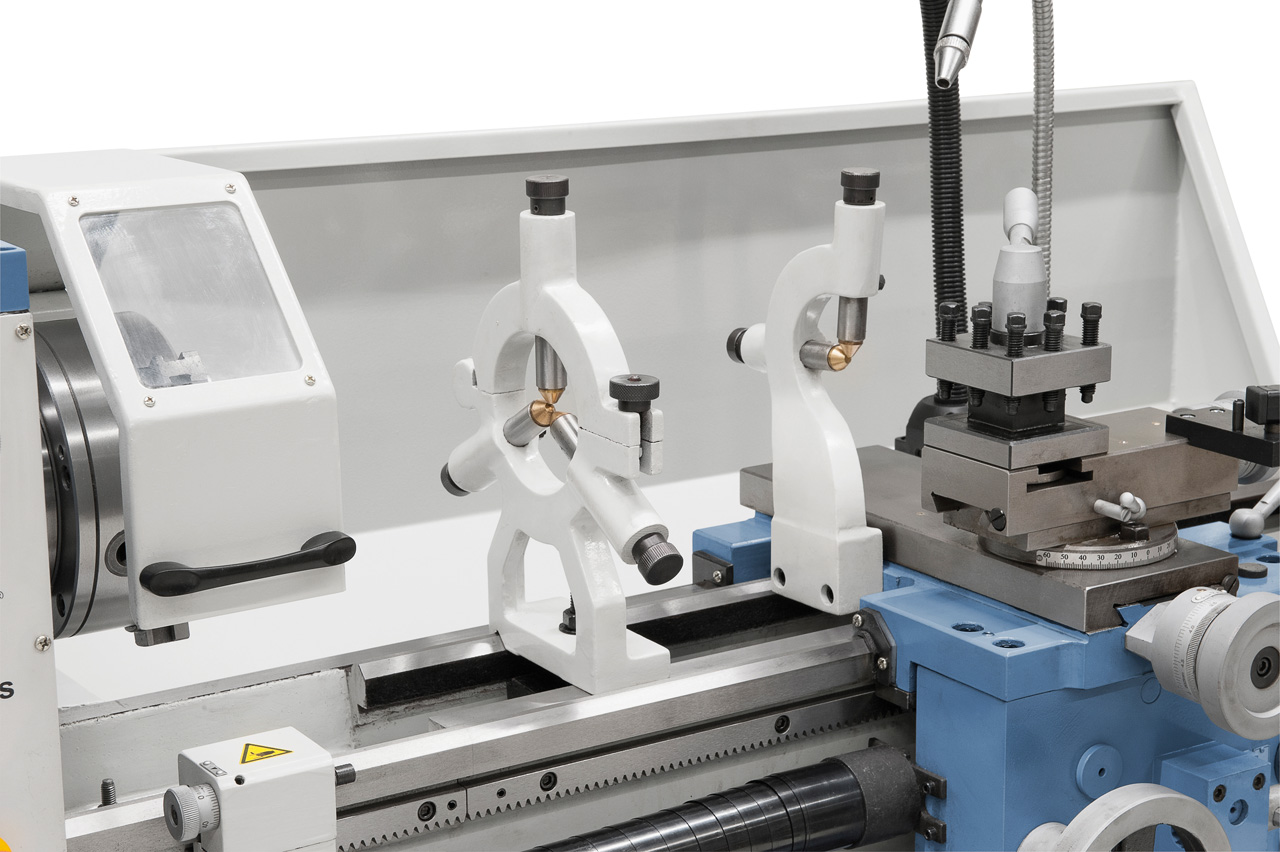

Pentru stabilizarea pieselor de prelucrat lungi este echipat în fabricaţie de serie cu o linetă fixă (imobilă) respectiv antrenată (mobilă)

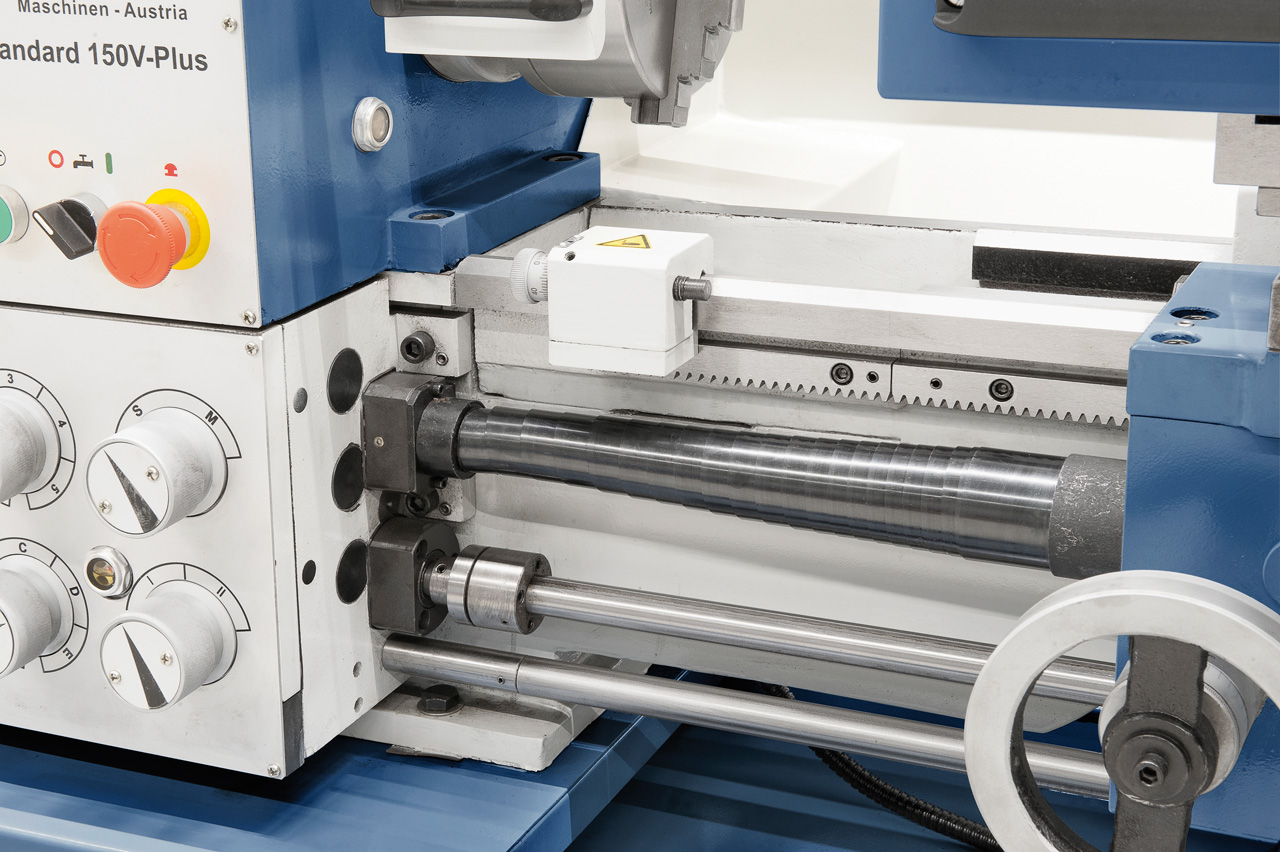

Opritor longitudinal micrometru şi cuplaj de fricţiune cuprinse în completul de livrare

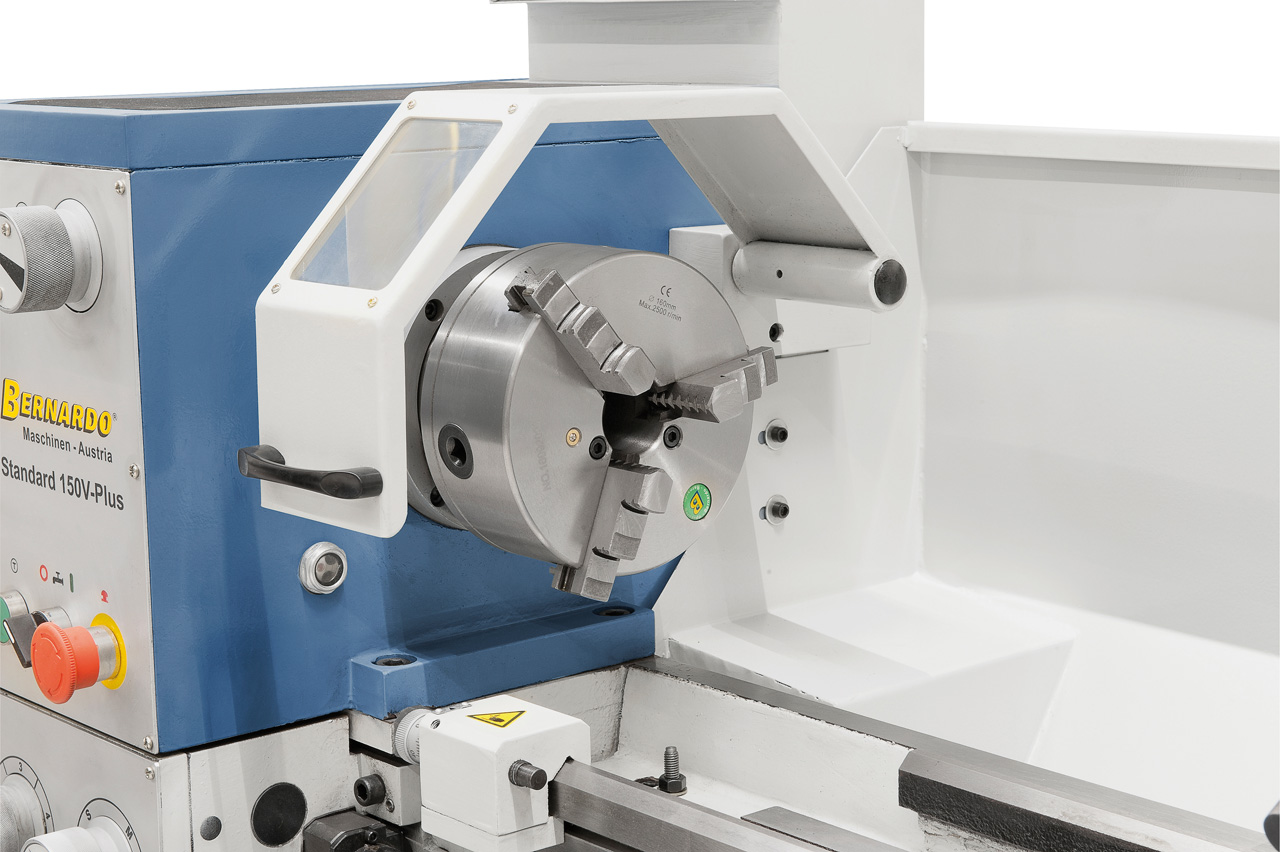

Avantajul mandrinei cu bacuri Bernardo DK11-160 mm: livrabilă cu bacuri monobloc, de bază, întoarse şi de poziţionare

Con de centrare diam. 100 mm, ideal pentru prindere ţevilor şi corpurilor tubulare (opţional)

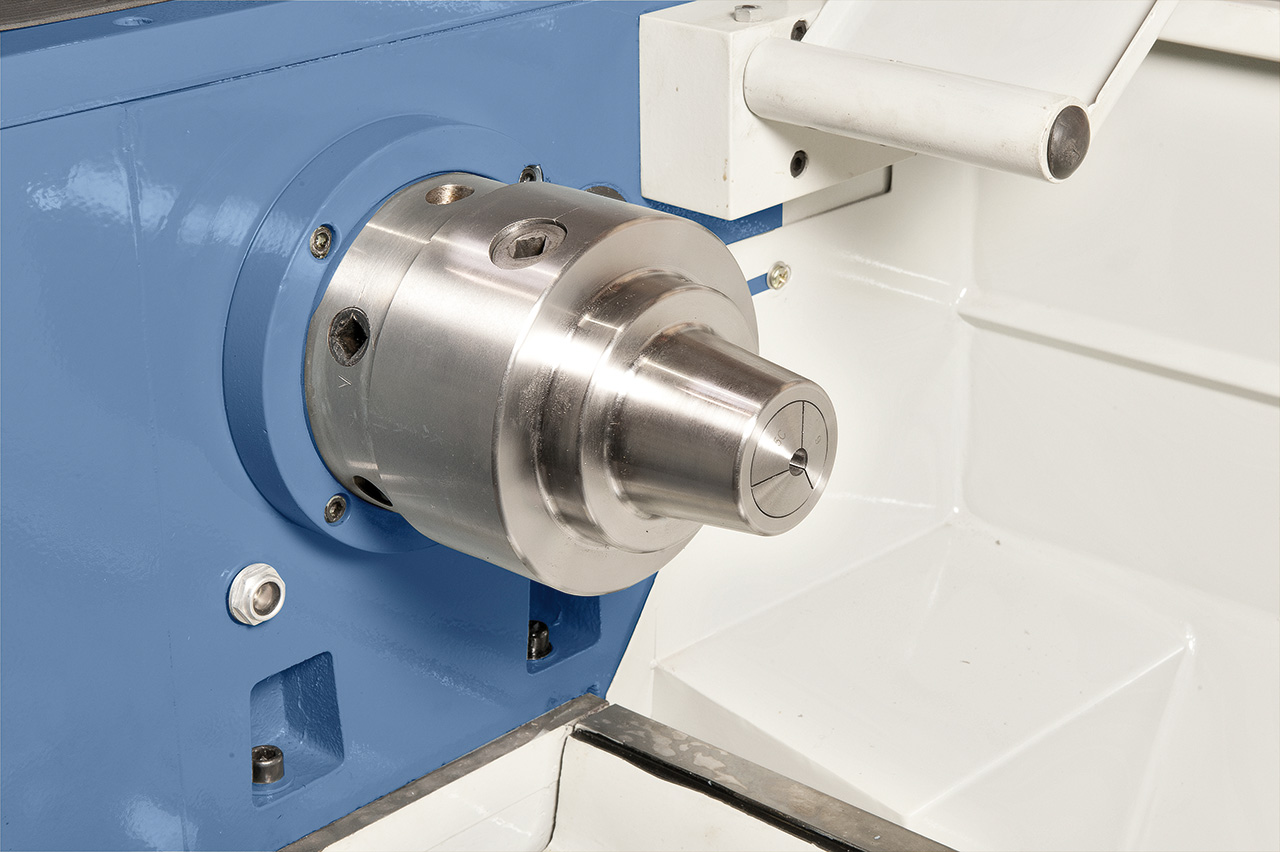

Livrabil opţional: mandrină cleşti de prindere 5C, domeniu de prindere 3 - 26 mm

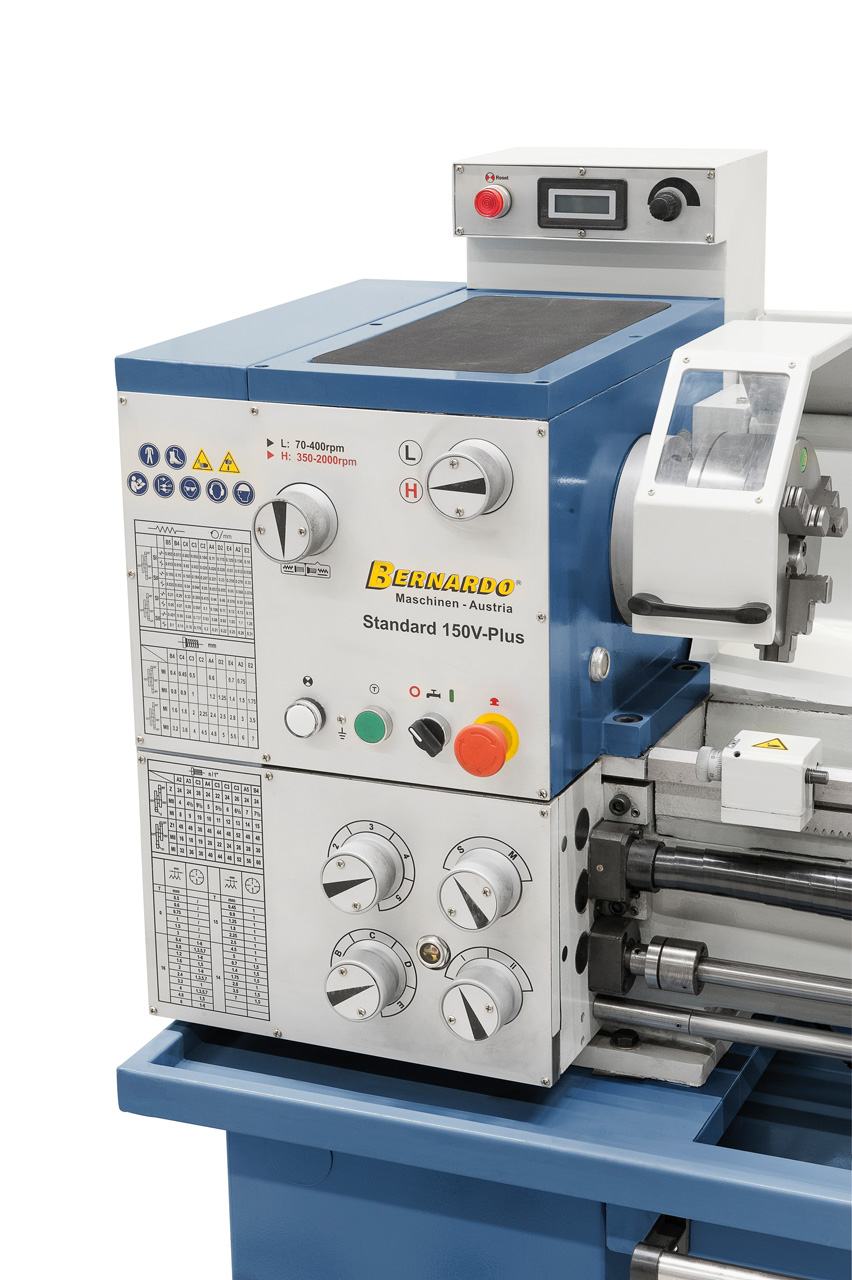

Operare simplă, toate elementele de comutare şi operare montate vizibil la capul transmisiei. Transmisie avans comutabil uşor şi precis, ce funcţionează în baie de ulei

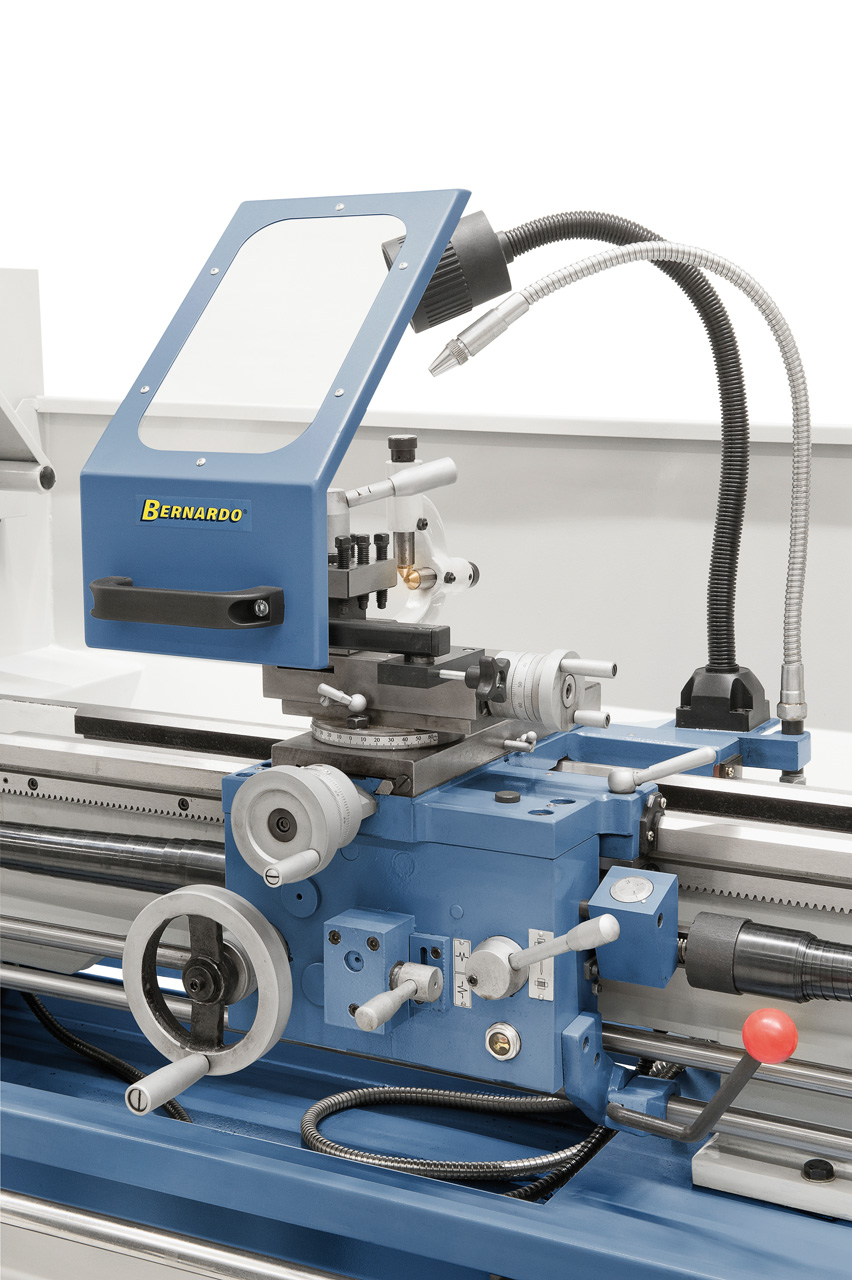

Sanie de precizie şi cu mobilitate cu suport superior cu suport din oţel cu patru compartimente, roţi de mână cu scalare metrică de fineţe, reglabilă

Arbore principal călit, precizie de concentricitate a înaltă capului axului (≤ 0,015 mm) datorită rulmentului cu bile de precizie

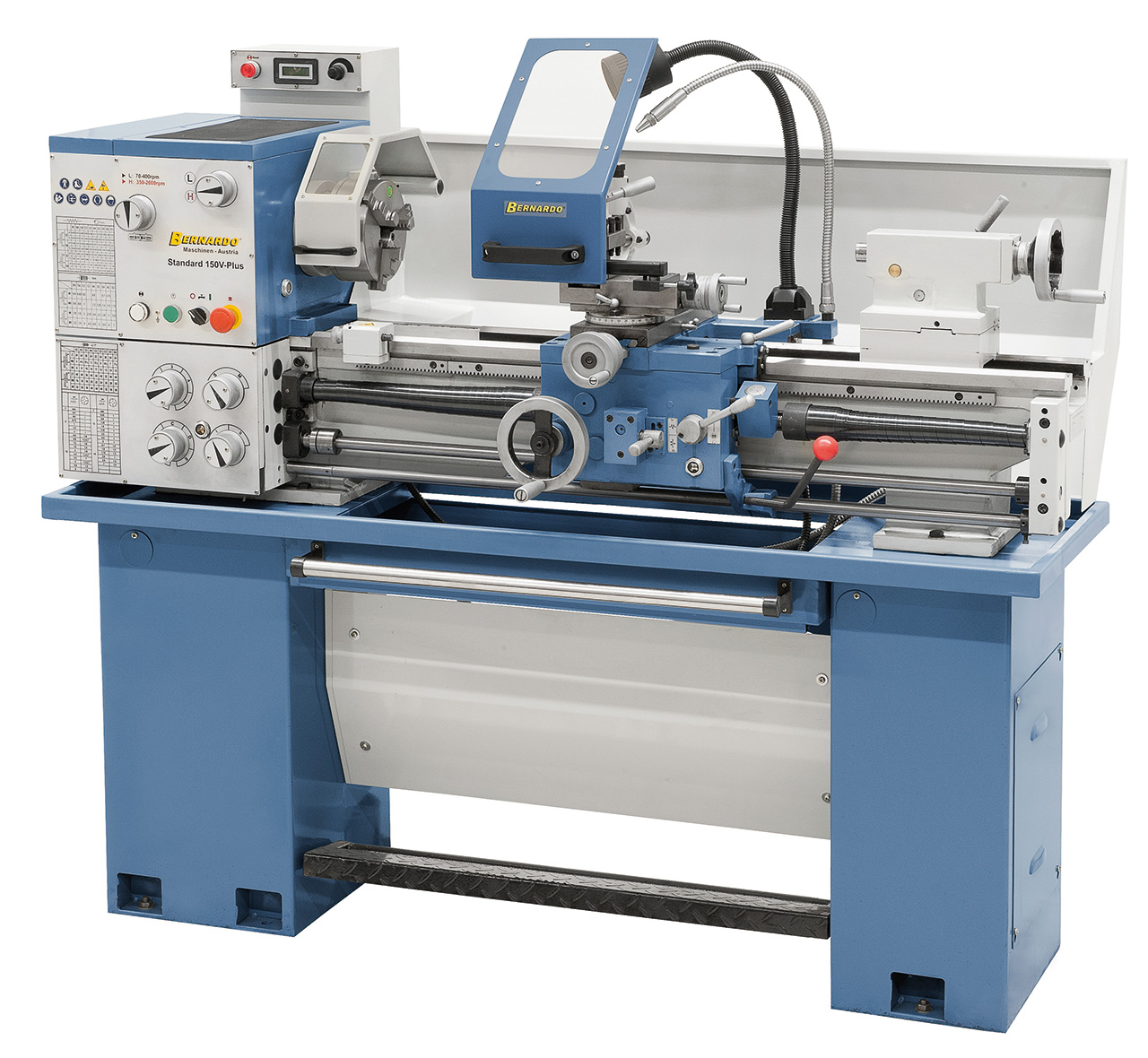

Strung de precizie Standard 150 V-Plus *

product.detail.art-no: 03-1257

Wishlist Comparison List

The turning lathe Standard 150 V-Plus exceeds all expectations due to the stable construction and easy handling. This model includes a wide range of standard equipment which features an optimal performance with low investment and makes it popular for craftsmen. Additionally this model is equipped with a variable speed adjustment for ideal setting of the cutting speed.

5.940,00 EUR

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

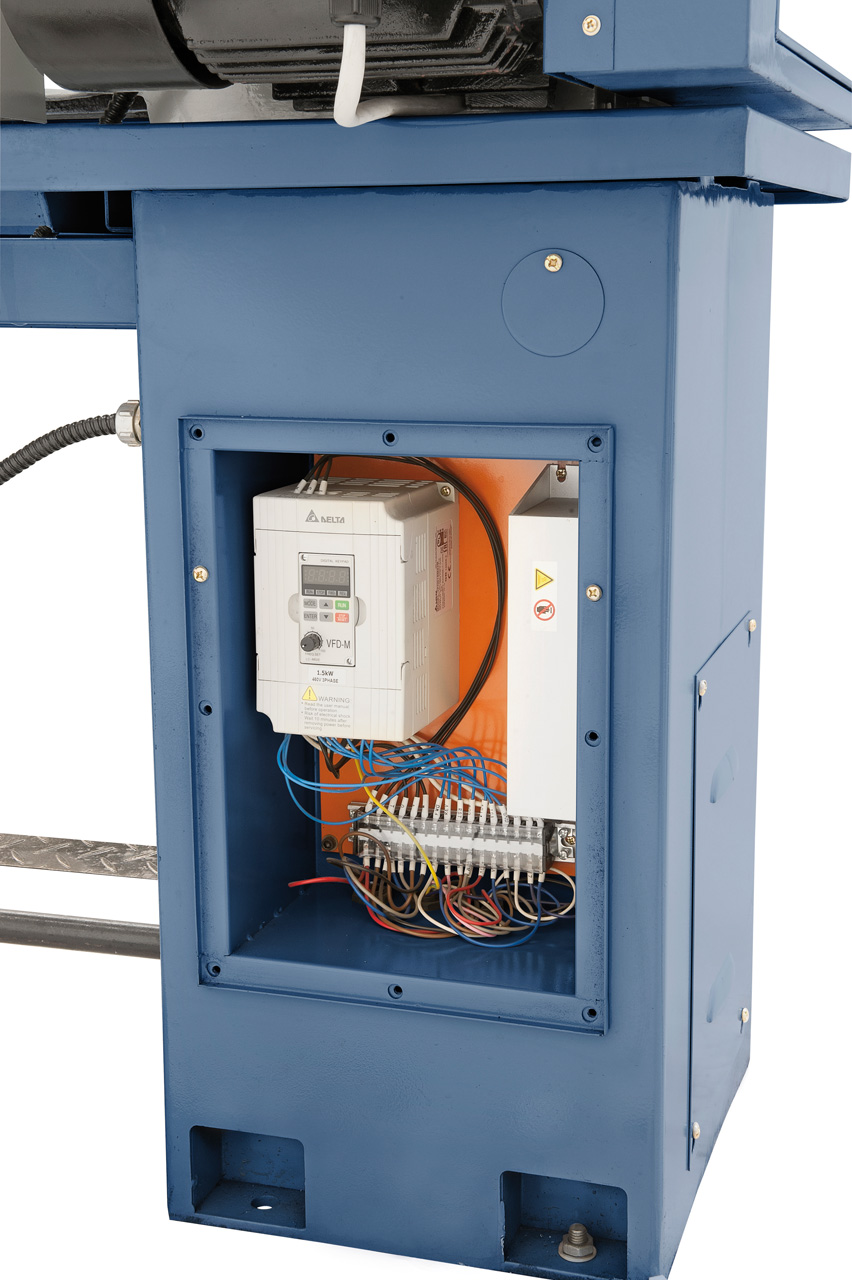

This model comes with frequency converter for variable speed setting
Stepless speed adjustment, set speed can be read on digital display
40 mm spindle bore to machine large shaft diameters comes standard
Removable bridge allows machining of workpieces with a big diameter
Extractable chip tray minimizes space requirements

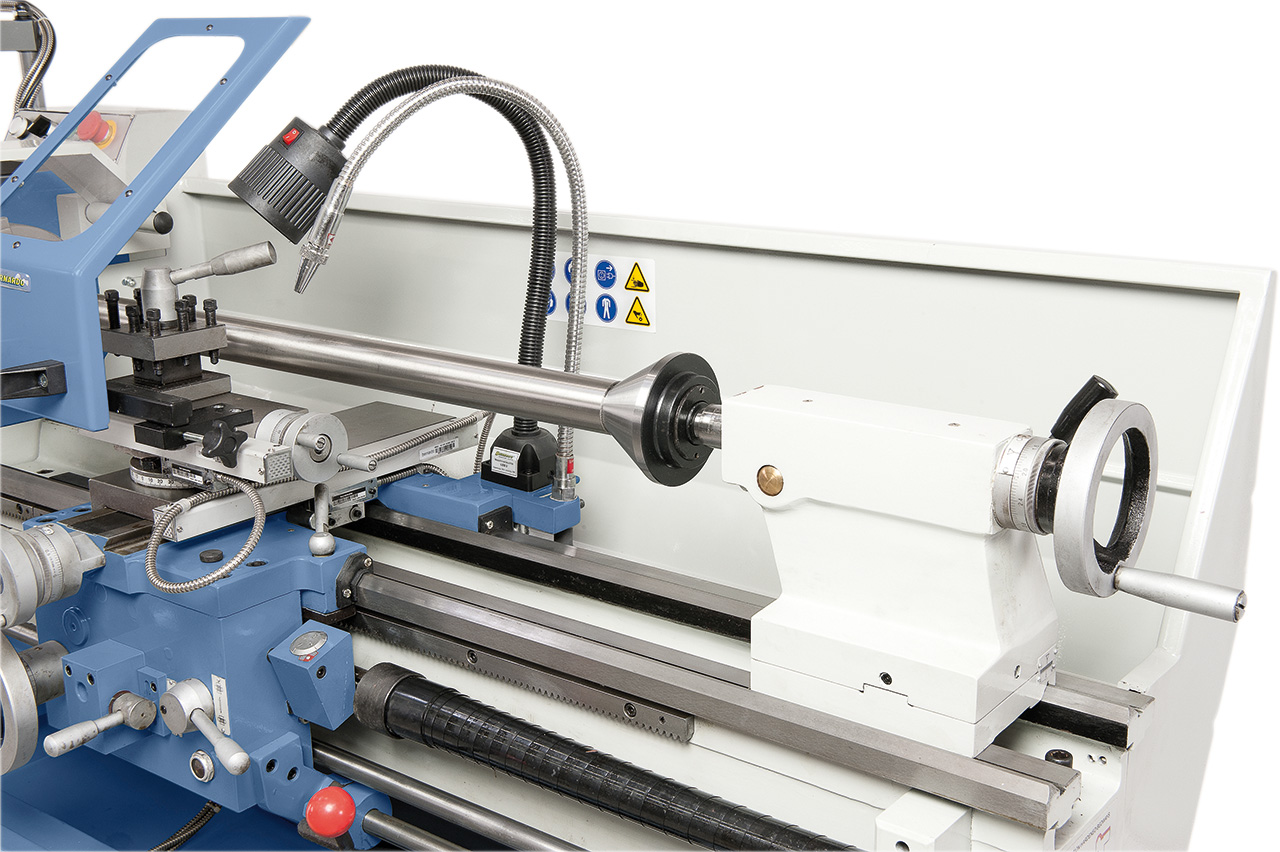

Removable tailstock for taper turning, handwheel features adjustable fine scale (0.04mm)
Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
Clearly arranged speed and feed control settings, smooth operation and accurate control
Tailstock, spindle stock and all guides are re-adjustable
Top slide with scale (0.02mm) swivels ± 45°

Product Specifications

Distance between centers	1000 mm
Center height	165 mm
Swing over bed	330 mm
Swing over gap*	430 mm
Swing over cross slide	180 mm
Bed width	180 mm
Spindle bore	40 mm
Spindle nose fixture	DIN 55029, D1-4
Speed range, stepless	70 - 400 / 350 - 2000 rpm
Longitudinal feed	(40) 0,053 - 1,29 mm/rev.
Cross feed	(40) 0,013 - 0,31 mm/rev.
Metric thread	(32) 0,4 - 7 mm
Inch thread	(36) 4 - 60 threads/1“
Travel of tailstock sleeve	110 mm
Taper of tailstock sleeve	MT 3

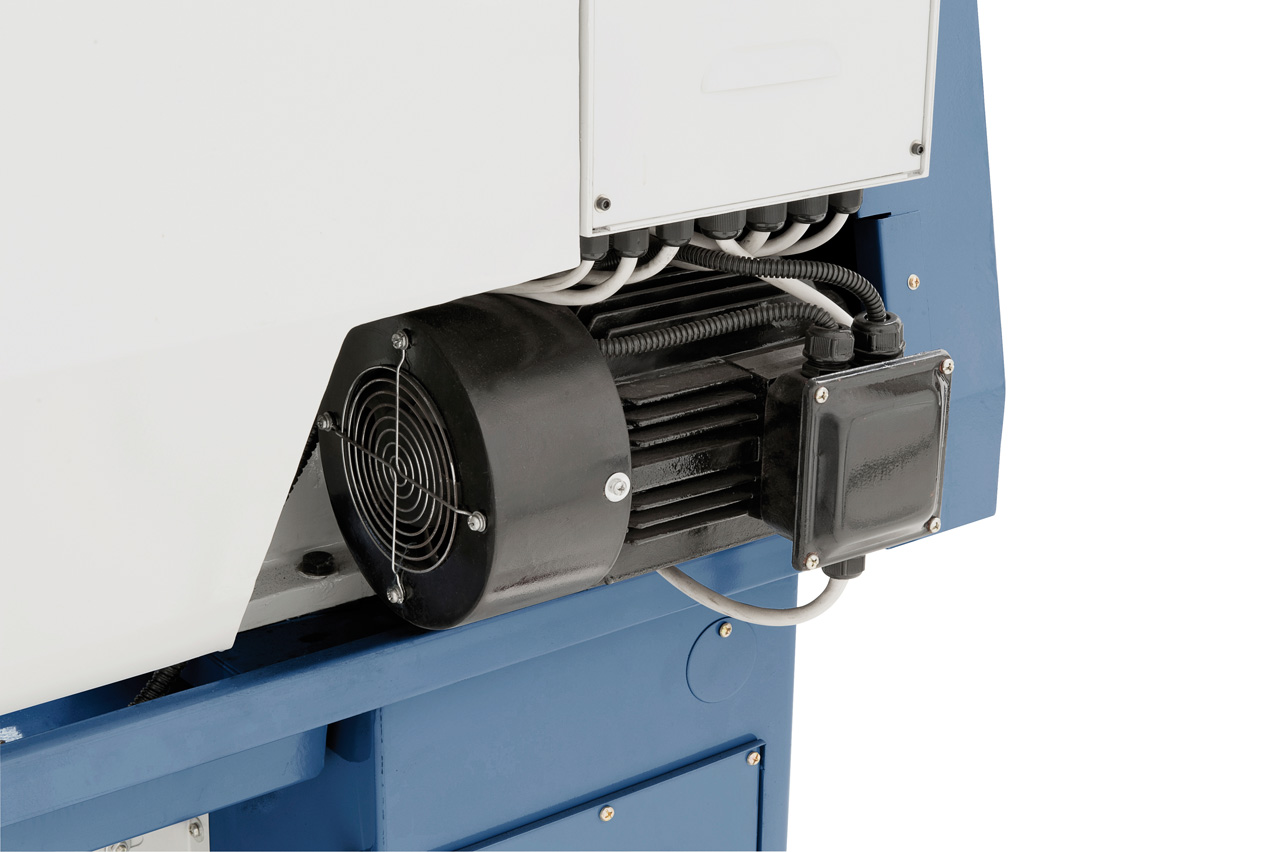

Motor power output S1 100%	1,5 kW (400 V)
Motor power input S6 40%	2,2 kW (400 V)
Machine dimension (W x D x H)	1600 x 700 x 1280 mm
Weight approx.	478 kg

* Removable bed length: 220 mm

Delivery Contents

3-jaw chuck DK11-160 mm / D4
Independent chuck 200 mm / D4, according DIN 55029
Steady rest – Passage up to 60 mm
Follow rest – Passage up to 60 mm
Face plate 250 mm
4-way tool post holder
Protective device at 4-way tool post holder
Safety clutch
Micrometer longitudinal fence
Extractable chip tray
Splash guard
2 dead centers
Thread dial
Morse taper drill sleeve
LED machine light
Digital speed indication

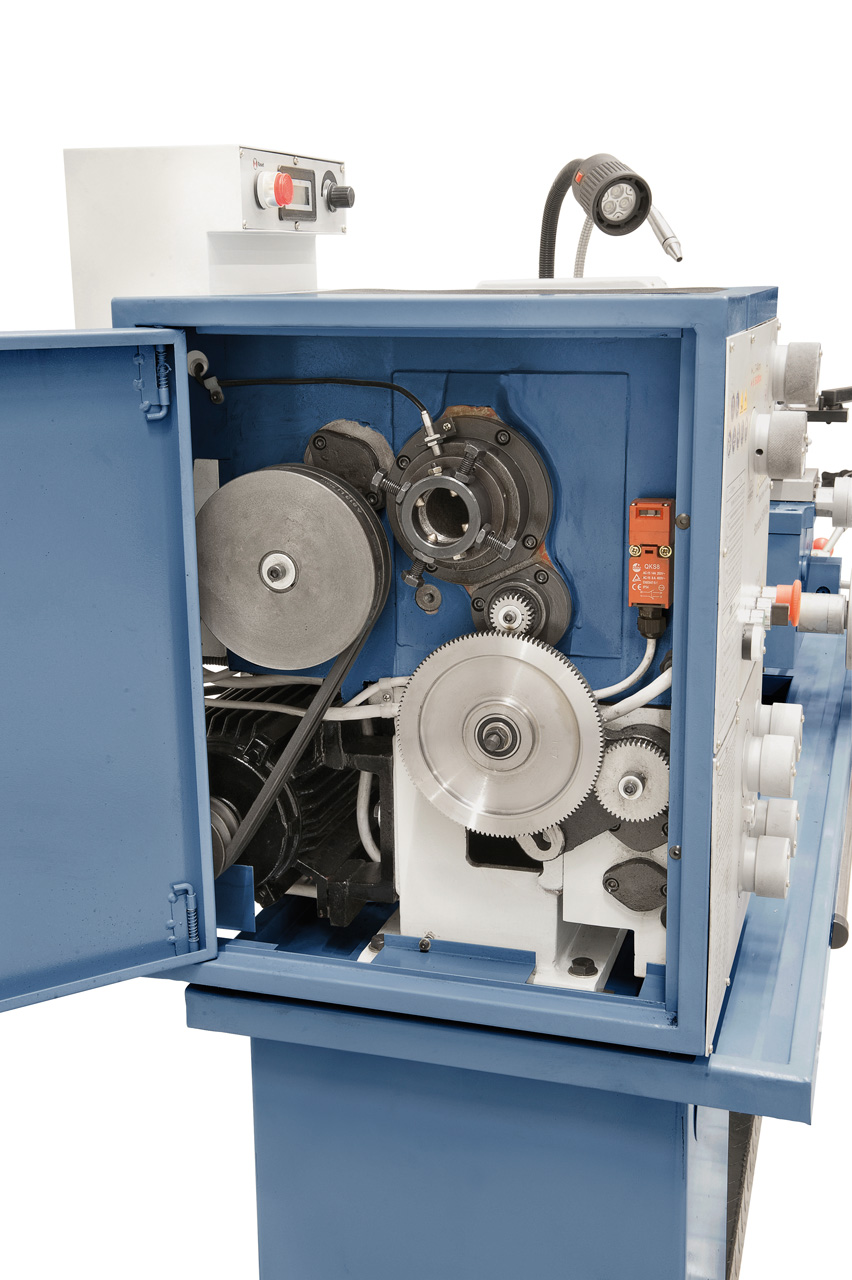

Change gears
Coolant device
Frequency inverter
Foot pedal with brake function according to CE
Stand
Tools
