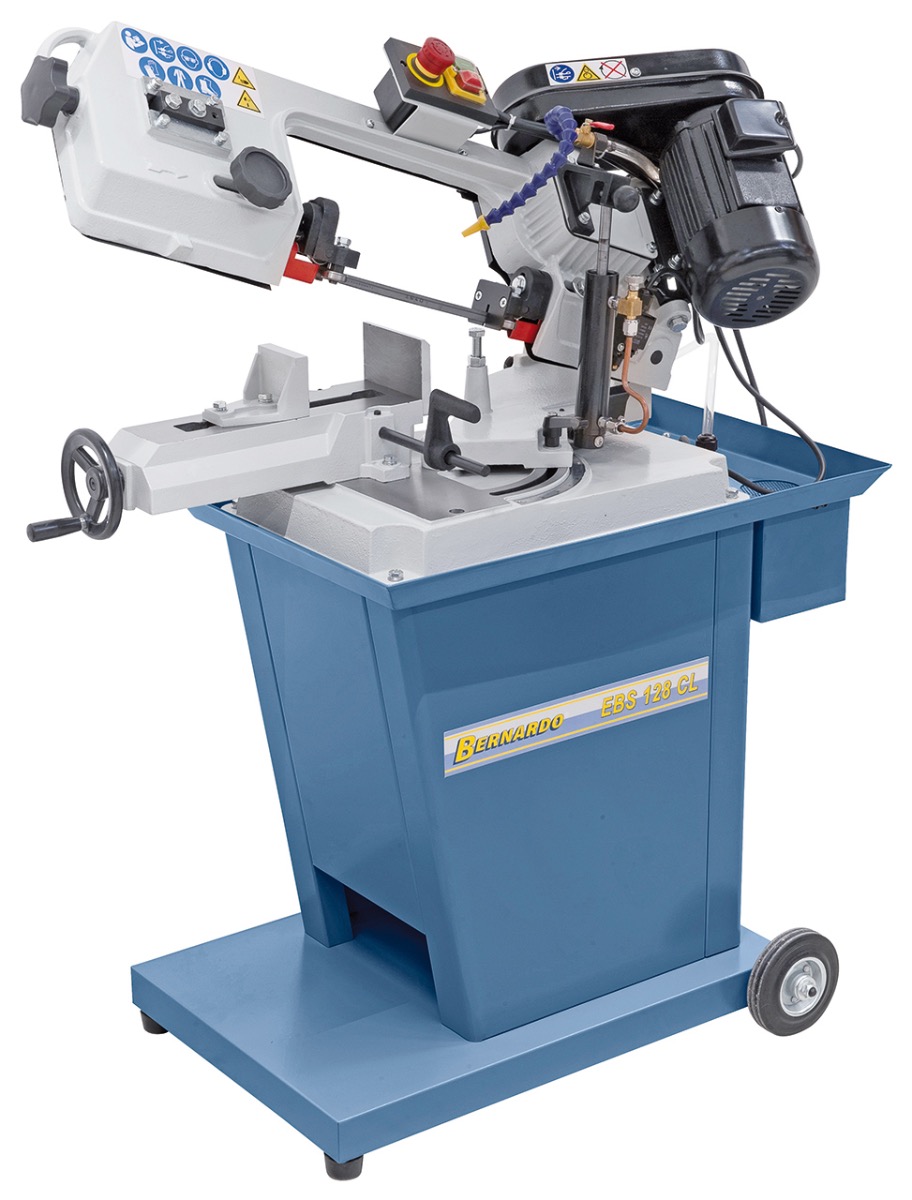

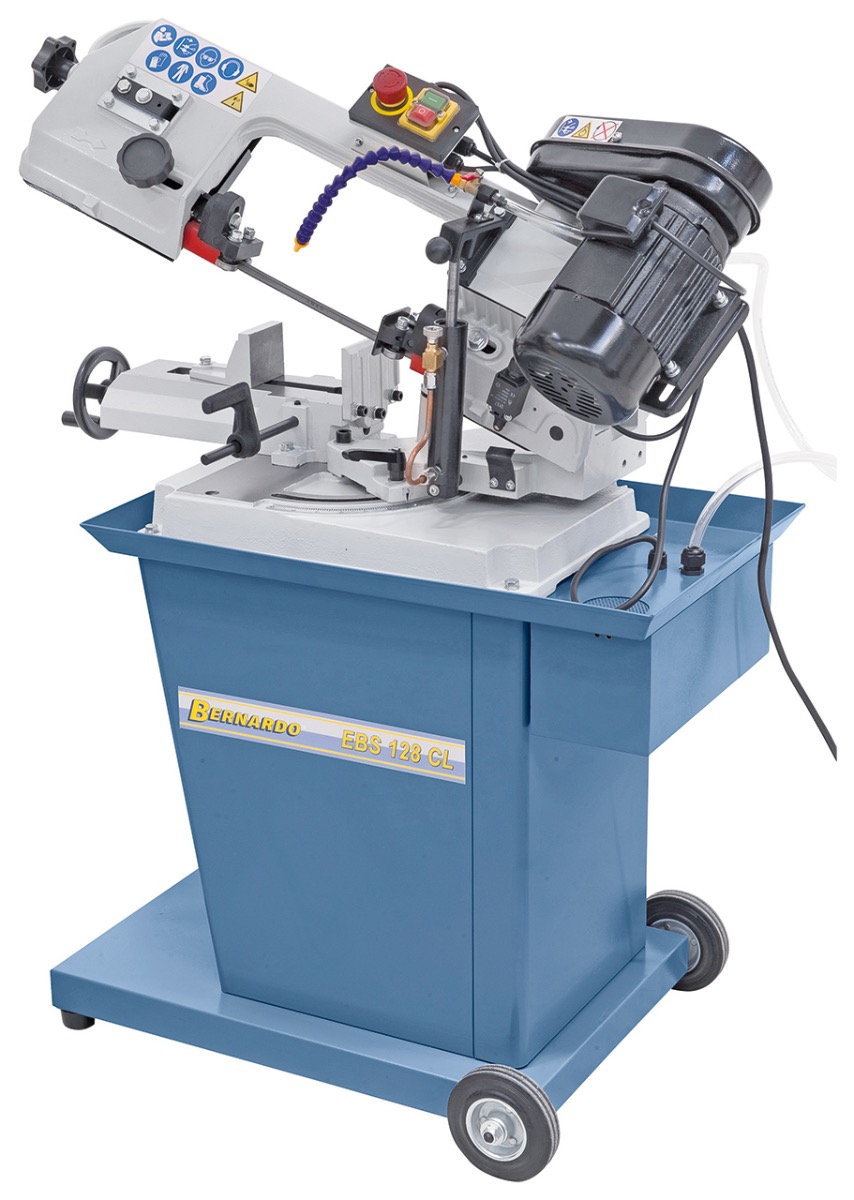

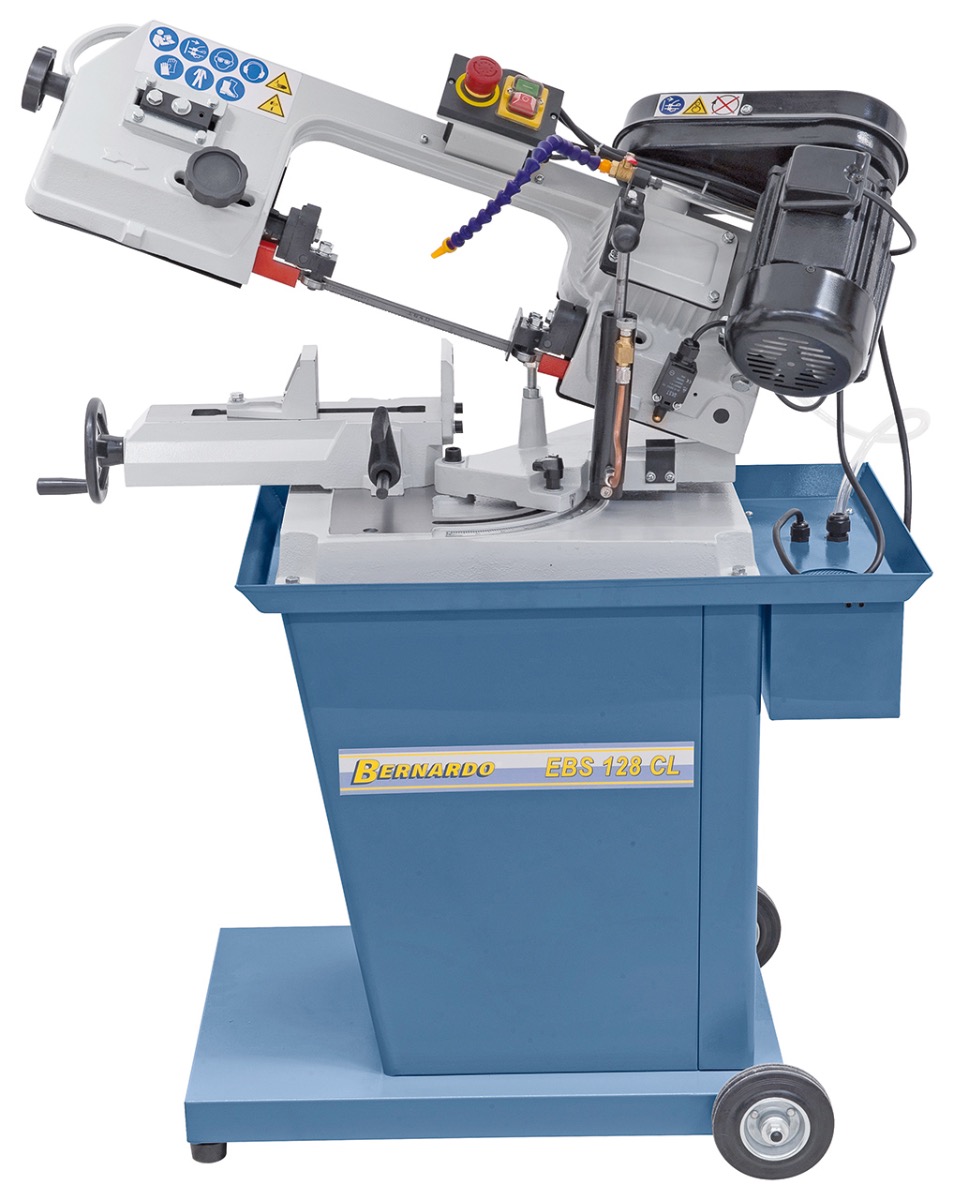

Fierăstrăul cu bandă cu tăiere dublă oblică EBS 128 CL / 400 V

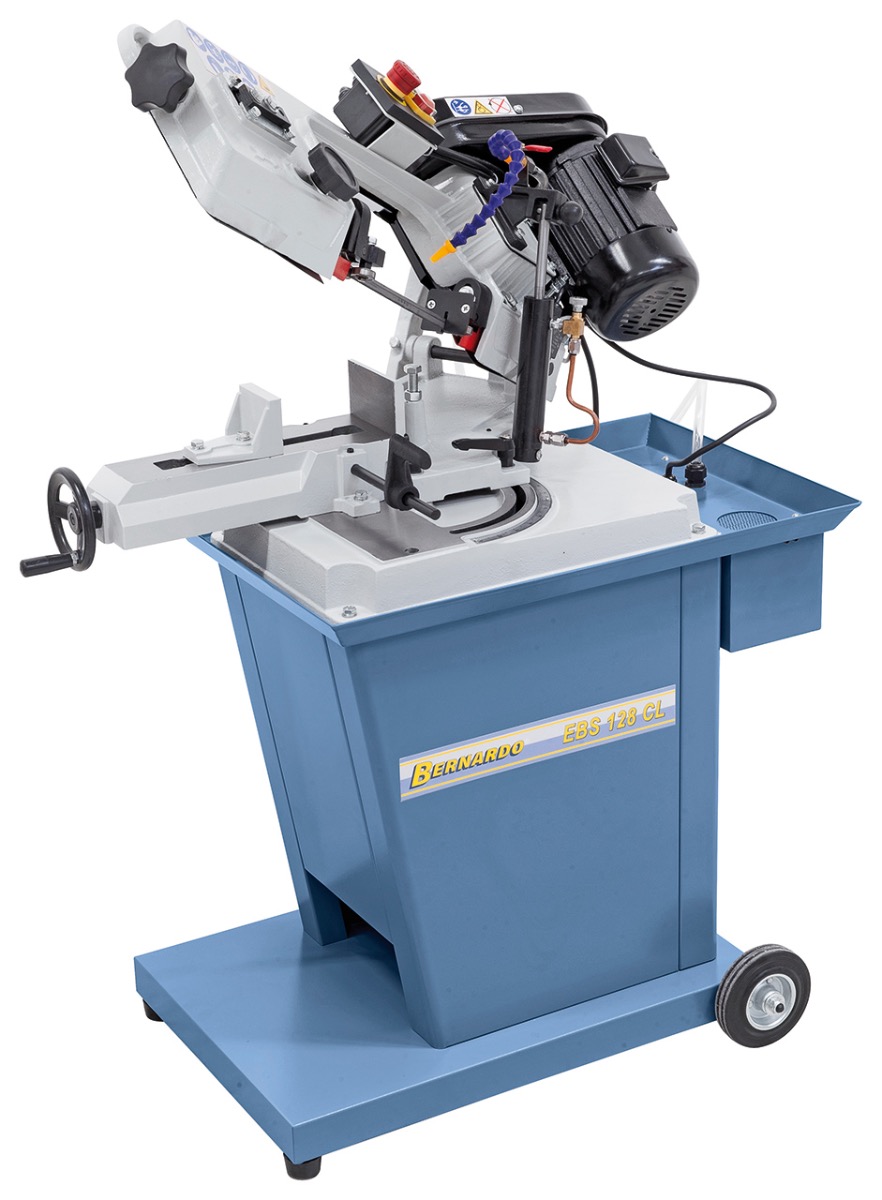

product.detail.art-no: 04-1111The double miter band saw EBS 128 CL - compared to the proven EBS 128 C - is equipped as standard with a coolant device. The saw arm tilts up to 60° to reduce space requirements when processing long workpieces.
948,00 EUR
Availability
Product Properties
- Suitable for cutting profiles, pipes, solid iron, non-ferrous metals, plastics etc.
- Sawframe swings left (-60°) and right (+45°) for double mitre cutting
- Automatic shut-down at cutting end
- Torsion-free, solid saw frame
- 3 speed setting adjustable by v-belt
- Solid construction allowing smooth running free of vibrations
- Equipped with machine base and coolant device

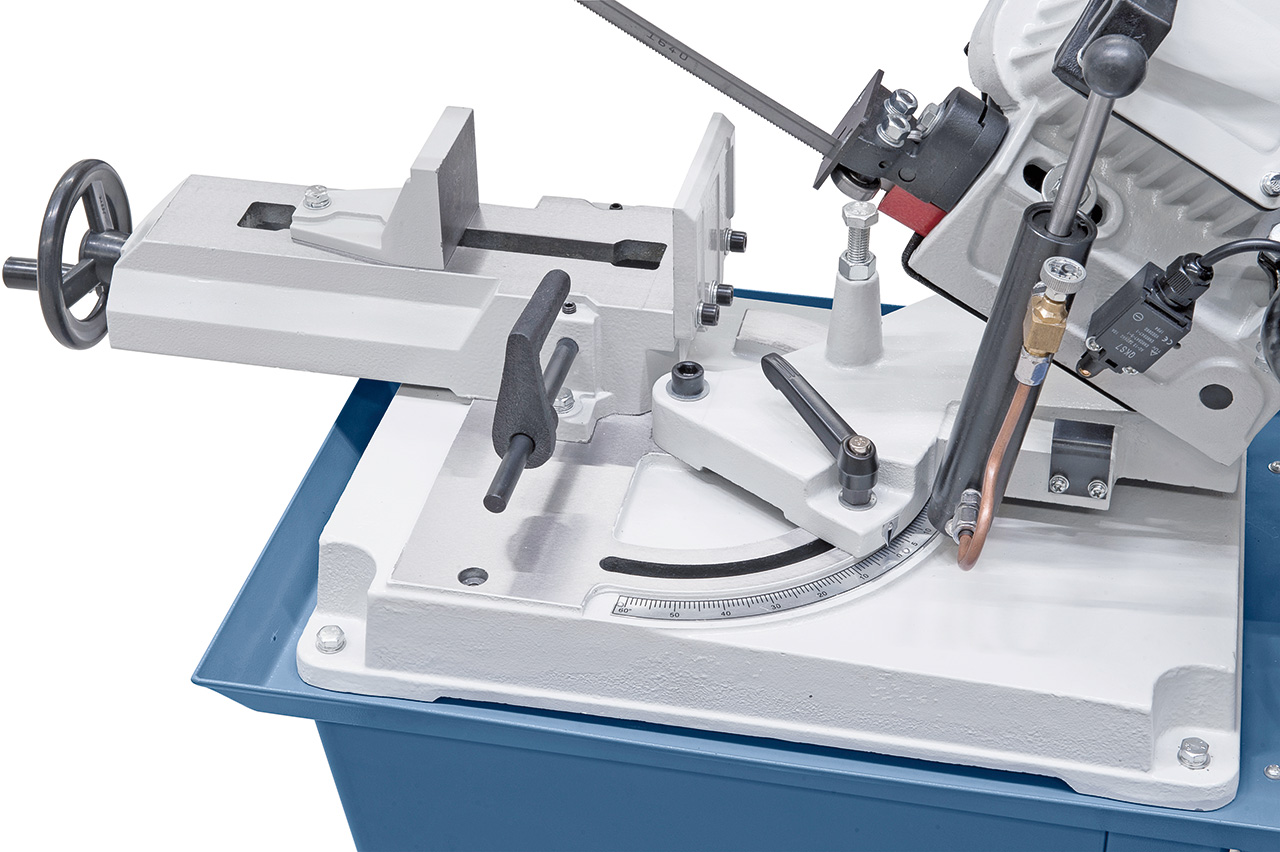

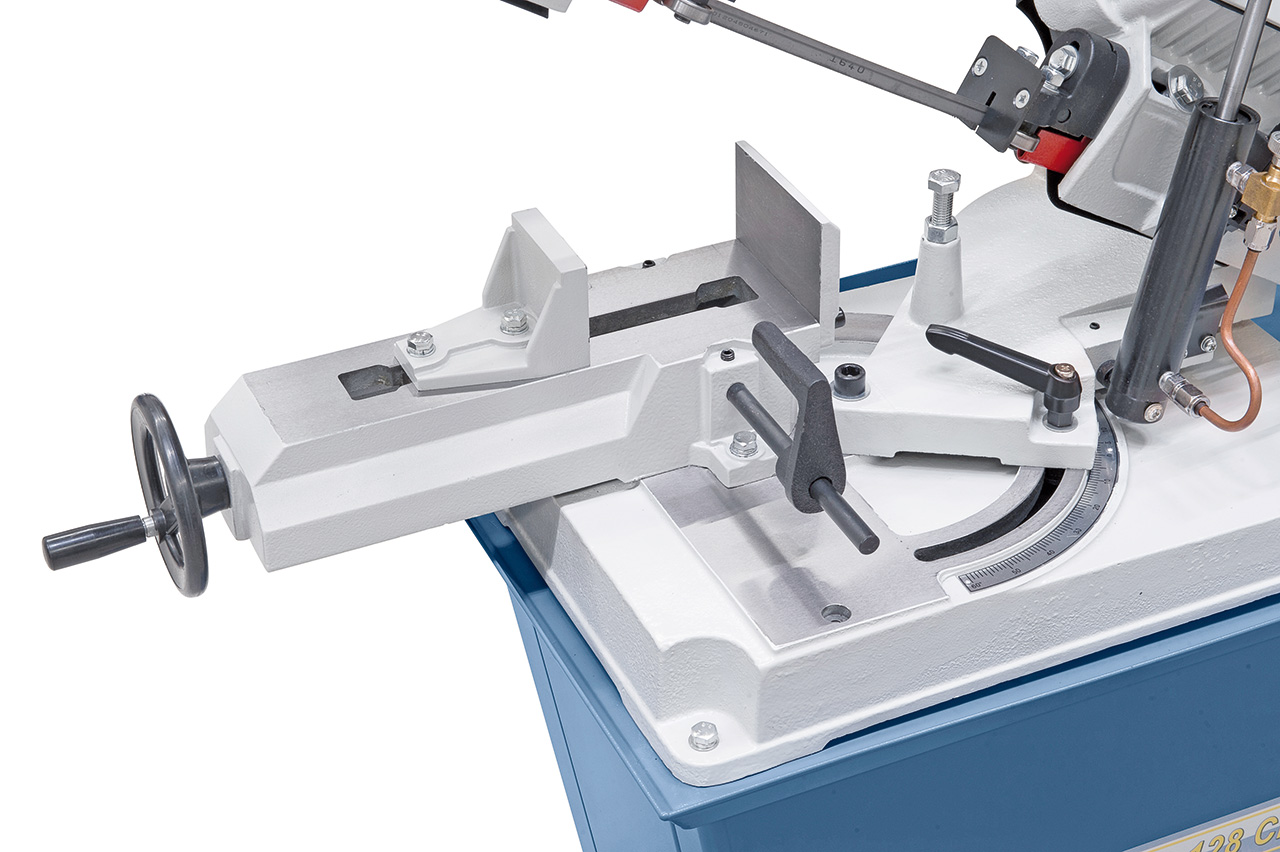

- Quick clamping vice and material fence included
Product Specifications
|
Cutting capacity round 90° |
125 mm |
|
Cutting capacity flat 90° |
100 x 150 mm |
|
Cutting capacity round 45° |
95 mm |
|
Cutting capacity flat 45° |
95 x 76 mm |
|
Cutting capacity round 60° |
50 mm |
|
Cutting capacity flat 60° |
50 x 56 mm |
|
Working height |
740 mm |
|
Bandsaw blade dimension |
1638 x 13 x 0,65 mm |
|
Cutting speeds |
24 / 35 / 55 m/min |
|
Motor power output S1 100% |
0,55 kW |
|
Motor power input S6 40% |
0,75 kW |
|
Voltage |
400 V |
|
Machine dimension (L x D x H) |
1000 x 550 x 1100 mm |
|
Weight approx. |
85 kg |
Delivery Contents
- Bandsaw blade
- Coolant device
- Quick clamping vice
- Material fence
- Automatic shut-down
- Mobile machine base

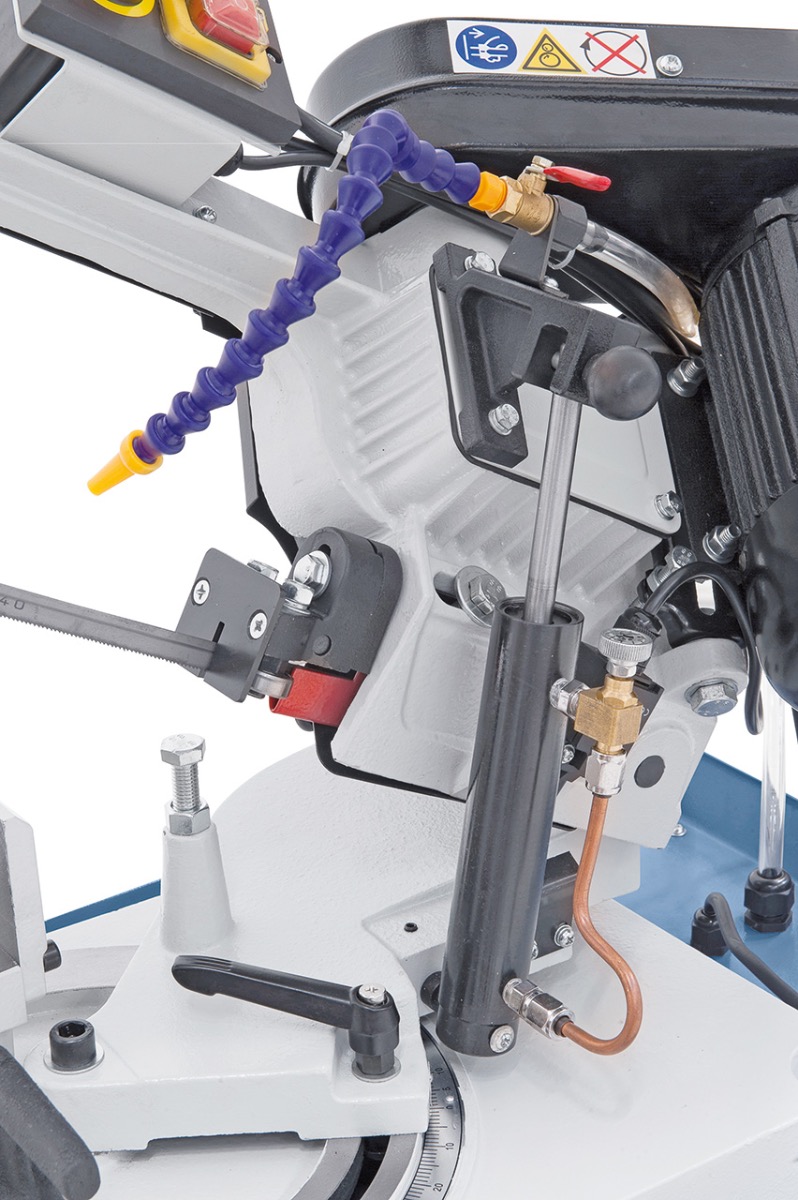

- Hydraulic cylinder

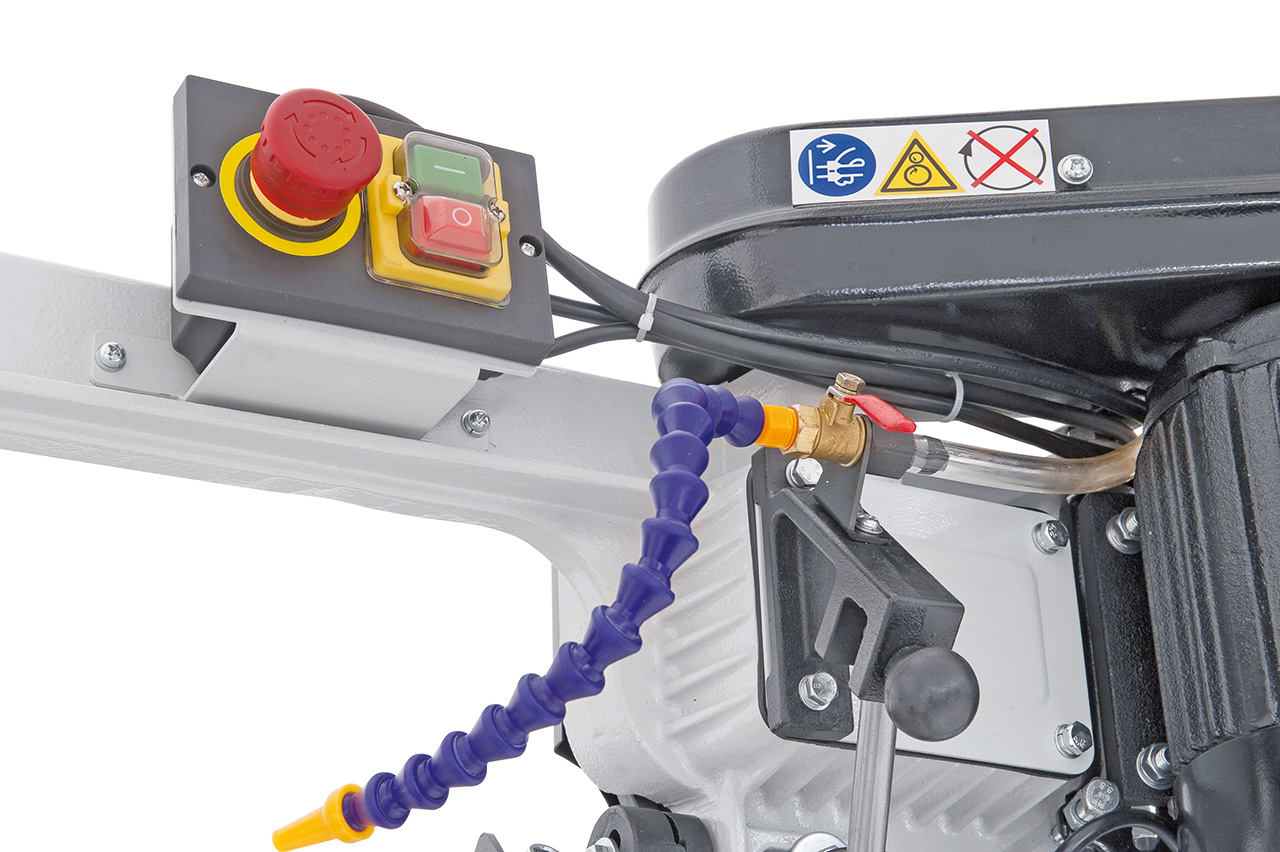

- Separate emergency stop button according CE
