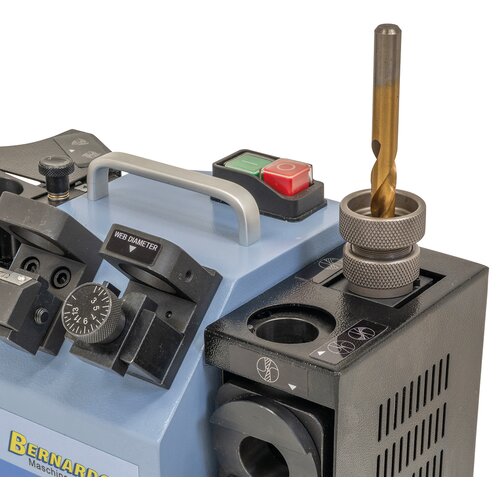

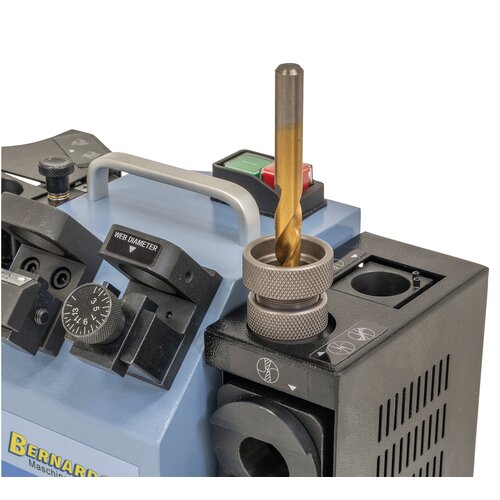

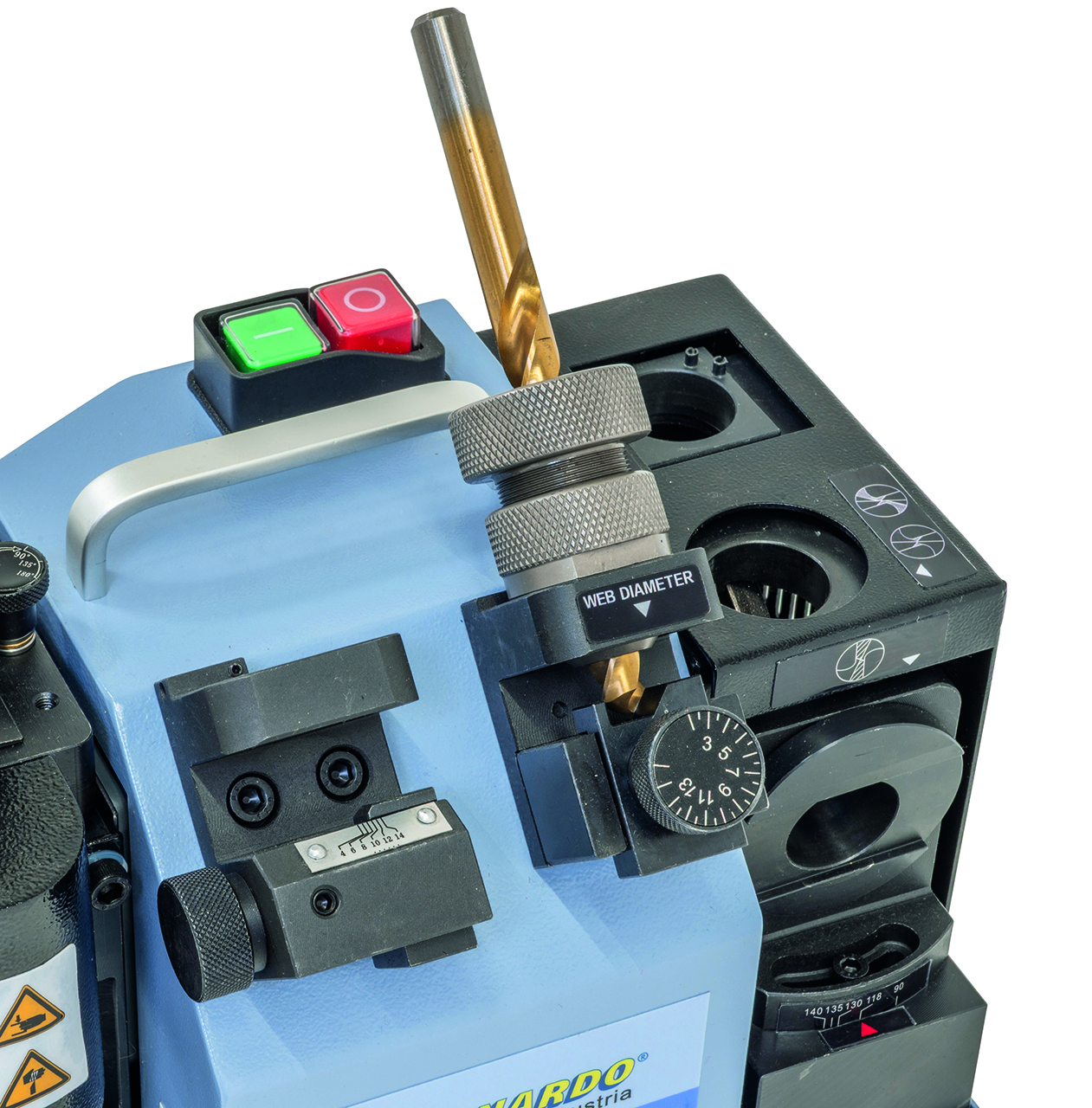

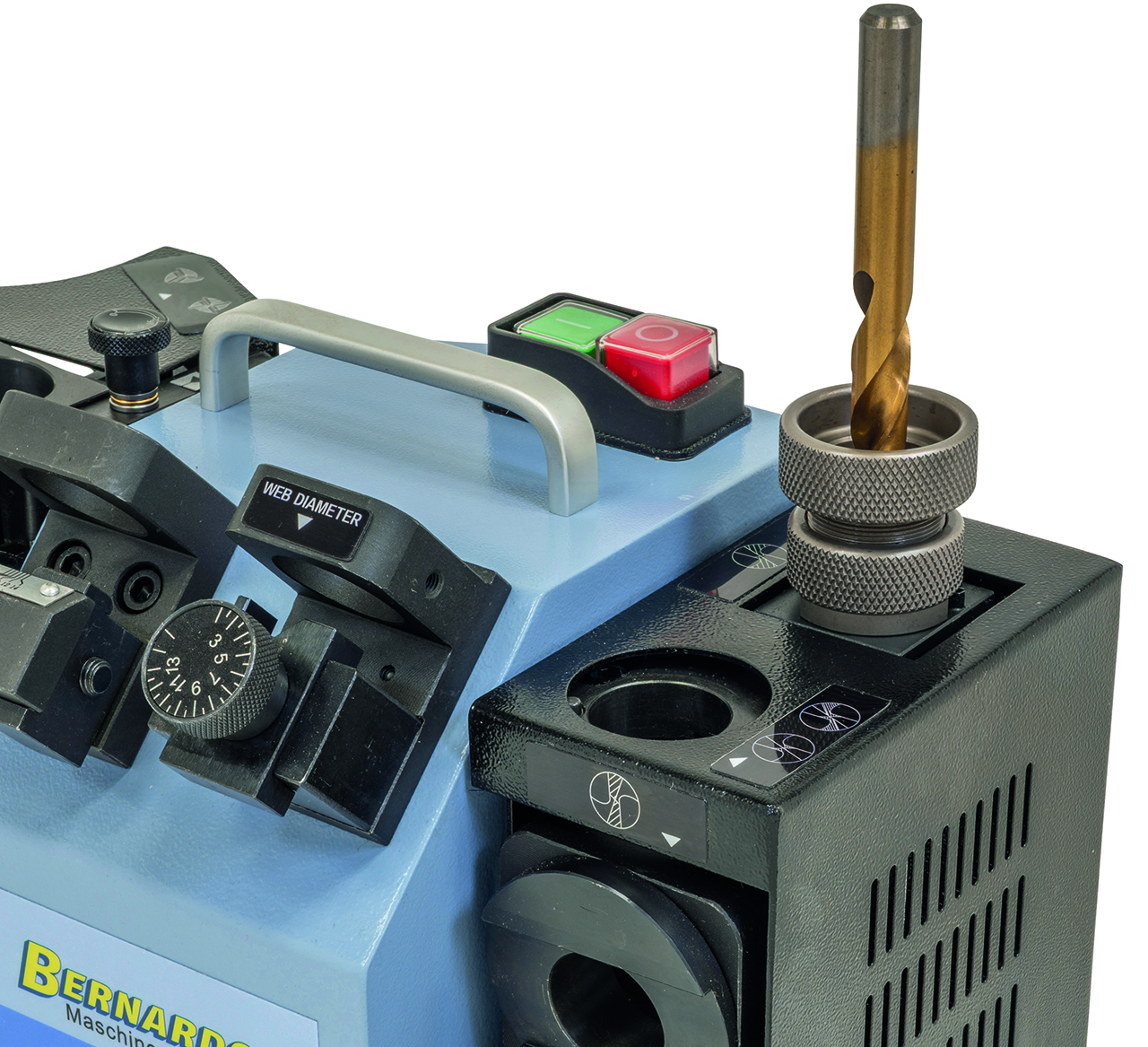

Pre-setting

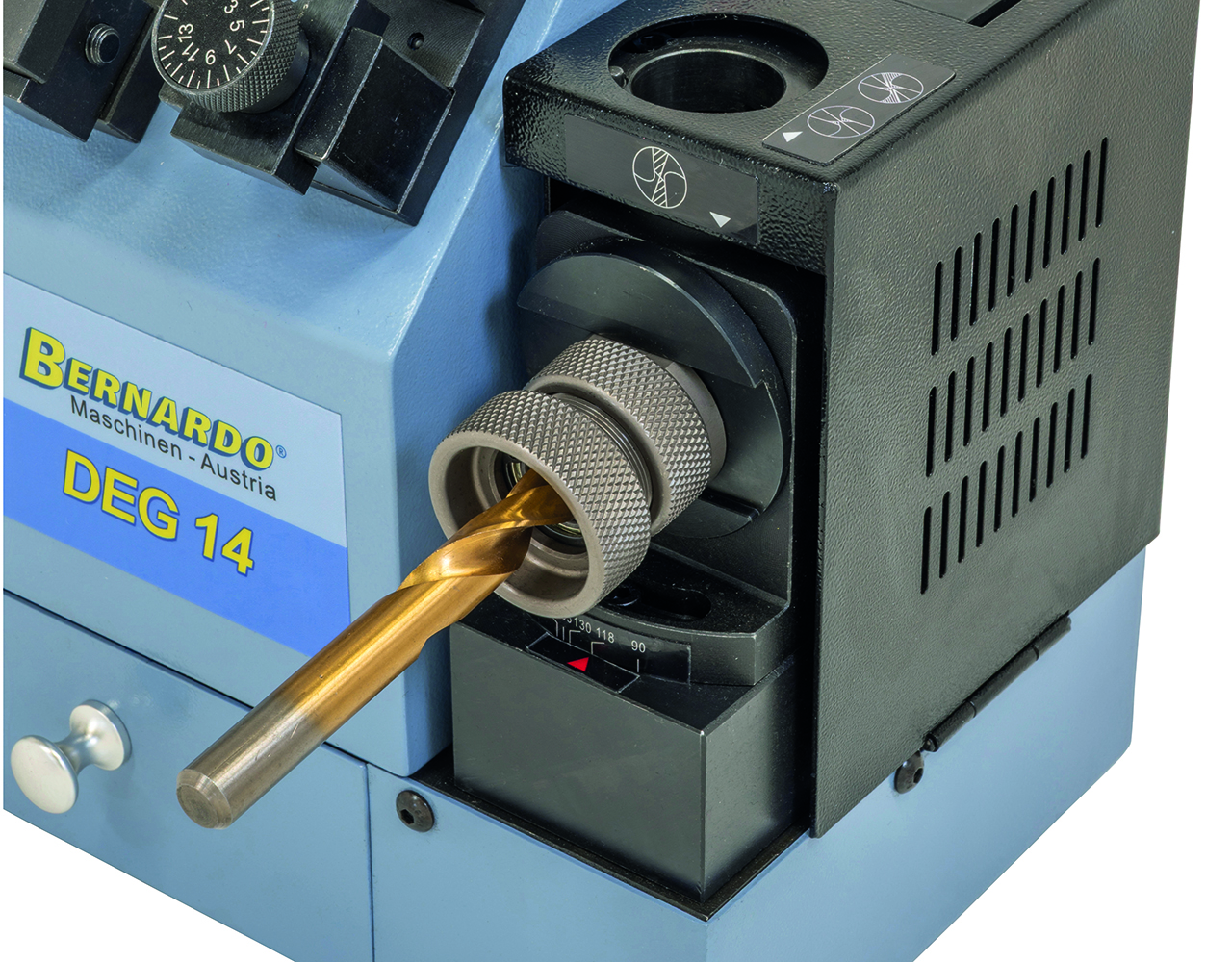

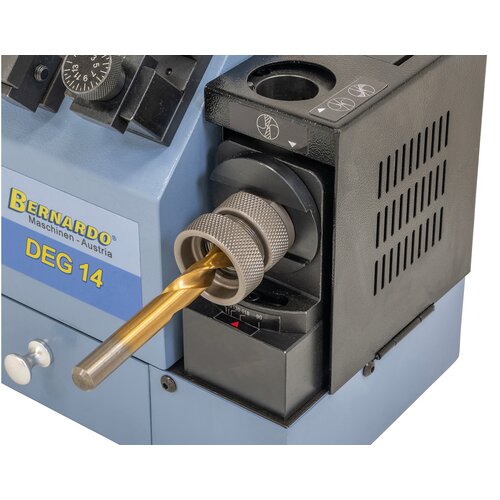

Grinding the point angle

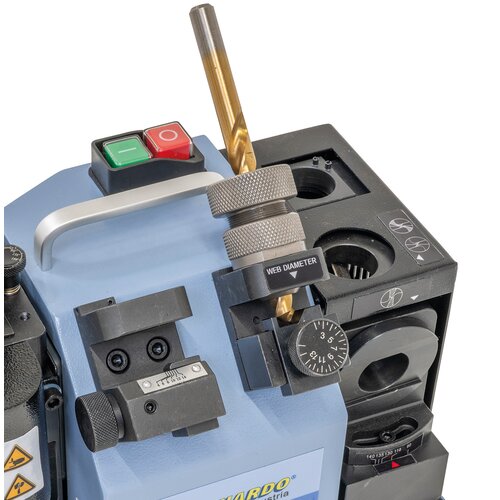

Thinning

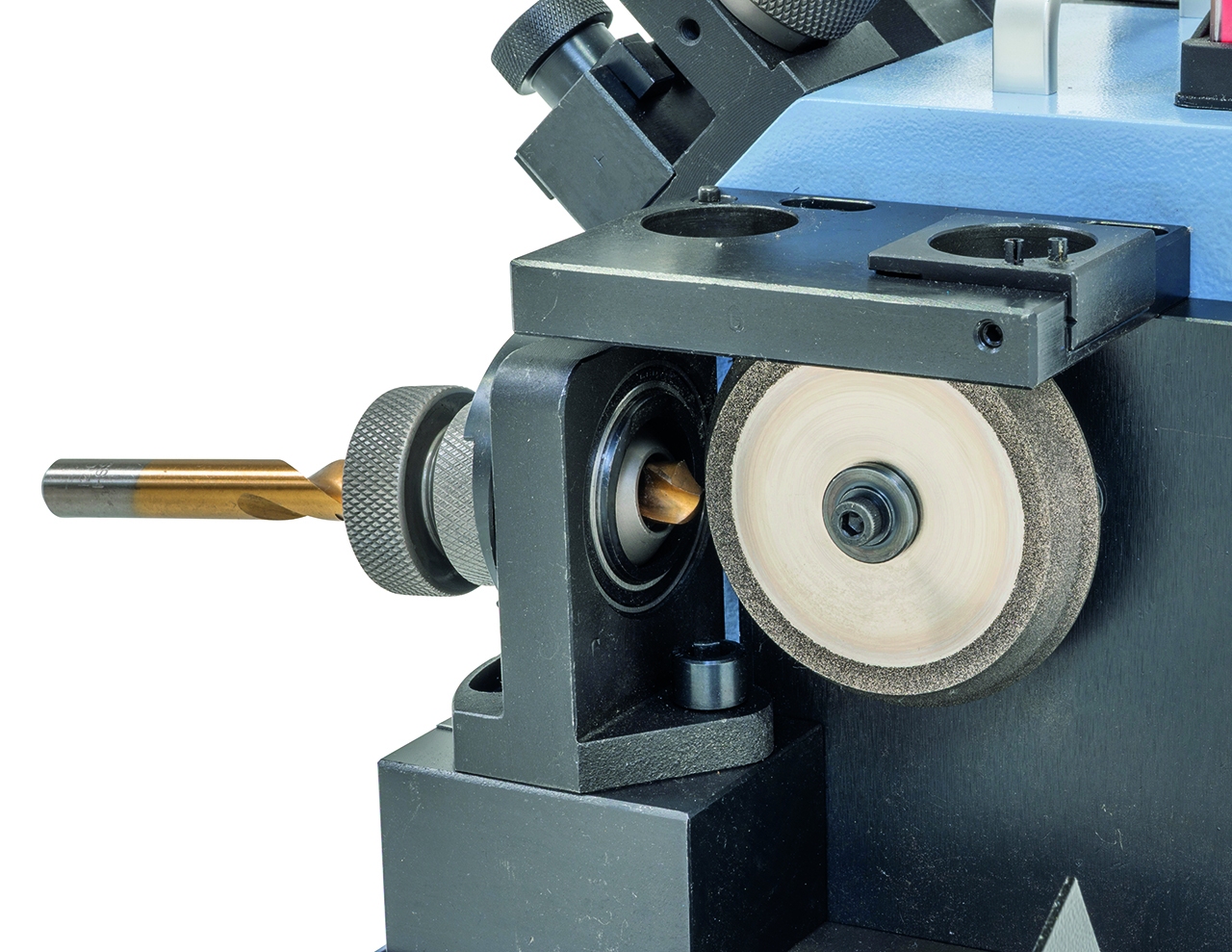

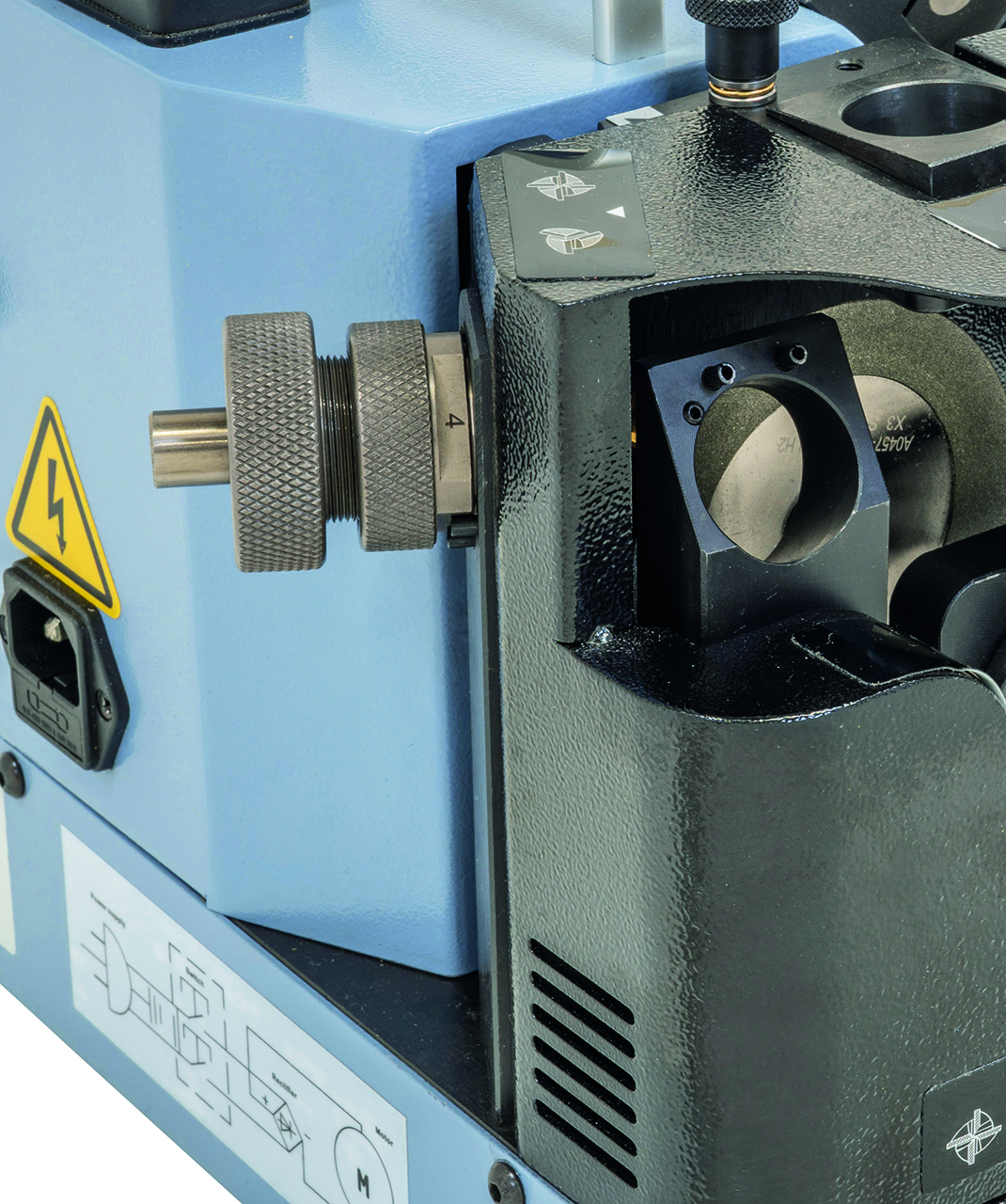

Relief-grinding of the relief angle

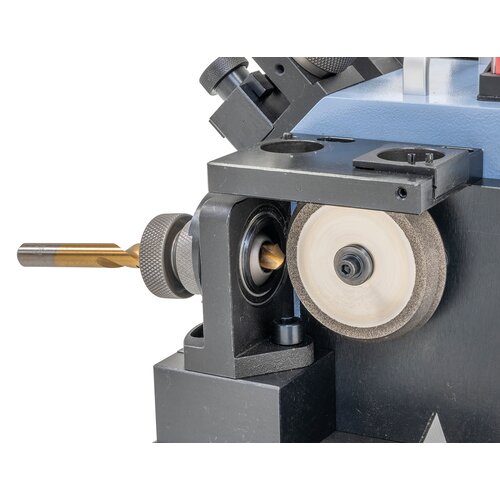

Standard with CBN grinding wheel on the drill grinding device

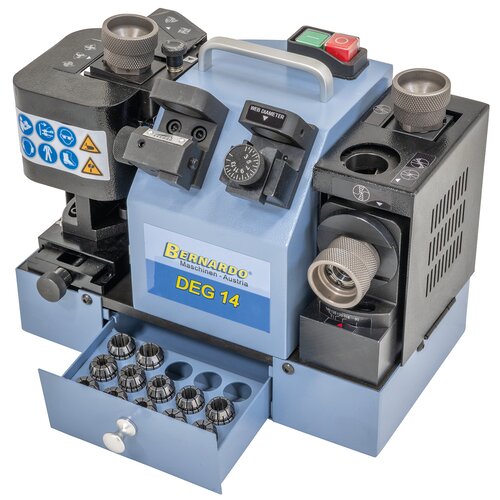

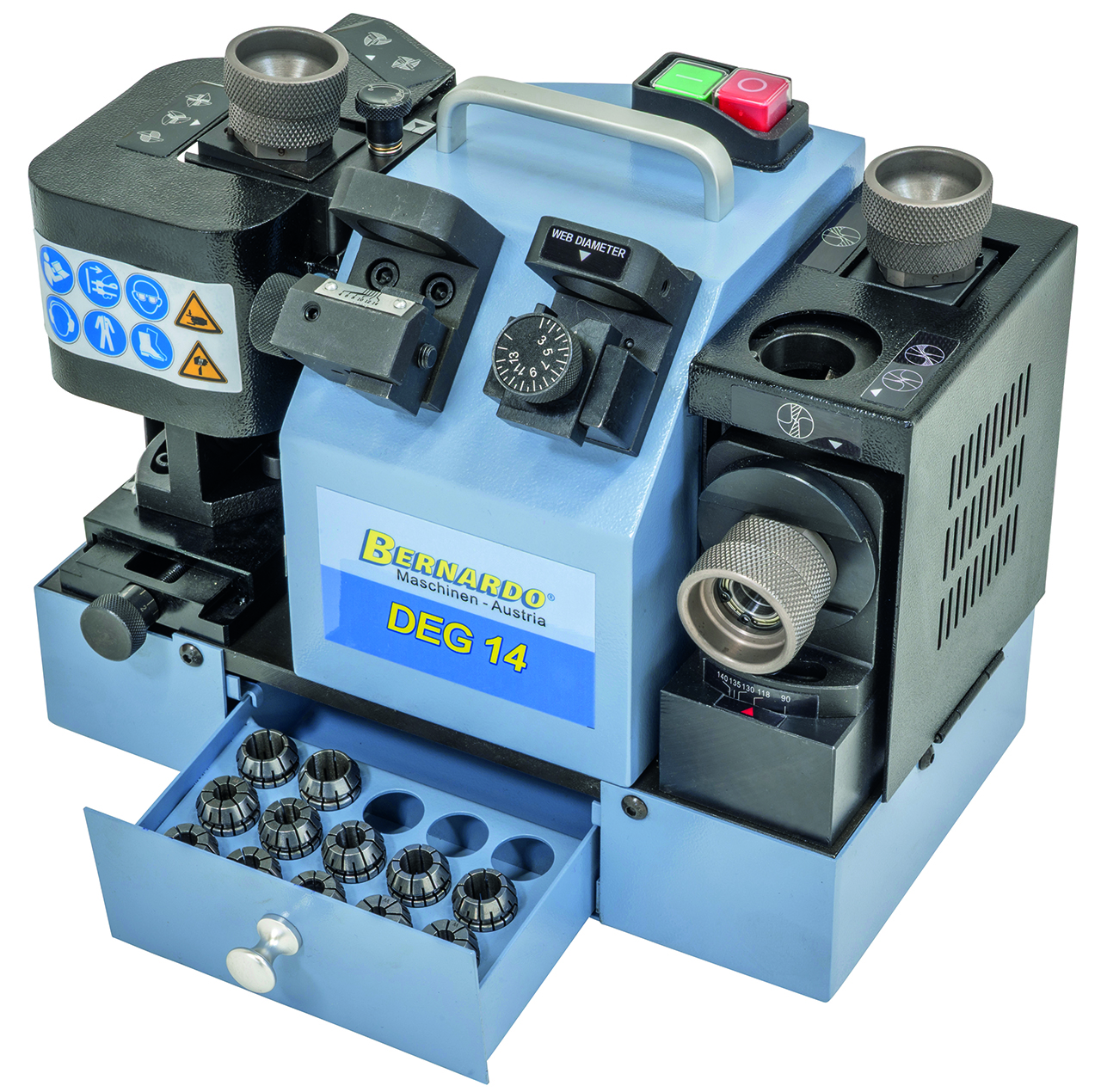

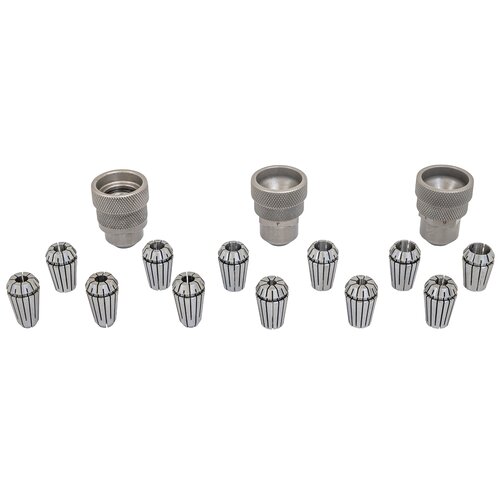

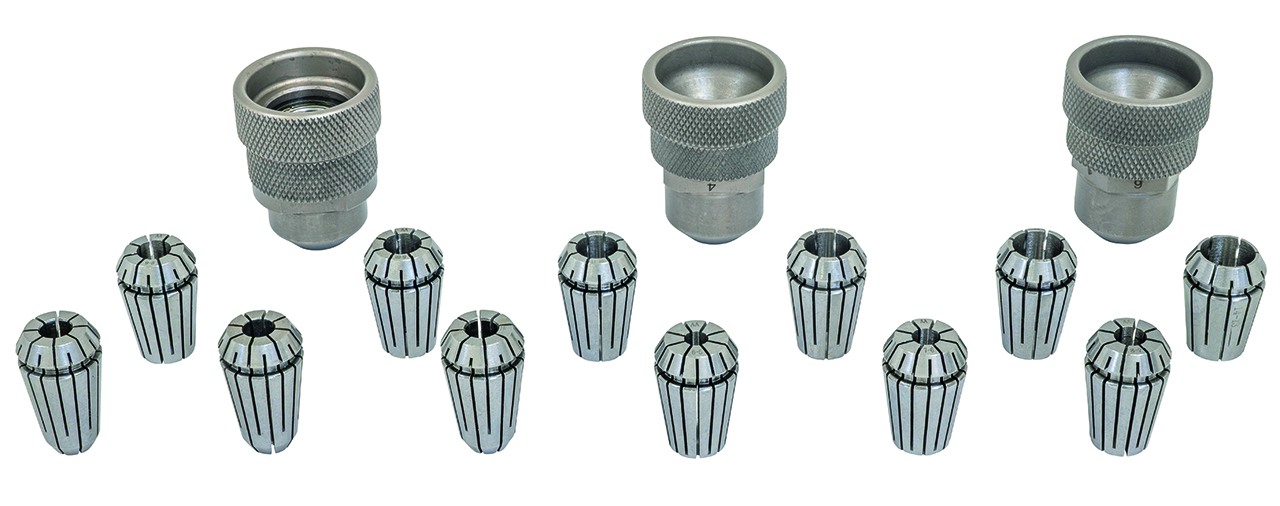

12 pcs. ER collets (3 – 12 mm) equipped at standard accessories.

Grinding the point angle

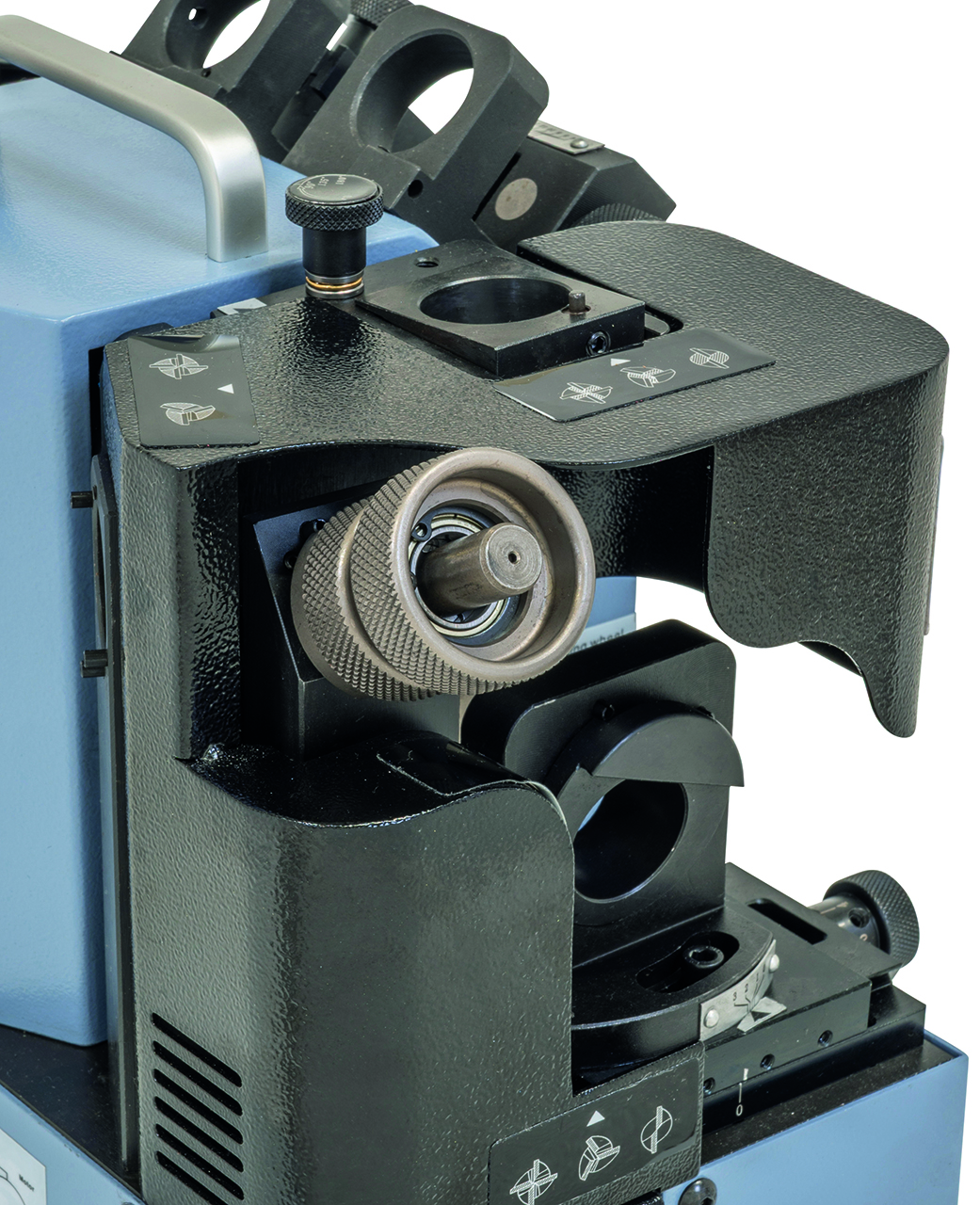

Grinding the cutting edge 1 and 3

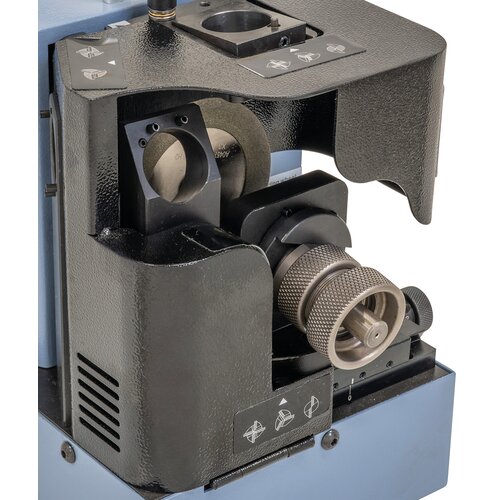

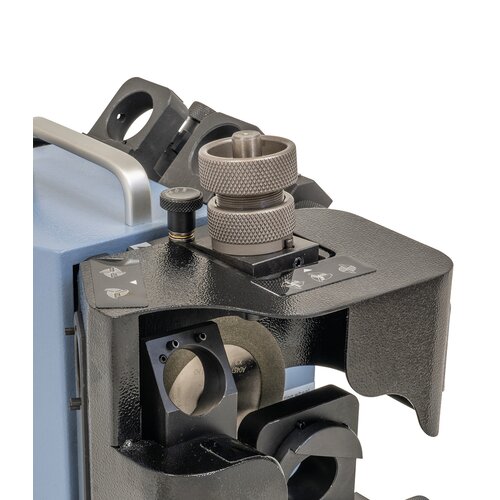

Grinding of the relief angle at 2-edged end mill

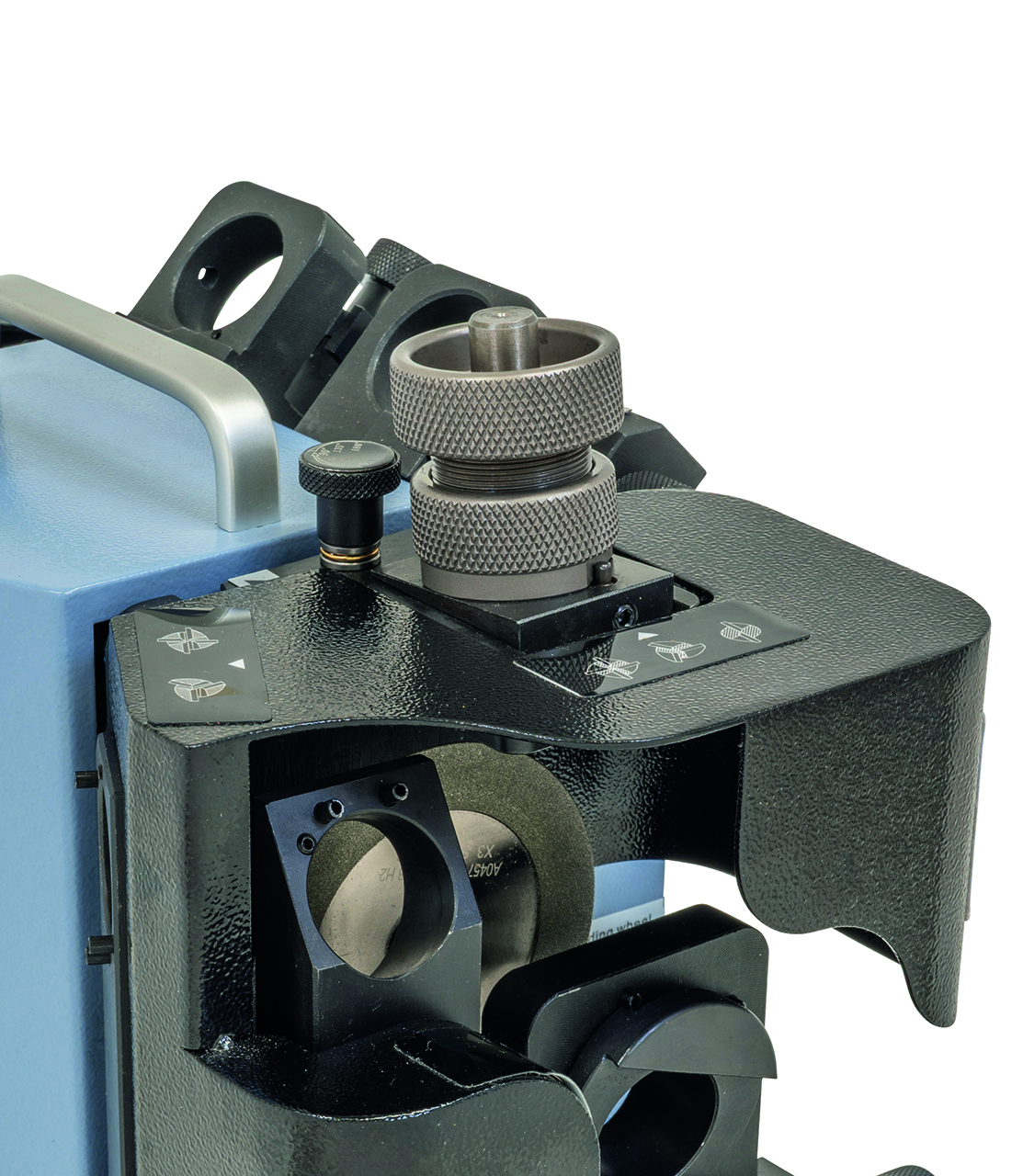

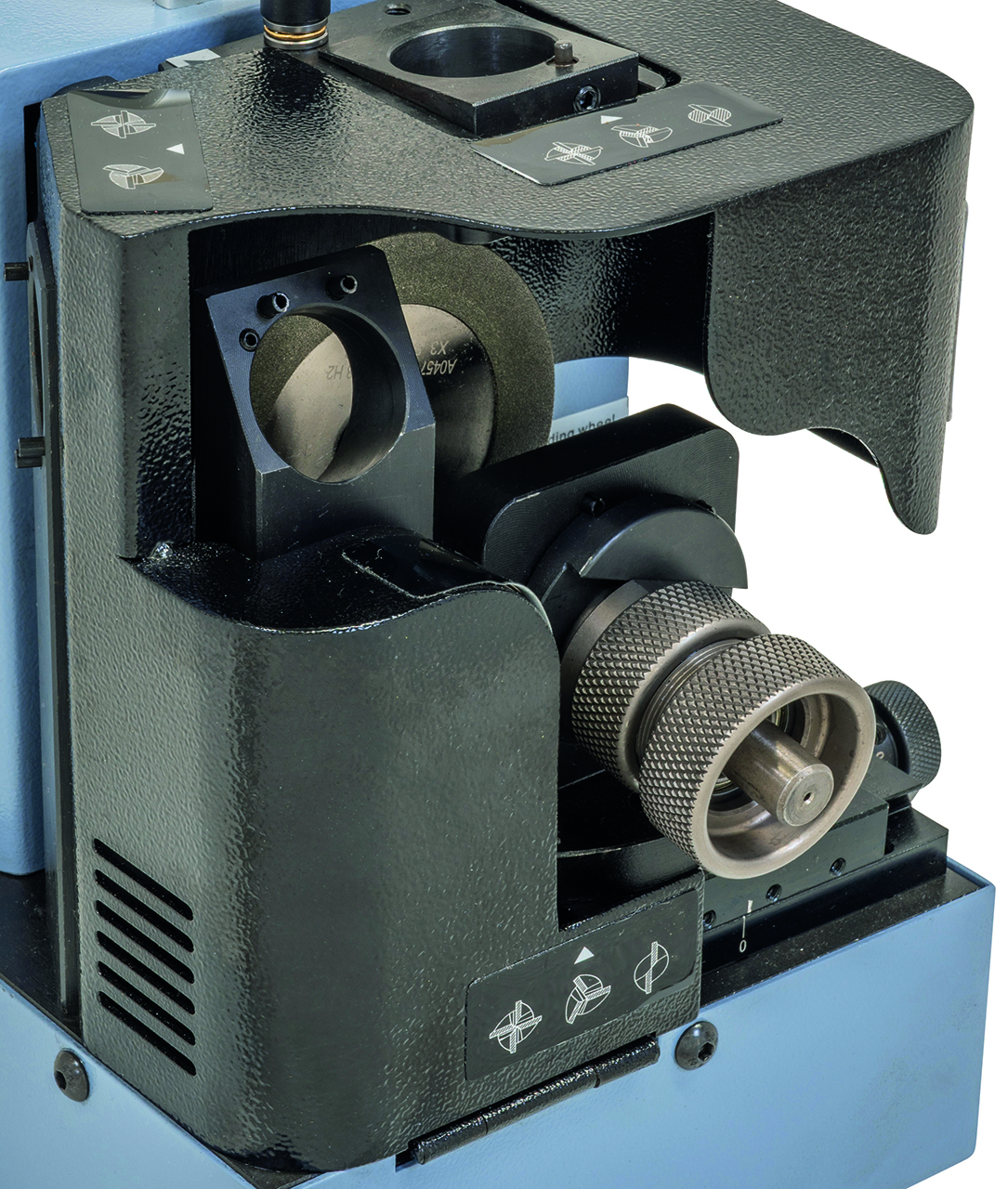

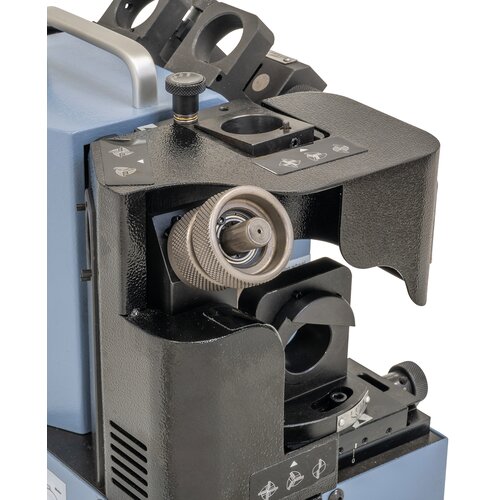

Grinding of the relief-angle at 3- or 4-edged end mill

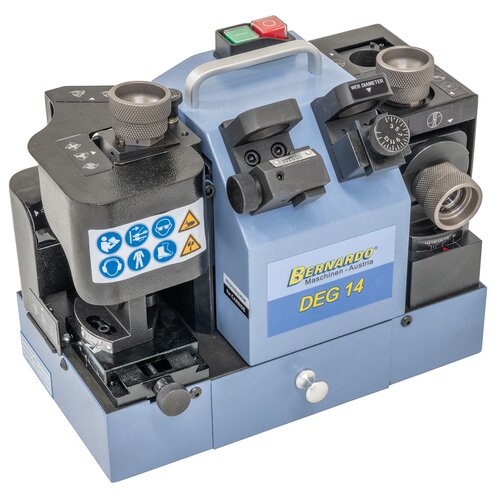

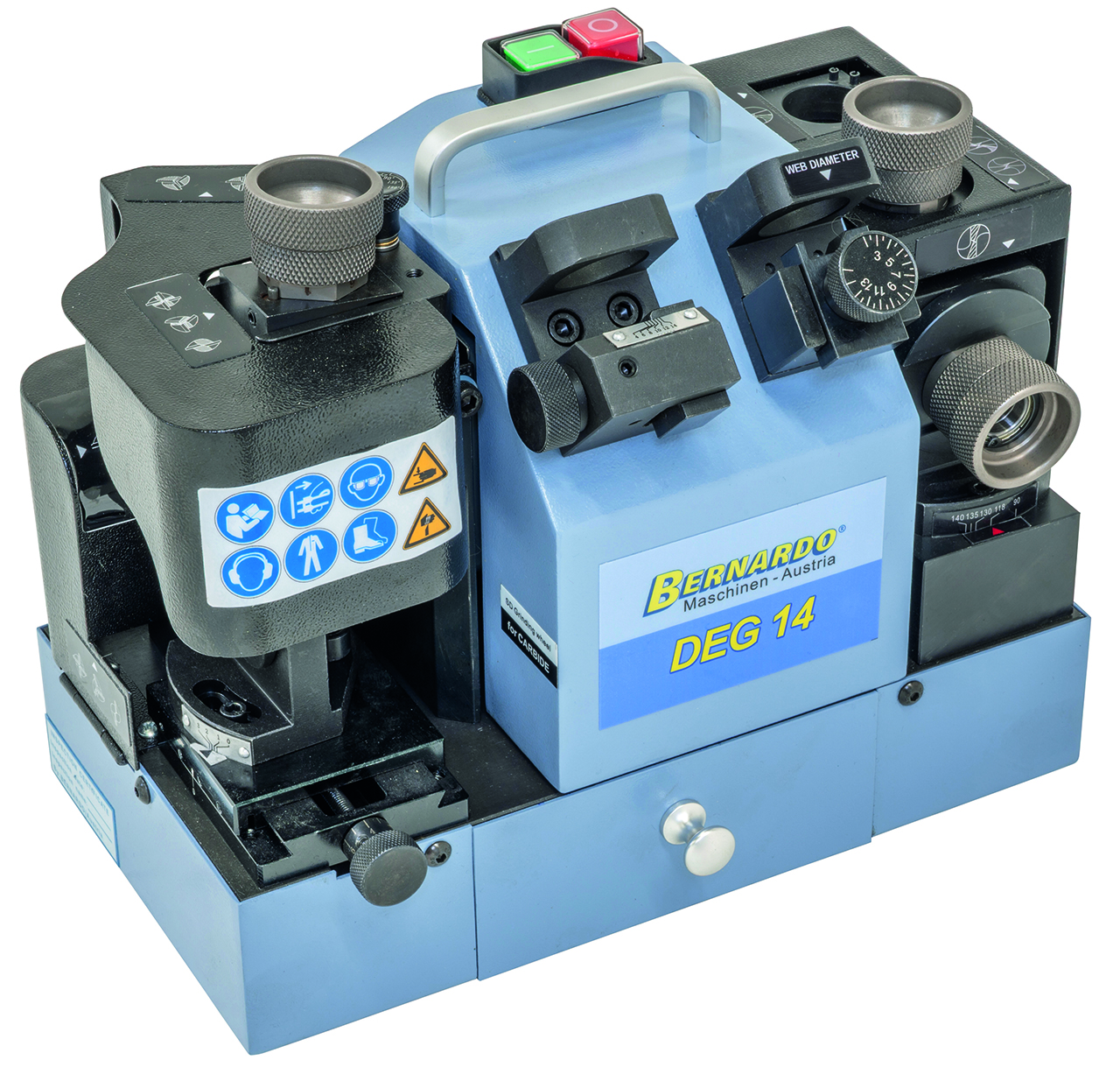

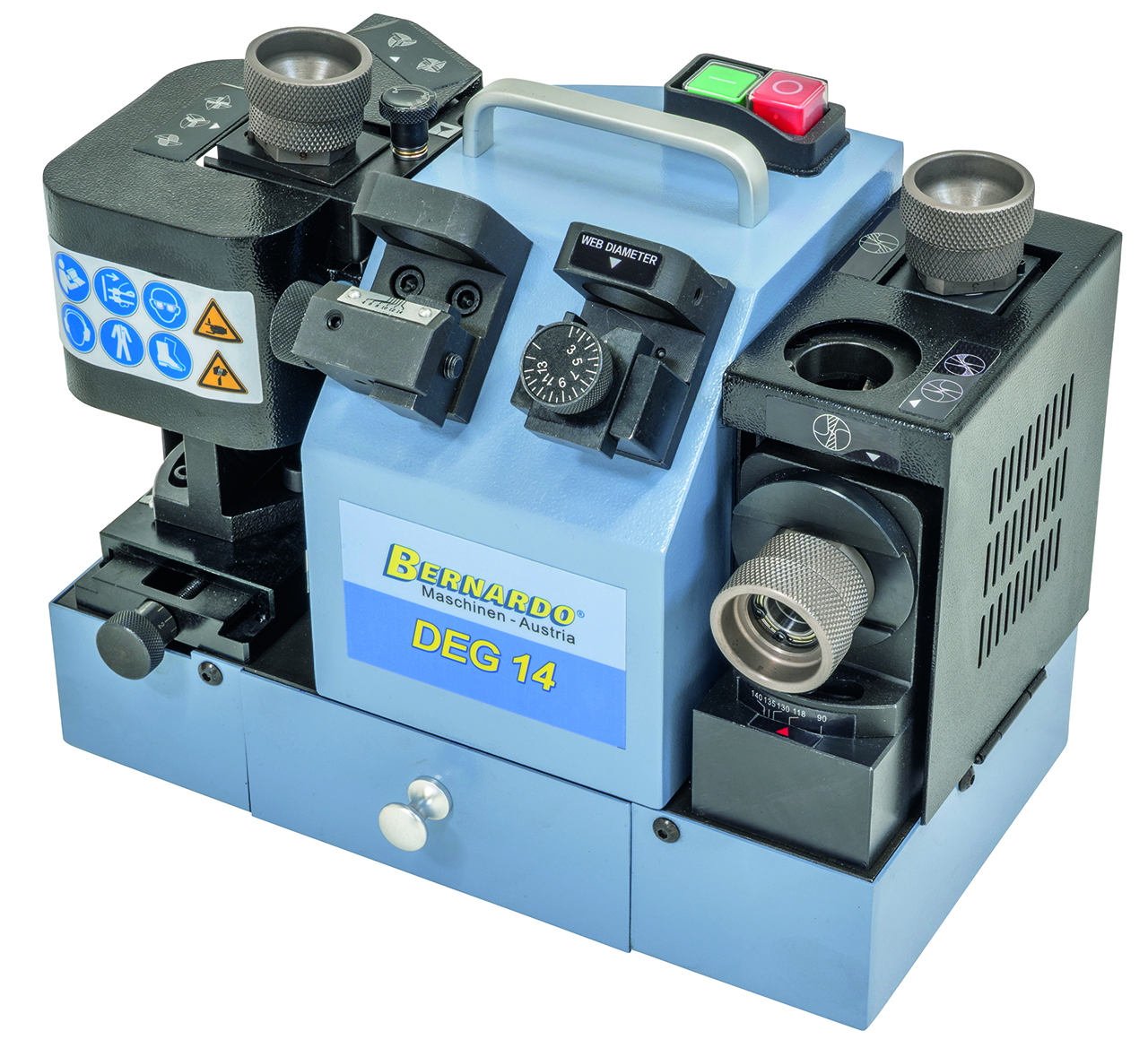

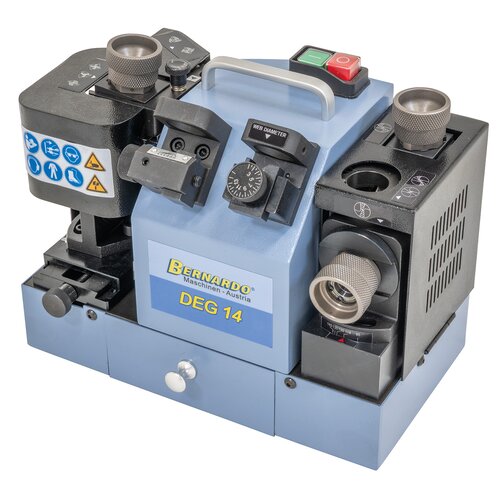

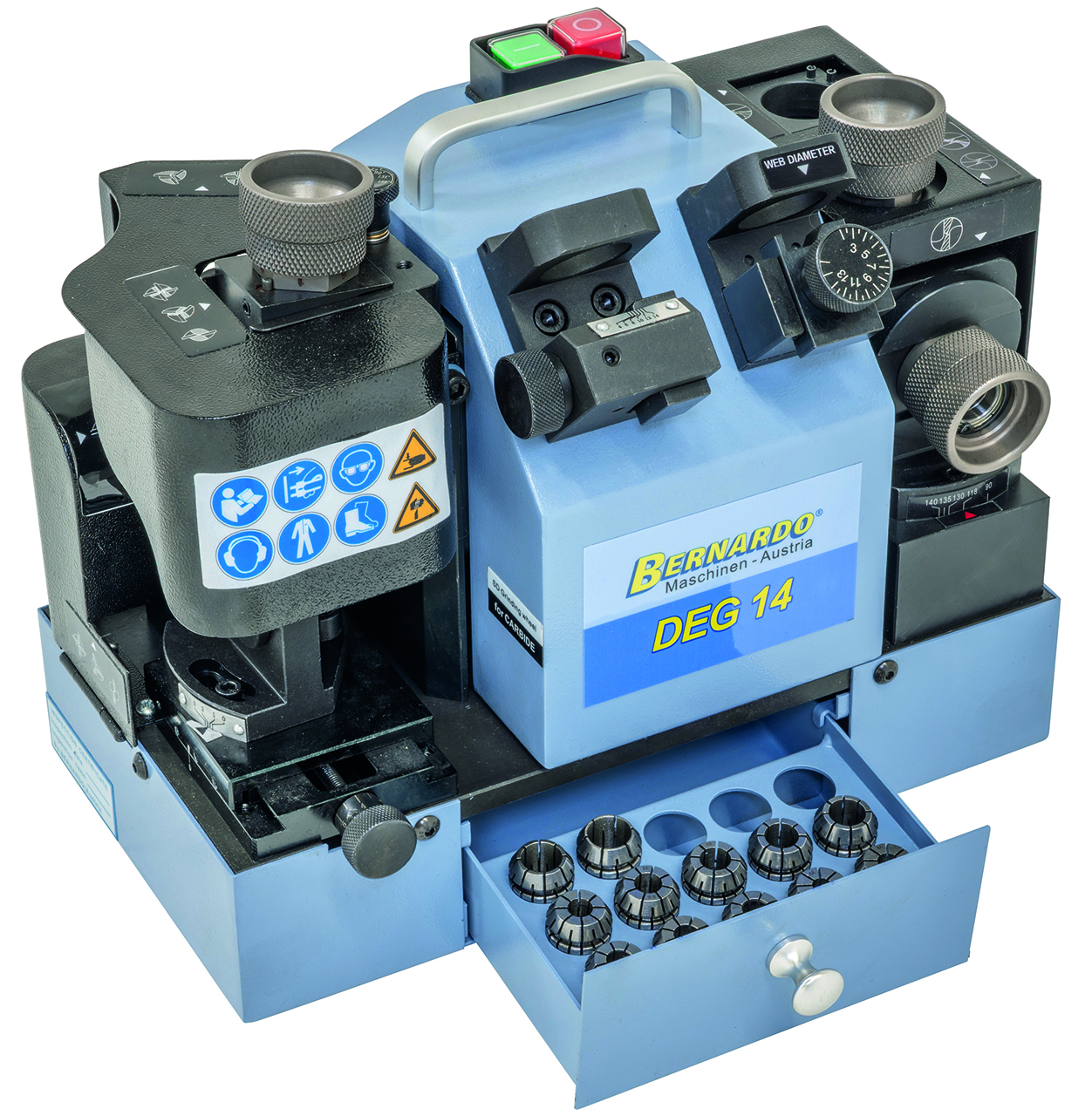

DEG 14 Mașină de rectificat burghie și freză de capăt

product.detail.art-no: 05-16250

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The complex sharpener o drill & milll DEG 14 enables the grinding of drills and end mills – combined in one machine. Thanks to the adjustable point angle, this machine is universally applicable and suitable for a wide variety of drills and end mills.

1.428,00 EUR

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Including device for thinning, that means better centering of the drill bit on the workpiece and reduction of the required feeding force
Additional station for relief-grinding of the cutting face (relief angle)
12 pcs. ER collets are part of the standard equipment, also suitable for clamping of intermediate sizes
For grinding of end mills with 2, 3 and 4 cutting edges
For face grinding of HSS and carbide end mills
Rotor features precise ball bearings to guarantee smooth operation
Quick and precise working results through the easy handling

Product Specifications

Drill grinding device
Drill diameter	3 - 14 mm
Point angle	90° - 135°
End mill grinding device
End mill diameter	4 - 14 mm
Point angle	0° - 3°
Speed	4400 rpm
Motor power	0,16 kW
Voltage	230 V
Length	310 mm
Width	220 mm
Height	260 mm
Weight approx.	19,3 kg

Delivery Contents

Grinding wheel CBN (drill grinding device)
Grinding wheel SDC (end mill grinding device
Collets ER, 3 – 14 mm, 12 pcs. (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 mm)
Collet holder ER
