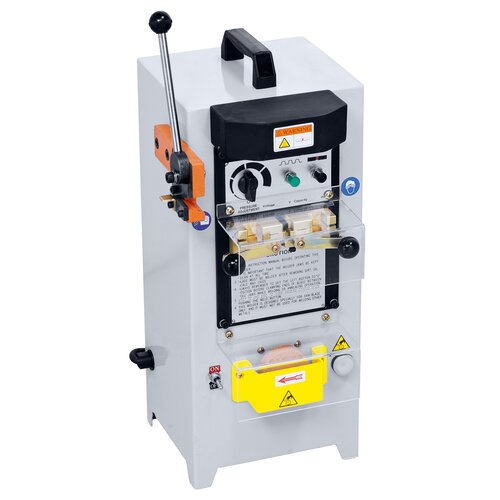

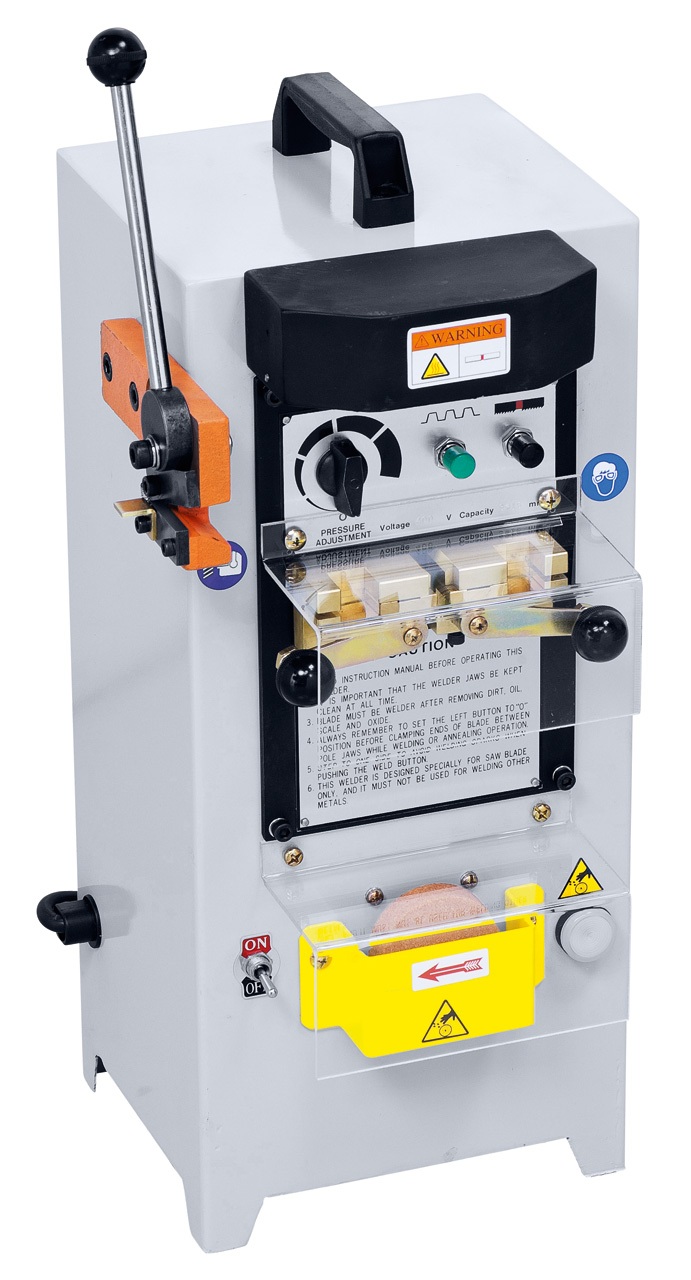

Blade welder SG 316 separate available. Driven grinding stone and shear included.

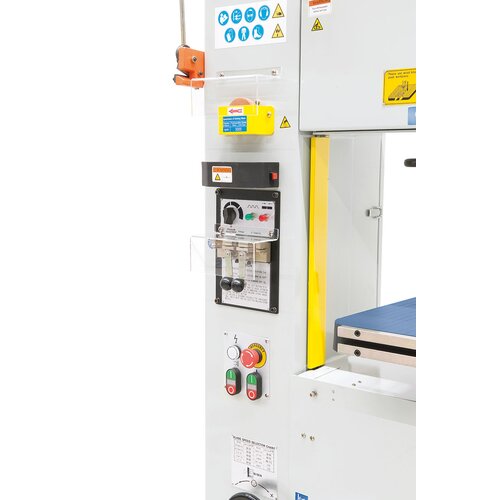

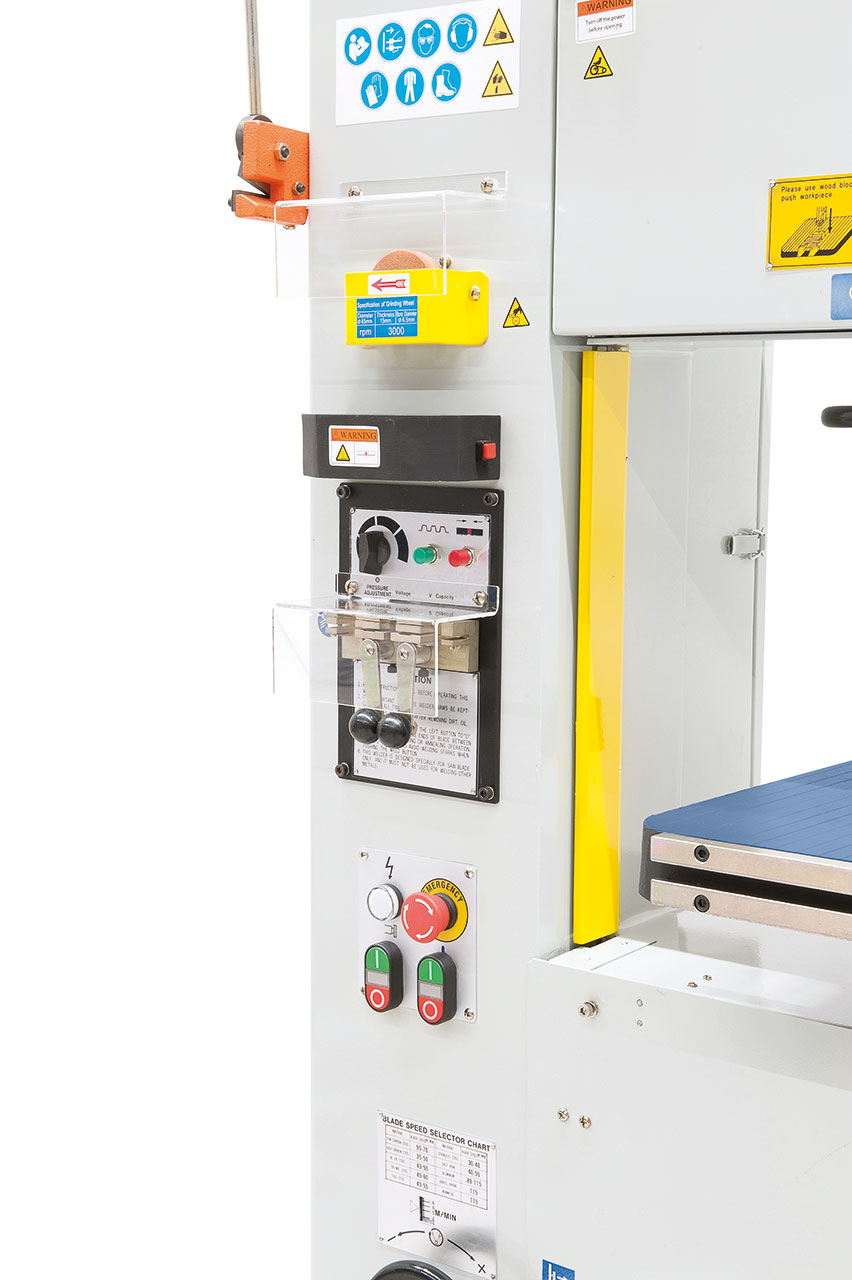

Blade welding unit, shear and grinder as standard

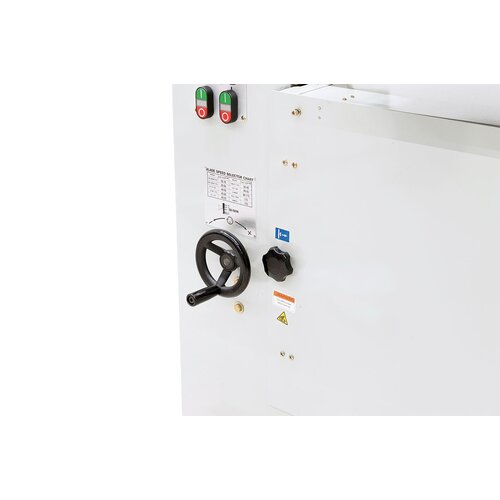

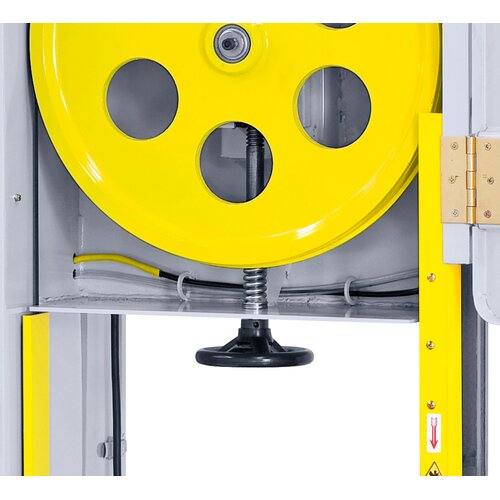

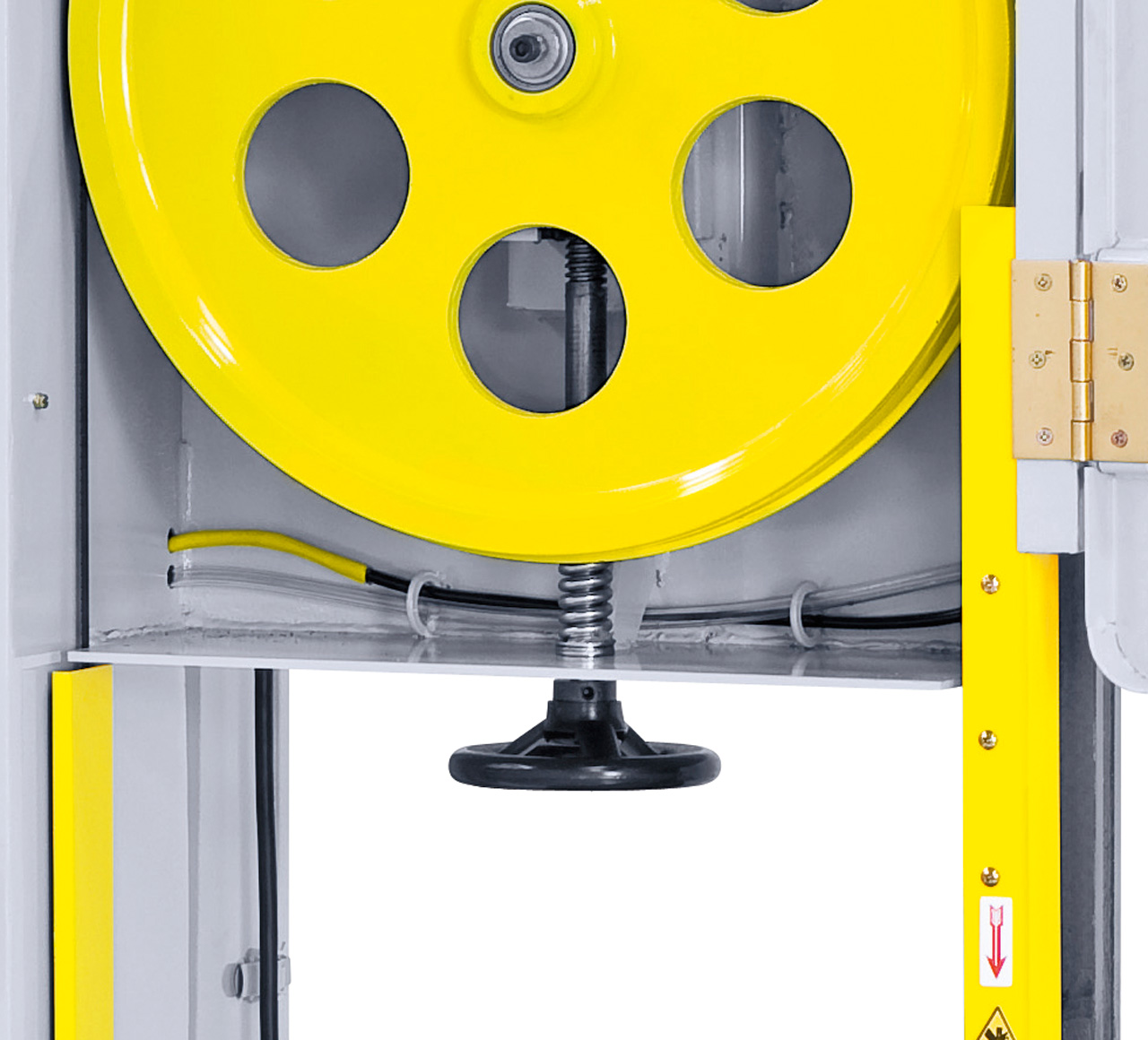

The handwheel allows accurate adjustment of the blade tension.

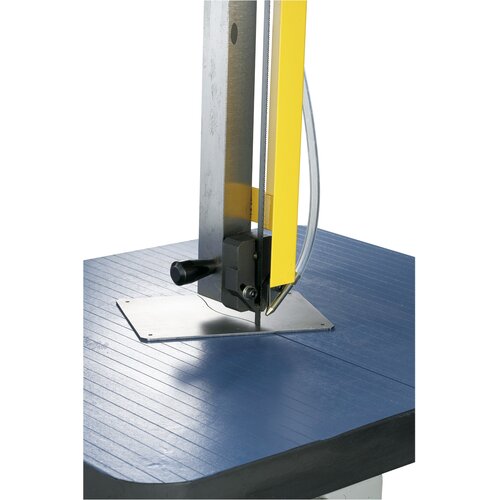

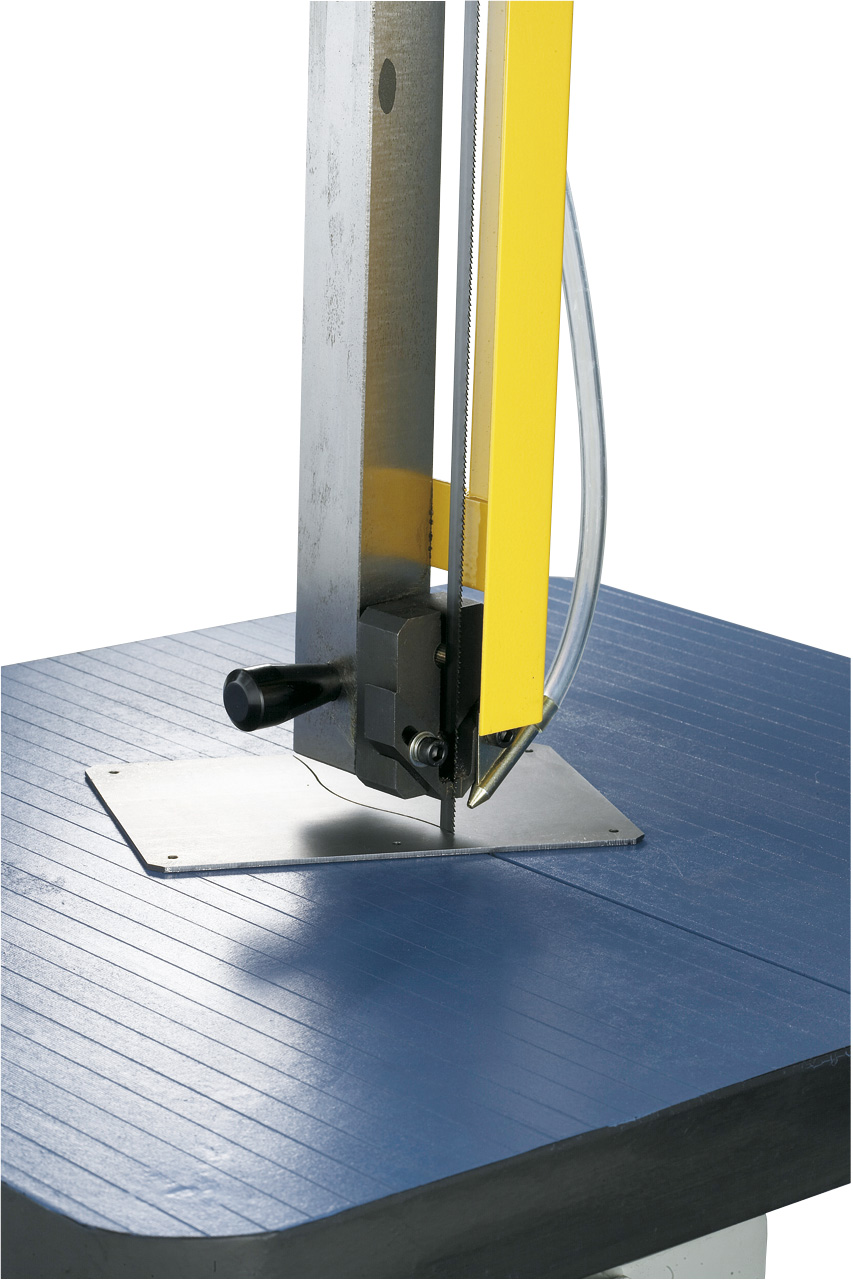

Bandsaw blade guide features ball bearings, adjustable to various workpiece sizes.

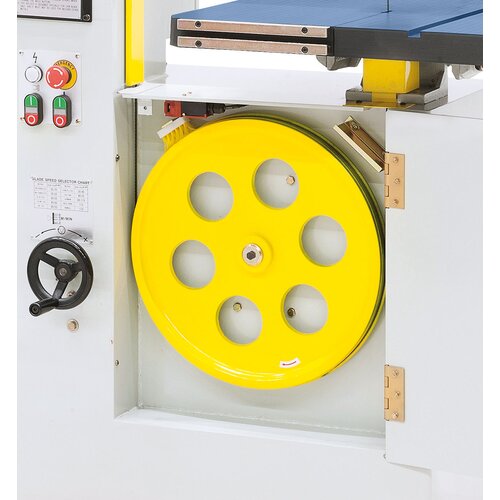

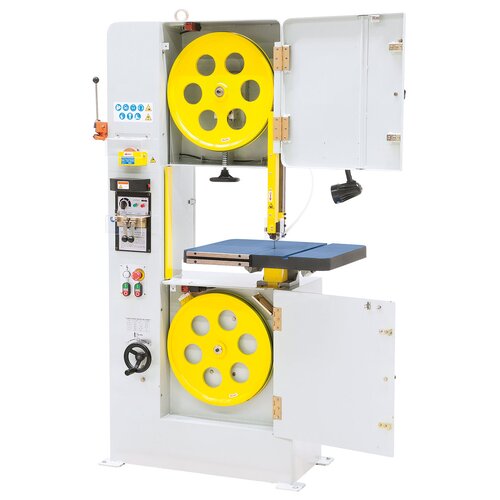

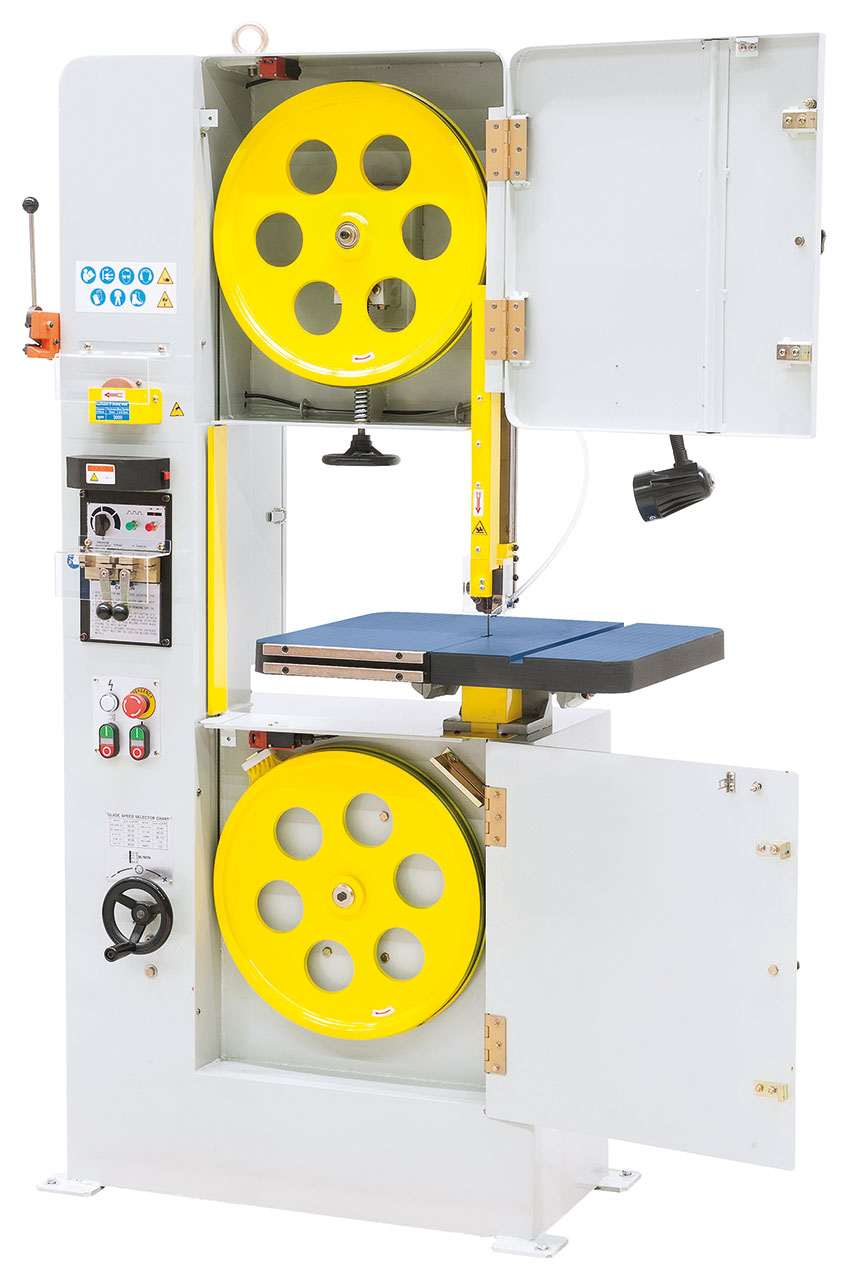

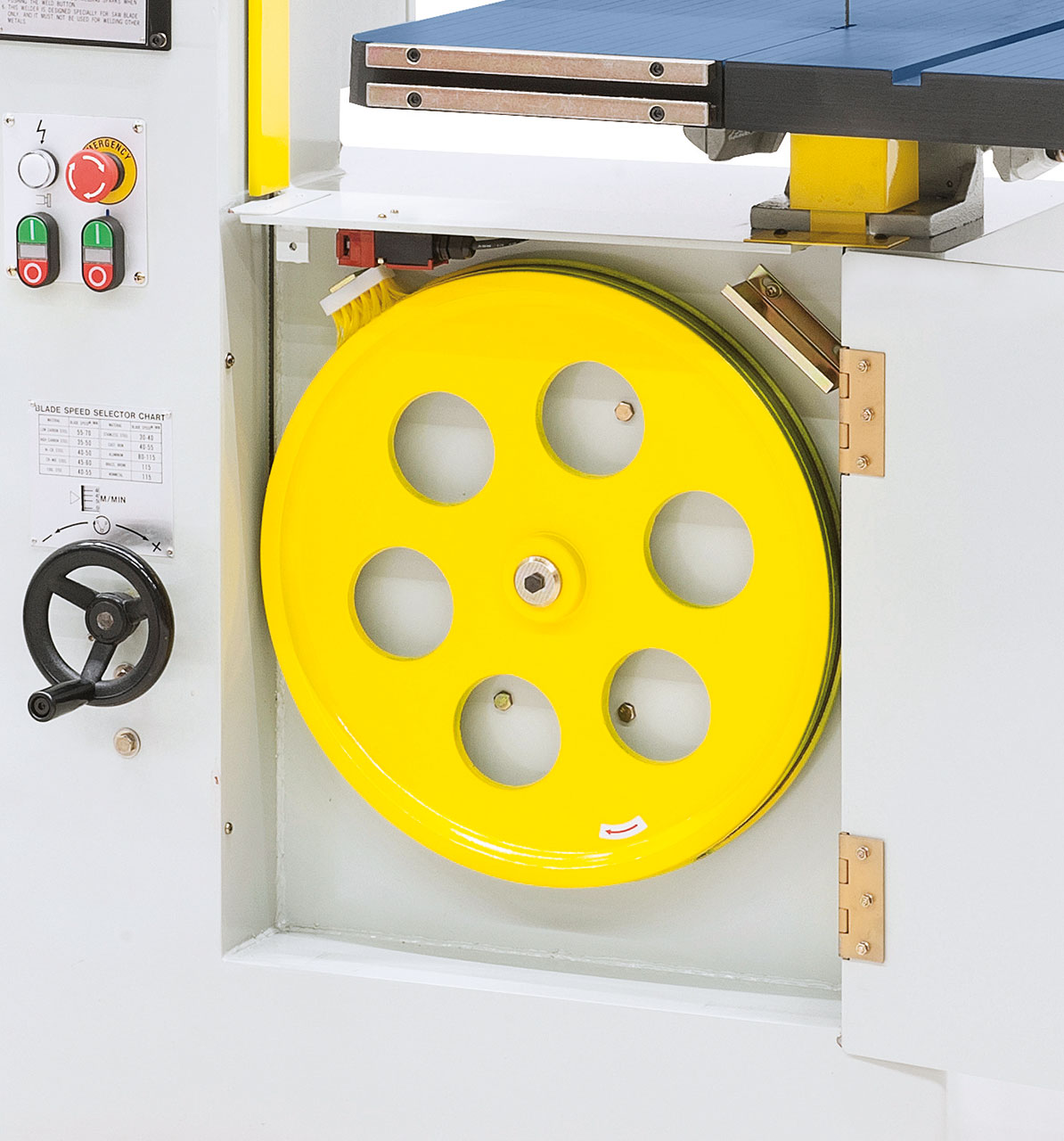

The dynamically balanced cast iron drive wheels assure smooth running of the machine.

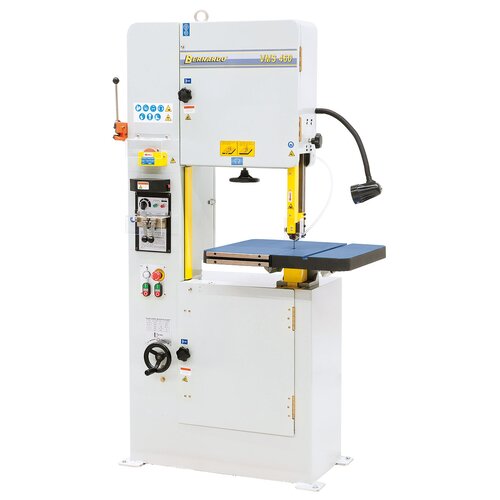

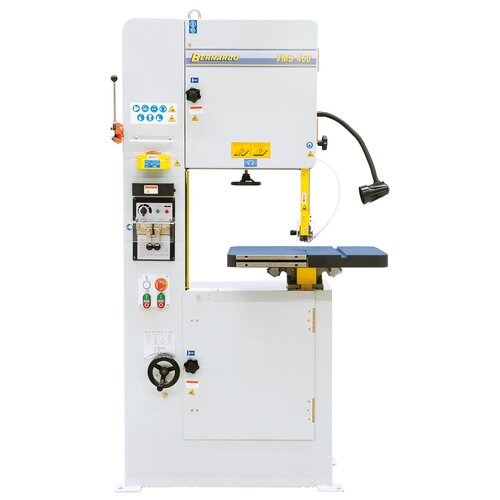

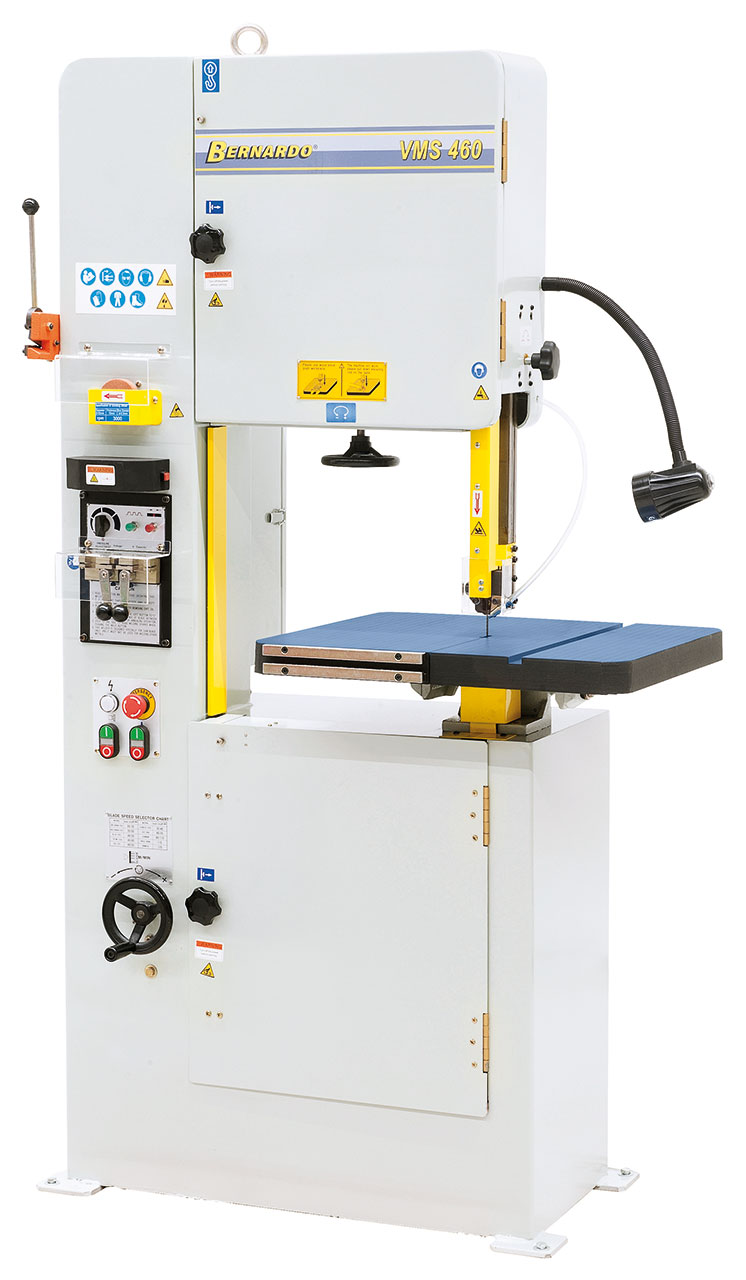

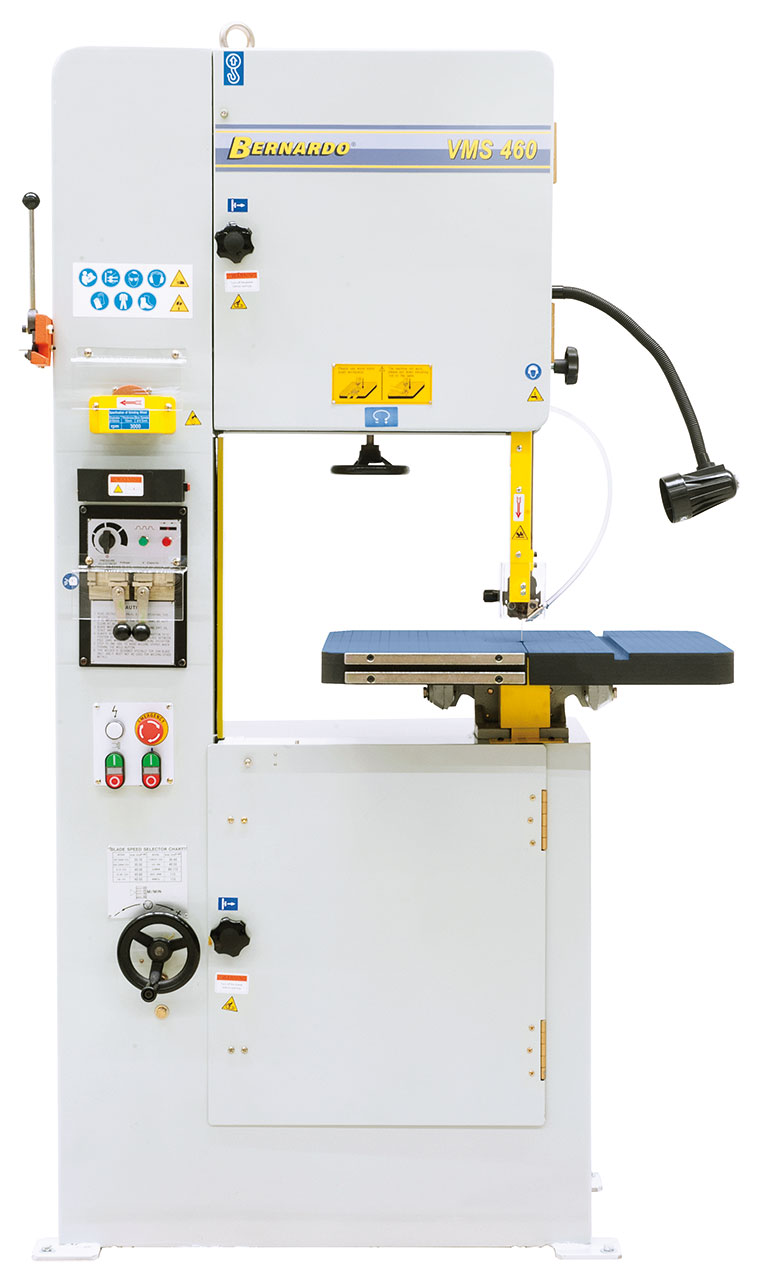

Vertical bandsaw VMS 460 *

Art.Nr.: 04-1795

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The vertical bandsaws VMS 460 is designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.). The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.

€7,068.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Solid grey cast-iron table – the large surface improves safety aspects
Blade welding device, annealing device, shear and grinder come standard

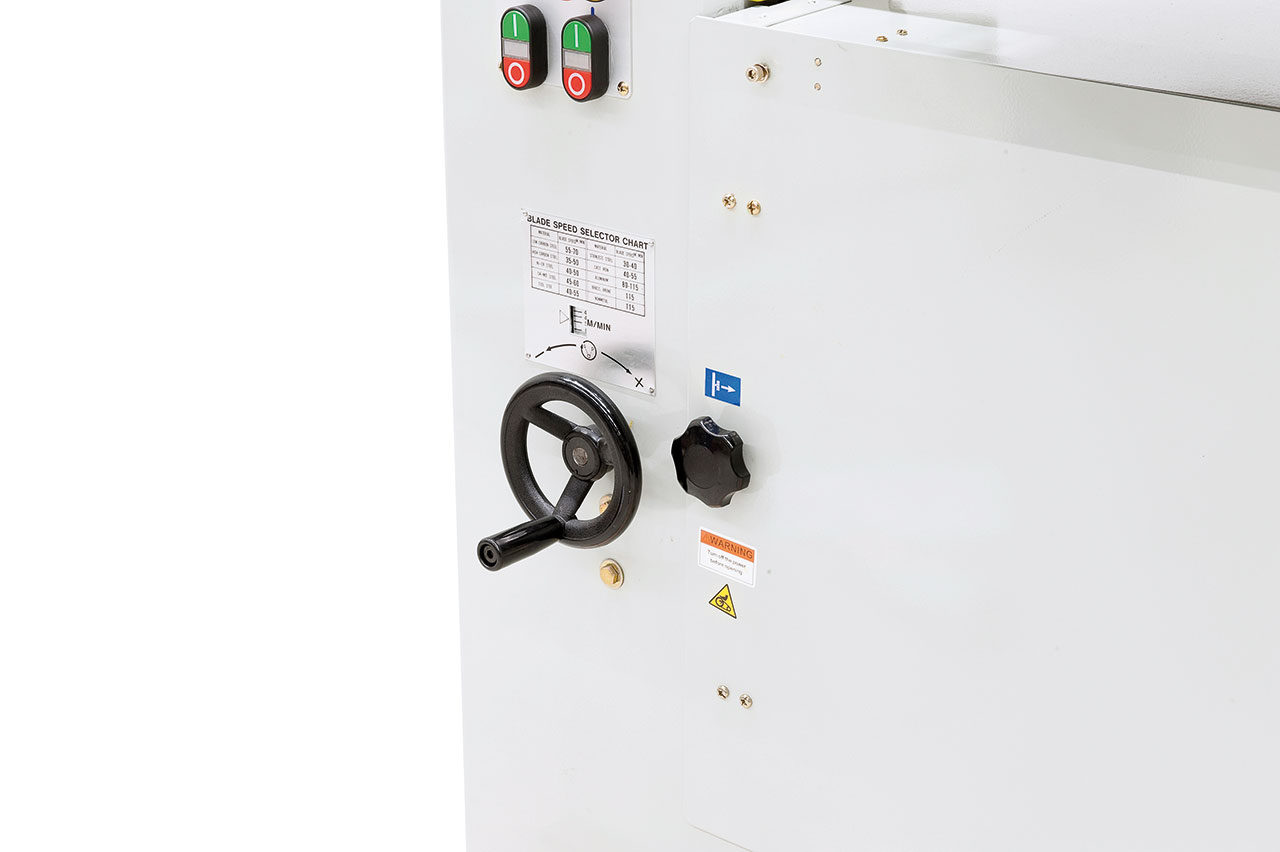

Complete with stepless speed adjustment
Solidly constructed steel body ensures smooth running
High-quality bandsaw blade guide guarantees precise results
Convenient cutting of irregular shaped workpieces
Work table tilts 15º to all sides
Blow gun with compressor is a standard accessory

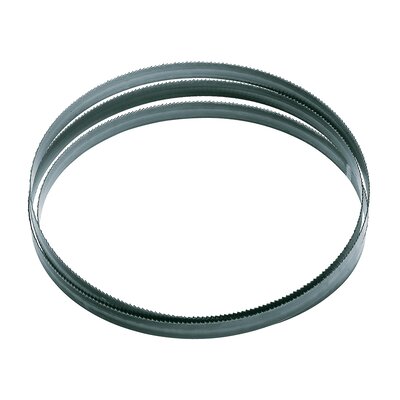

3 mm bandsaw blades are optionally available for radius cutting

Product Specifications

Cutting width	455 mm
Cutting height	255 mm
Working height	935 mm
Cutting speed setting 1	25 - 115 m/min
Bandsaw blade length	3490 mm
Bandsaw blade width	3 - 16 mm
Table size	600 x 500 mm
Table tilting range (in 4 directions)	15°
Motor power	0,75 kW
Blade welding device	2,4 kVA
Machine dimension (L x D x H)	1110 x 660 x 2020 mm
Weight approx.	300 kg
