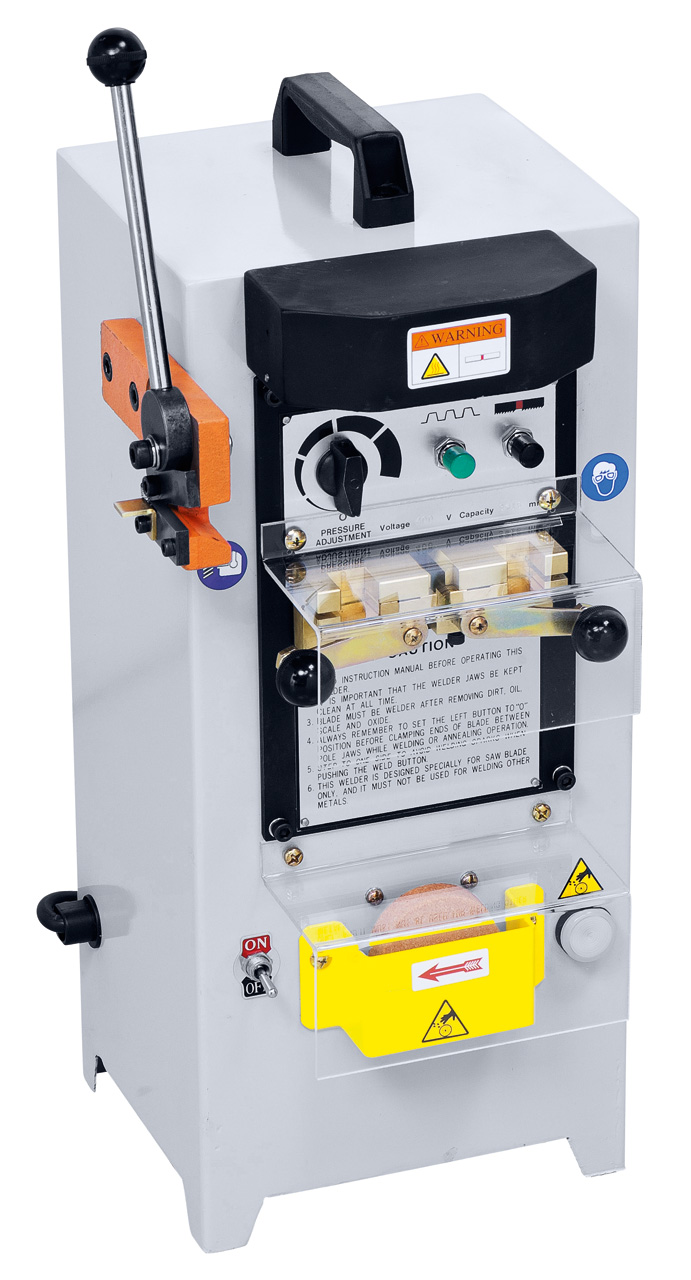

Blade welder SG 316 separate available. Driven grinding stone and shear included.

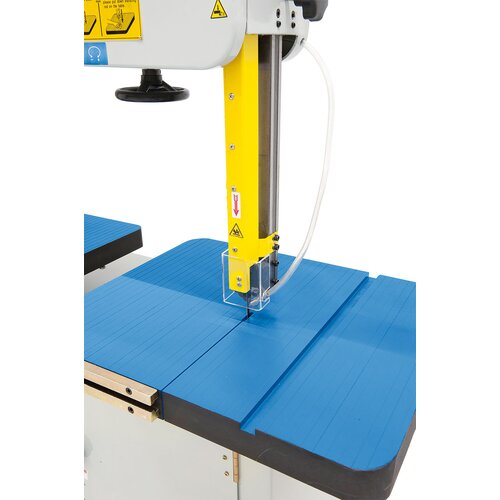

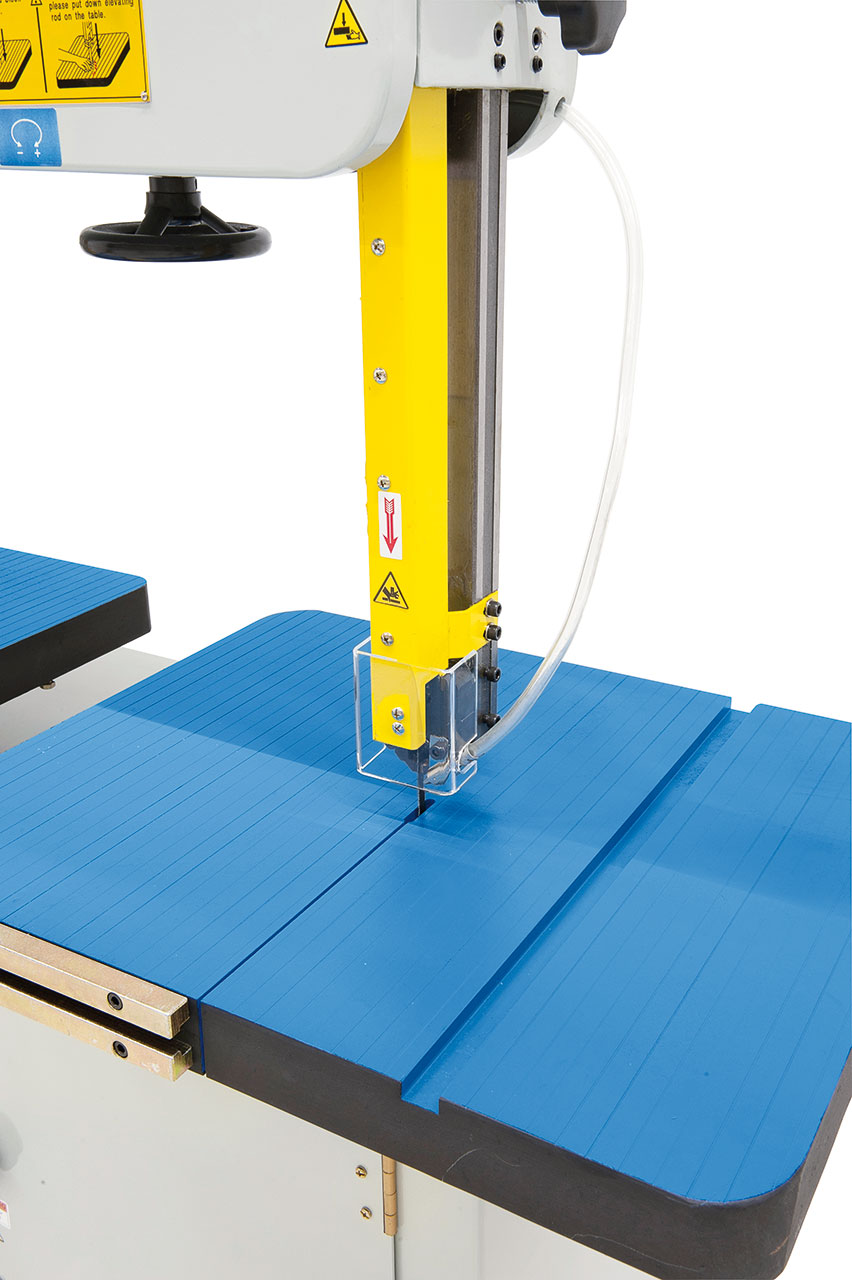

Bandsaw blade guide features ball bearings, adjustable to various workpiece sizes.

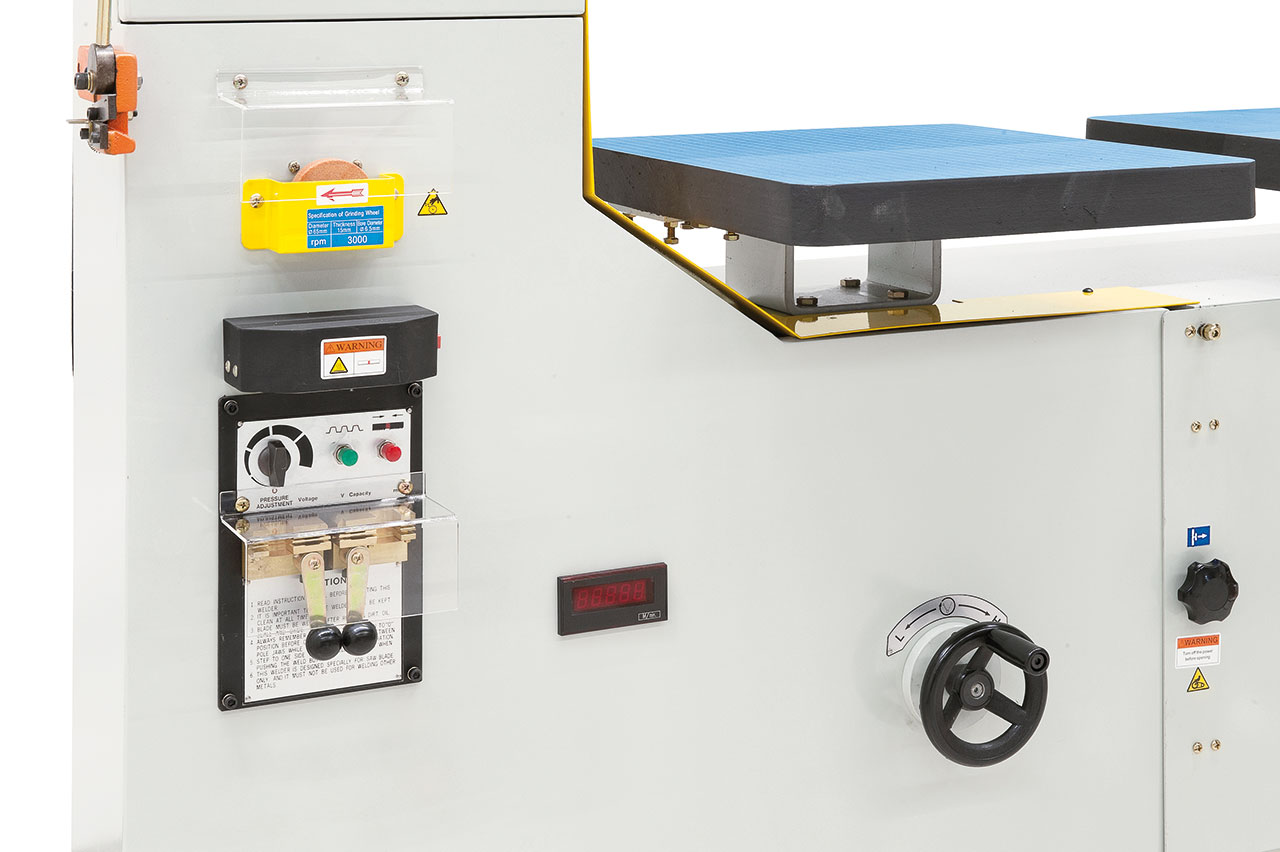

Blade welding unit, shear and grinder as standard

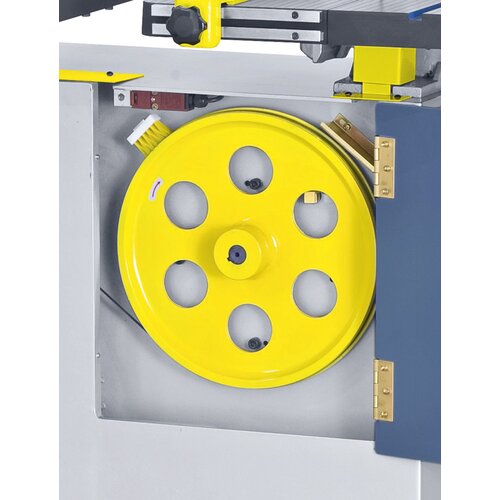

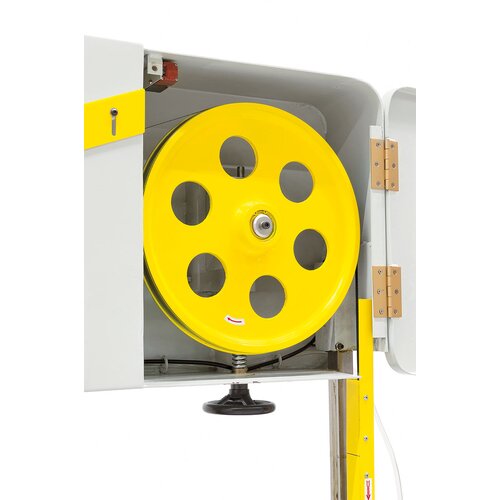

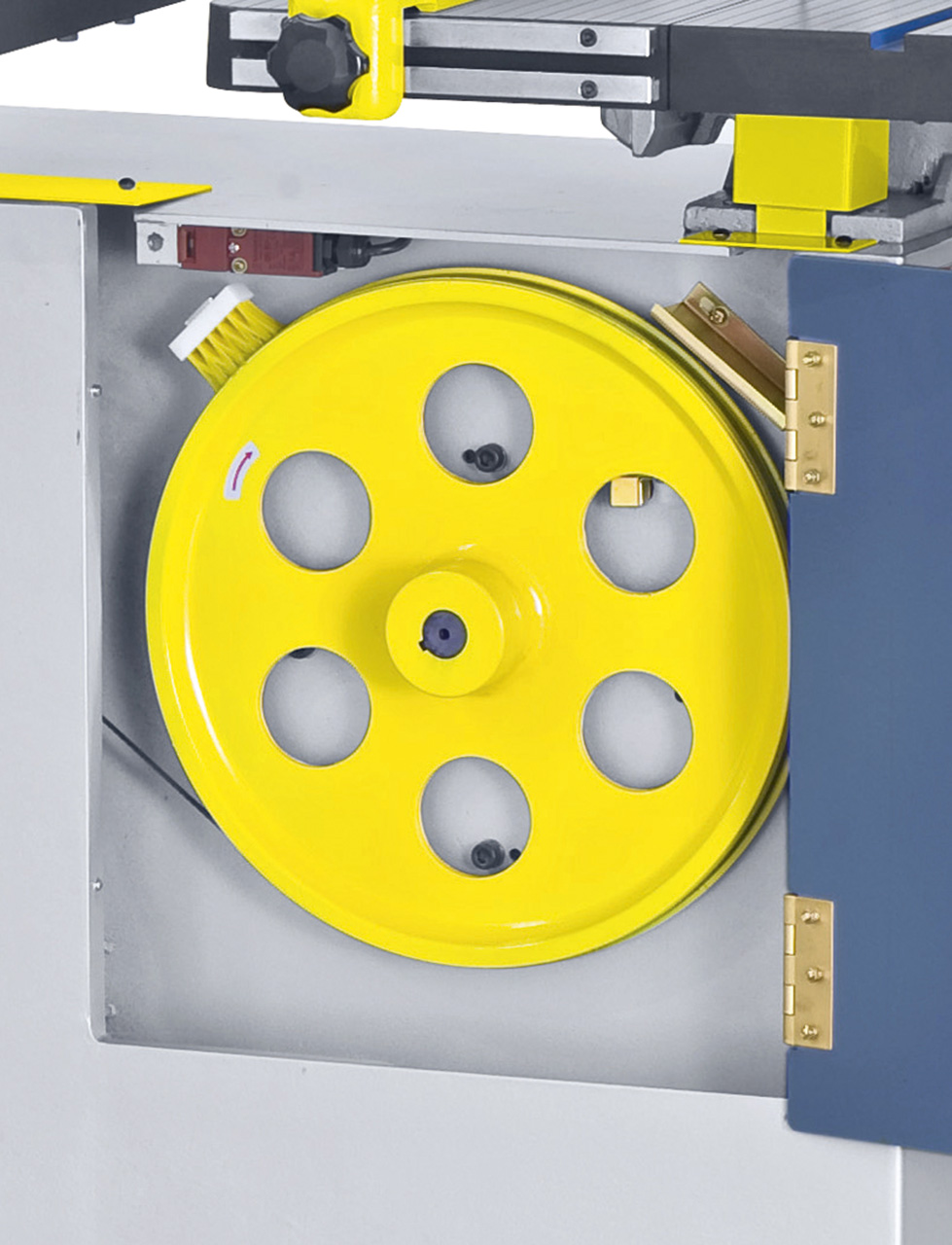

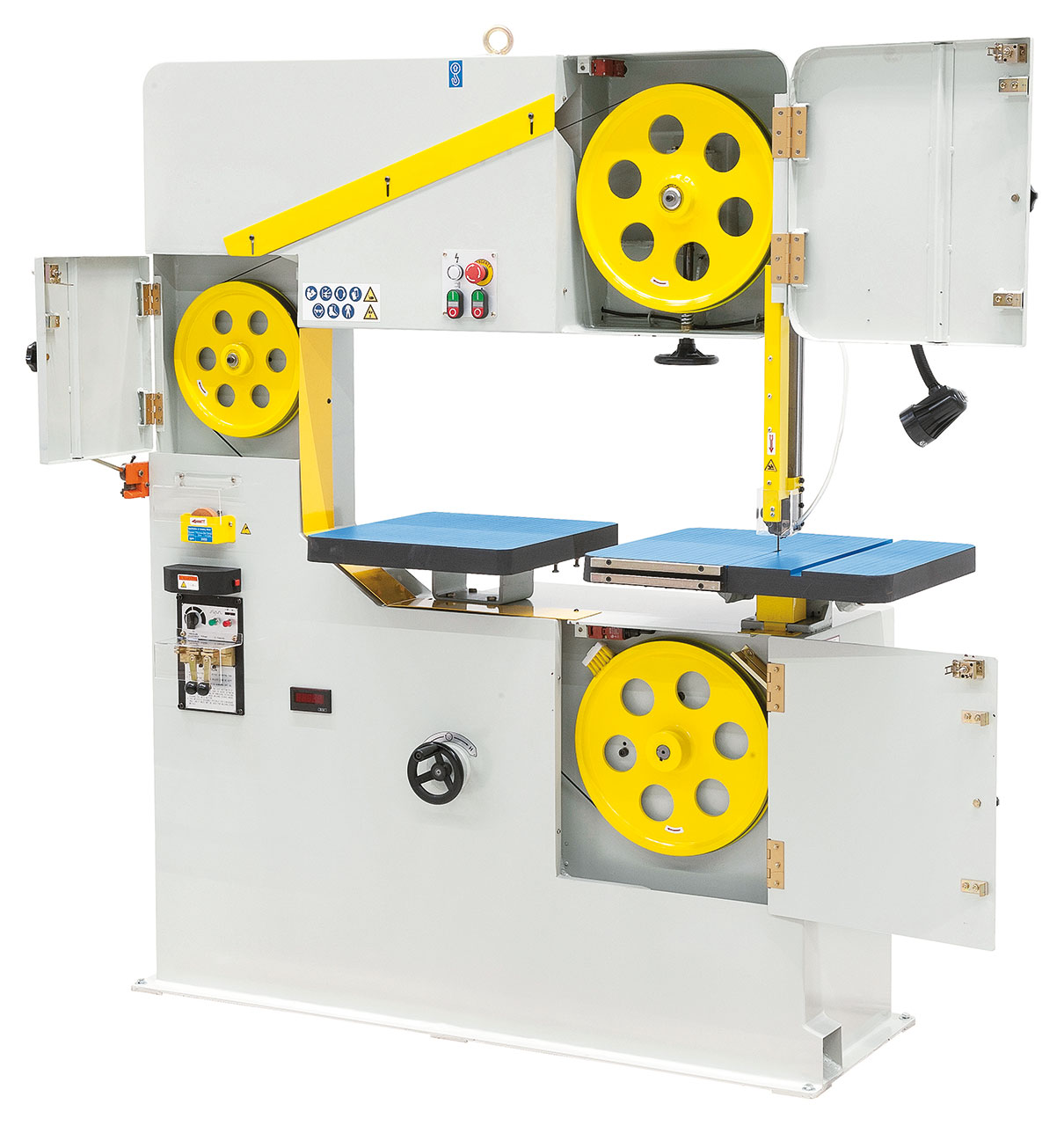

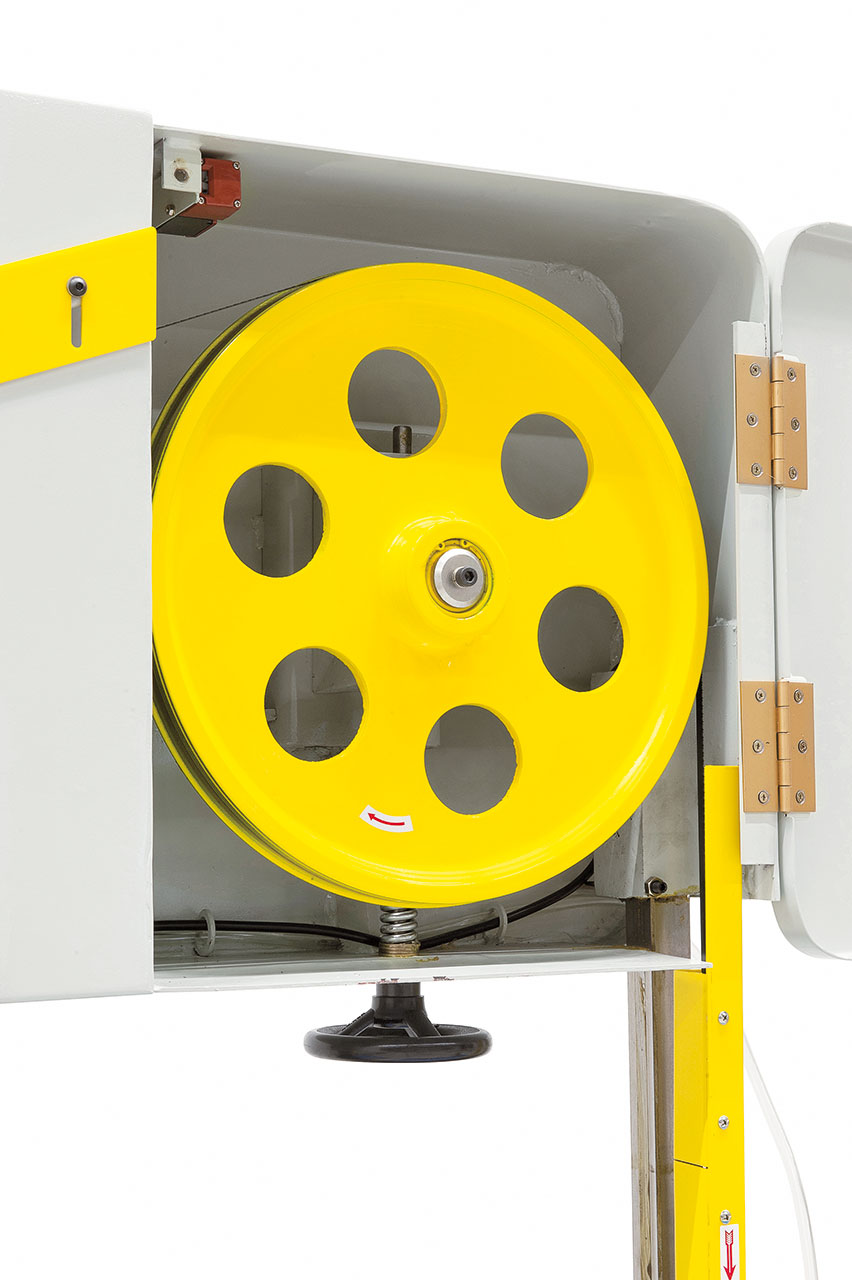

The dynamically balanced cast iron drive wheels assure smooth running of the machine.

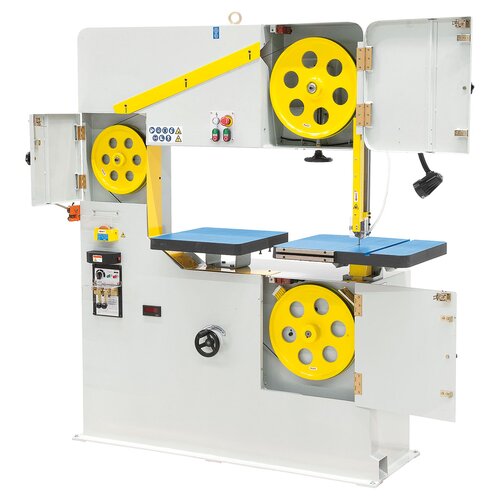

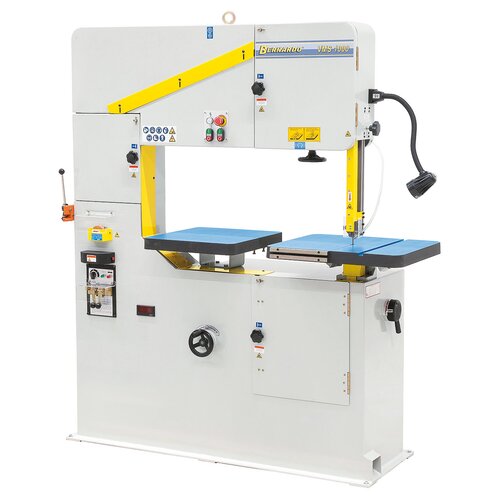

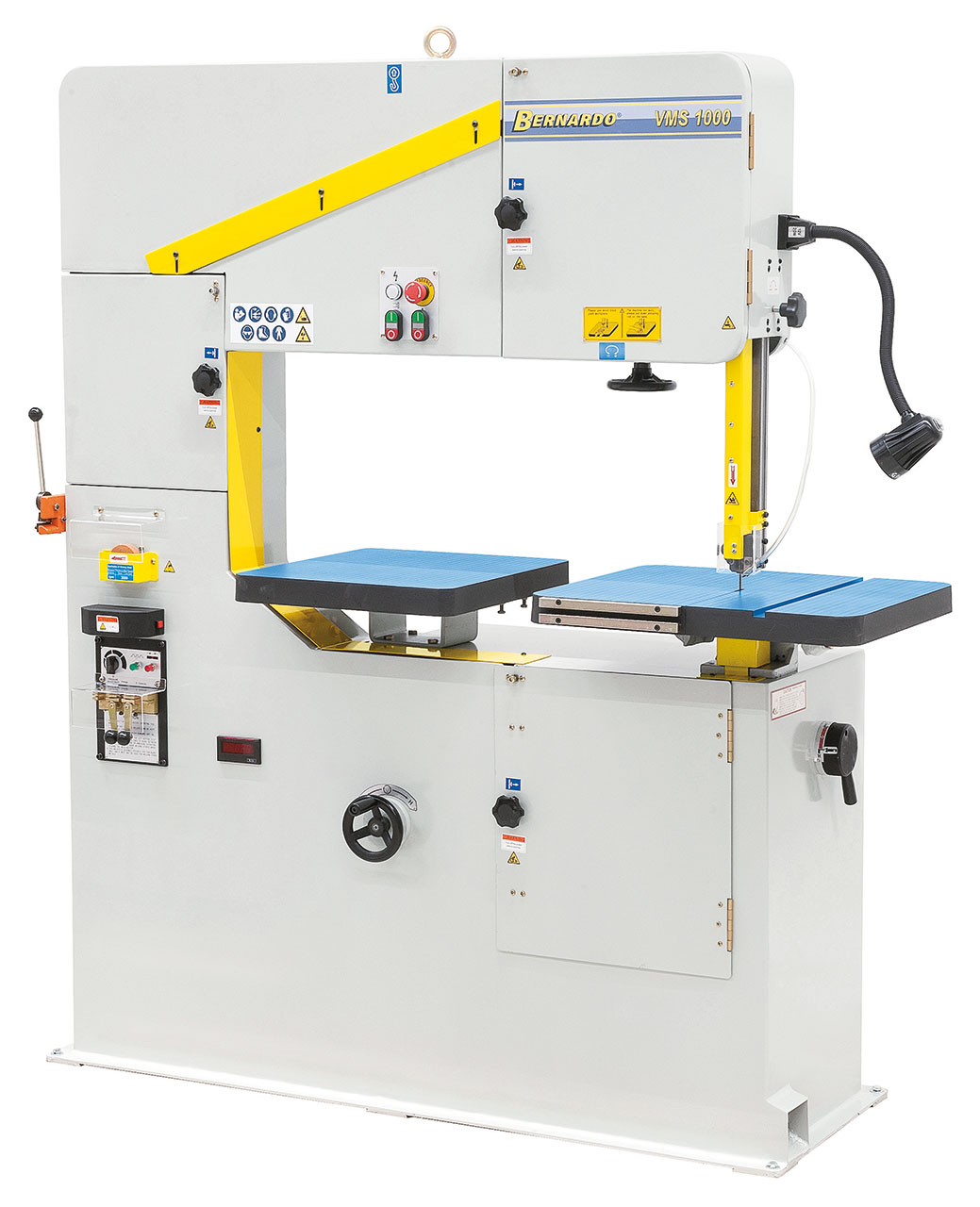

Vertical bandsaw VMS 1000 *

Art.Nr.: 04-1806

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The vertical bandsaws VMS 1000 is designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.). The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.

€11,268.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

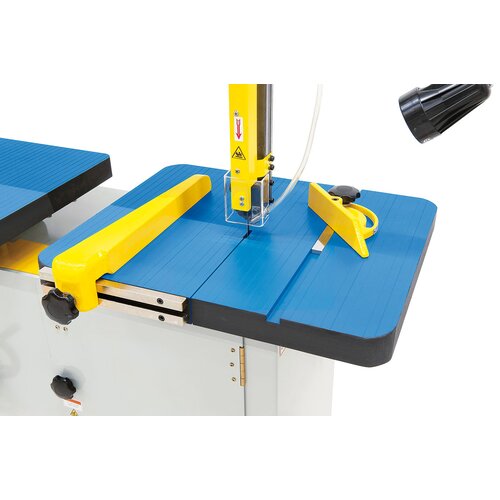

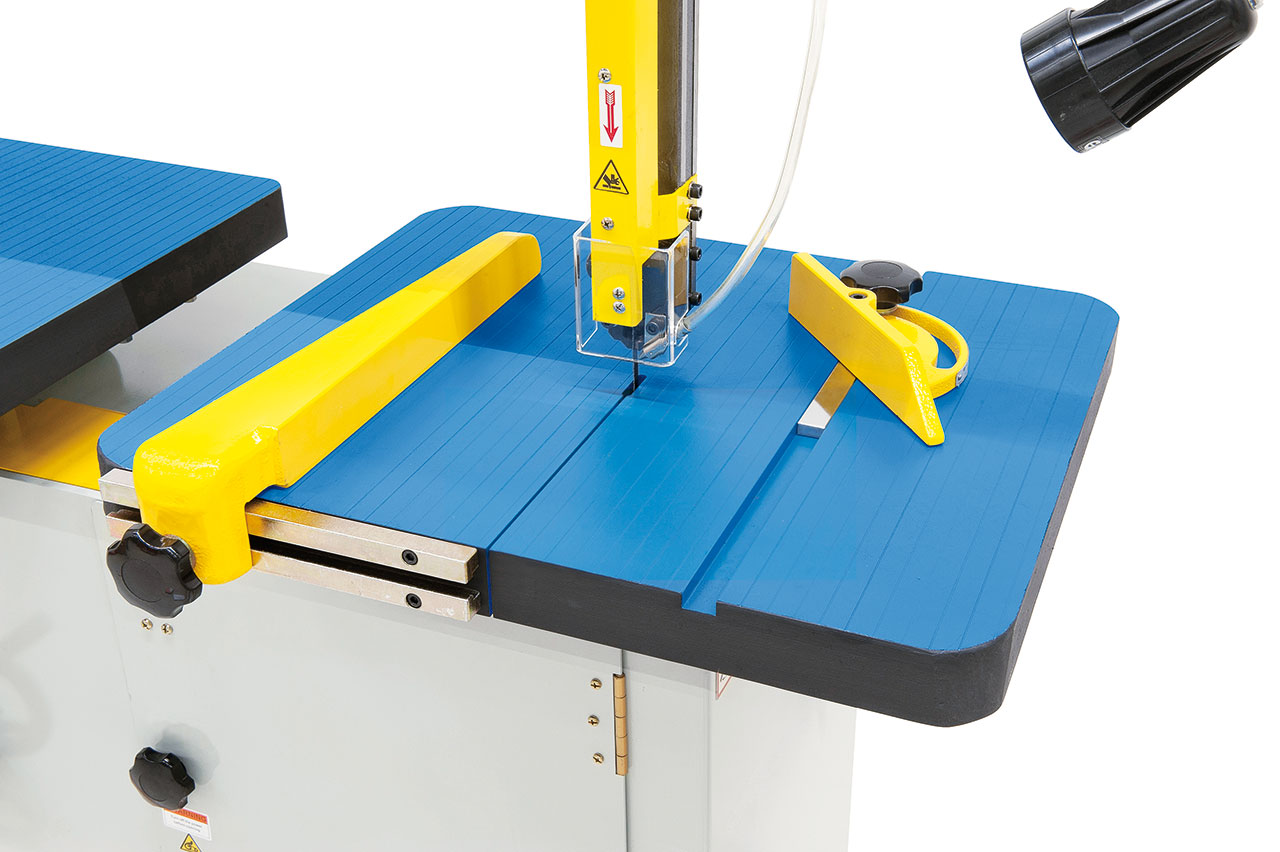

Solid grey cast-iron table – the large surface improves safety aspects
Blade welding device, annealing device, shear and grinder come standard

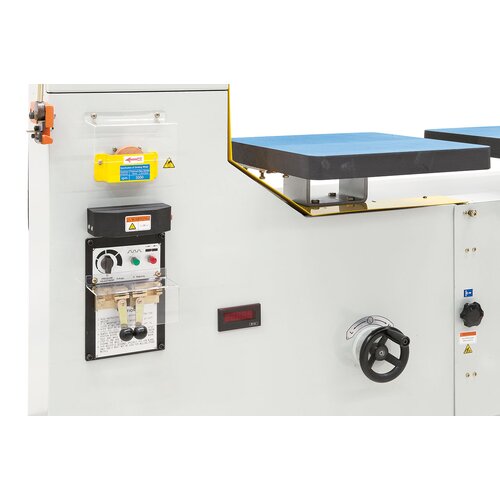

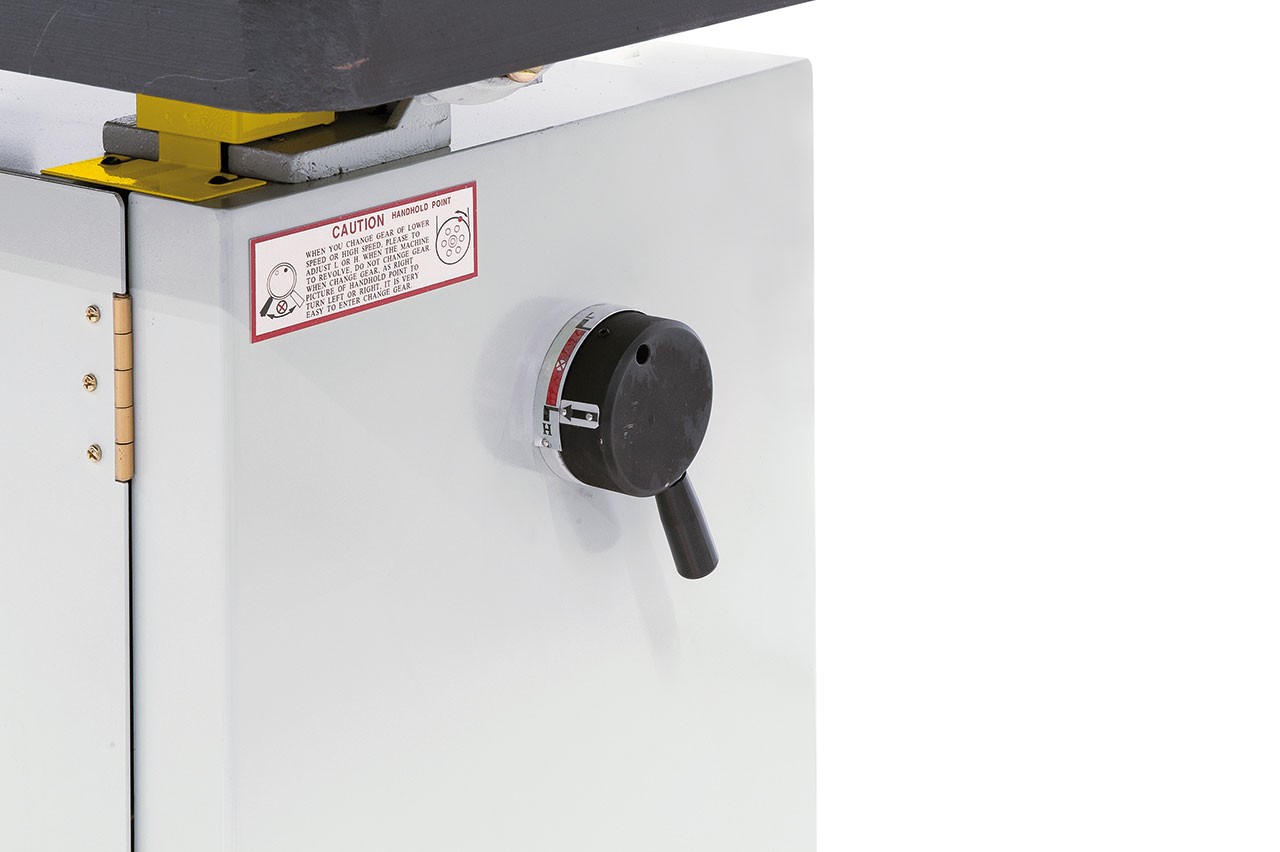

Complete with stepless speed adjustment
Solidly constructed steel body ensures smooth running
High-quality bandsaw blade guide guarantees precise results
Convenient cutting of irregular shaped workpieces

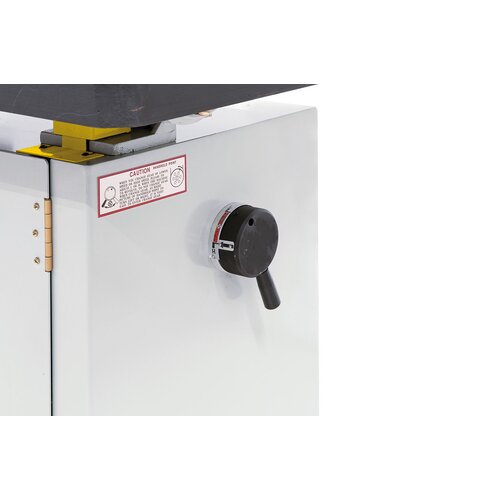

Work table tilts 15º to all sides
Blow gun with compressor is a standard accessory
3 mm bandsaw blades are optionally available for radius cutting

Product Specifications

Cutting width	1010 mm
Cutting height	340 mm
Working height	1000 mm
Cutting speed setting 1	25 - 85 m/min
Cutting speed setting 2	120 - 500 m/min
Bandsaw blade length	4540 mm
Bandsaw blade width	3 - 16 mm
Table size	600 x 490 mm
Size of additional table	450 x 500 mm
Table tilting range (in 4 directions)	15°
Motor power	1,5 kW
Blade welding device	2,4 kVA
Machine dimension (L x D x H)	1770 x 760 x 1930 mm
Weight approx.	800 kg
