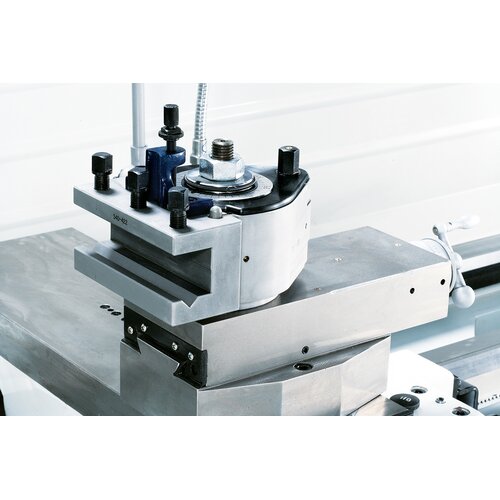

The machine can be equipped with a quick change tool post holder to raise efficiency.

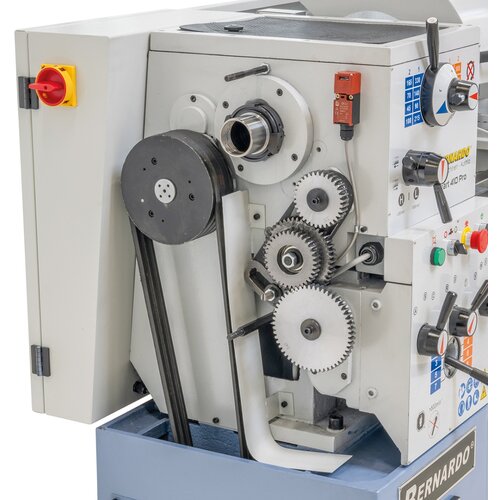

Serially equipped with change gears for thread cutting.

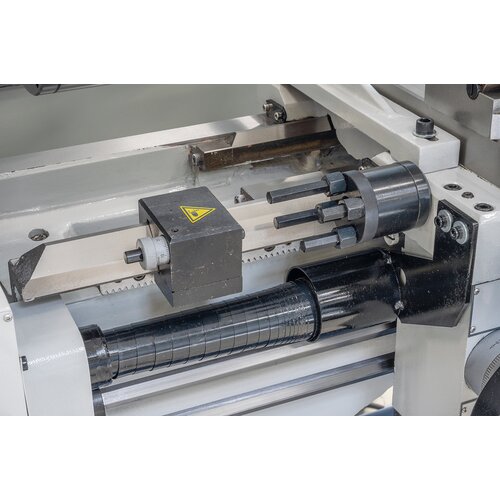

4 adjustable fence and micrometer longitudinal fence, ideal for serial works.

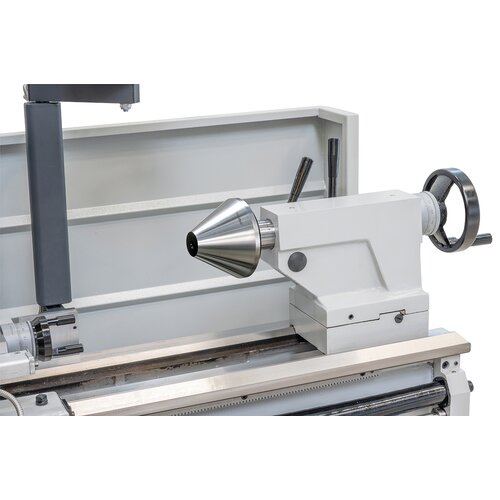

Optionally available: ball nose live center diameter 130 mm for clamping of pipes.

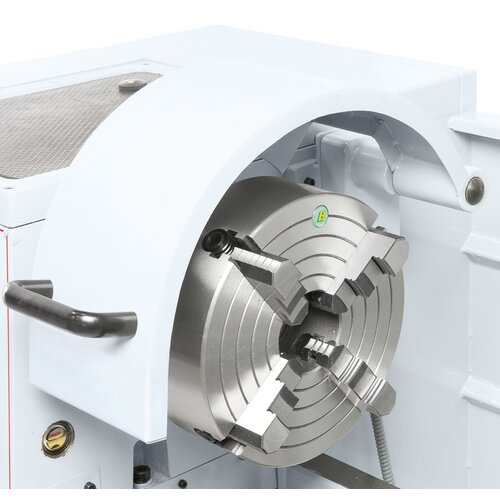

Independent chuck 250 mm for clamping of irregular shaped workpieces. (optional)

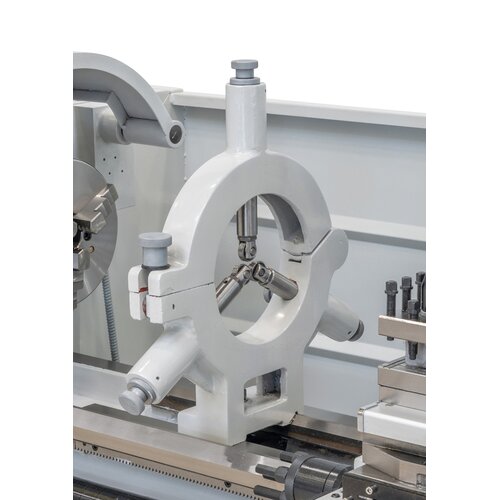

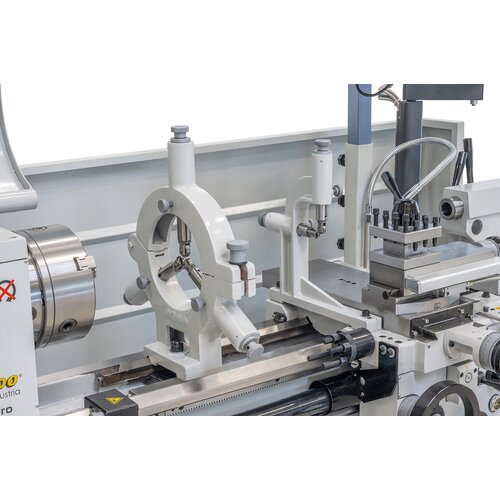

Steady rest to support long and thin workpieces.

Feed gear unit can be controlled easily and accurately. Polished gears ensure smooth running.

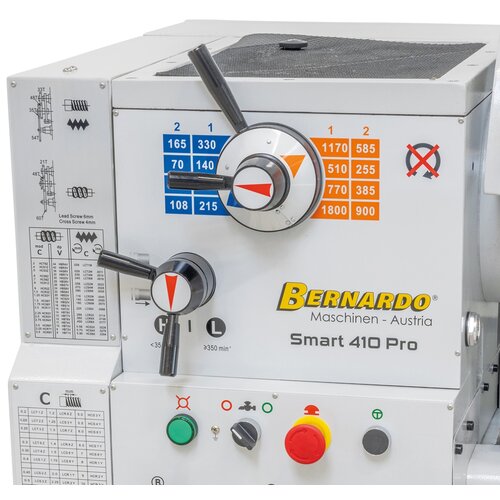

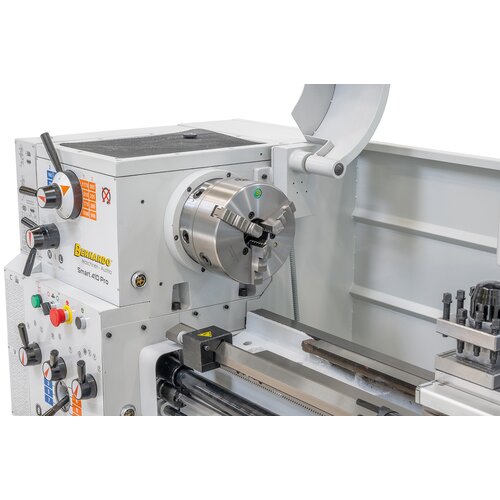

The solid head stock and the dynamically balanced main spindle ensure accuracy and smoothness even at higher speed.

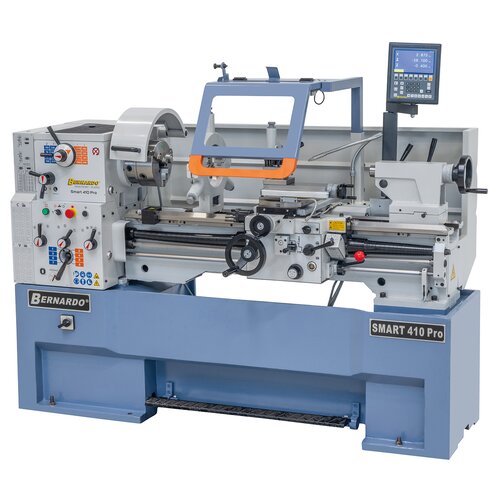

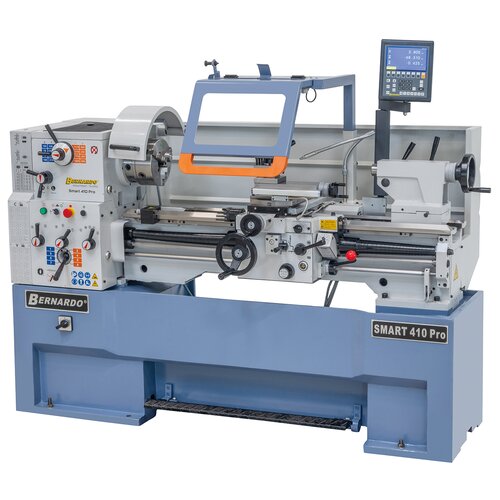

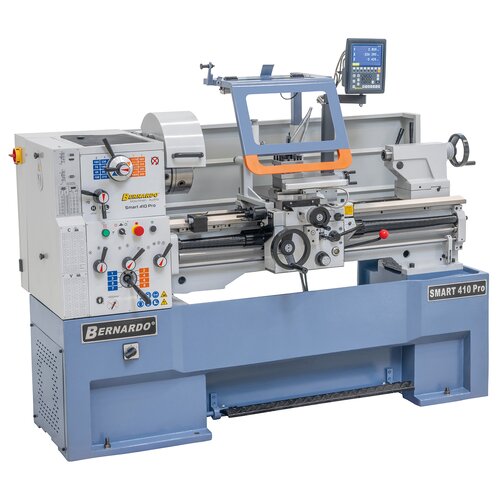

Universal turning lathe Smart 410 x 1500 Pro incl. 3-axis-digital readout *

Art.Nr.: 03-1299XL0

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

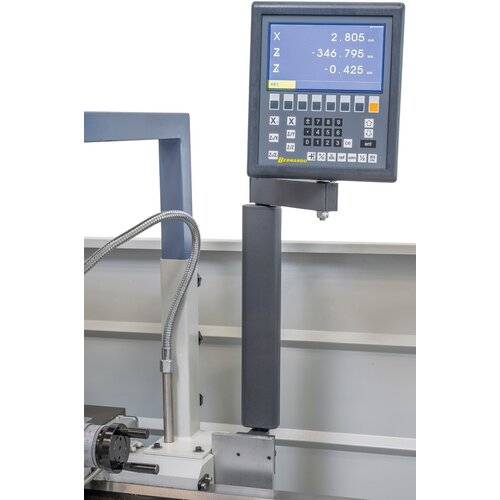

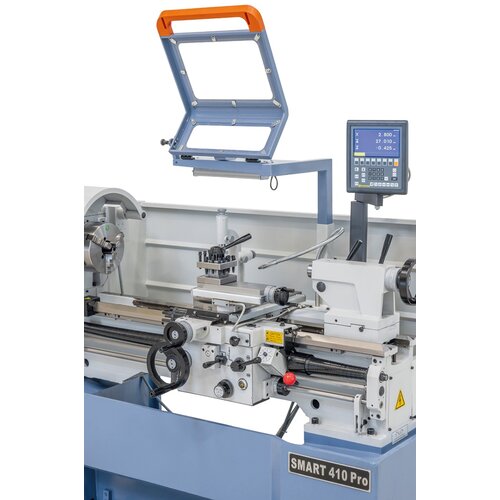

The Smart 410 Pro universal lathe is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is equipped with a 3-axis digital readout.

€16,296.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Inductive hardened, polished grey cast-iron machine bed
Electro-mechanical foot brake reduces downtime significantly
State-of-the-art main spindle bearing with high-quality angular ball bearings
Modern bearing of main spindle with angular ball bearing in precision construction
Easy, smooth and precisely adjustable speed and feed settings
Hardened, polished gears and shafts, also in feed gear unit

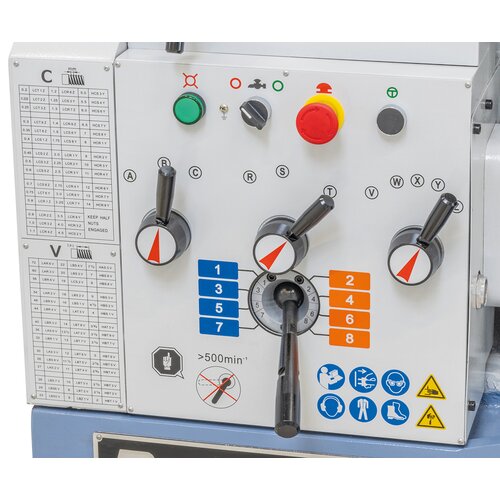

Centrally located, logical switches for feeds and threads with leadscrew and feed rod
Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)
The removeable bridge allows machining of workpieces with a big diameter

Product Specifications

Distance between centers	1500 mm
Center height	210 mm
Swing over bed	420 mm
Swing over gap	580 mm
Swing over cross slide	255 mm
Bed width	250 mm
Spindle bore	52 mm
Spindle nose fixture	DIN 55029, D1 - 6
Speed range	(16) 45 - 1800 rpm
Longitudinal feed	(17) 0,05 - 1,7 mm/rev.
Cross feed	(17) 0,025 - 0,85 mm/rev.
Metric thread	(42) 0,2 - 14 mm
Inch thread	(45) 2 - 72 threads/1“
Diameter of tailstock sleeve	50 mm
Travel of tailstock sleeve	140 mm
Taper of tailstock sleeve	MT 4
Motor power	3,0 / 4,5 kW
Machine dimension (W x D x H)	2570 x 900 x 1600 mm
Weight approx.	1400 kg
