Metric shell end mill
Metric shell end mill

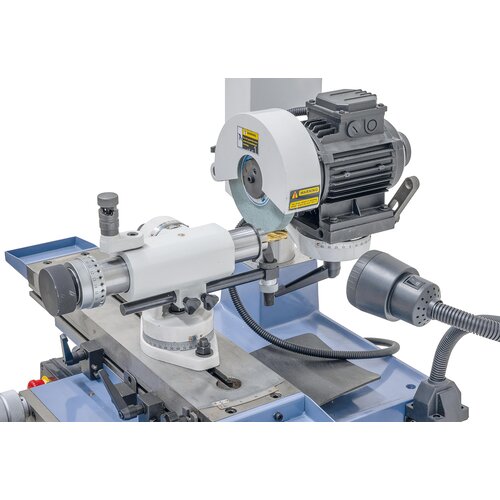

End mill outer spiral cutting edge
End mill outer spiral cutting edge

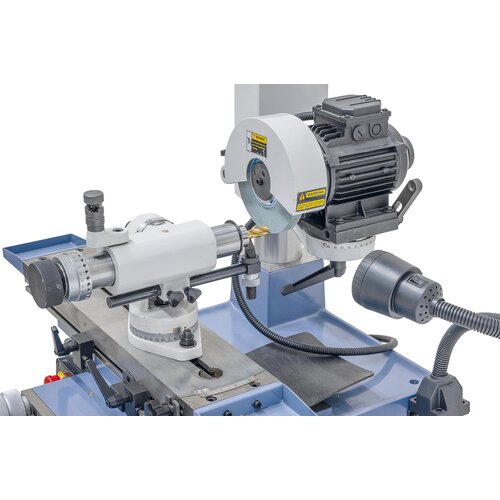

End mill face side
End mill face side

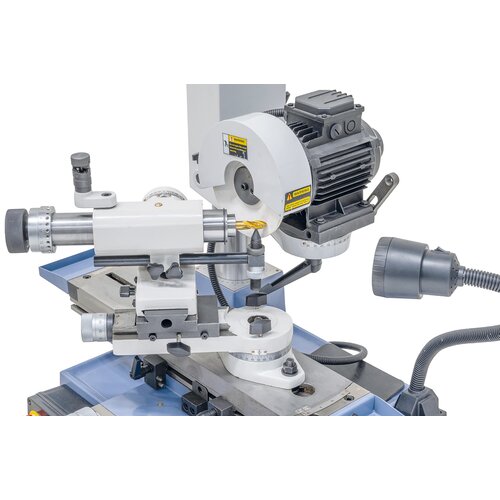

Ball end mill
Ball end mill

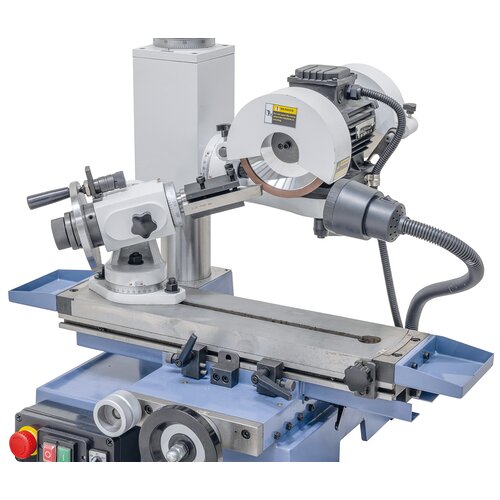

Turning tool
Turning tool

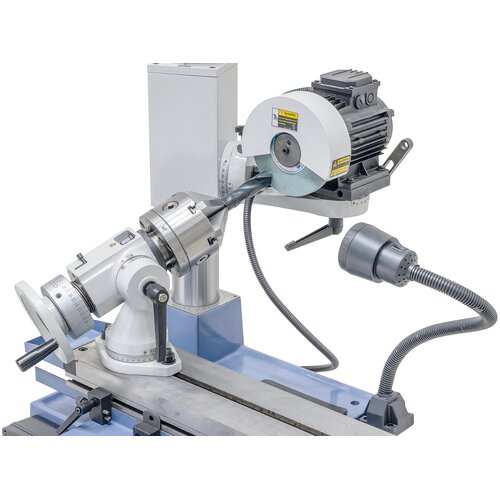

Twist drill
Twist drill

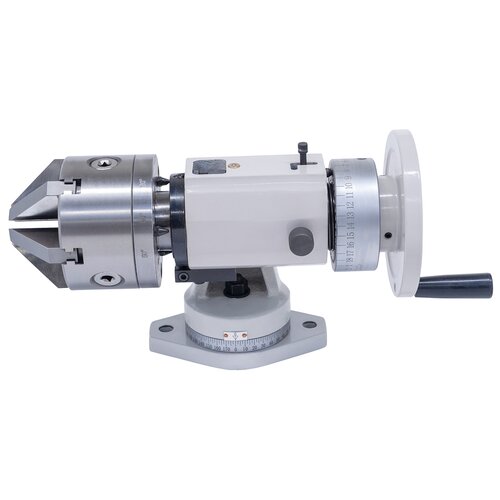

Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).
Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).

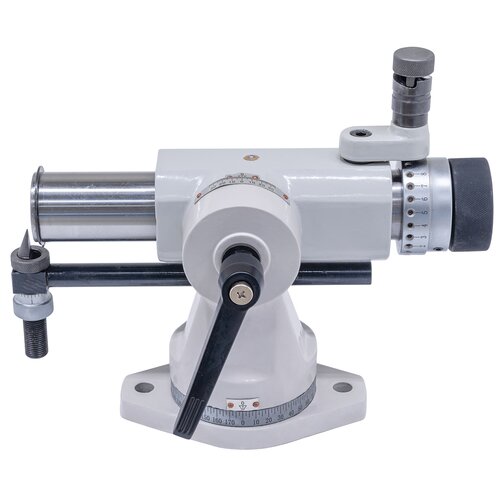

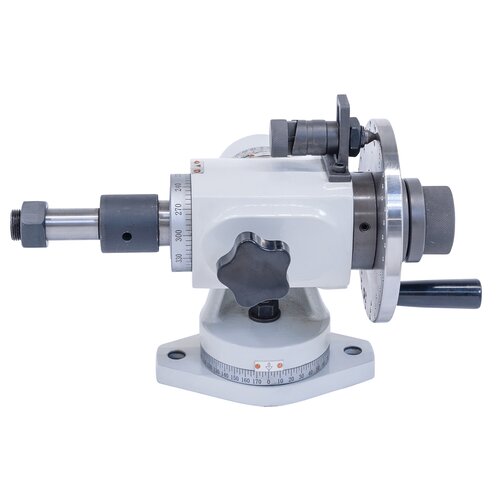

Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).
Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).

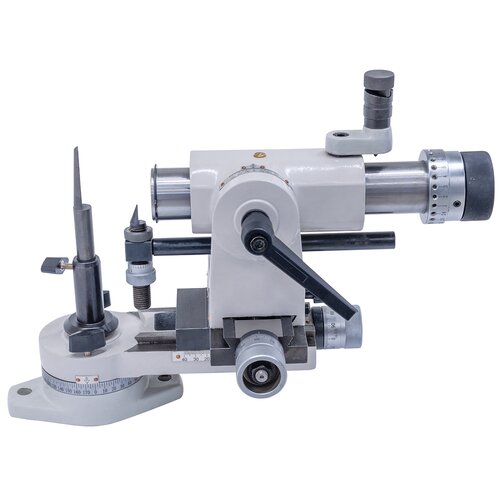

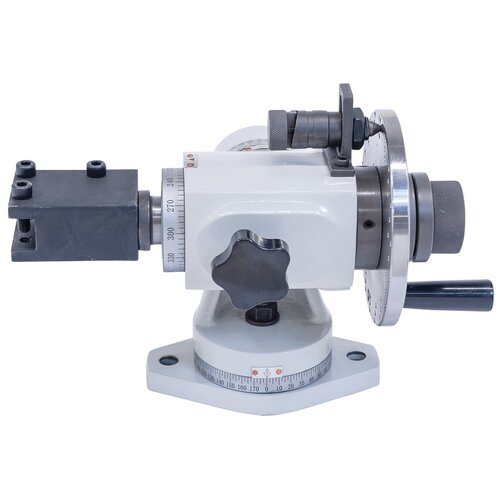

End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).
End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).

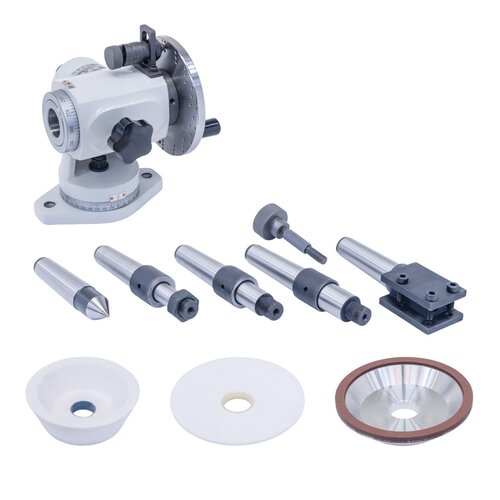

Standard accessories
Standard accessories
Metric shell end mill
End mill outer spiral cutting edge
End mill face side
Ball end mill
Turning tool
Twist drill
Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).
Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).
End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).
Standard accessories

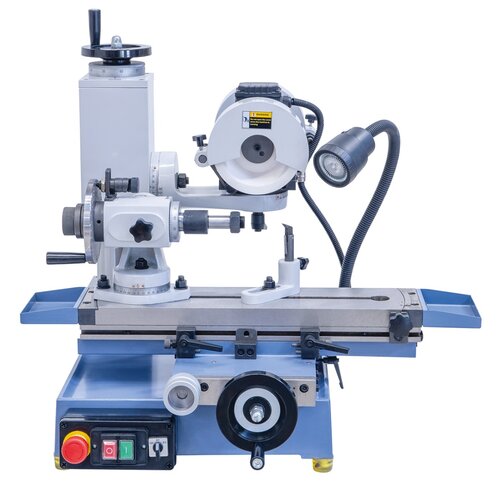

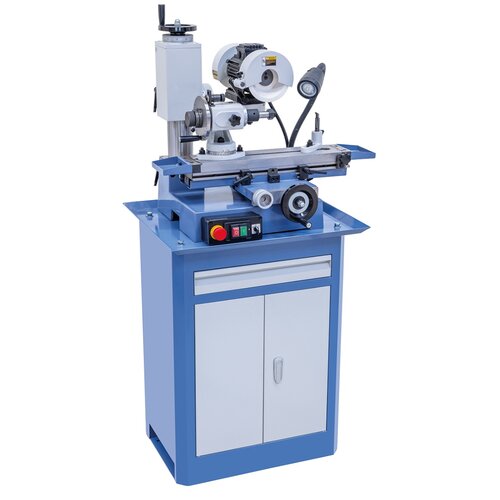

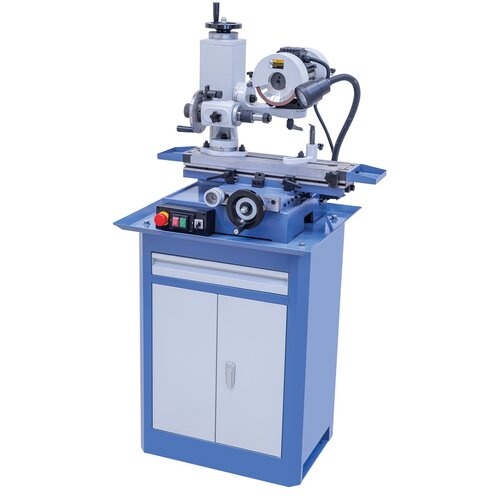

Universal tool grinding machine UWS 300

Art.Nr.: 05-13650
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The universal tool grinding machine UWS 300 features a variety of applications for professional users, requiring minimum space. The wide range of optional accessories guarantees a maximum of performance.

€2,388.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • For grinding of various tools, e.g. drills, milling cutters, turning tools etc.
  • Large number of standard accessories
  • Solid construction for vibration-free run
  • Ergonomically arranged control elements
  • Headstock adjustable in height and tiltable (-45° to +45°)
  • Various application areas increase productivity
  • Table can be tilted for conical grinding operations and scale allows adjustment to desired position

Product Specifications

Workpiece diameter max.

260 mm

Table size

490 x 130 mm

Table longitudinal travel

280 mm

Table cross travel

195 mm

Grinding head vertically tiltable

-40° to +40°

Grinding head horizontally tiltable

-45° to +45°

Speed grinding spindle

2800 rpm

Motor power

0,55 kW

Voltage

400 V

Machine dimension (W x D x H) *

750 x 570 x 790 mm

Weight approx.

137 kg




* without stand

Delivery Contents

  • Adjustable table end stops
  • Center 60°
  • 1 Corundum grinding wheel type B, 150 x 32 mm
  • 1 Corundum cup grinding wheel type A, 150 x 50 x 32 mm
  • 1 Diamond cup grinding wheel type A, 150 x 30 x 32 mm
  • Lathe tool grinding attachment
  • Clamping mandrel for milling cutter 22, 27, 32 mm
  • Diamond dressing stone
  • LED working light
  • Left and right turning
  • Tools

Suitable accessories

Spiral mill - ball cutter grinding attachment 50E
Spiral mill - ball cutter grinding attachment 50E
Art.Nr. : 05-1366

€822.00

incl. 20% VAT
Collet 10 mm f. UWS 300 / UWS 350
Collet 10 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13674

€30.00

incl. 20% VAT
Collet 12 mm f. UWS 300 / UWS 350
Collet 12 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13675

€30.00

incl. 20% VAT
Collet 14 mm f. UWS 300 / UWS 350
Collet 14 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13676

€30.00

incl. 20% VAT
Collet 18 mm f. UWS 300 / UWS 350
Collet 18 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136761

€30.00

incl. 20% VAT
Collet 20 mm f. UWS 300 / UWS 350
Collet 20 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136762

€30.00

incl. 20% VAT
Collet 22 mm f. UWS 300 / UWS 350
Collet 22 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136763

€30.00

incl. 20% VAT
Collet 24 mm f. UWS 300 / UWS 350
Collet 24 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136764

€30.00

incl. 20% VAT
Collet 25 mm f. UWS 300 / UWS 350
Collet 25 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136765

€30.00

incl. 20% VAT
Collet 8 mm f. UWS 300 / UWS 350
Collet 8 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13673

€30.00

incl. 20% VAT
Collet 5 mm f. UWS 300 / UWS 350
Collet 5 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136720

€30.00

incl. 20% VAT
Drill bit - screw tap grinding attachment 50K
Drill bit - screw tap grinding attachment 50K
Art.Nr. : 05-13660

€822.00

incl. 20% VAT
End mill cutter grinding attachment 50D
End mill cutter grinding attachment 50D
Art.Nr. : 05-13661

€528.00

incl. 20% VAT

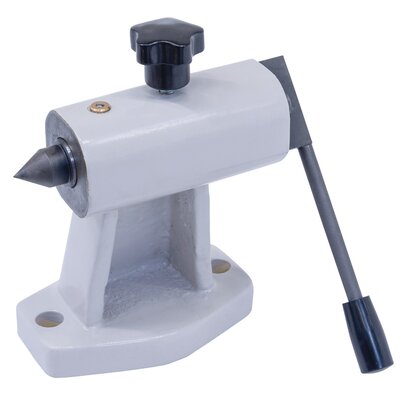

Tailstock 50J for UWS 300
Tailstock 50J for UWS 300
Art.Nr. : 05-13662

€168.00

incl. 20% VAT
Corundum cup grinding wheel type A
Corundum cup grinding wheel type A
Art.Nr. : 05-13663

€30.00

incl. 20% VAT
Corundum grinding wheel type B
Corundum grinding wheel type B
Art.Nr. : 05-13664

€18.00

incl. 20% VAT
Diamond cup grinding wheel type A
Diamond cup grinding wheel type A
Art.Nr. : 05-13665

€60.00

incl. 20% VAT
Diamond grinding wheel type B
Diamond grinding wheel type B
Art.Nr. : 05-13666

€60.00

incl. 20% VAT
Collet 3 mm f. UWS 300 / UWS 350
Collet 3 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13672

€30.00

incl. 20% VAT
Stand f. UWS 300 / UWS 350
Stand f. UWS 300 / UWS 350
Art.Nr. : 56-1035

€384.00

incl. 20% VAT
