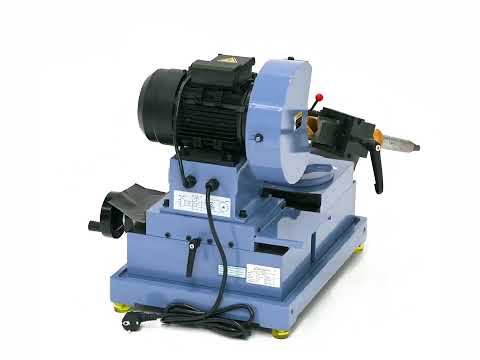

Universal drill grinder DG 60
Art.Nr.: 05-1617The DG 60 model is a professional drill grinding machine for the highest demands. This machine is used wherever large drill diameters are required.
€2,940.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- For grinding various types of drill bits such as twist drills, step drills (2-flute), sheet metal drills, wood drills, etc.
- Can be used for all drill diameters from 3 - 60 mm
- Adjustable point angle of 30° to 135°
- Dovetail guiding in all axes, adjustable via gibs
- Easy relief grinding of the drill cutting edges (clearance angle)
- Fast and precise work results through simple operation
- Vibration-free running due to high weight and rubber feet
Product Specifications
|
Drill diameter |
3 - 60 mm |
|
Point angle |
30° - 180° |
|
Speed |
2800 rpm |
|
Motor power |
0,55 kW |
|
Voltage |
230 V |
|
Length |
660 mm |
|
Width |
510 mm |
|
Height |
530 mm |
|
Weight approx. |
110 kg |
Delivery Contents
- Corundum grinding wheel G60
- Diamond dressing
- 2 pcs. span prism
- Tools
