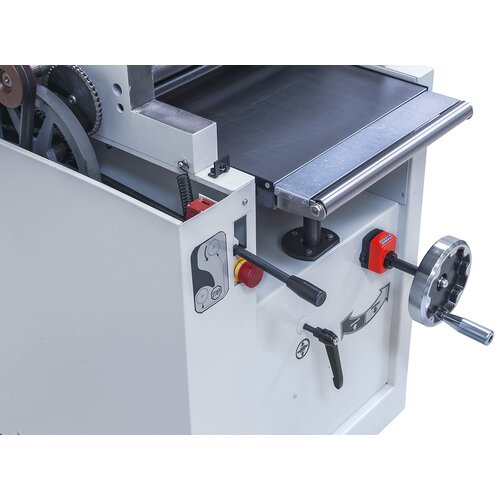

Tables can be adjusted precisely - 1/10 mm - using the digital display.

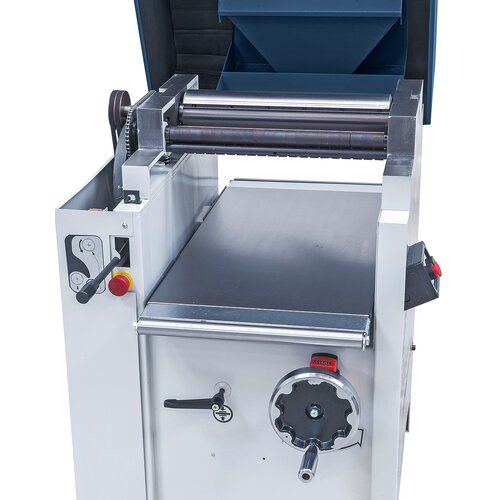

The chain drive ensures consistency of infeed and outfeed rollers.

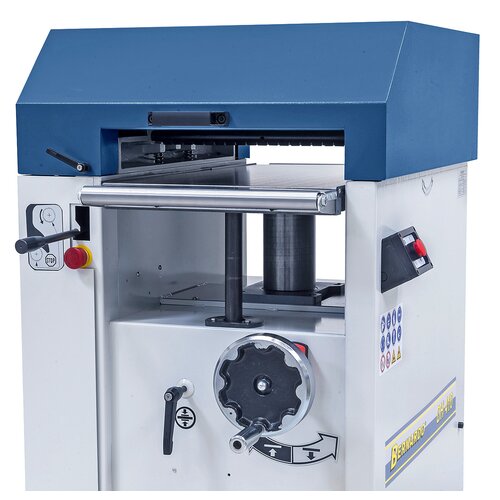

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

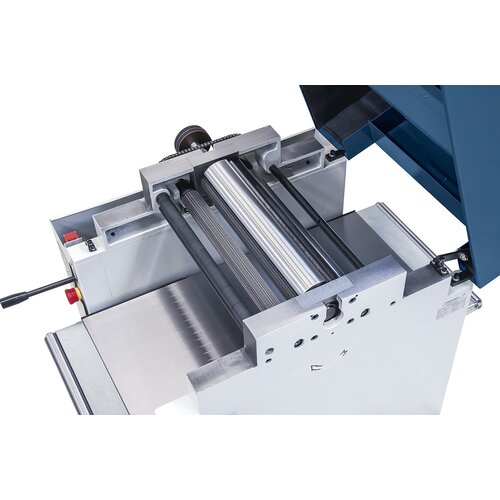

The precisely bedded 4-knife cutterblock and the straight toothed of the infeed roller ensure top work results.

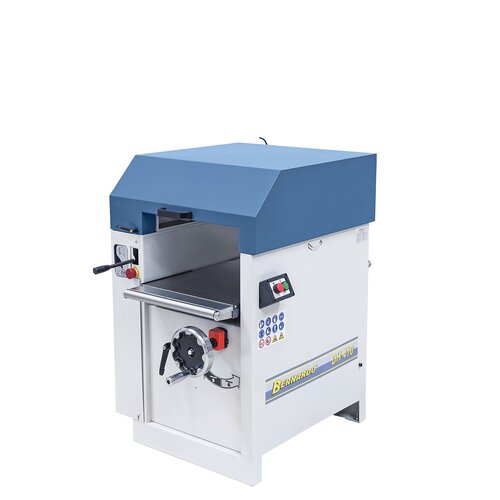

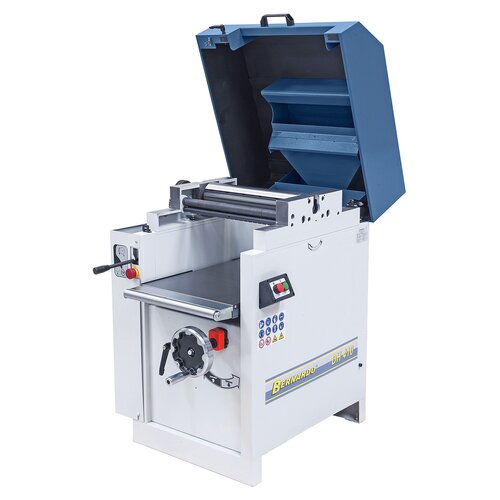

Thicknesser DH 410 / 400 V

Art.Nr.: 08-1107

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The DH 410 thicknessing machine was developed with a focus on safety, stability, compact construction and user-friendliness. urthermore this model features a digital display for precise thicknessing table adjustment.

€2,580.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 11, 2025

Product Properties

Precisely bedded, smooth running 4-knife cutterblock guarantees optimal results
Thicknessing table with central column and support allow precise planing
Digital display on handwheel features 1/10 mm scaling bfor precise adjustment of thicknessing table
Noise-reducing cutterblock cover keeps noise levels down
Ground thicknessing table for workpieces up to 230 mm in height
Serially with table extension with integrated rolls

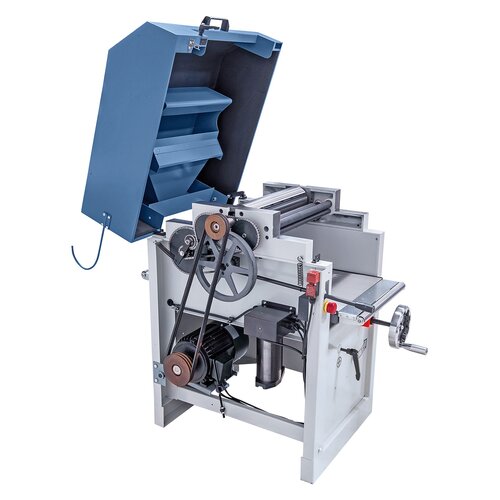

Chain drive allows safe and consistent workpiece infeed
Large anti-kickback devices eliminate ejection of workpieces
Several safety devices: On/Off switch with undervoltage release, limit switch to avoid accidental machine start, emergency-stop switch

Product Specifications

Working width	410 mm
Working height min./max.	5 – 230 mm
Table size	930* x 410 mm
Max. cutting depth	5 mm
Working length min.	150 mm
Planer shaft diameter	95 mm
Cutter knives	4 pcs.
Shaft rotation speed	4050 rpm
Feed speed, stepless	6 m/min
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 KW (5,7 HP)
Voltage	400 V
Machine dimension (W x D x H)	1110 x 710 x 1020 mm
Weight approx.	239 kg
