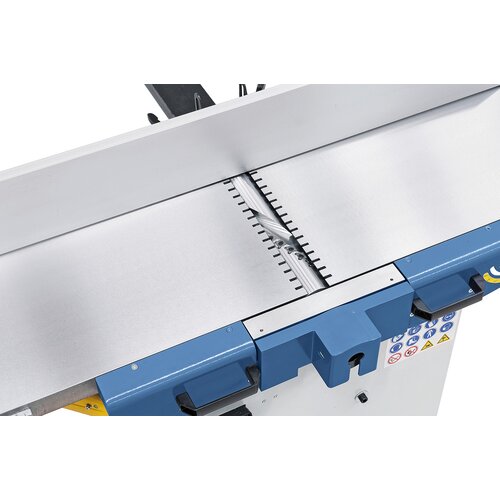

The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.

The planer fence can be set to required position via the precise prism guide.

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

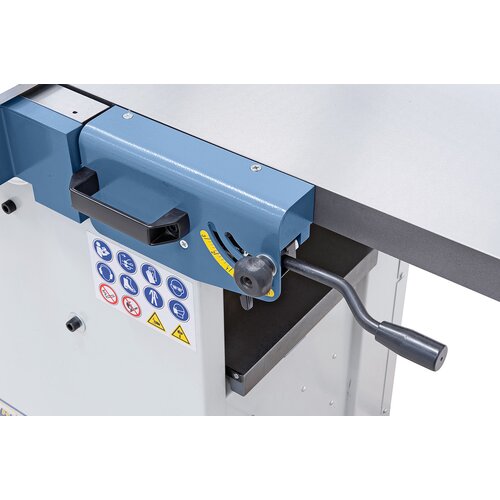

Quick and easy adjustment of chip removal (up to 3 mm).

Tables can be adjusted precisely - 1/10 mm - using the digital display.

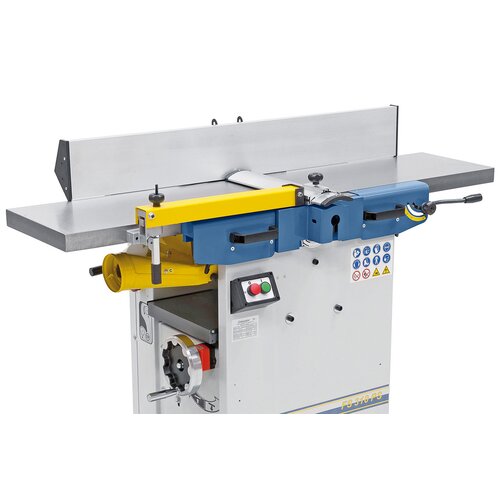

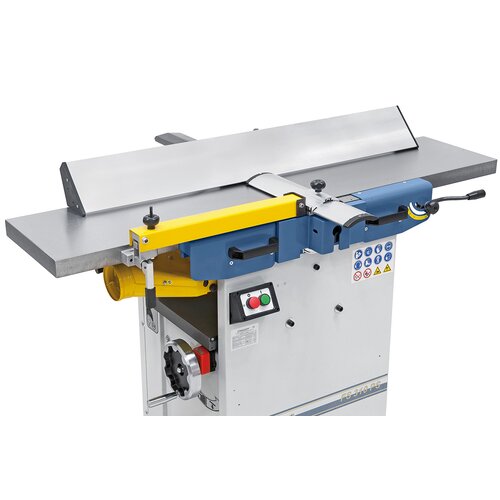

The long, reinforced, grey cast iron planing / thicknessing tables allow precise processing of large workpieces.

Simultaneous folding of planing tables ensure maximum comfort.

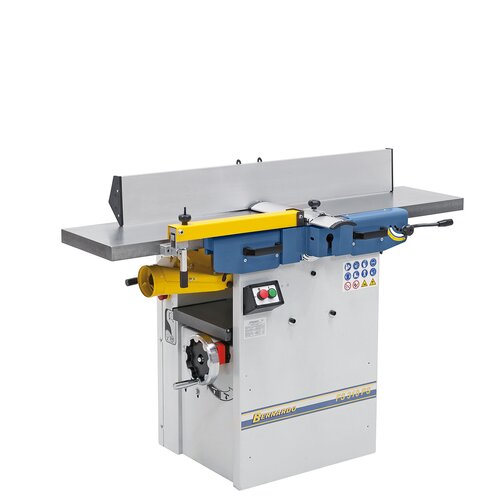

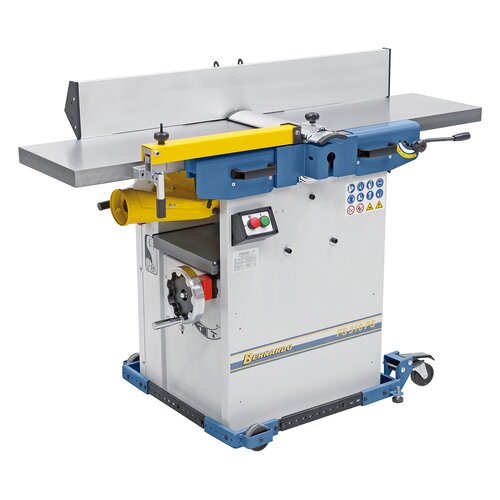

Surface planer and thicknesser FS 310 PS / 230 V

Art.Nr.: 08-1043

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The machine for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€2,376.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jun 23, 2025

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

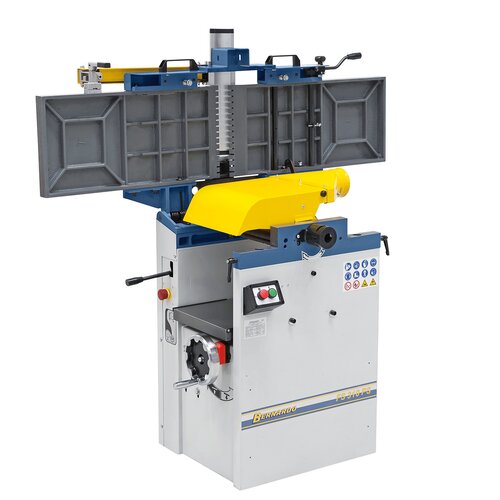

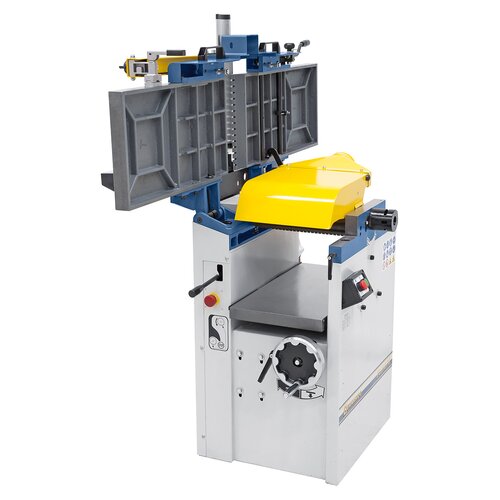

Planing tables fold to the backside of the machine to minimize space requirements
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

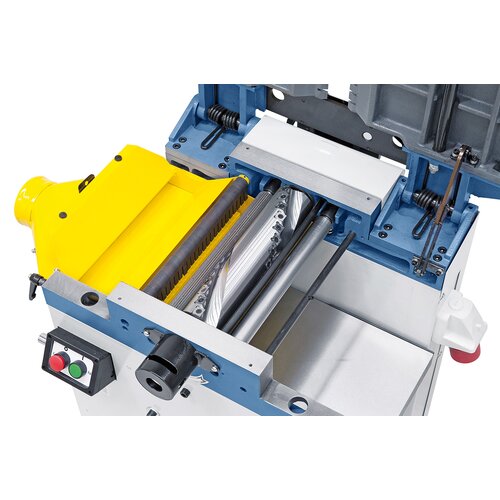

Integrated tiltable dust hood, extraction outlet 100 mm

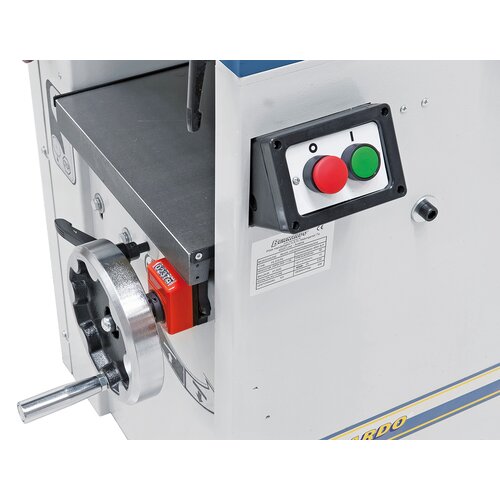

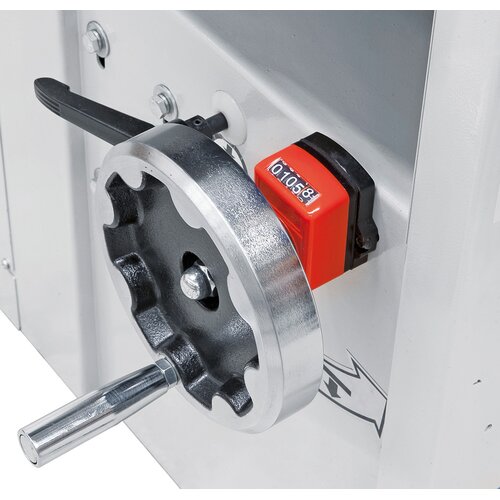

Digital display on handwheel features 1/10 mm scaling for precise adjustment of thicknessing table

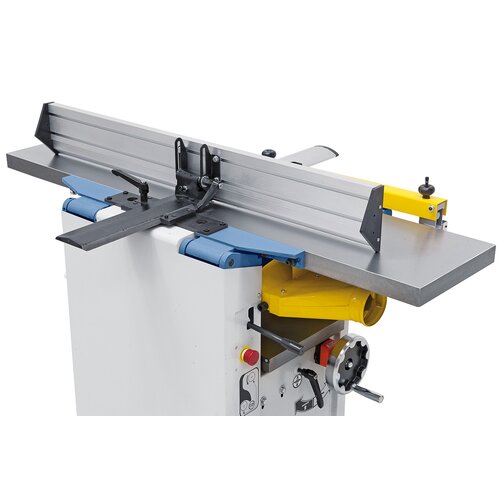

Anodized aluminium planing fence, tilts from 90º to 45º
Powerful motor for optimal planing results
Quick and easy adjustment of chip removal

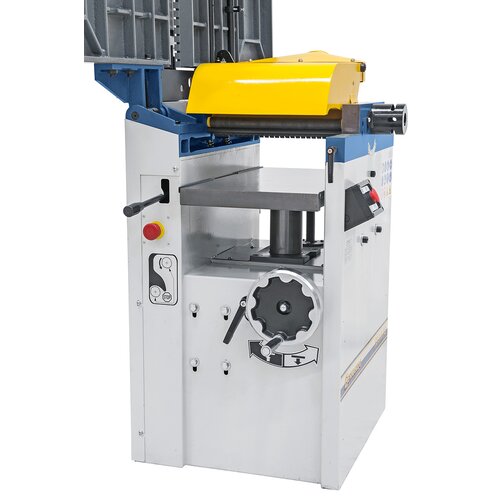

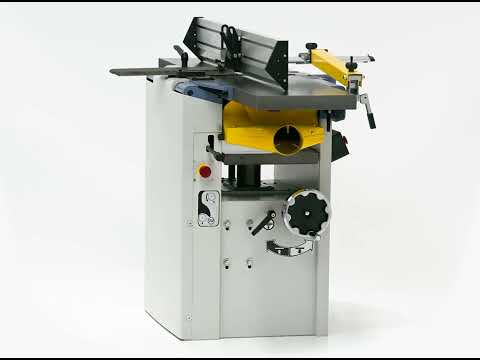

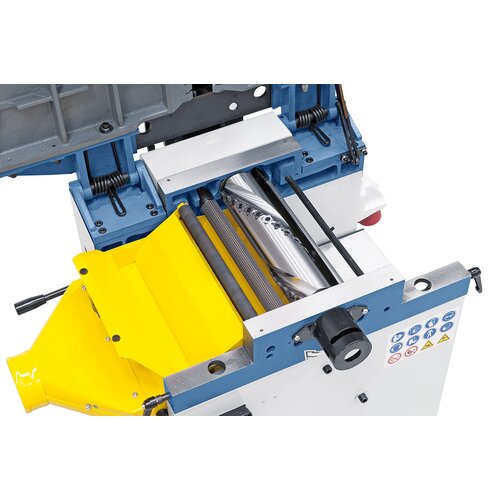

Simultaneous folding of planing tables allows fast conversion from planing to thicknessing
Several safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

Product Specifications

Planer
Planing width	310 mm
Table length	1400 mm
Table height	825 mm
Shaft rotation speed	4500 rpm
TCT-blades	30 pcs.
Planer shaft diameter	75 mm
Planer fence	1120 x 150 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	600 mm
Working width	305 mm
Working thickness, min./max.	5 – 240 mm
Max. cutting depth	3 mm
Feed speed	5,4 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	230 V
Machine dimension (L x W x H)	1400 x 900 x 980 mm
Weight approx.	205 kg
