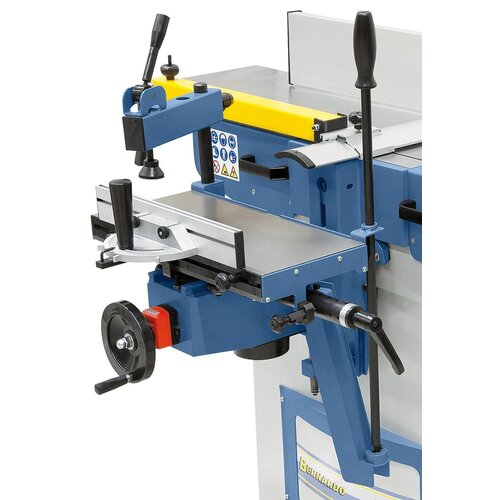

The mortising unit is ideal for drilling deep holes, dowels and oblique holes etc.

The infeed function can be switched off when planing.

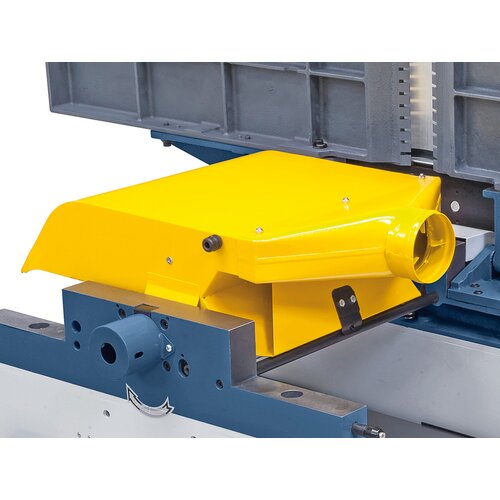

Integrated, tiltable dust hood, extraction outlet 100 mm

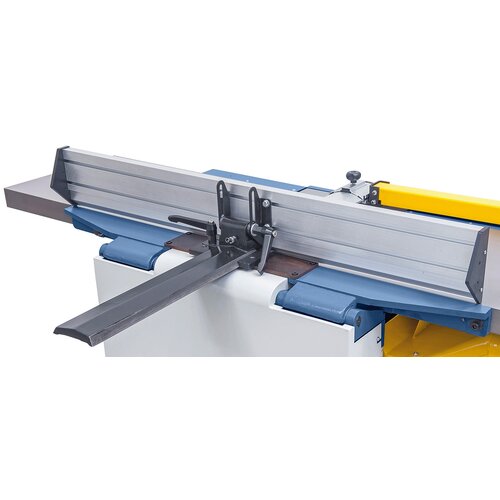

The planer fence can be set to required position via the precise prism guide.

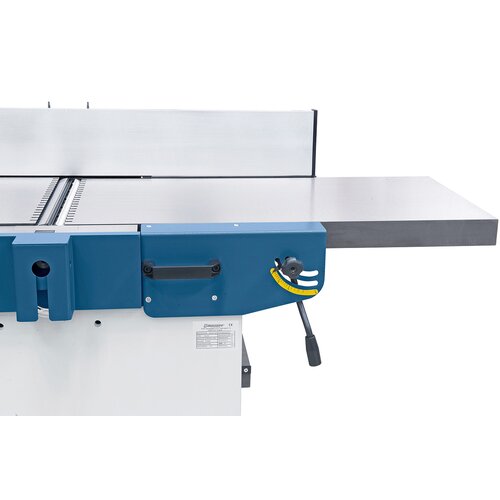

Quick and easy adjustment of chip removal (up to 3 mm).

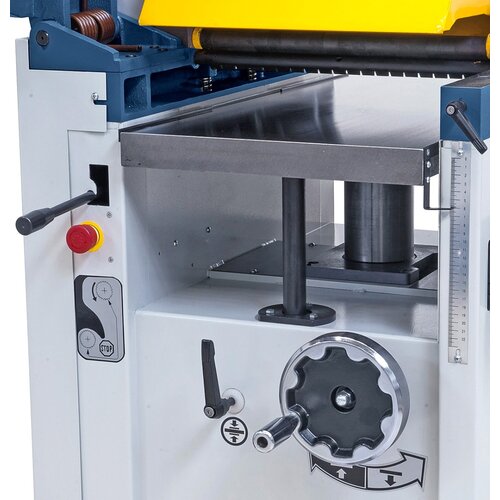

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

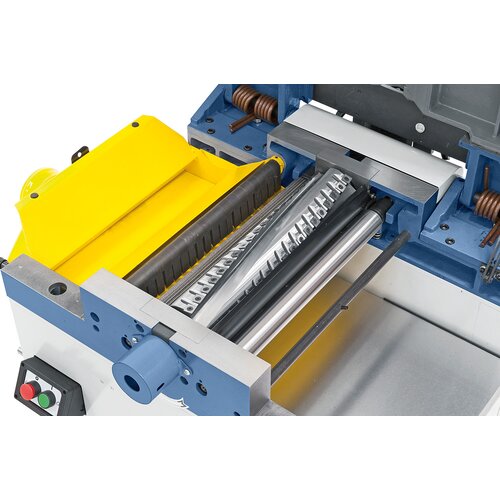

The planing unit consists of a dynamically balanced spiral cutter head, in- and outfeed roller and massive anti-kickback devices.

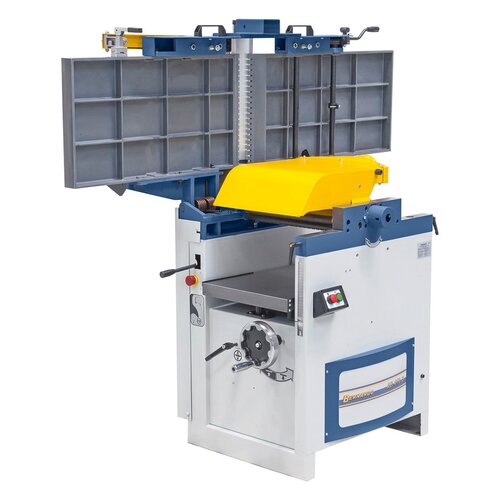

Simultaneous folding of planing tables ensure maximum comfort.

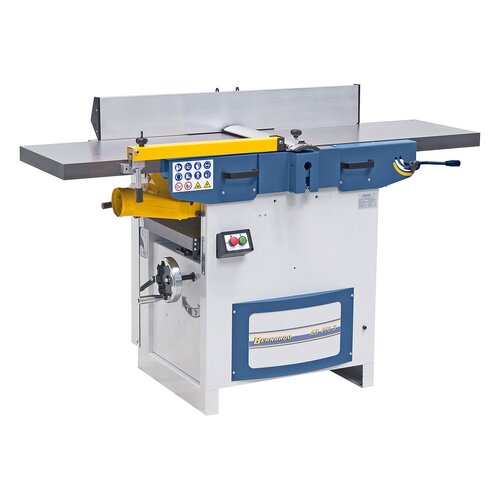

Surface planer and thicknesser AD 410 S / 400 V

Art.Nr.: 08-1069

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The AD 410 S combined planer and thicknesser machine feature optimal price to benefit and is best suitable for professional users. This machine meet all the users requirements with features like a high level of stability and quick conversion while providing large power resources. The dual lift of both planer tables reduce conversion time to thicknessing significantly. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€3,900.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
Planing tables tilt to the back of the machine to keep space requirements to a minimum
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Simultaneous tilting of planing tables to achieve maximum comfort
Thicknessing table feed can be switched off when planing
Hard-anodized aluminium planing fence, tiltable from 90° to 45°
Thicknessing table with central column and support allow precise planing
Torsion-free, cast iron planing tables guarantees best results

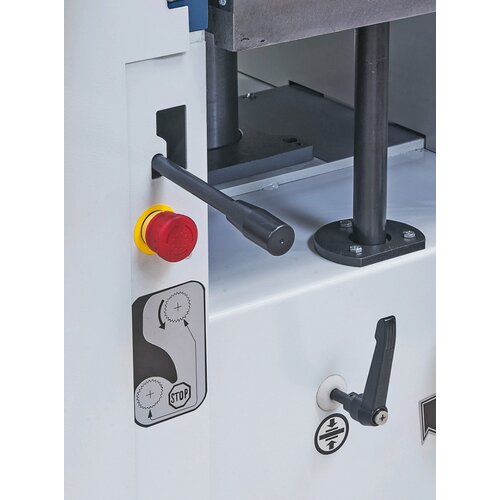

Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Product Specifications

Planer
Planing width	410 mm
Table length	1685 mm
Table height	920 mm
Shaft rotation speed	4300 rpm
TCT-blades	72 pcs.
Planer shaft diameter	95 mm
Planer fence	1110 x 150 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	750 mm
Working width	410 mm
Working thickness, min./max.	4 - 220 mm
Max. cutting depth	5 mm
Feed speed	6 m/min


Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	400 V
Machine dimension (L x W x H)	1685 x 1045 x 1100 mm
Weight approx.	340 kg
