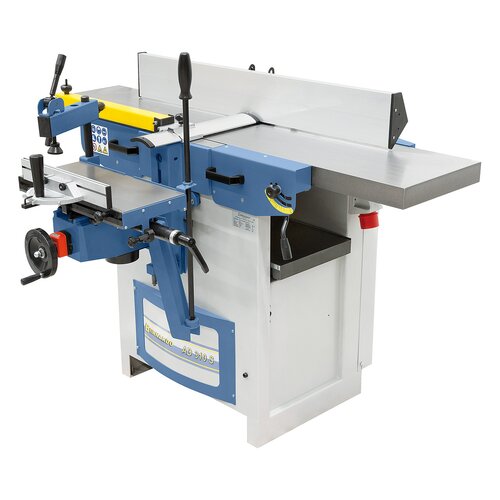

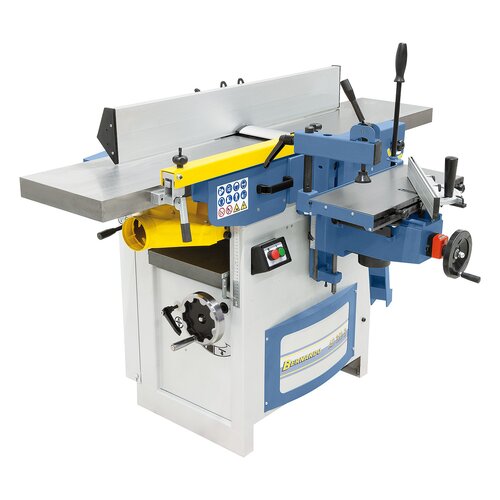

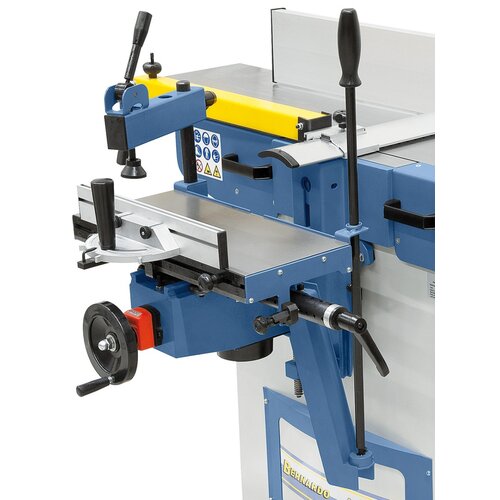

The optional mortising unit is ideal for drilling dowel, long and oblique holes.

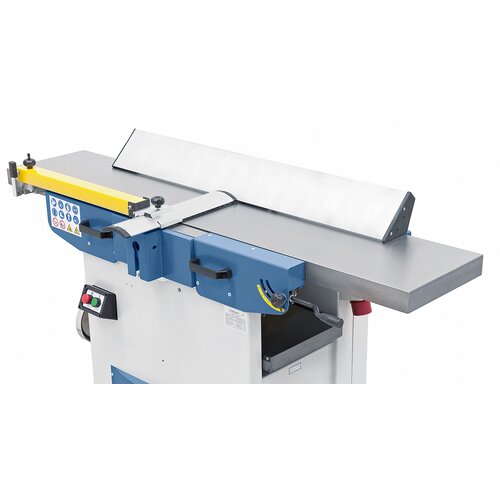

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

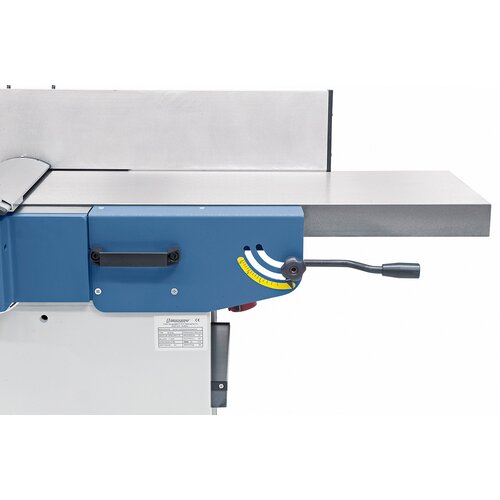

Quick and easy adjustment of chip removal (up to 3 mm).

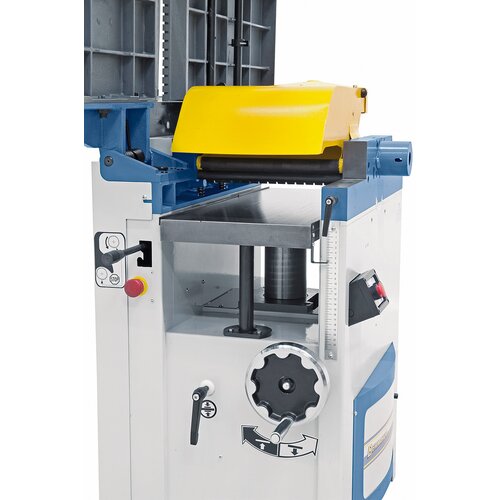

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

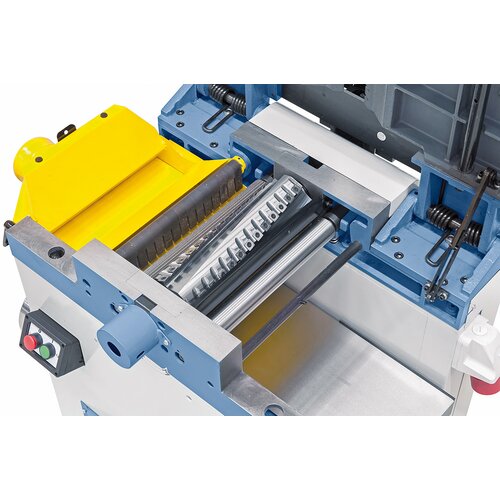

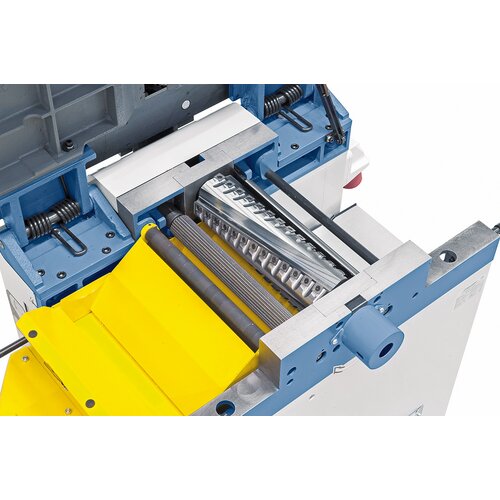

The planing unit consists of a dynamically balanced spiral cutter head, in- and outfeed roller and massive anti-kickback devices.

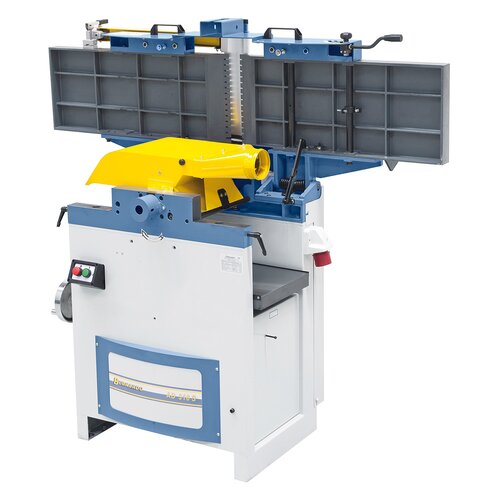

Simultaneous folding of planing tables ensure maximum comfort.

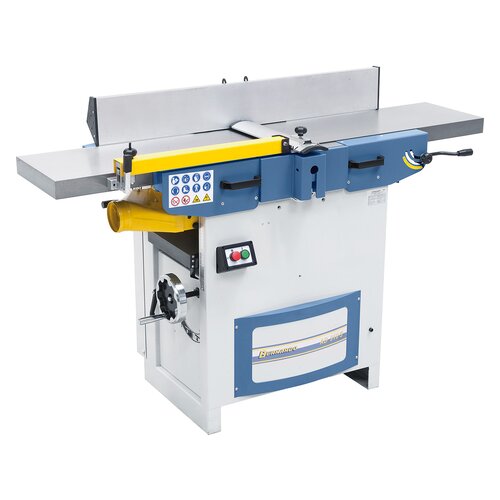

Surface planer and thicknesser AD 310 S / 400 V

Art.Nr.: 08-1066

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Introducing the AD 310 S model, positioned for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the short conversion time from planing to thicknessing due to the simultaneous tilting of the planing tables and the spiral cutter head for reduced noise level and optimal planing results.

€3,336.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
Planing tables tilt to the back of the machine to keep space requirements to a minimum
Integrated, tiltable dust hood, extraction outlet 100 mm
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Simultaneous tilting of planing tables to achieve maximum comfort
Hard-anodized aluminium planing fence, tiltable from 90° to 45°
Thicknessing table with central column and support allow precise planing
Torsion-free, cast iron planing tables guarantees best results
Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Product Specifications

Planer
Planing width	310 mm
Table length	1610 mm
Table height	910 mm
Shaft rotation speed	4300 rpm
TCT-blades	52 pcs.
Planer shaft diameter	95 mm
Planer fence	1110 x 150 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	750 mm
Working width	310 mm
Working thickness, min./max.	5 - 225 mm
Max. cutting depth	5 mm
Feed speed	6 m/min


Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	400 V
Machine dimension (L x W x H)	1610 x 900 x 1150 mm
Weight approx.	295 kg
