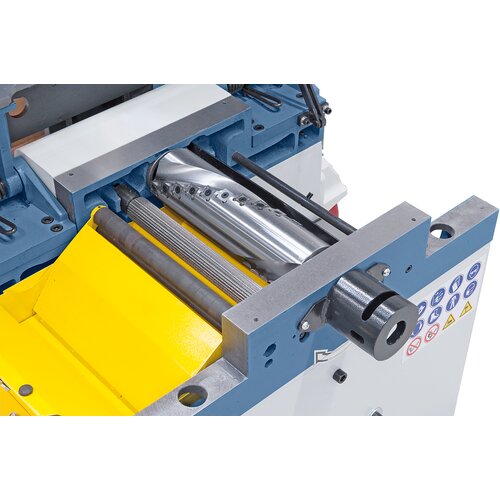

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

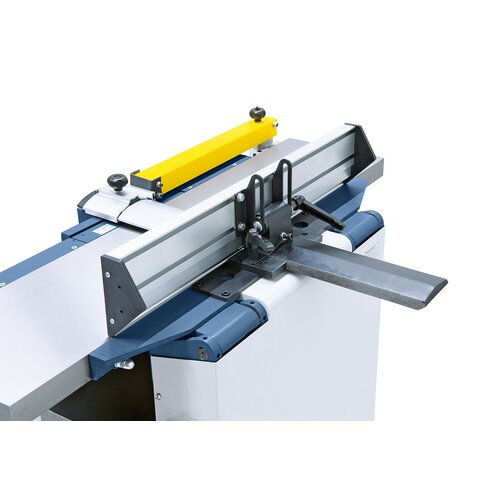

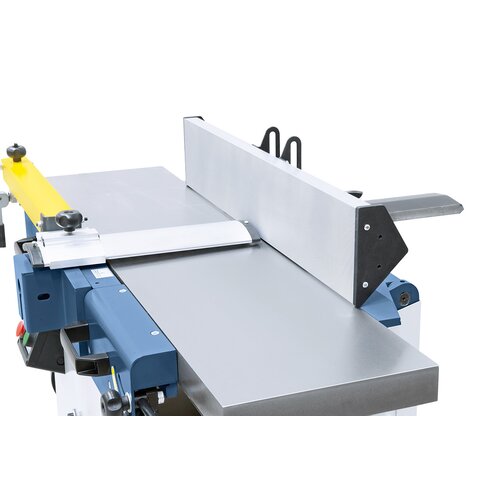

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

Quick and easy adjustment of chip removal (up to 3 mm).

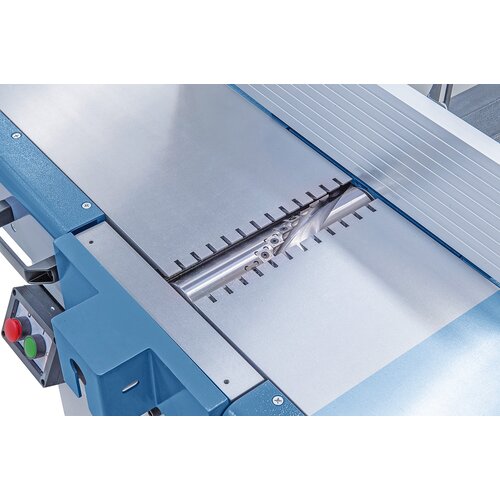

The table is designed with slots on both sides and a spiral cutter head to minimize the noise level.

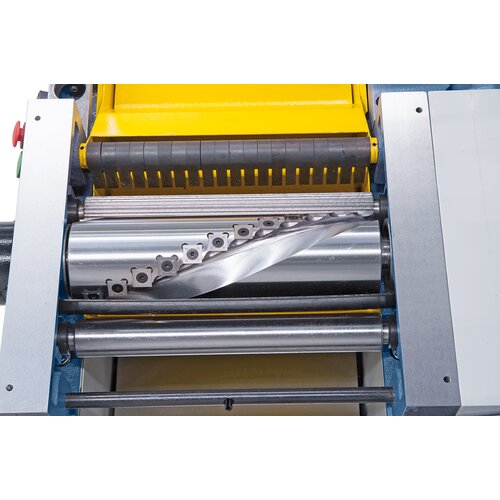

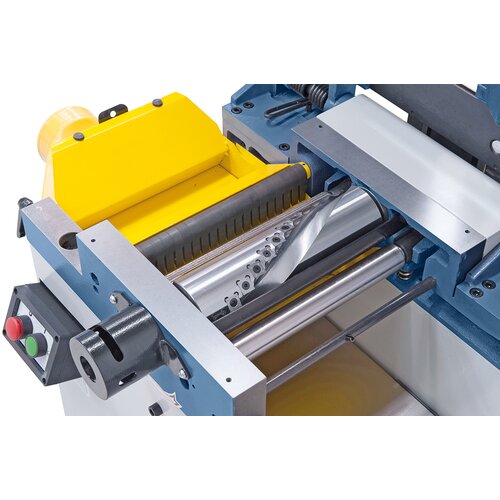

The planing unit consists of a dynamically balanced spiral cutter head, in- and outfeed roller and massive anti-kickback devices.

Simultaneous folding of planing tables ensure maximum comfort.

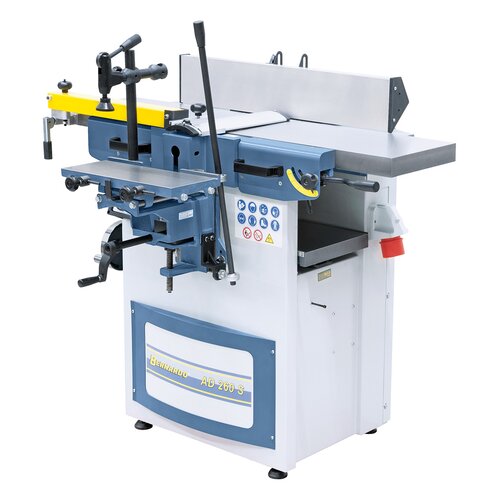

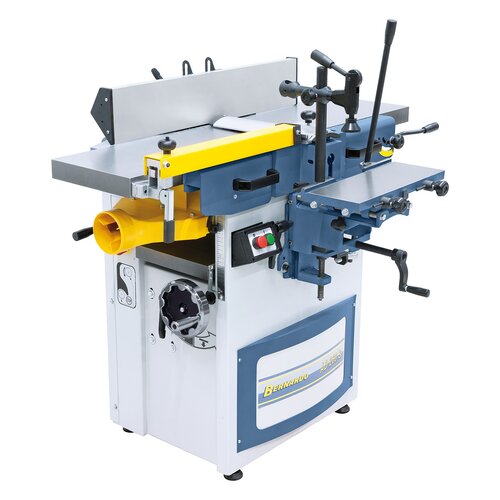

The optional mortising unit is ideal for drilling dowel, long and oblique holes.

Simultaneous folding of planing tables ensure maximum comfort.

The optional mortising unit is ideal for drilling dowel, long and oblique holes.

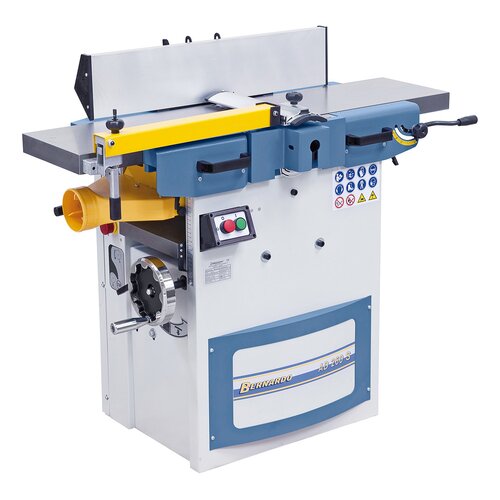

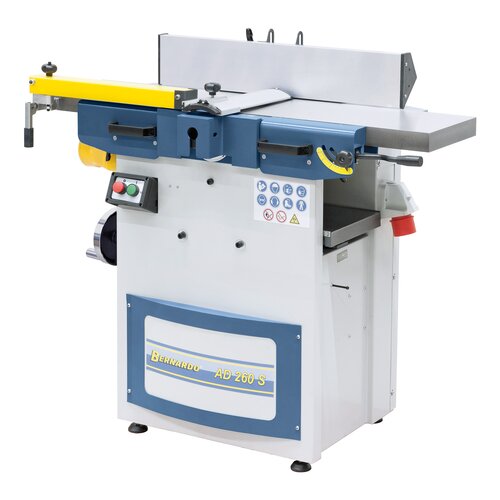

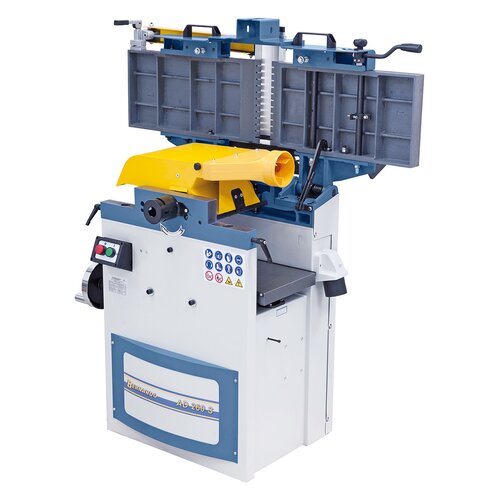

Surface planer and thicknesser AD 260 S / 400 V *

Art.Nr.: 08-1054

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The machine for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€1,752.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)

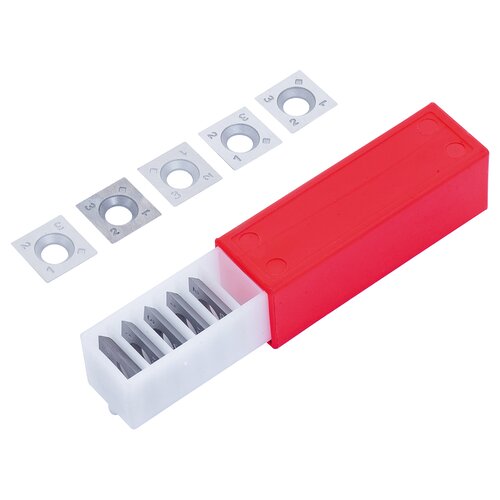

Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

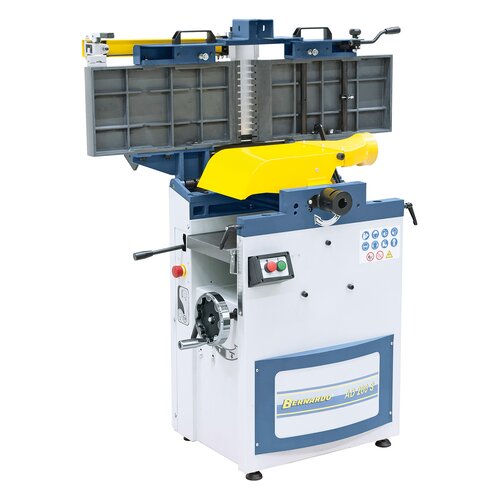

Planing tables tilt to the back of the machine to keep space requirements to a minimum
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

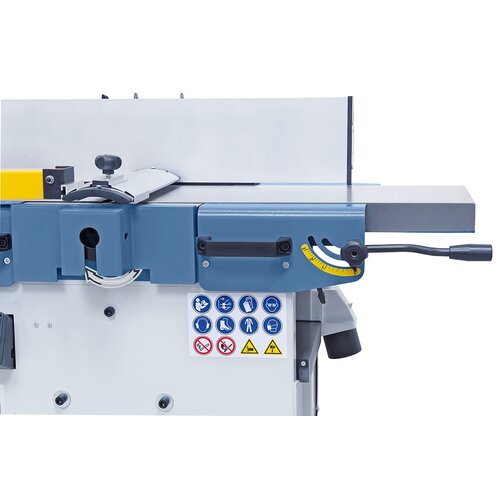

Simultaneous tilting of planing tables to achieve maximum comfort
Thicknessing table feed can be switched off when planing

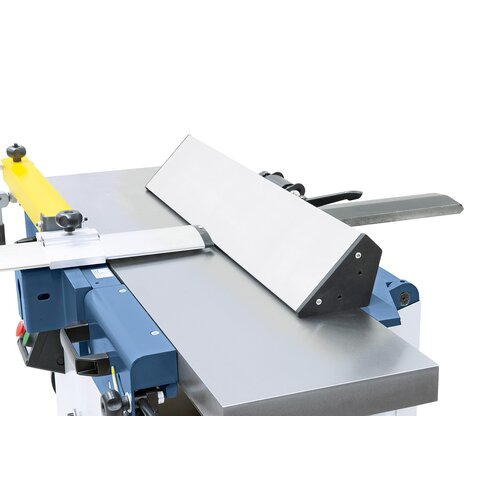

Hard-anodized aluminium planing fence, tiltable fro (wird übersetzt) m 90° to 45°

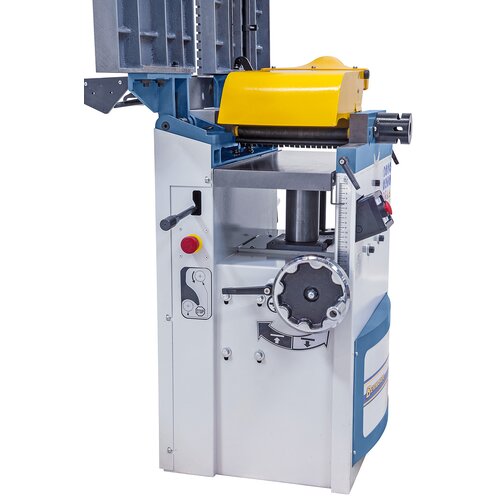

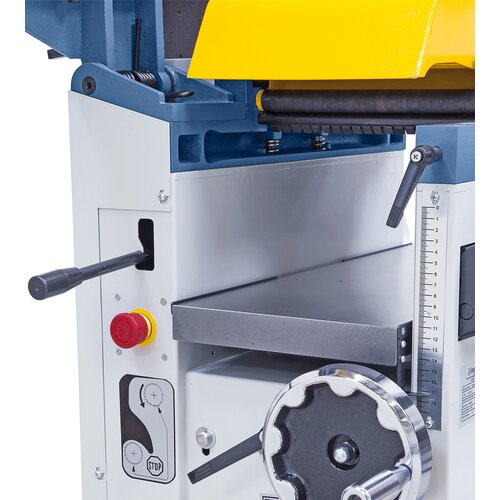

Thicknessing table with central column and support allow precise planing
Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Product Specifications

Planer
Planing width	250 mm
Table length	1090 mm
Table height	835 mm
Shaft rotation speed	4000 rpm
TCT-blades	24 pcs.
Planer shaft diameter	75 mm
Planer fence	715 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	600 mm
Working width	250 mm
Working thickness, min./max.	5 - 185 mm
Max. cutting depth	2,5 mm
Feed speed	4,8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,0 kW (2,7 HP)
Motor power input S₆ 40%	2,8 kW (3,8 HP)
Voltage	400 V
Machine dimension (L x W x H)	1150 x 800 x 1000 mm
Weight approx.	173 kg
