Example of use
Example of use

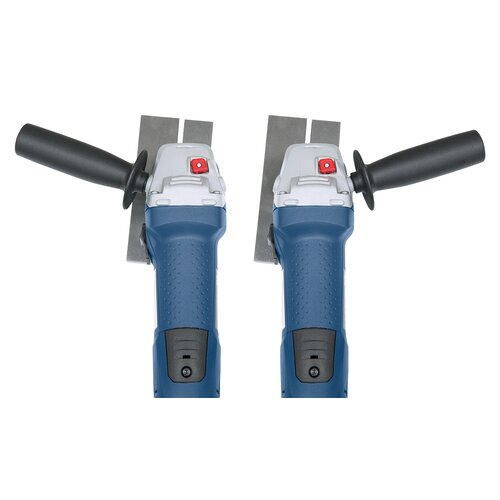

The handle is alternatively mountable on the left or right side of the machine
The handle is alternatively mountable on the left or right side of the machine

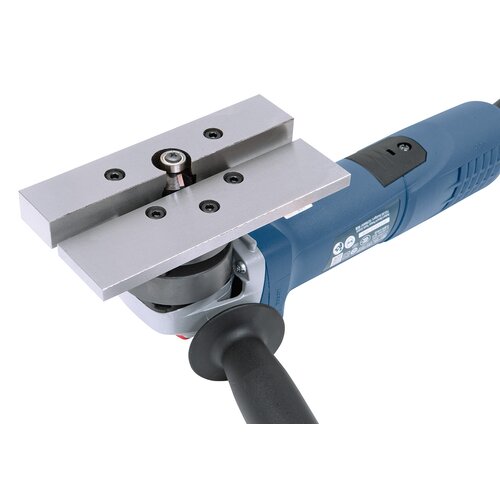

Robust guide rail, ideal guidance on the workpiece.
Robust guide rail, ideal guidance on the workpiece.

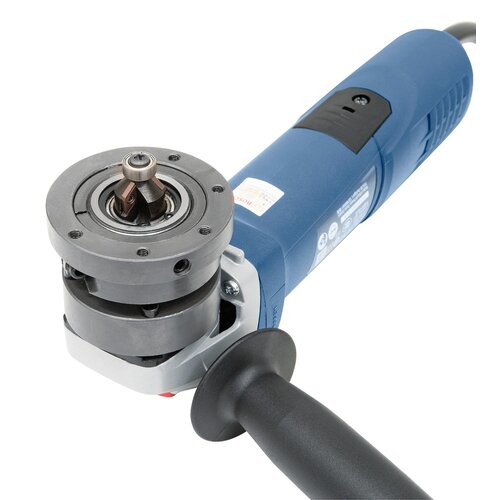

45° milling head incl. 2 pcs. carbide inserts, comes standard
45° milling head incl. 2 pcs. carbide inserts, comes standard

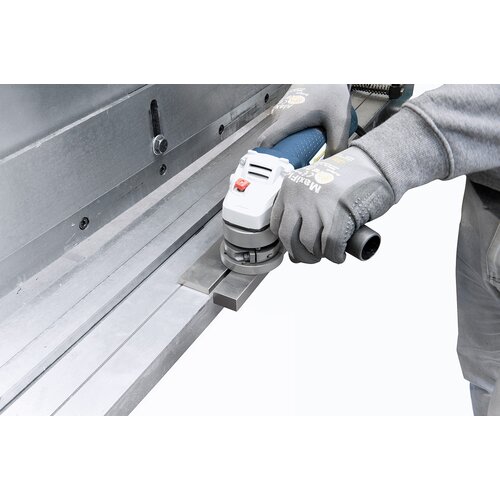

Example of use
The handle is alternatively mountable on the left or right side of the machine
Robust guide rail, ideal guidance on the workpiece.
45° milling head incl. 2 pcs. carbide inserts, comes standard

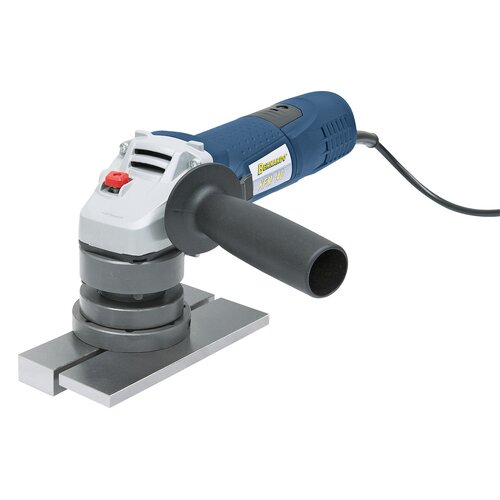

Straight edge chamfering machine KFM 140

Art.Nr.: 05-1647
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The chamfering machine KFM 140 is suitable for chamfering, preparation of bevelled edges and economic preparation of welding seams of straight edges. This model is very popular for steel and machine construction as well as assembly works.

€270.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Designed for chamfering of straight edges and preparation of welding seams
  • Essential machine in steel and machine construction and mounting works
  • Application area is directly on workpiece, ideal for processing of large boards
  • Suitable for steel, stainless steel, aluminium and non-ferrous metals
  • Ergonomic two-hand control ensures high working comfort
  • Complete with mill head 45° and 2 TiN-coated inserts

Product Specifications

Max. bevel width at 45°

3 mm

Angle adjustment

45°

Guide rail

140 mm

Speed

10.000 rpm

Motor power

720 W

Voltage

230 V

Machine dimension (L x W x H)

310 x 120 x 150 mm

Weight approx.

3,8 kg

Delivery Contents

  • Guide rail 140 mm
  • Milling head
  • Carbide inserts
  • Side handle
  • Tool

Suitable accessories

Carbide inserts (10 pcs.) for f. KFM 100 K / KFM 140 / KFM 600 Duo (contour)
Carbide inserts (10 pcs.) for f. KFM 100 K / KFM 140 / KFM 600 Duo (contour)
Art.Nr. : 05-1659

€67.20

incl. 20% VAT
Milling head for KFM 100 K / KFM 140 / KFM 600 Duo (contour)
Milling head for KFM 100 K / KFM 140 / KFM 600 Duo (contour)
Art.Nr. : 05-1674
Milling head (without inserts)

€61.20

incl. 20% VAT
