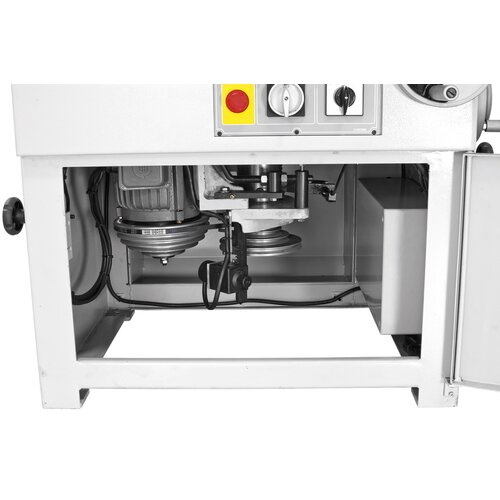

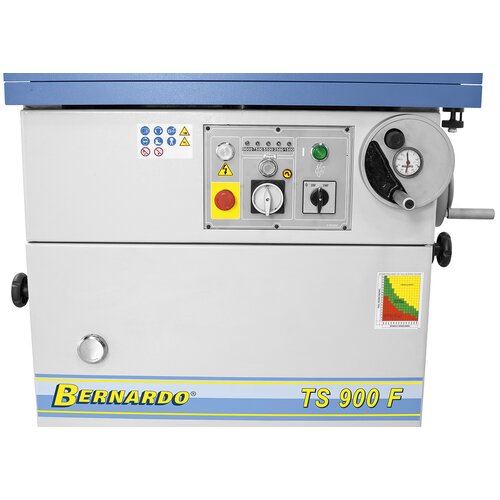

Amply sized opening on machine front allows for easy belt change to adjust speed.

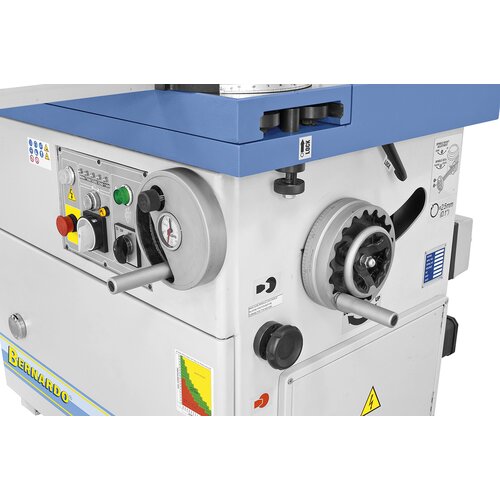

Ergonomically arranged handwheel allows for tilting of milling unit, set angle can be read out analogously.

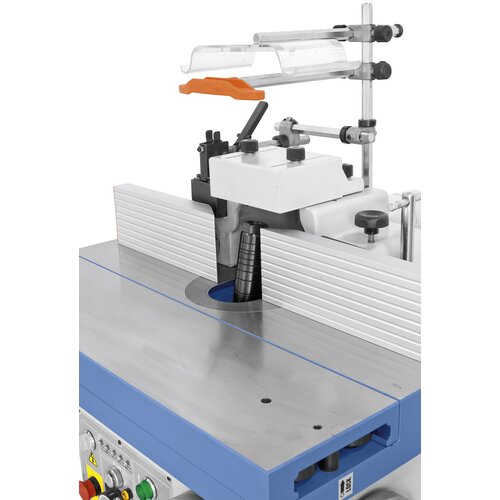

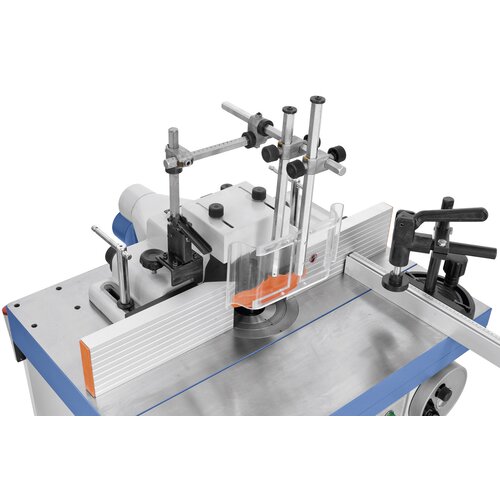

Solid grey cast-iron moulding fence can be used for tools up to 180 mm / 225 mm. Guide rails on both sides are equipped with fine adjustment.

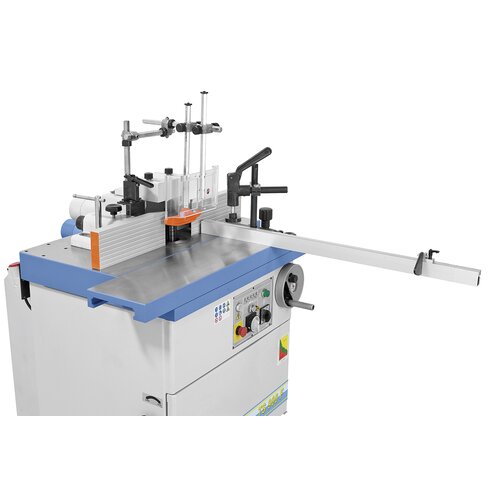

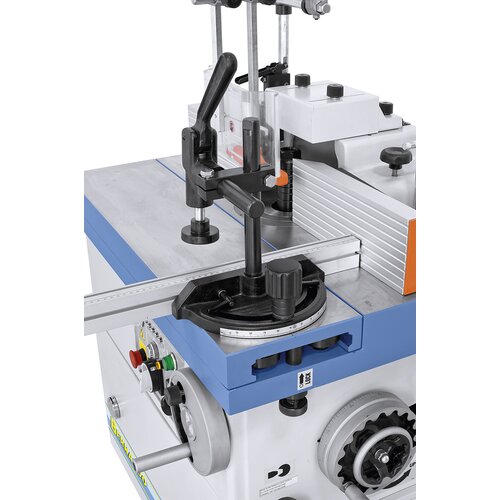

Complete with mitre fence and extractable guide fence.

The milling spindle is tiltable (– 10º to + 45º) and can height adjustable (180 mm).

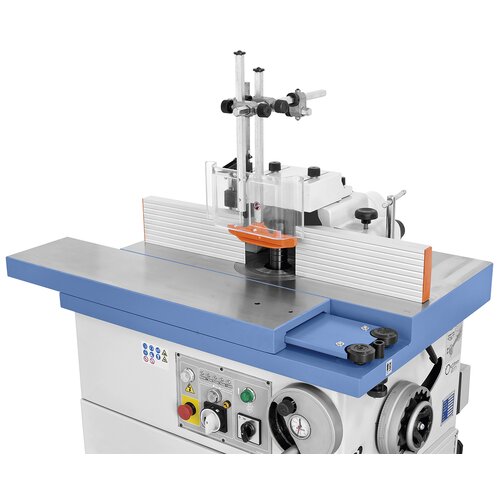

Work table features integrated sliding table to maximize user comfort.

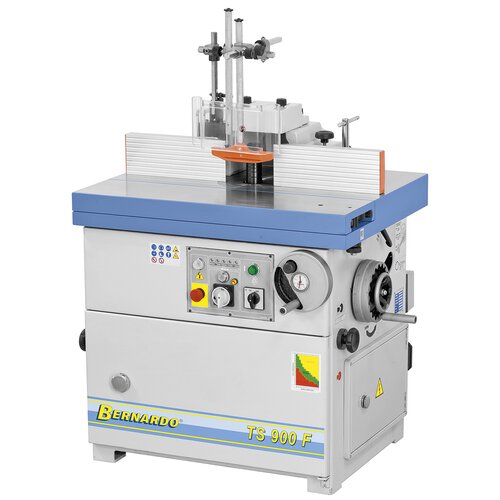

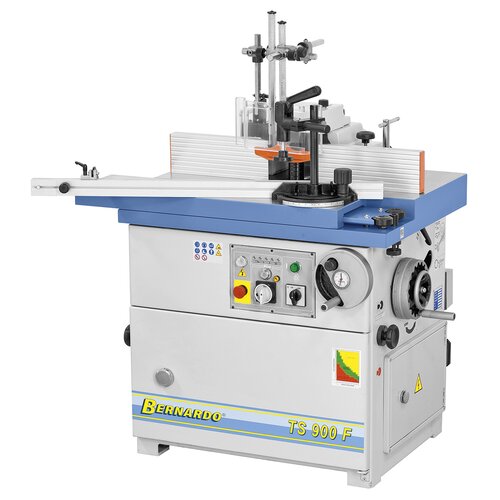

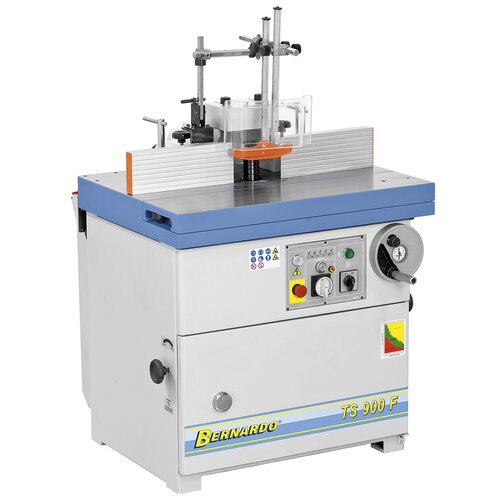

Spindle moulder with tilting spindle TS 900 F **

Art.Nr.: 09-1300

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The TS 900F spindle moulder with tilting spindle are reliable model featuring a work table with integrated sliding table as part of the standard equipment. The large number of applications, straightforward handling, extensive range of standard equipment and the immaculate finish make these machines ideal devices for professional users.

Price on request

Request product now

Availability

Out of Stock

Product Properties

Comes complete with right and left turning and electric spindle brake
Amply sized opening on machine front allows for simple belt change for speed setting
Features interchangeable spindle to guarantee for high productivity
Extra large, grey cast-iron milling unit, attached on both sides of milling table
Moulding fence with both-sided finely adjustable aluminium fence rails
Handwheel with analogue angle indicator display allows for spindle tilt

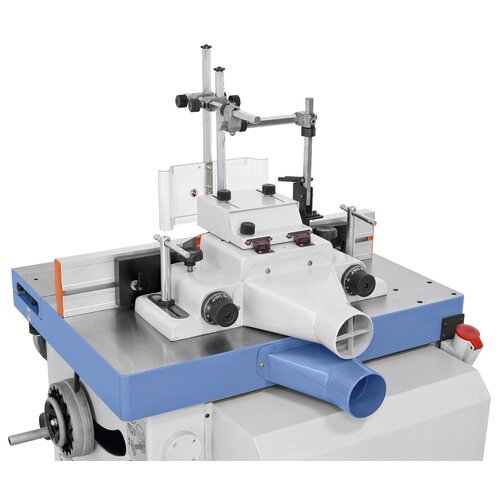

Dust removal at moulding fence and under table
Powerful drive motor with automatic star-delta starter
Torsion-free, heavily reinforced, grey cast-iron work table, precisely manufactured and polished for top accuracy
Tilting spindle with precision bearing mounted in top section to lengthen life span / minimize wear of bearings

Product Specifications

Table size incl. sliding table	900 x 700 mm
Table size sliding table	900 x 230 mm
Travel of sliding table	840 mm
Working height	880 mm
Spindle diameter	30 mm
Tilting spindle	-10° to +45°
Height adjustment of spindle	180 mm
Working length of spindle	120 mm
Max. tool diameter
- at profiling	180 mm
- at tenoning	225 mm
Max. tool diameter concealed	180 mm
Table opening	190 mm
Spindle speed	1500 / 3500 / 5500 / 7500 / 9000 rpm
Dust extraction outlet Ø	100 / 100 mm
Motor power	4,0 kW (5,5 HP) – 400 V
Machine dimension (W x D x H)	900 x 850 x 1070 mm
Weight approx.	370 kg
