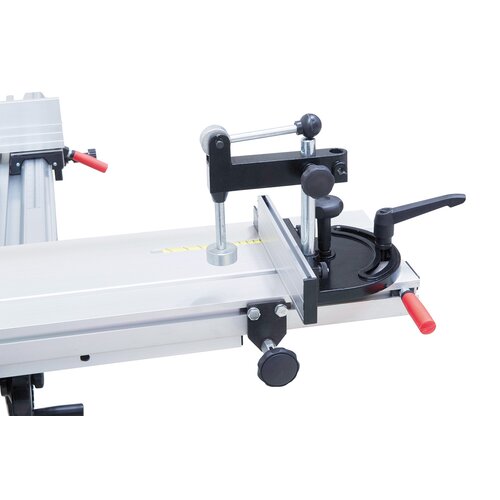

Mitre fence – featuring end stop and eccentric holder – movable along entire table length.

Sawblade can be tilted from 90º to 45º for precise angle cuts.

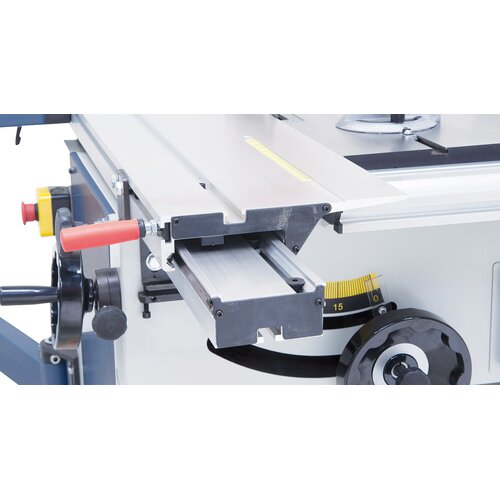

The sliding table features a generous size and runs smoothly on hardened prism guide ways.

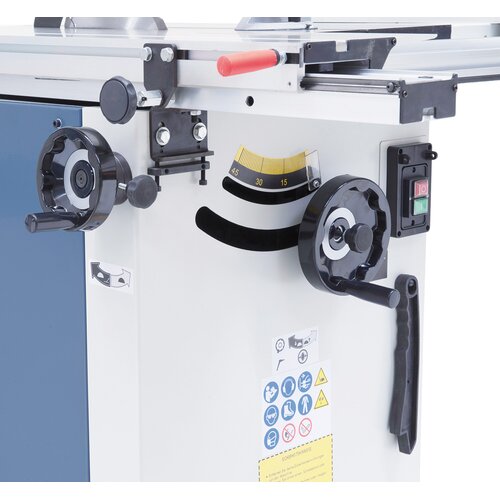

Ergonomic mounted handwheels allow for height adjustment and tilting of the saw unit.

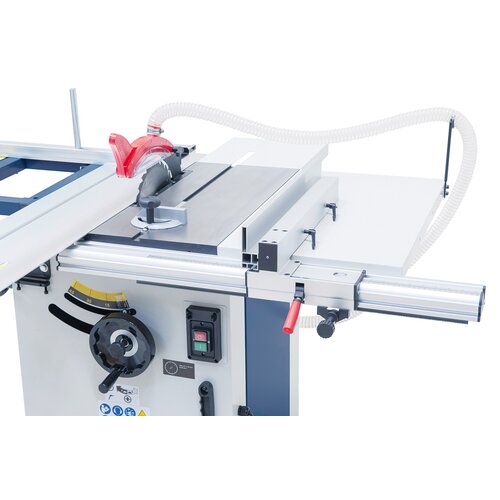

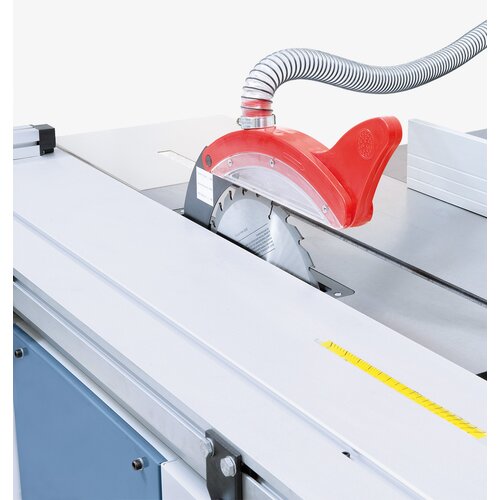

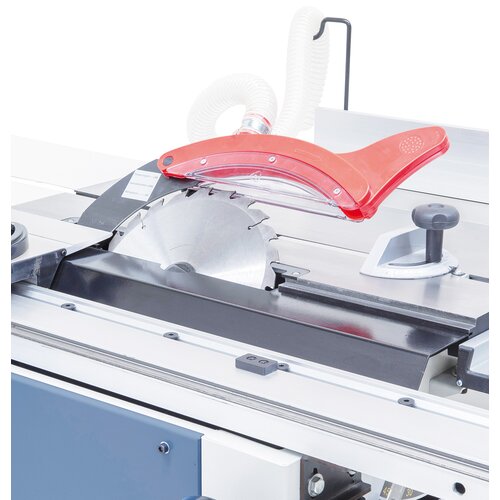

Sawblade cover - with integrated dust port - connected at riving knife.

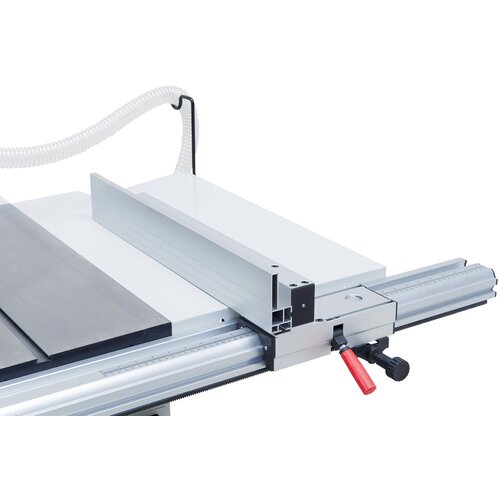

Includes easily adjustable rip fence with quick clamping system and table extension for cutting width up to 690 mm.

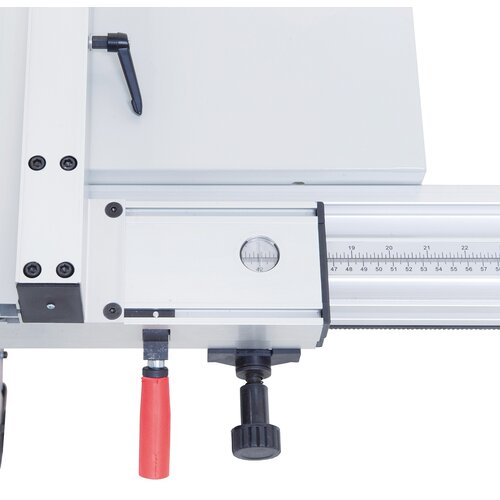

The magnifying glass on the rip fence ensures an easy read out of mm-scale hence allowing precise adjustment of cutting width.

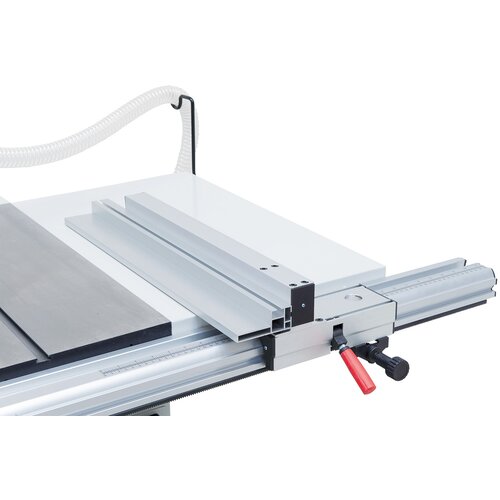

Amply sized square table, the steplessly tiltable aluminium fence (2x 45°) can be mounted on the front or rear.

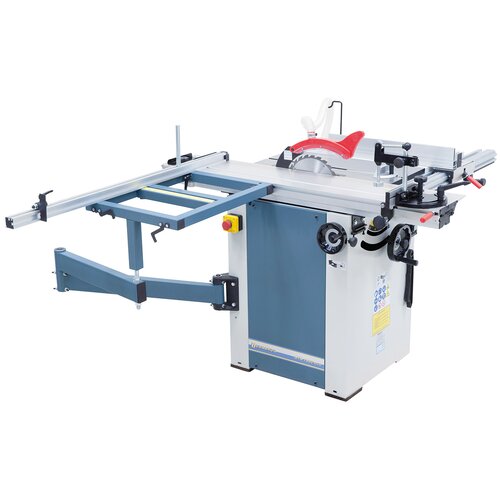

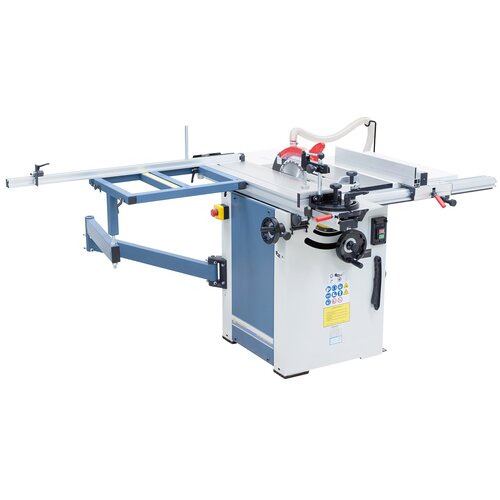

Sliding table saw STS 1300 eco / 400 V *

Art.Nr.: 09-1083

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The STS sliding table saw is available with a table length of 1300 mm or 1600 mm. Part of the standard equipment is a 2,2 kW motor and a sawblade (diameter 254 mm) for cutting height up to 80 mm. Most commonly this model is used among craftsmen and in small businesses as a second machine.

€1,944.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 11, 2025

Product Properties

Complete with aluminium sliding table with a surface of 1300 x 240 mm or 1600 x 240 mm
Powerful motor guarantees optimal cutting results een at continuous operation

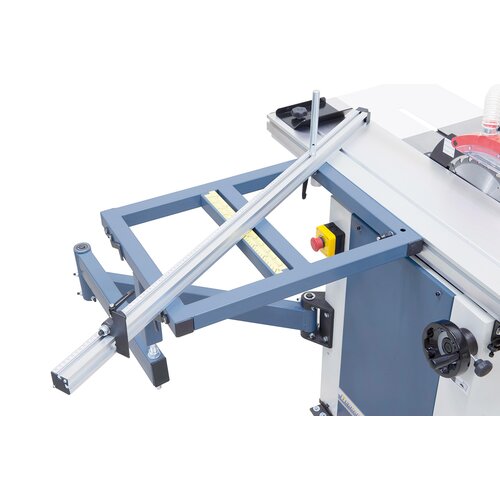

Part of equipment are table extension and enlargement for better support of larger panels
Ensure optimal work conditions by connecting a dust collector to the 100 mm dust port
Handwheel and scale allow for up to 45° sawblade tilt
Solid grey cast-iron table features T-slot for the mitre fence
Large, grey cast-iron machine table, built with top accuracy and polished surfaces
Torsion-free, steel and grey cast-iron machine body
All aluminium parts (sliding table, fences,...) are anodized
Complete with table extension for convenient cutting of large panels

Product Specifications

Table size	670 x 310 mm
Sliding table	1300 x 240 mm
Cutting length	1300 mm
Max. sawblade diameter	254 x 30 mm
Max. cutting height 90° / 45°	80 / 63 mm
Cutting width on rip fence	690 mm
Table height	870 mm
Table extension	325 x 310 mm
Table enlargement	670 x 400 mm
Square table	600 x 455 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	1300 x 2160 x 1130 mm
Weight approx.	135 kg
