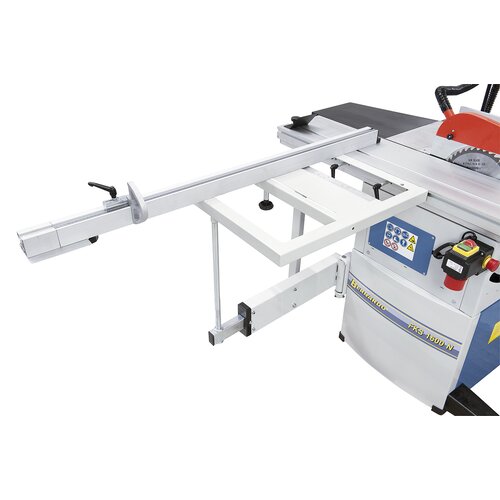

Steplessly tiltable telescopic arm (2 x 45º) can be mounted at front or rear of square table.
Steplessly tiltable telescopic arm (2 x 45º) can be mounted at front or rear of square table.

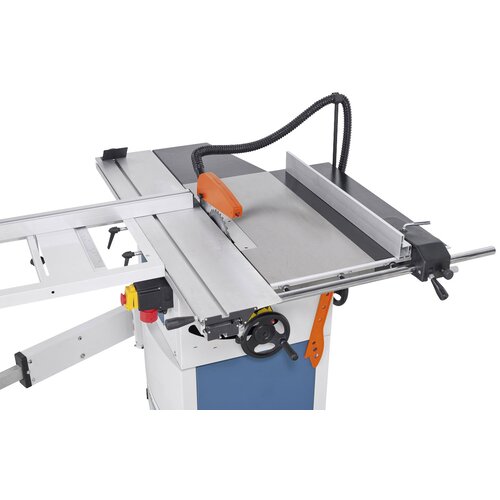

Amply dimensioned work table and table extension for cutting width of up to 610 mm come standard.
Amply dimensioned work table and table extension for cutting width of up to 610 mm come standard.

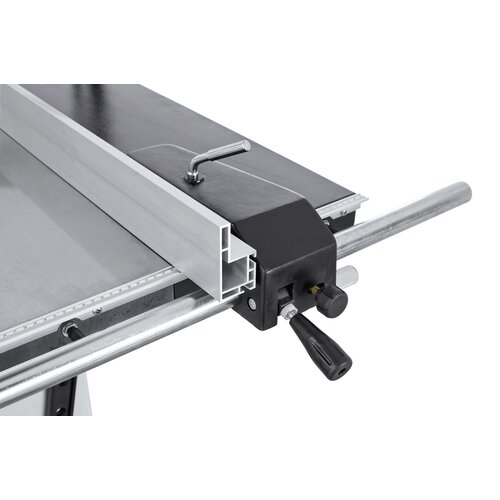

Complete with robust parallel fence, 30 mm round rod guide designed for heavy work loads.
Complete with robust parallel fence, 30 mm round rod guide designed for heavy work loads.

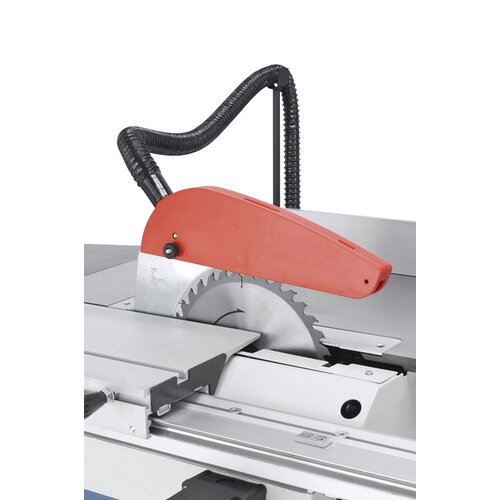

Sawblade cover - with integrated dust port - connected at riving knife.
Sawblade cover - with integrated dust port - connected at riving knife.

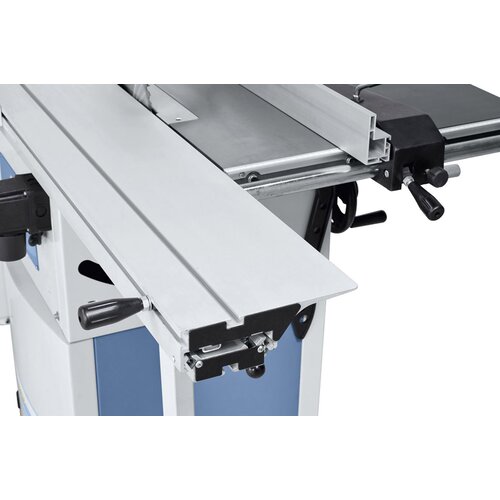

Equipped with anodized aluminium sliding table to ensure high work comfort.
Equipped with anodized aluminium sliding table to ensure high work comfort.

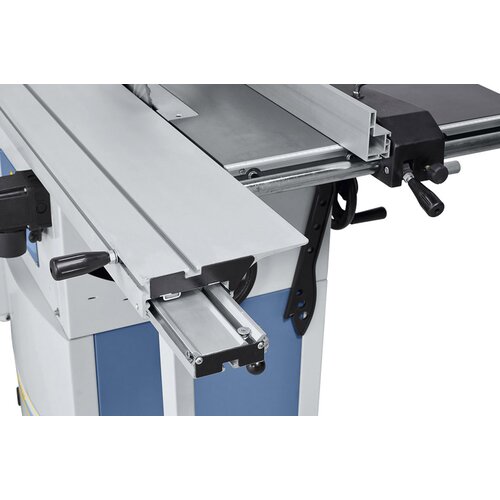

Hardened prism-shaped guide for smooth running of sliding table.
Hardened prism-shaped guide for smooth running of sliding table.

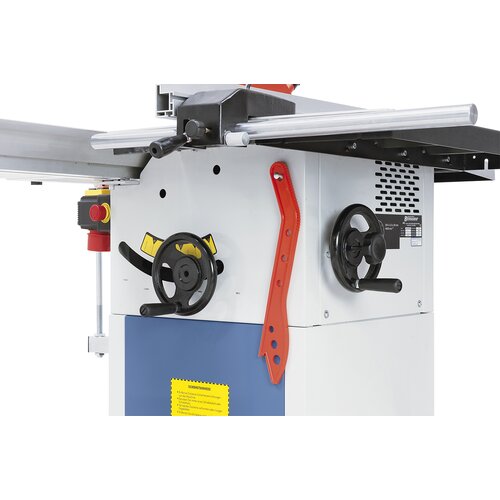

Handwheels allow for hassle-free, smooth adjustment of saw unit.
Handwheels allow for hassle-free, smooth adjustment of saw unit.
Steplessly tiltable telescopic arm (2 x 45º) can be mounted at front or rear of square table.
Amply dimensioned work table and table extension for cutting width of up to 610 mm come standard.
Complete with robust parallel fence, 30 mm round rod guide designed for heavy work loads.
Sawblade cover - with integrated dust port - connected at riving knife.
Equipped with anodized aluminium sliding table to ensure high work comfort.
Hardened prism-shaped guide for smooth running of sliding table.
Handwheels allow for hassle-free, smooth adjustment of saw unit.

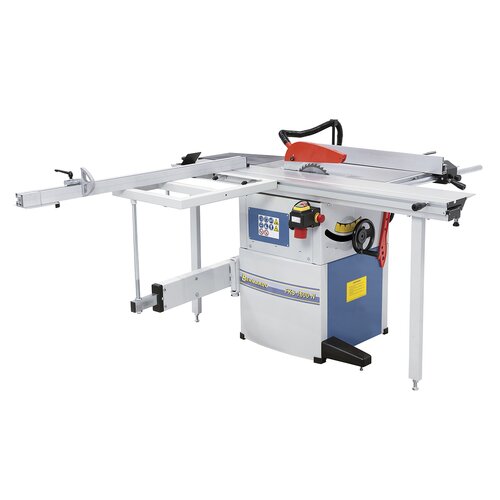

Sliding table saw FKS 1600 N / 400 V *

Art.Nr.: 09-1095
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FKS 1600 N sliding table saw meet the requirements of professional users, such as precision, high work comfort, short conversion time and versatility. Characteristics include high quality finish, smooth-running sliding table plus rip fence featuring round rod guide and fine adjustment.



€2,388.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Smooth running, precise sliding table with hardened, prism-shaped guide
  • Solid square table for operating on heavy, large panels
  • Large, grey cast-iron machine table, built with top accuracy and polished surfaces
  • Extractable, anodized aluminium telescopic fence with solid end stop
  • Torsion-free, steel and grey cast-iron machine body
  • Handwheel allows for tilting of saw unit up to 45º
  • Solid saw unit minimizes vibrations significantly
  • Complete with table extensions and enlargement for better support of large panels
  • Aluminium rip fence with fine adjustment and precise round rod guide (30 mm)
  • All aluminium parts (sliding table, fences,...) are anodized
  • Includes solid telescopic arm and square table which can be moved longitudinally
  • Powerful drive motor for constant cutting speed, even at cutting height of 80 mm

Product Specifications

Table size

800 x 350 mm

Sliding table

1610 x 240 mm

Cutting length

1600 mm

Max. sawblade diameter

254 x 30 mm

Max. cutting height 90° / 45°

80 / 54 mm

Cutting width on rip fence

610 mm

Table height

860 mm

Table extansion

350 x 410 mm

Table enlargement

800 x 270 mm

Square table

600 x 460 mm

Speed main sawblade

4060 rpm

Dust extraction outlet

100 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

400 V

Machine dimension (W x D x H)

1610 x 2100 x 1200 mm

Weight approx.

170 kg

Delivery Contents

  • Carbide sawblade 254 x 3,0 x 30 mm / 36T
  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • End stop
  • Table extension
  • Table enlargement
  • Extractable telescopic fence
  • Stop
  • Square table
  • Push stick
  • Tools
