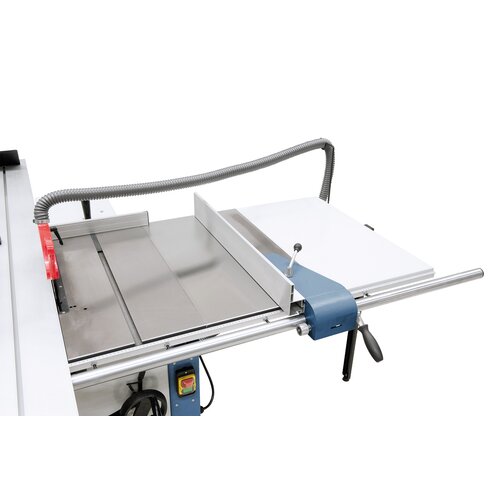

The amply sized work table includes table extension for cutting width up to 1200 mm.

Extractable telescopic fence features stops with fine adjustment.

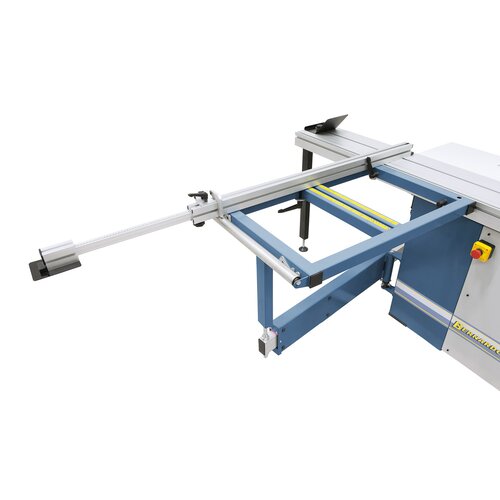

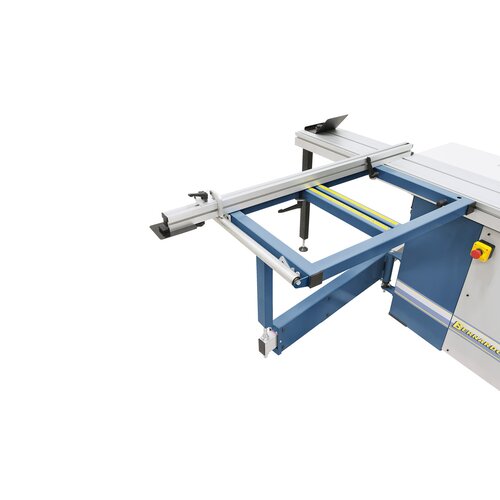

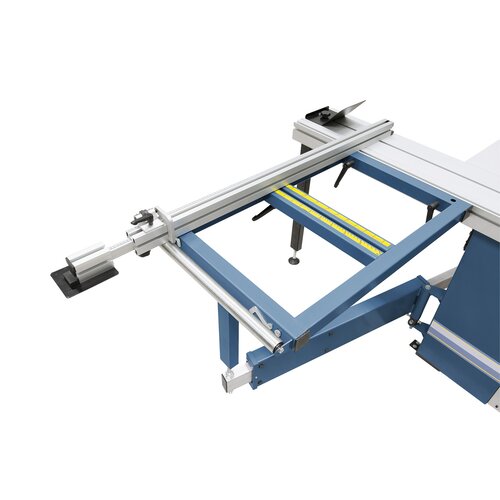

Square table with roller ensures convenient machining of large workpieces.

The amply sized sliding table runs smoothly and maintenance-free on hardened prism-shaped guide.

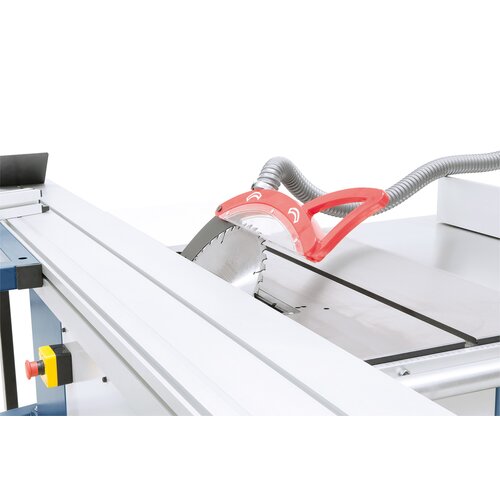

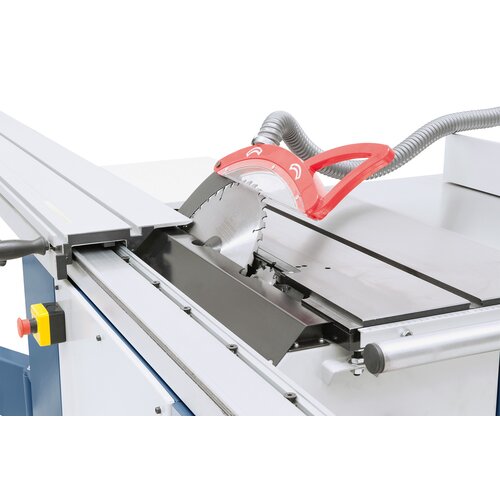

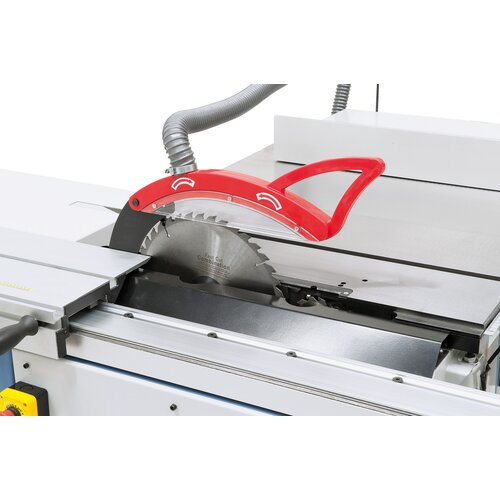

The protective sawblade cover with integrated dust port is connected at riving knife. Standard equipment includes a scoring unit.

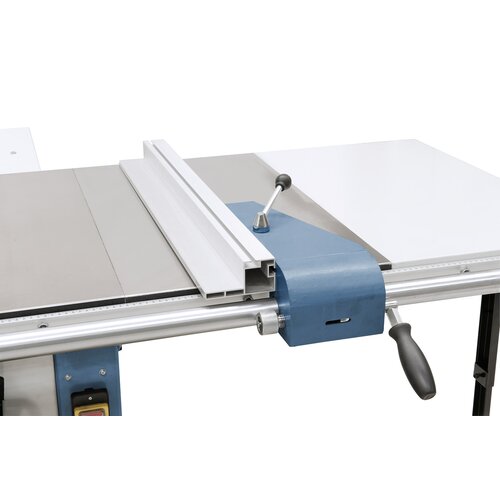

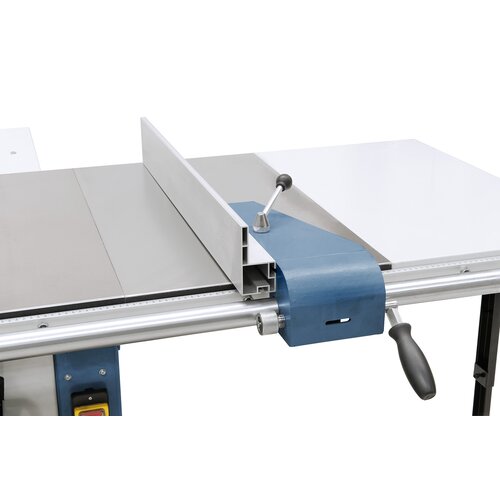

Complete with robust parallel fence, 40 mm round rod guide designed for heavy work loads.

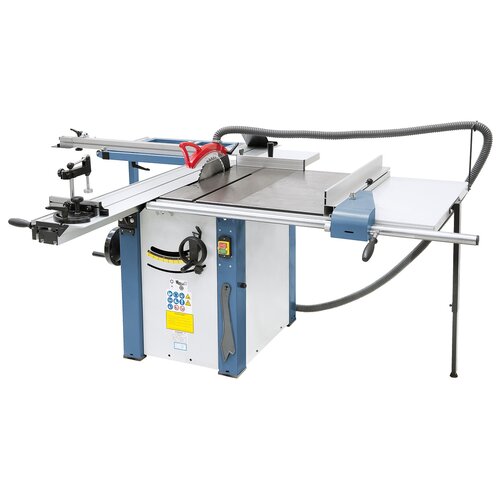

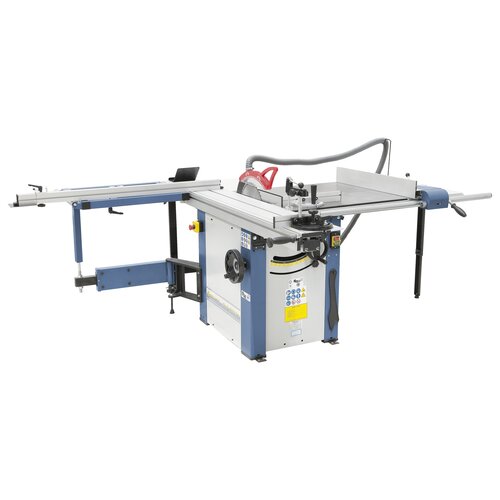

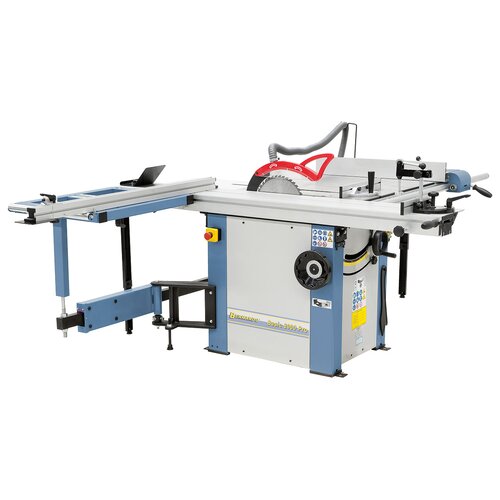

Sliding table saw Basic 2000 Pro / 400 V

Art.Nr.: 09-1129

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Basic 2000 Pro sliding table saw features a tiltable sawblade and comes equipped with a scoring unit to meet the requirements of professional users. State-of-the-art technical solutions, such as high user comfort, powerful drive as well as smooth running sliding table are only some of the highlights of this model.

€3,060.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Aluminium sliding table with hardened guide rails
Solid square table allows processing of large or heavy panels
Part of equipment are table extensions and enlargement for better support of larger panels

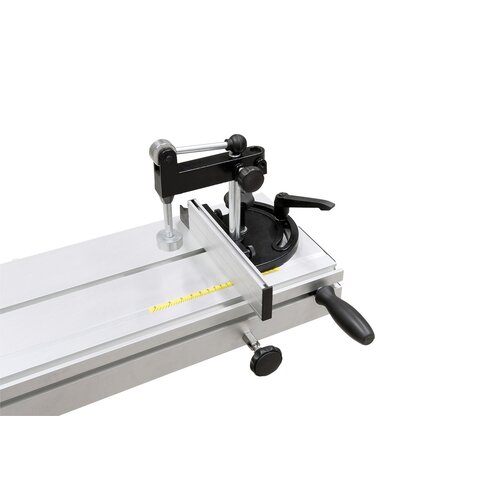

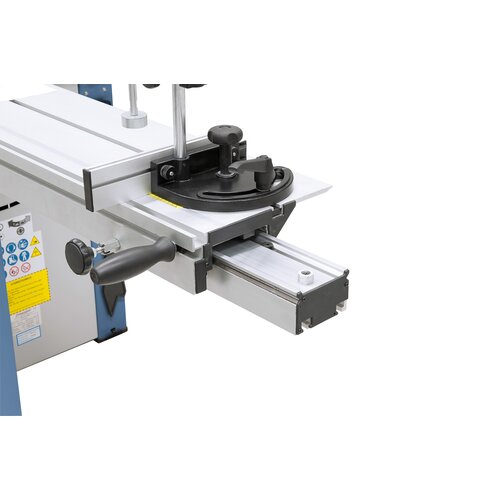

Mitre fence and eccentric holder can be moved along entire length of sliding table
Solid saw unit guarantees precise work free from vibrations
Machine body consists of torsion-free combination of steel and grey cast-iron
Extractable telescopic fence (max. 2260 mm), mountable on front or rear of square of table
Parallel fence can be folded down and includes micrometric fine adjustment (advantage for large panels)
Handwheel and scale allow for up to a 45º sawblade tilt
Powerful motor guarantees optimal cutting capacity even at continuous operation
Large grey cast-iron machine table, accurately manufactured and polished

Product Specifications

Table size	800 x 385 mm
Sliding table	2000 x 270 mm
Cutting length	2000 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1200 mm
Table height	860 mm
Table extension	500 x 310 mm
Table enlargement	800 x 880 mm
Square table with roll	755 x 580 mm
Speed main sawblade	4000 rpm
Speed scoring sawblade	5800 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,8 kW (5,1 HP)
Motor power input S₆ 40%	5,3 kW (7,2 HP)
Voltage	400 V
Machine dimension (W x D x H)	2000 x 2800 x 1140 mm
Weight approx.	270 kg
