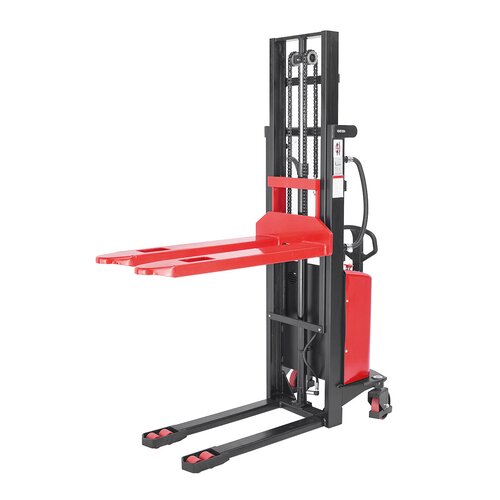

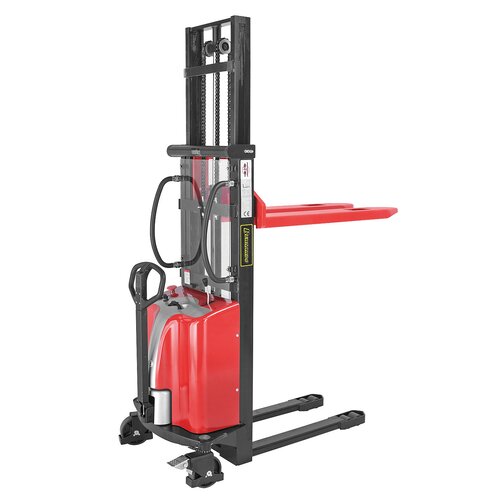

Semi-electric stacker EHS 1500 - 1.6 *
Art. No.: 07-1043€3,760.00
Availability
Out of Stock
Product Specifications
|
Capacity |
1500 kg |
|
Load centre distance |
600 mm |
|
Min. fork height |
85 mm |
|
Lifting height max. |
1600 mm |
|
Fork length |
1140 mm |
|
Fork width |
180 mm |
|
Fork height |
160 mm |
|
Overall width |
570 mm |
|
Distance between forks |
210 mm |
|
Turning radius |
1280 mm |
|
Lifting speed with load / without load |
65 / 100 mm/sec. |
|
Lowering speed with load / without load |
85 / 70 mm/sec. |
|
Sterring roller dimension |
Ø 180 x 50 mm |
|
Load roller dimension |
Ø 74 x 70 mm |
|
Wheelbase |
1160 mm |
|
Lifting motor |
1,5 kW |
|
Battery voltage |
12 V |
|
Length |
1720 mm |
|
Width |
780 mm |
|
Height (mast lowered / extended) |
1980 / 1980 mm |
|
Weight incl. battery |
436 kg |
