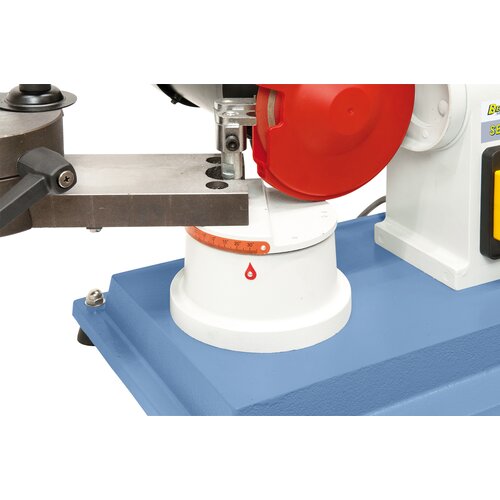

Adjustable rotating assembly ring for sharpening of most common sawblades.

Tilts 20° to right and 20° to left, ideal for sharpening of ATB (alternate top bevel) sawblades.

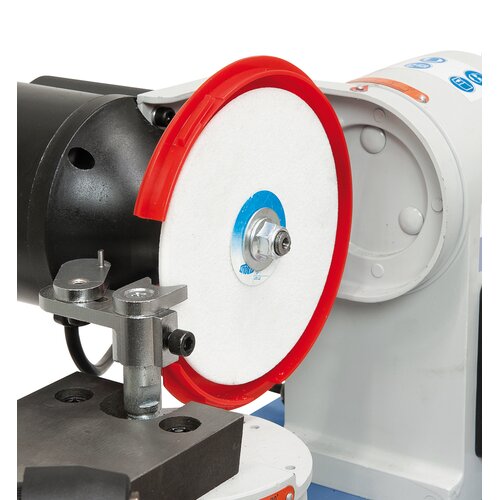

Corund-Sanding disc is ideal for sharpening of carbide sawblades.

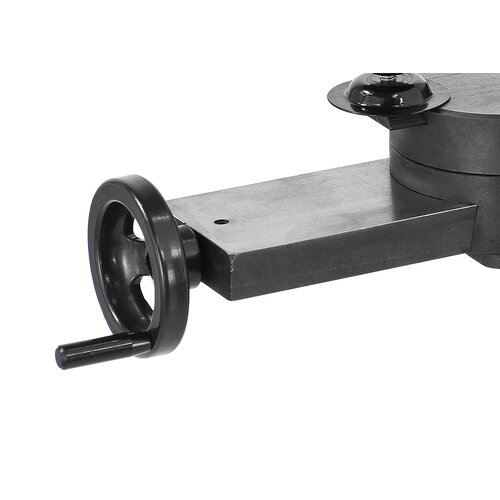

Convenient sawblade infeed by handwheel.

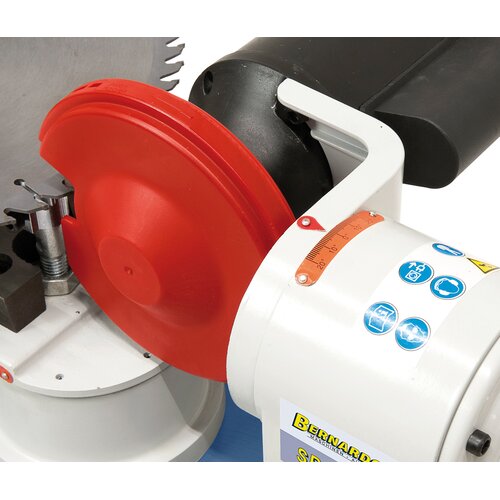

Closed protective cover according to CE guarantees for high safety.

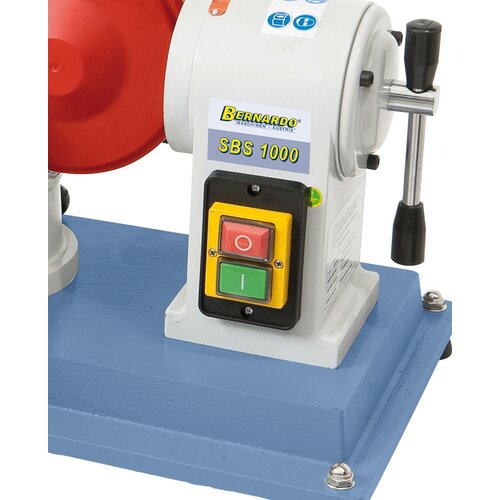

On-/Off-switch in accordance with IP 54 standards and undervoltage release.

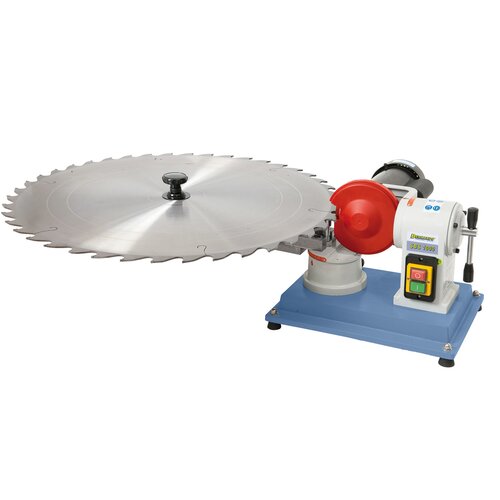

Sawblade sharpener SBS 1000 / 230 V

Art. No.: 11-4375

Wishlist Comparison List

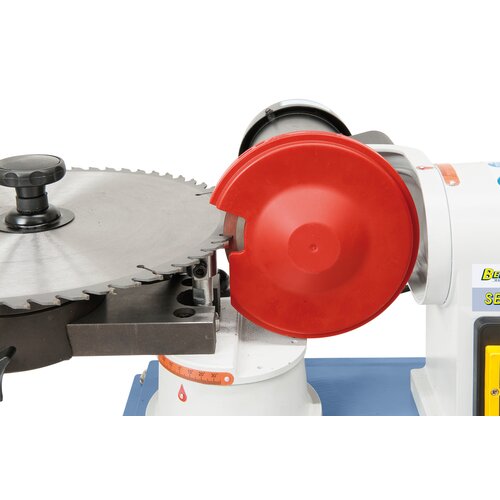

The solid SBS 1000 sawblade sharpener allows sharpening of carbide-tipped and CV- sawblades featuring a diameter of 80 – 1000 mm. The tiltable motor-grinding wheel unit / sawblade holder allows for grinding of various tooth designs.

€500.40

incl. 20% VAT

Availability

Out of Stock

Product Properties

Universal sawblade grinding machines for grinding sawblades from 80 - 1000 mm
Quick and easy pre-setting of sawblade for grinding operations
Standard diamond grinding wheel diam. 125 x 10 x 13 mm
Solid grey cast-iron construction ensures top accuracy
Tiltable motor-grinding wheel unit (20° left / right) allows for sharpening of carbide-alternate top bevel sawblades (ATB)
Tilt the sawblade holder 35° left, 45° right for sharpening of negative tooth angles
Fast and straightforward grinding operation makes these models highly economical
Suitable for sharpening of all major blades of table circular saws, firewood circular saws, etc.
Rubber feet ensure low noise level and minimize vibrations

Product Specifications

Sawblade diameter	80 - 1000 mm
Grinding wheel Ø x bore	125 x 13 mm
Setting angle grinding wheel	20° left / 20° right
Rotating assembly angle	35° left / 45° right
No load speed	2850 rpm
Motor power	180 W
Voltage	230 V / 50 Hz
Machine dimension (W x D x H)	870 x 390 x 300 mm
Weight approx.	23 kg
