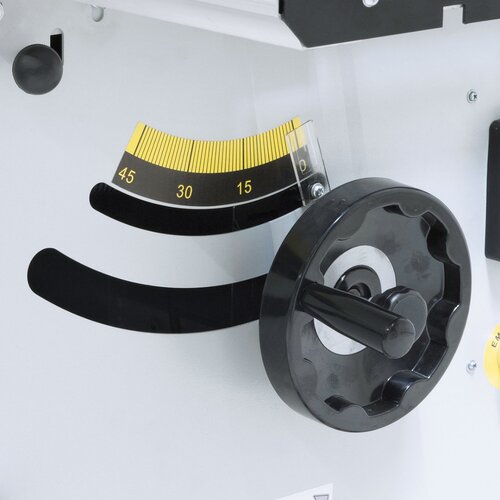

Sawblade angle can easily be read out on scale.

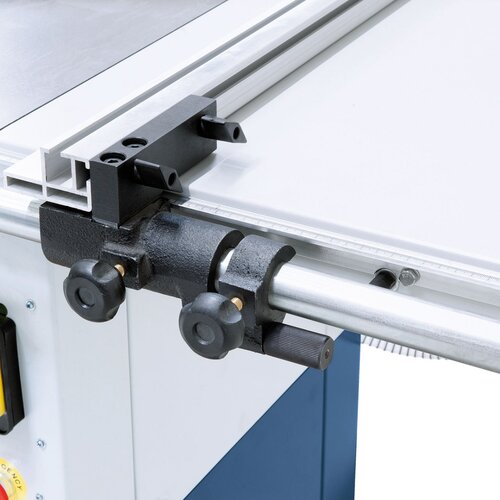

Parallel fence features micrometric fine adjustment, suitable for cutting width up to 670 mm.

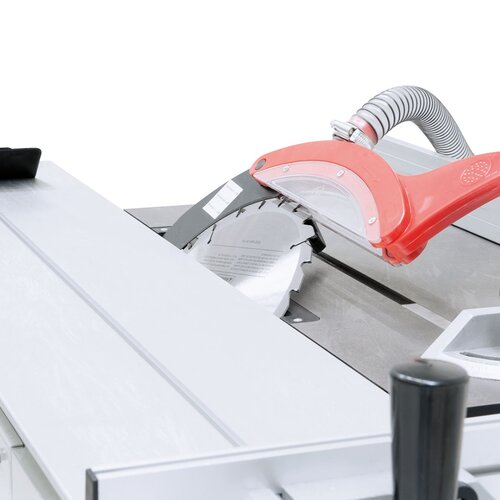

Sawblade cover - with integrated dust port - connected at riving knife.

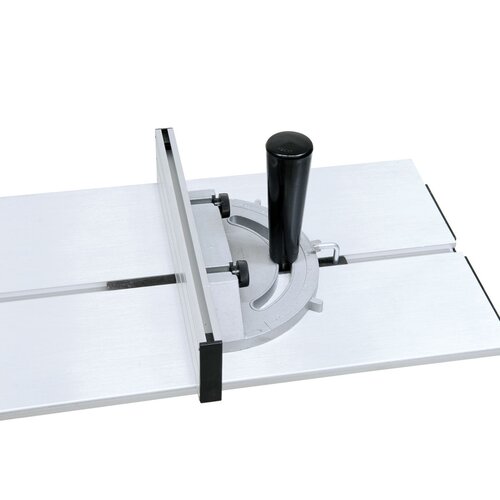

T-slot in sliding table allow mounting of mitre fence or end stop.

30 mm round rod allows for precise guiding of aluminium parallel fence.

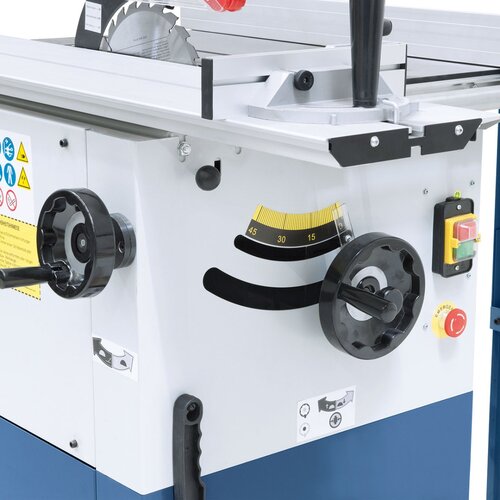

Ergonomic mounted handwheels allow for height adjustment and tilting of the saw unit.

Sawblade can be tilted from 90º to 45º for precise angle cuts.

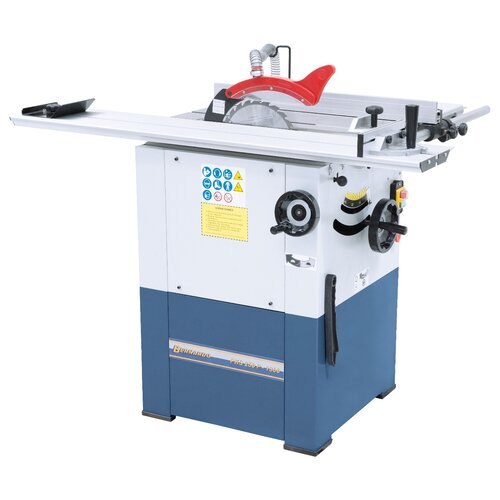

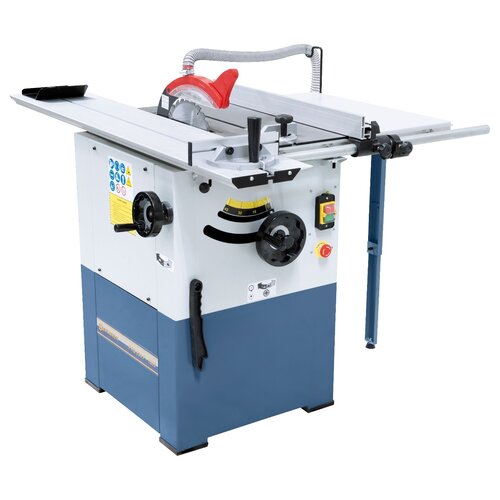

Precision saw PKS 250 P - 1300 / 230 V *

Art.Nr.: 09-1062

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PKS 250 P precision saw features several technical innovations, such as a sliding table 1300, longitudinal fence with fine adjustment, sawblade tilting on the front side and many more, which are rather unusual for a machine of this size. Most commonly this model is used among amateurs, craftsmen and in small businesses.

€1,500.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid grey cast-iron table features T-slot for the mitre fence
Tiltable sawblade from 90º to 45º by handwheel

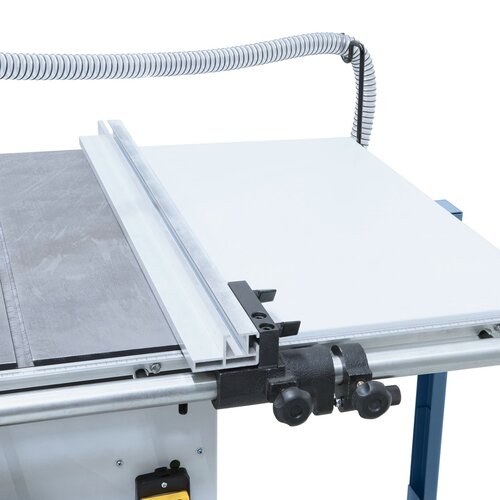

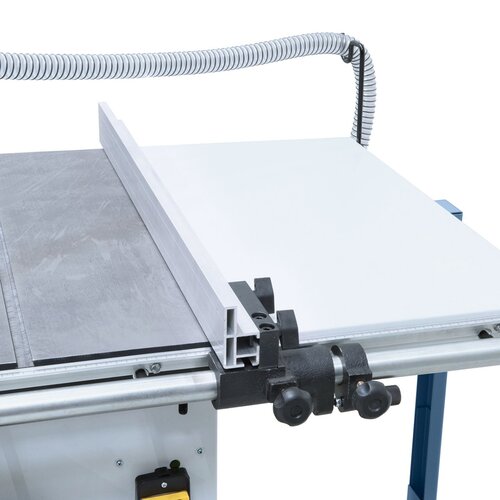

Rip fence can be turned 90º for cutting of narrow and thin workpieces

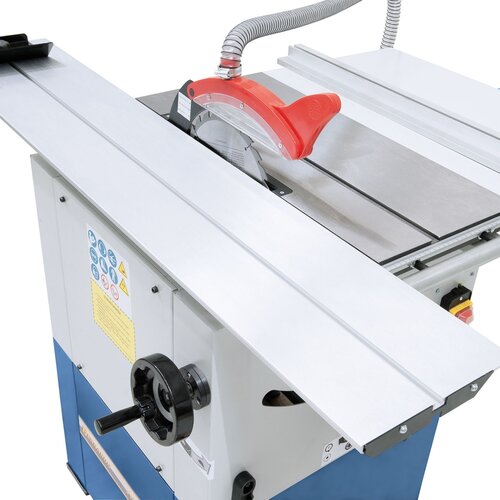

Complete with table extension for convenient cutting of large panels
Smooth, precise sliding table with prism-shaped guide
Aluminium rip fence with fine adjustment and precise 30 mm round rod guide
Solid saw unit guarantees accurate work, free from vibrations
Powerful drive motor ensures constant cutting speed, even at cutting height of 80 mm
Large, grey cast-iron machine table, built with top accuracy and polished surfaces
Torsion-free, steel and grey cast-iron machine body

Product Specifications

Table size	670 x 310 mm
Sliding table	1300 x 250 mm
Cutting length	1020 mm
Max. sawblade diameter	254 x 30 mm
Max. cutting height 90° / 45°	80 / 65 mm
Cutting width on rip fence	670 mm
Table height	870 mm
Table extension	670 x 400 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	1300 x 1180 x 1100 mm
Weight approx.	108 kg
