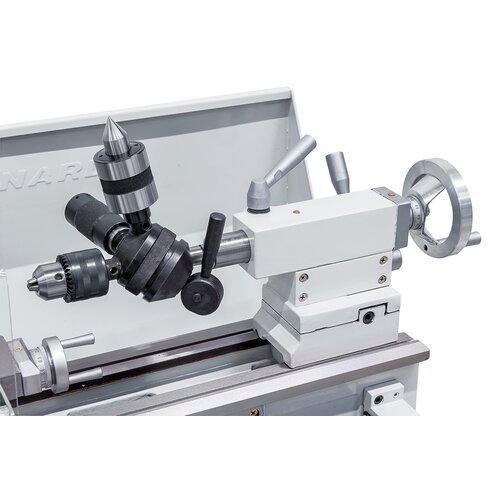

Machine can be equipped with revolving tailstock turret for economic operating
Machine can be equipped with revolving tailstock turret for economic operating

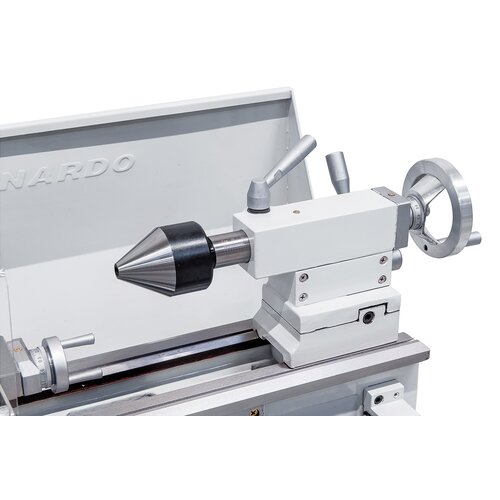

Ball nose live center 60 mm, ideal for clamping of pipes and hollow parts. (optional)
Ball nose live center 60 mm, ideal for clamping of pipes and hollow parts. (optional)

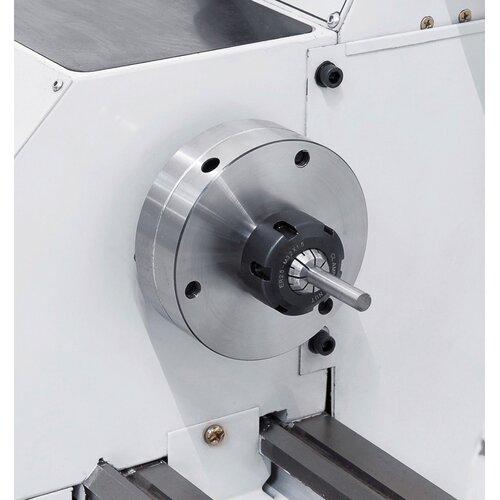

The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.
The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.

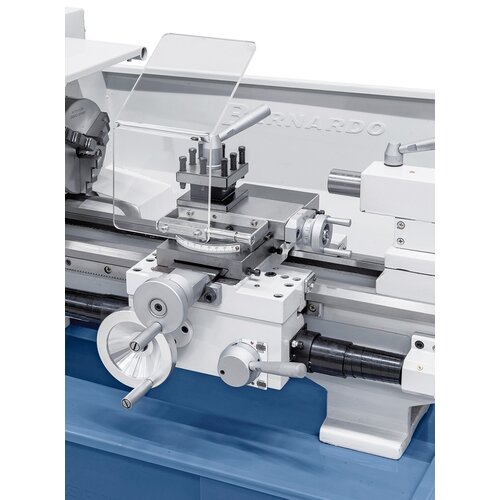

Precise and smoothly-running apron with top support, long life span due to adjustable gibs.
Precise and smoothly-running apron with top support, long life span due to adjustable gibs.

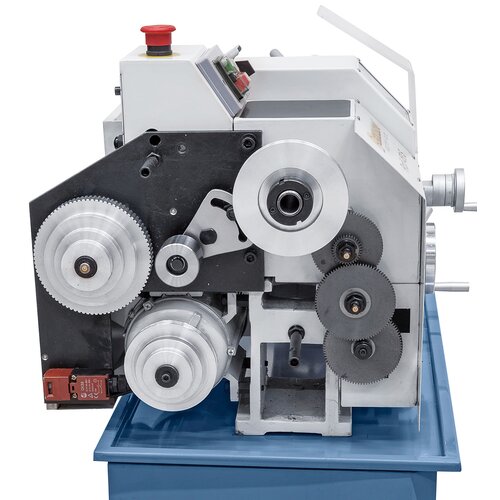

Change gears for thread cutting included as standard equipment.
Change gears for thread cutting included as standard equipment.

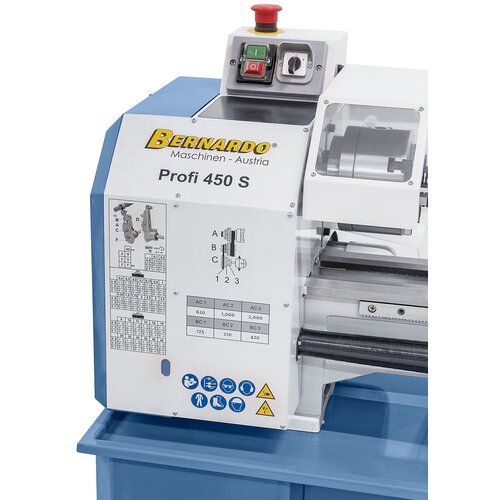

All control elements as well as all tables are clearly arranged on the spindle head.
All control elements as well as all tables are clearly arranged on the spindle head.

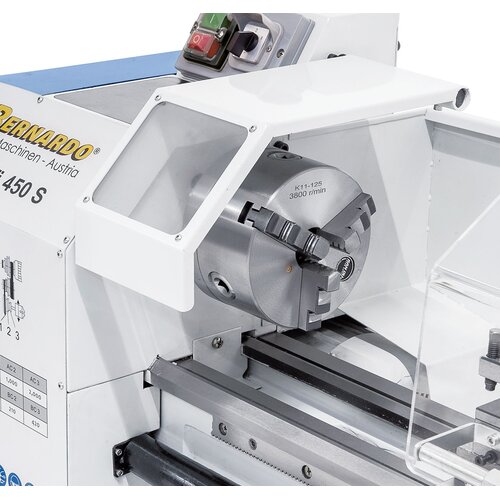

3-jaw chuck 125 mm with hard inside and hard outisde solid jaws as standard equipment.
3-jaw chuck 125 mm with hard inside and hard outisde solid jaws as standard equipment.
Machine can be equipped with revolving tailstock turret for economic operating
Ball nose live center 60 mm, ideal for clamping of pipes and hollow parts. (optional)
The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.
Precise and smoothly-running apron with top support, long life span due to adjustable gibs.
Change gears for thread cutting included as standard equipment.
All control elements as well as all tables are clearly arranged on the spindle head.
3-jaw chuck 125 mm with hard inside and hard outisde solid jaws as standard equipment.

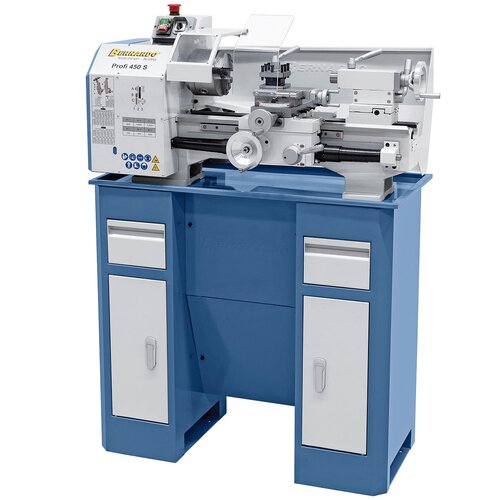

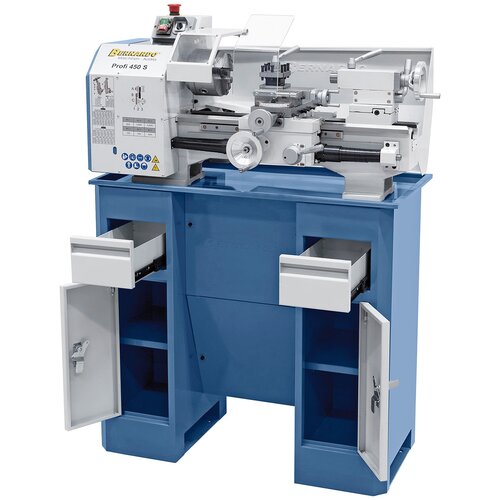

Precision lathe Profi 450 S / 230 V

Art.Nr.: 03-1045
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The compact precision lathe Profi 450 S impresses with its modern design and the powerful drive motor for high torque. Due to the convincing price-performance ratio, this model is ideal for model builders and hobby do-it-yourselfers.

€1,620.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Complete with leadscrew for thread cutting and the automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.015 mm)

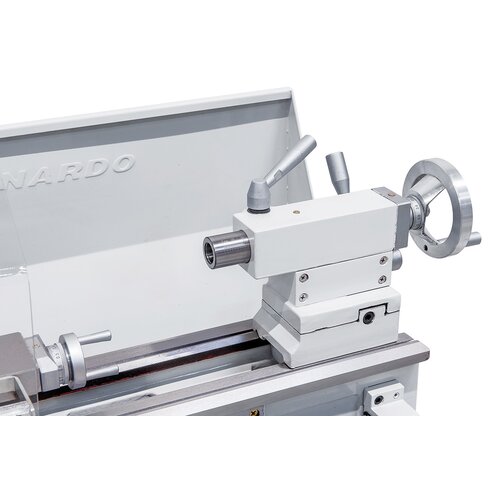

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Highly suitable for processing steel, non-ferrous materials or plastics
  • Wide range of applications: precision mechanics, training and education, etc.

Product Specifications

Distance between centers

450 mm

Center height

115 mm

Swing over bed

230 mm

Bed width

135 mm

Spindle bore

20 mm

Taper at spindle bore

MK 3

Speed range

(6) 125 - 2000 rpm


Longitudinal feed

(2) 0,1 - 0,2 mm/rev.

Metric thread

(14) 0,4 - 3,5 mm

Inch thread

(12) 8 - 44 threads/1“

Travel of tailstock sleeve

60 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,90 kW / 230 V

Motor power input S6 40%

1,35 kW / 230 V

Machine dimension (W x D x H)*

1000 x 580 x 500 mm

Weight approx.

112 kg




* without stand

Delivery Contents

  • 3-jaw chuck 125 mm
  • Flange 125 mm
  • Cross slide with top support
  • Dead centers
  • Change gears
  • 4-way tool post holder
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools

Suitable accessories

Multipurpose turning tool set, 12 mm, 9 pcs., set C
Multipurpose turning tool set, 12 mm, 9 pcs., set C
Art.Nr. : 44-3084

€219.60

incl. 20% VAT

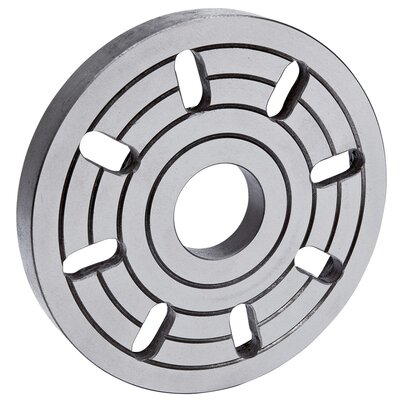

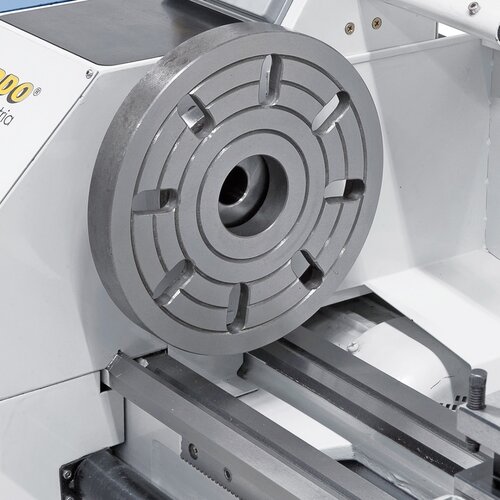

Face plate 170 mm f. Profi 450 S / Vario
Face plate 170 mm f. Profi 450 S / Vario
Art.Nr. : 03-1583

€61.20

incl. 20% VAT

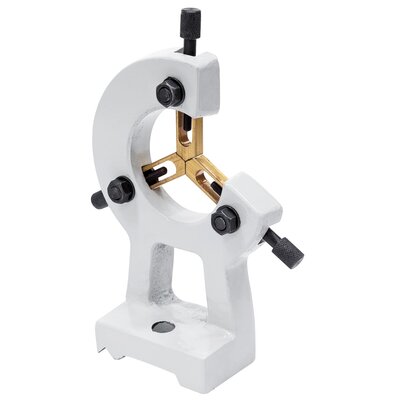

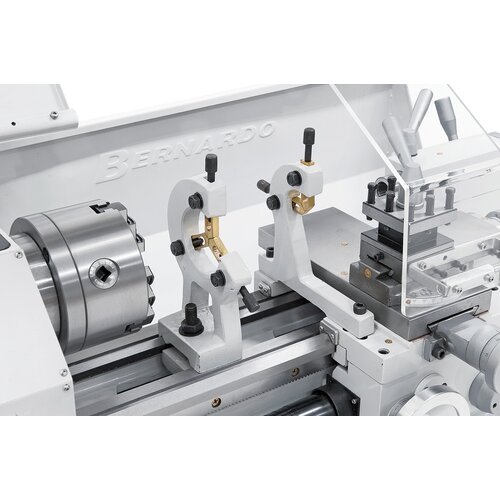

Steady rest f. Profi 450 S / Vario
Steady rest f. Profi 450 S / Vario
Art.Nr. : 03-1580

€61.20

incl. 20% VAT

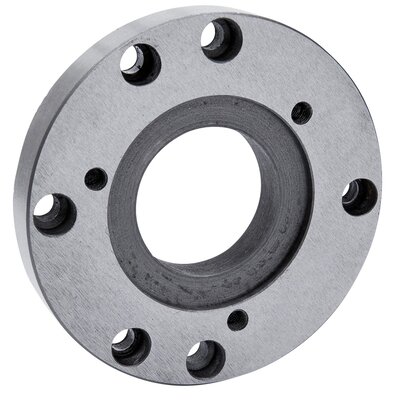

Flange diam. 125 mm f. Profi 450 S / Vario
Flange diam. 125 mm f. Profi 450 S / Vario
Art.Nr. : 03-1582

€60.00

incl. 20% VAT

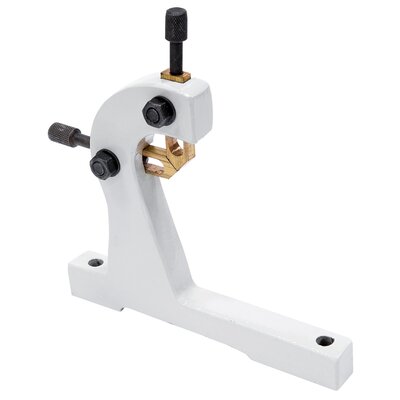

Follow rest f. Profi 450 S / Vario
Follow rest f. Profi 450 S / Vario
Art.Nr. : 03-1581

€57.60

incl. 20% VAT
5 pcs. indexable carbide turning tool set, 12 mm
5 pcs. indexable carbide turning tool set, 12 mm
Art.Nr. : 44-2014

€84.00

incl. 20% VAT
Costs of assembly for quick change set **
Costs of assembly for quick change set **
Art.Nr. : 23-1092

€138.00

incl. 20% VAT
Collet chuck ER 25 - D 72
Collet chuck ER 25 - D 72
Art.Nr. : 22-1082

€102.00

incl. 20% VAT
Soft solid jaws DSJ-DK12-125
Soft solid jaws DSJ-DK12-125
Art.Nr. : 21-0865

€85.20

incl. 20% VAT
Collet set ER 25, 2 - 16 mm, 15 pcs.
Collet set ER 25, 2 - 16 mm, 15 pcs.
Art.Nr. : 26-1022

€168.00

incl. 20% VAT
Bernardo - 4-jaw independent chuck K72 according DIN 6350 K72 - 125
Bernardo - 4-jaw independent chuck K72 according DIN 6350 K72 - 125
Art.Nr. : 21-5002

€142.80

incl. 20% VAT
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-125, cast iron
Bernardo Standard-4-jaw chuck DK12, DIN 6350, DK12-125, cast iron
Art.Nr. : 21-0802

€228.00

incl. 20% VAT
Economy live center Typ PC - MT 2
Economy live center Typ PC - MT 2
Art.Nr. : 22-1001

€81.60

incl. 20% VAT
Quick change set model Bernardo size 10, incl. 4 tips
Quick change set model Bernardo size 10, incl. 4 tips
Art.Nr. : 23-1055B

€202.80

incl. 20% VAT
4 station revolving tailstock turret MT 2, incl. inserts
4 station revolving tailstock turret MT 2, incl. inserts
Art.Nr. : 22-1069
4 station revolving tailstock turret MT 2, incl. tips

€186.00

incl. 20% VAT
Stand Deluxe f. Profi 450 S / Vario
Stand Deluxe f. Profi 450 S / Vario
Art.Nr. : 56-1084

€397.20

incl. 20% VAT
