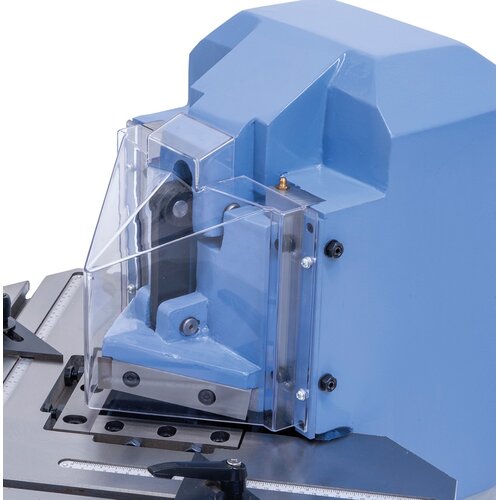

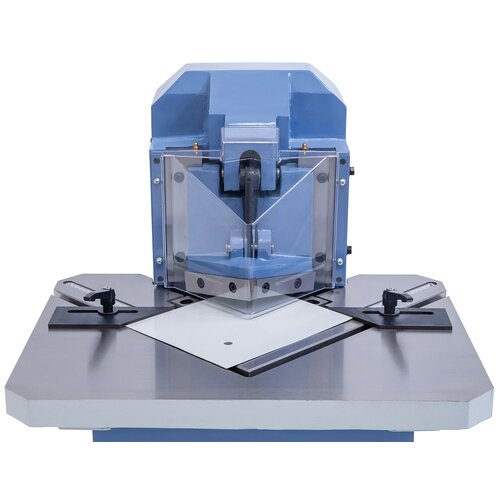

Protective cover out of
Plexiglas, therefore optimal
view to the cutting edge

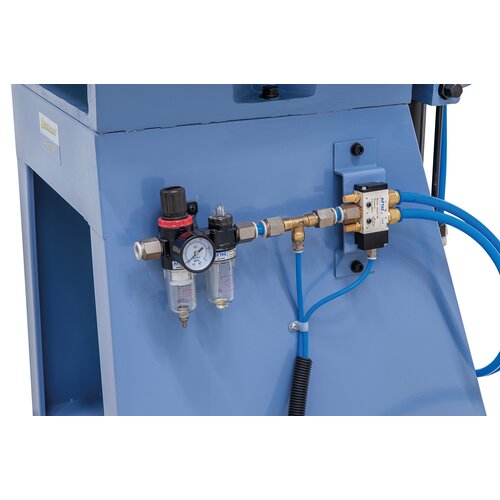

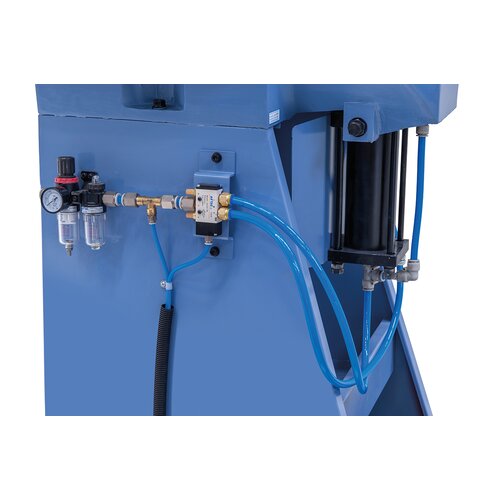

High-quality pneumatic components for
trouble-free working.

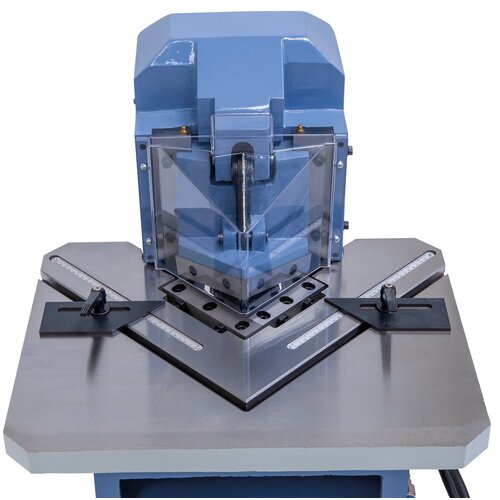

Serially with tiltable stops.

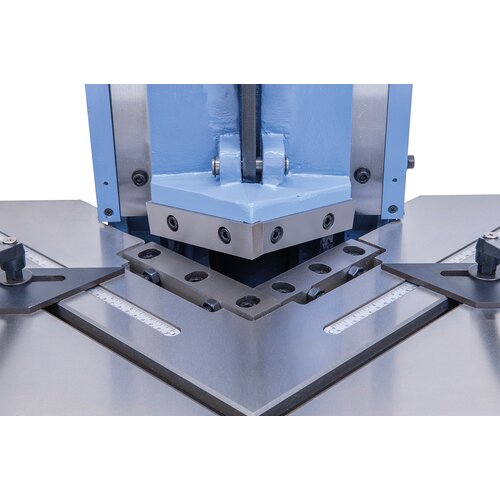

Precision cutting blades made of surface-hardened steel.

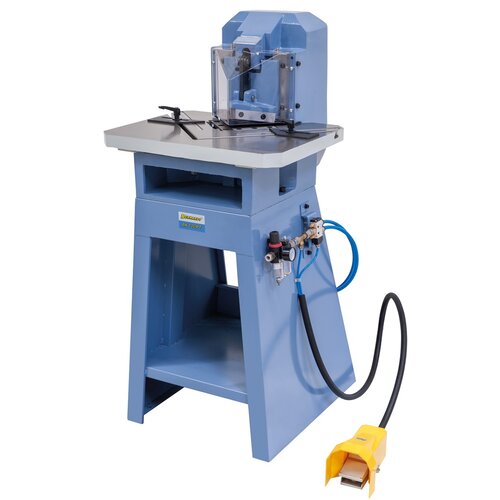

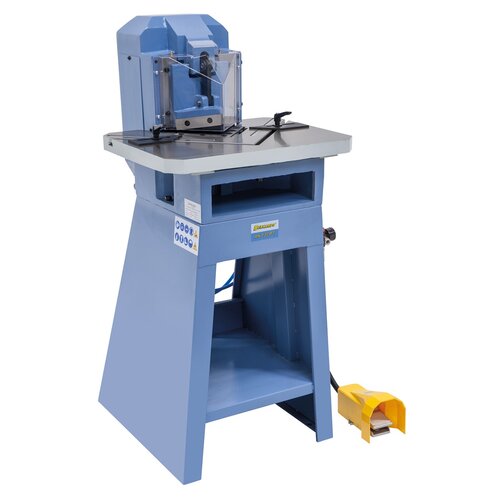

Pneumatic notching machine AK 130 PT
Art.Nr.: 06-10510€3,180.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Notch with burr-free cut, without deformation of the cutting edges
- Machine body made of high quality cast iron, base made of sheet steel
- Cuttings blade made of surface hardened tool steel

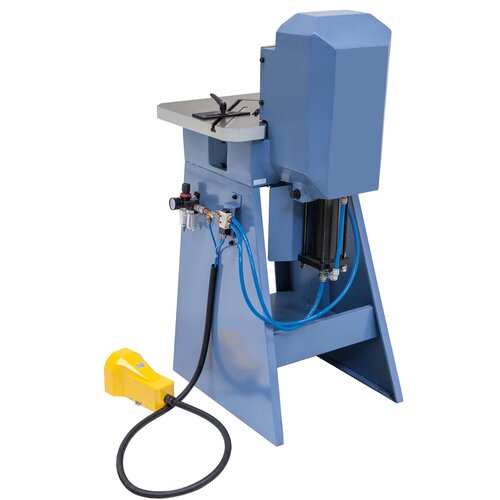

- Effort-saving work by pneumatic drive
- Operation by foot pedal, therefore both hands free for the workpiece
- Large-sized working table with integrated scales

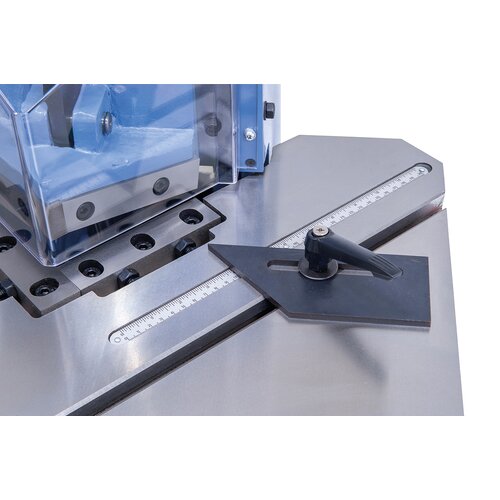

- T-slots for exact guidance of the tiltable stops
- Protective cover in front of the cutting knives for high safety
Product Specifications
|
Sheet thickness max. (400 N / mm2) |
3,0 mm |
|
Max. cutting length at 90° |
130 x 130 mm |
|
Cutting angle |
90° |
|
Max. cuting pressure |
2,0 t |
|
Strokes / min |
50 |
|
Table size |
600 x 460 mm |
|
Width |
600 mm |
|
Depth |
670 mm |
|
Height |
1270 mm |
|
Weight approx. |
200 kg |
Delivery Contents
- 1 set cutting knives
- 2 tiltable material fence
- Plexiglas protective cover
- Foot pedal
- Stand
