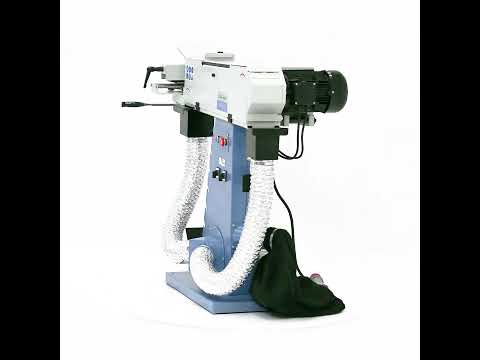

Pipe and profile end grinding machine with aspiration KBR 100 x 2000 DC-2
Art.Nr.: 05-1307The KBR 100 x 2000 DC-2 is a multifunctional grinding machine for grinding of pipes and end of profiles at the front, grinding of edges, face and round grinding on reverse side as well as face grinding on the machine surface. In addition, this model is equipped with an integrated extraction system as standard.
€2,148.00
incl. 20% VATAvailability
Product Properties
- Spring balanced clamping device allows for continuous belt tension
- Comes complete with round grinding device for grinding diameters from 20 – 76 mm
- Quick and easy grinding angle adjustment
- Graphite coating on face grinding area increases sliding capacity of sanding belt
- Large face grinding area with protective cover
- Serially with integrated extraction for optimal working conditions and clean air at work
- User-friendly belt change, straightforward and quick
- Fast and easy change of grinding rolls – no tools required
- Various grinding angles from 30° to 90° are easily achieved
- Short processing times compared to milling
Product Specifications
|
Belt dimension |
100 x 2000 mm |
|
Belt speed |
23,5 / 47 m/sec. |
|
Grinding diameter |
20 - 76 mm |
|
Carriage adjustment |
30° - 90° |
|
Belt sanding table |
390 x 100 mm |
|
Contact disc Ø x W |
200 x 100 mm |
|
Dust extraction outlet |
2 x 100 mm |
|
Speed |
1400 / 2800 rpm |
|
Motor power |
2,5 / 3,3 kW (400 V) |
|
Machine dimension (W x D x H) |
750 x 1320 x 1200 mm |
|
Weight approx. |
158 kg |
Delivery Contents
- Sanding belt grit 40
- Rubber coated grinding roller
- 1 pc. grinding wheel for 1 1/4“ pipe (42/44 mm pipe)
- Foldable protective cover
- Sanding and supporting table
- Integrated extraction
- 2x Alu-tube diam. 100 mm
- Filter bag
- Graphite coating
- Motor protective switch
