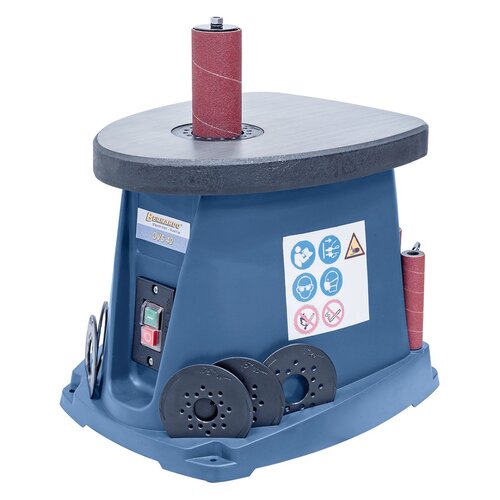

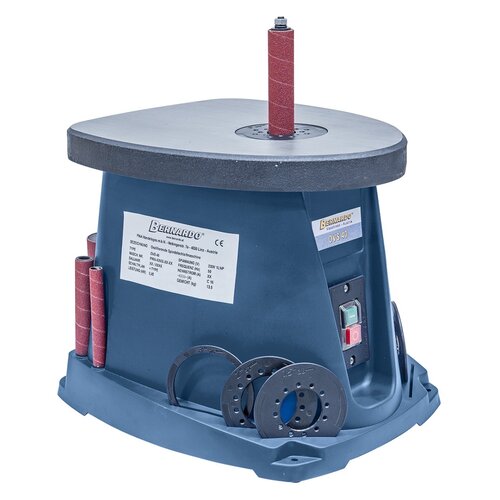

Oscillating spindle sander OVS 40 / 230 V

Art.Nr.: 11-4333
Wishlist Comparison List

€220.80

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Standard dust port (38 mm) allows the connection of a dust collector

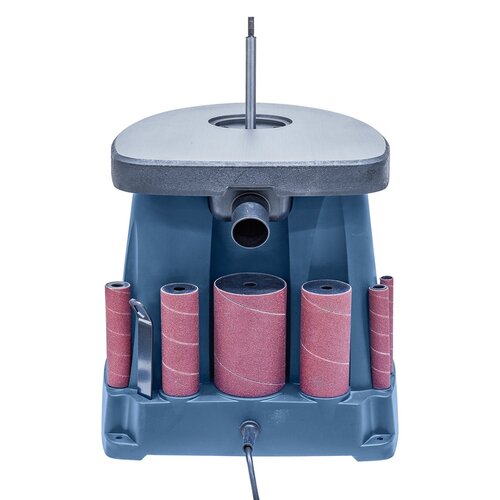

  • Convenient shelf on machine frame to rest sanding sleeves and table inserts
  • Powerful motor guarantees best results, even when operated continously
  • Top price-to-performance ration, ideal for amateurs and craftsmen
  • Wide application range for various materials, such as wood, plastics....
  • 6 Complete with 6 sanding  sleeves (13 x 115 mm / 19 x 115 mm / 26 x 115 mm / 38 x 115 mm / 51 x 115 mm / 76 x 115 mm)
  • Quick and easy change of sanding sleeves
  • Oscillating stroke 16 mm to achieve perfectly polished surfaces
  • Spindle mounted with precision to ensure for high work convenience

Product Specifications

Table size

365 x 290 m

Oscillation / min

58

Oscillation stroke

16 mm

Spindel diameter

12,7 mm

Sanding sleeve diameter

13/19/26/38/51/76 mm

Spindle speed

2000 rpm

Dust extraction outlet

38 mm

Motor power

0,45 kW / 230 V

Machine dimension (W x D x H)

350 x 410 x 450 mm

Weight approx.

12,7 kg

Delivery Contents

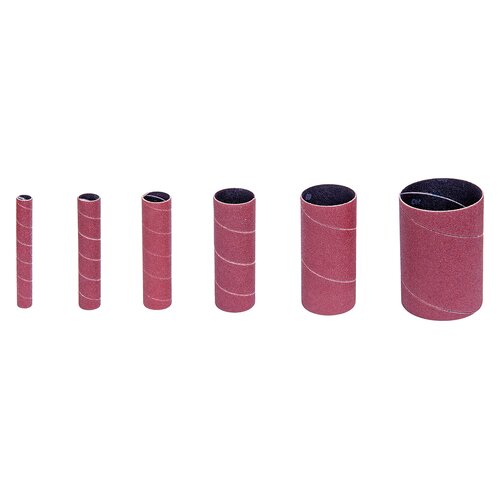

  • 6 sanding sleeves – grit 80

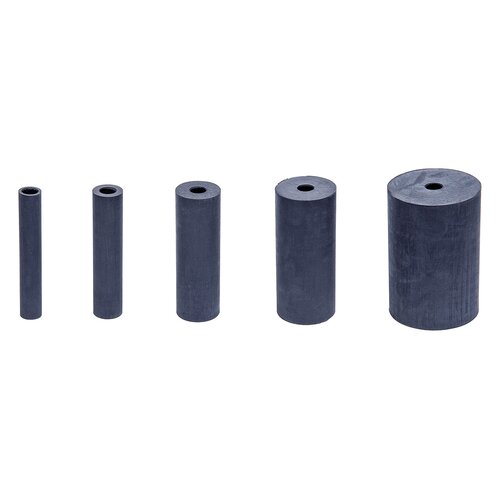

  • 5 rubber sleeves

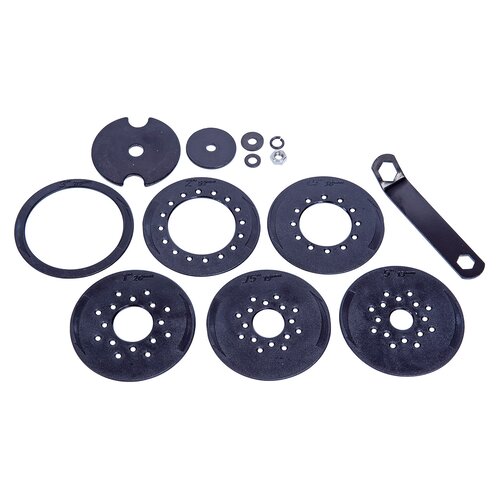

  • 6 table inserts round (Ø 13 / 19 / 26 / 38 / 51 / 76 mm)
  • 3 spindle washer (Ø 15 / 21 / 46 mm)
  • Tools
