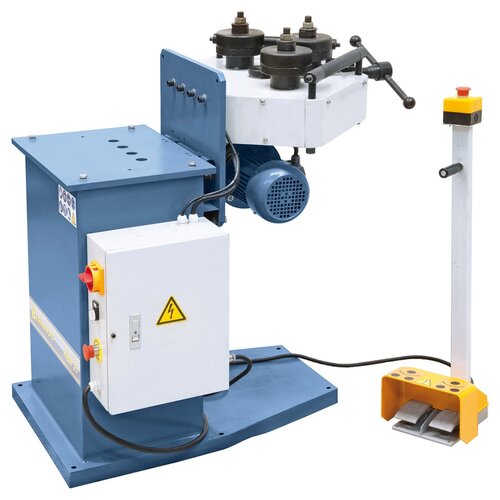

Can be used both horizontally and vertically.
Can be used both horizontally and vertically.

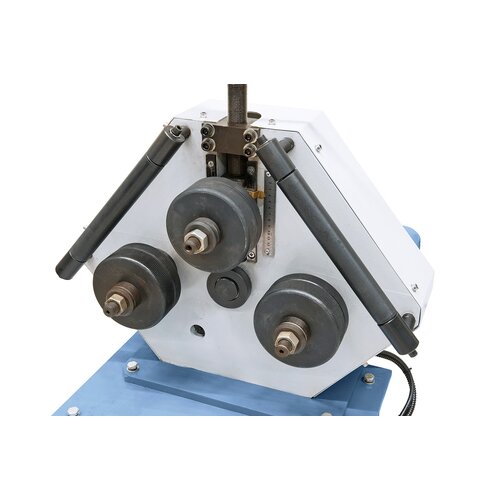

The adjustment of the upper roll is read via a mm-scale.
The adjustment of the upper roll is read via a mm-scale.

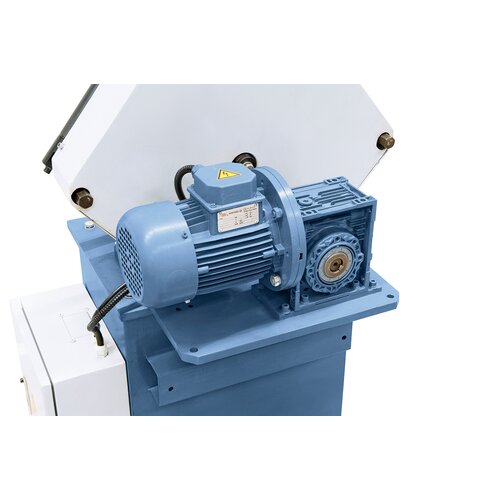

The powerful drive motor and the high-quality gearbox ensure optimum power transmission.
The powerful drive motor and the high-quality gearbox ensure optimum power transmission.
Can be used both horizontally and vertically.
The adjustment of the upper roll is read via a mm-scale.
The powerful drive motor and the high-quality gearbox ensure optimum power transmission.

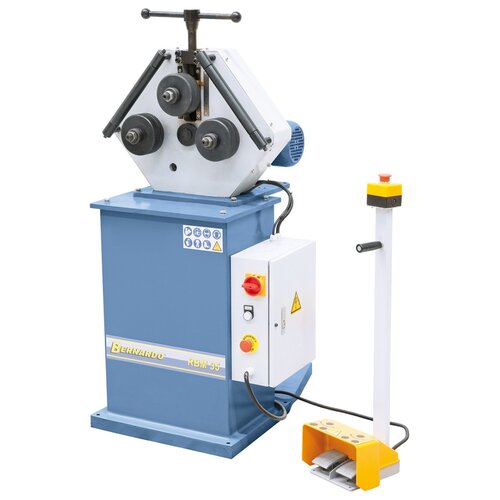

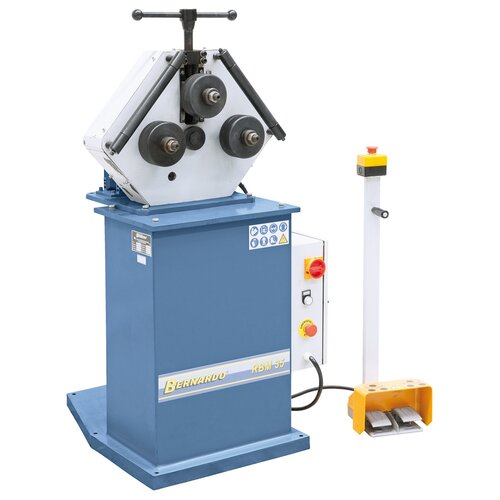

Motorized round bending machine RBM 35

Art. No.: 06-1191
Wishlist Comparison List

€3,060.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Suitable for bending pipes and profile materials made of steel, aluminum, brass,......
  • Includes foot pedal for right and left rotation and integrated emergency stop
  • Infeed of the top roll is done mechanically, adjustment is read off on a mm-scale
  • Guiding of the upper roll by precision ground guide bars
  • Precise work due to massive grey cast iron machine body
  • Optional roll sets allow you to machine a wide variety of profiles

Product Specifications

Shaft diameter

30 mm

Upper roll diameter

132 mm

Lower roll diameter

132 mm

Bending speed

3 m/min.

Motor power

0,75 kW / 400 V

Depth

700 mm

Width

810 mm

Height

1350 mm

Weight approx.

230 kg

Delivery Contents

  • Standard roll set
  • Lateral guide rolls
  • Foot pedal with emergency stop

Suitable accessories

Set of rolls (synthetic) POM 0 - 60,3 mm f. RBM 35, price per dimension **
Set of rolls (synthetic) POM 0 - 60,3 mm f. RBM 35, price per dimension **
Art. No. : 06-6492

€423.60

incl. 20% VAT

Out of Stock
Set of rolls (steel) 0 - 20 mm f. RBM 35, price per dimension **
Set of rolls (steel) 0 - 20 mm f. RBM 35, price per dimension **
Art. No. : 06-6490

€510.00

incl. 20% VAT

Out of Stock
Set of rolls (steel) 21 - 60,3 mm f. RBM 35, price per dimension **
Set of rolls (steel) 21 - 60,3 mm f. RBM 35, price per dimension **
Art. No. : 06-6491

€550.80

incl. 20% VAT

Out of Stock
