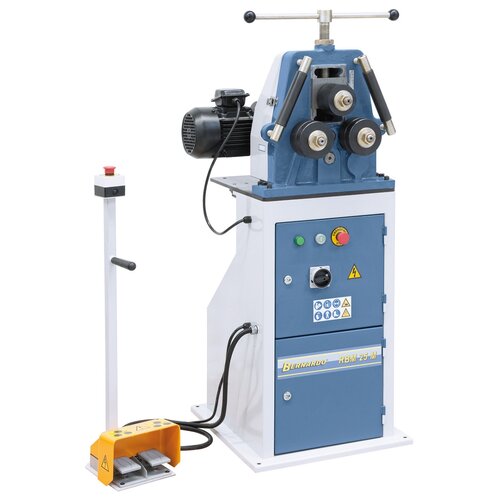

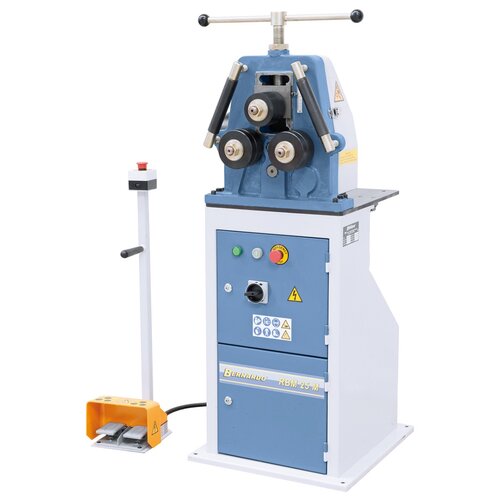

Motorized round bending machine RBM 25 M
Art.Nr.: 06-1188€2,736.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- Suitable for bending pipes and profile materials made of steel, aluminum, brass,......
- Including standard rolls for bending square materials
- The upper roll is adjusted via an easily visible mm scale
- Standard with foot pedal to control right and left rotation

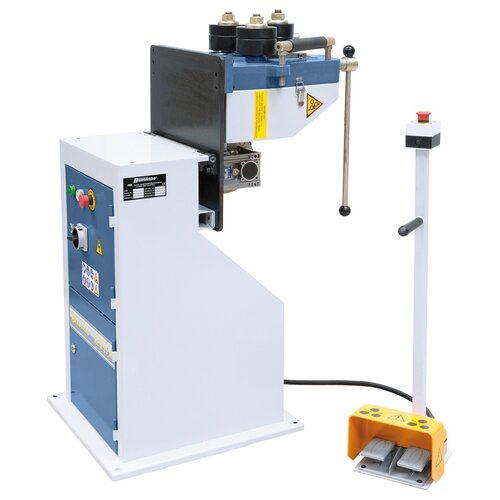

- Can be used both horizontally and vertically

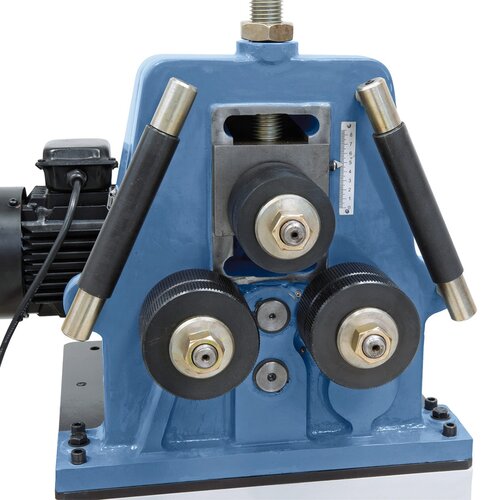

- Bending rolls hardened and ground
Product Specifications
|
Shaft diameter |
30 mm |
|
Upper roll |
98 mm |
|
Lower rolls |
118 mm |
|
Bending speed |
2,5 m/min |
|
Width |
635 mm |
|
Depth |
645 mm |
|
Height |
1380 mm |
|

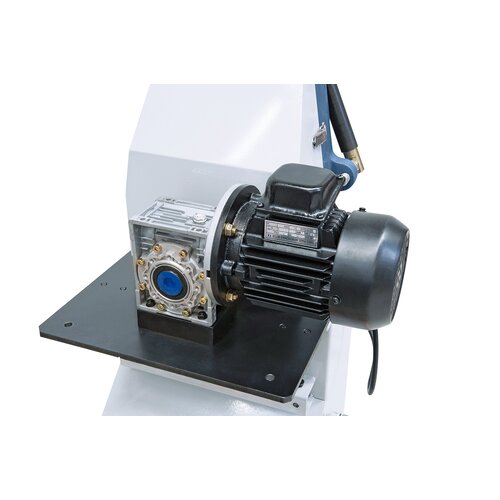

Motor power |
1,1 kW / 400 V |
|
Weight approx. |
230 kg |
Delivery Contents
- Standard roll set
- Lateral guide rolls
- Foot pedal with emergency stop
