Fast and easy infeed of the upper roll by means of hydraulics.
Fast and easy infeed of the upper roll by means of hydraulics.

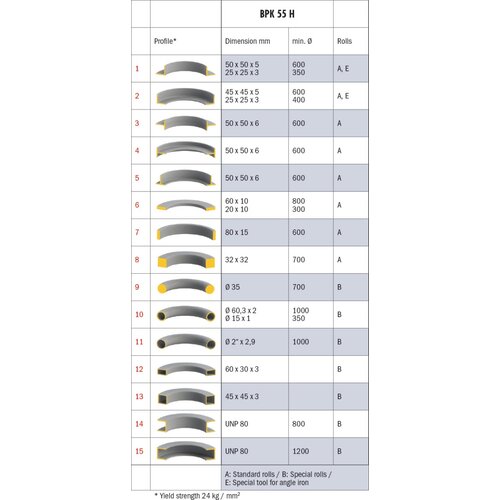

Standard roll set suitable for bending a wide variety of profiles.
Standard roll set suitable for bending a wide variety of profiles.
Fast and easy infeed of the upper roll by means of hydraulics.
Standard roll set suitable for bending a wide variety of profiles.

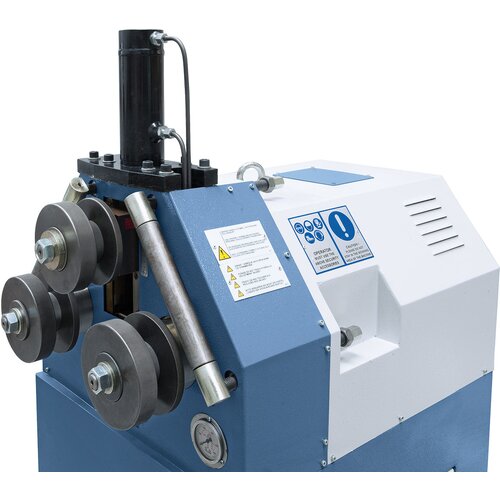

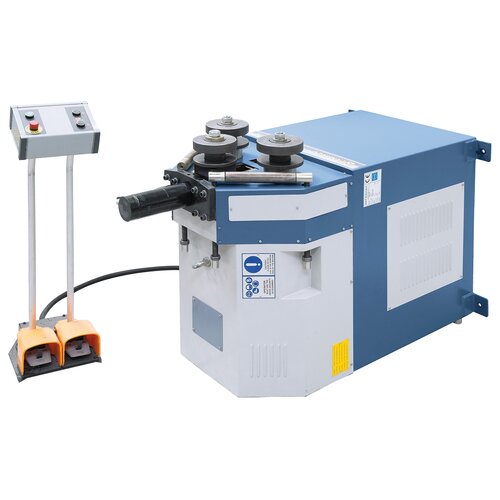

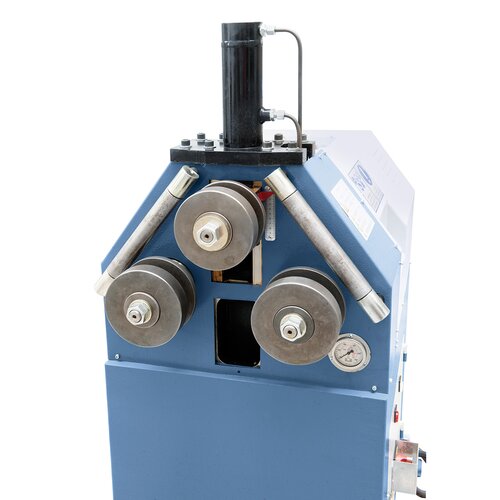

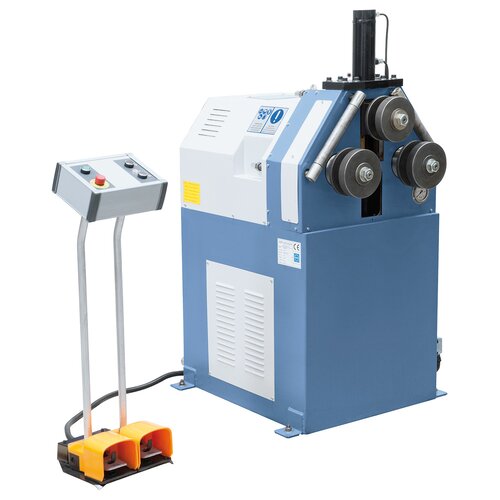

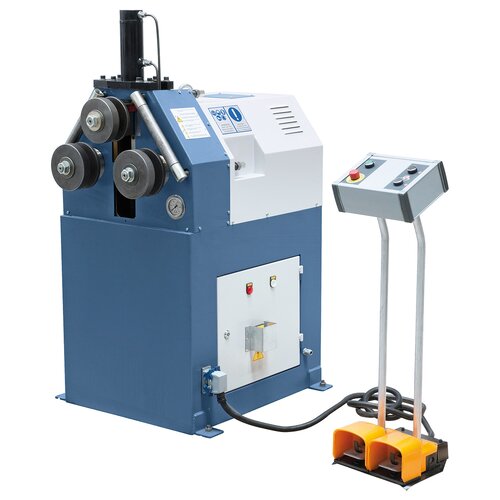

Motorized round bending machine BPK 55 H *

Art.Nr.: 06-1210
Wishlist Comparison List

Price on request

Request product now

Availability

Out of Stock

Product Properties

  • Machine in stable welded steel construction for vibration-free working
  • 3 motor-driven rolls ensure precise bending
  • Standard with hydraulic upper roll feed
  • All control elements on the mobile control panel
  • Manually adjustable lateral guiding rolls
  • Extended range of application due to the horizontal and vertical application possibilities
  • Induction hardened and ground shafts and rolls made of special steel

Product Specifications

Shaft diameter

50 / 40 mm

Upper roll diameter

162 mm

Lower roll diameter

152 mm

Bending speed

3,3 m/min

Motor power

1,5 kW / 400 V

Depth

680 mm

Width

950 mm

Height

1450 mm

Weight approx.

500 kg

Delivery Contents

  • Standard roll set
  • Lateral guide rolls
  • Control panel
  • Hydraulic infeed of the upper roll

Suitable accessories

Digital readout f. BPK 35 / BPK 55 H ** (only in connection with machine)
Digital readout f. BPK 35 / BPK 55 H ** (only in connection with machine)
Art.Nr. : 06-6022

Price on request
Set of rolls (synthetic) POM 0 - 60,3 mm f. BPK 55 H, price per dimension **
Set of rolls (synthetic) POM 0 - 60,3 mm f. BPK 55 H, price per dimension **
Art.Nr. : 06-6530

€493.20

incl. 20% VAT

Profile rolls (synthetic) POM 30 x 30 x 3 mm f. BPK 55 H **
Profile rolls (synthetic) POM 30 x 30 x 3 mm f. BPK 55 H **
Art.Nr. : 06-6531

€493.20

incl. 20% VAT

Profile rolls (synthetic) POM 40 x 40 x 5 mm f. BPK 55 H **
Profile rolls (synthetic) POM 40 x 40 x 5 mm f. BPK 55 H **
Art.Nr. : 06-6532

€493.20

incl. 20% VAT

Profile rolls (synthetic) POM 50 x 50 x 6 mm f. BPK 55 H **
Profile rolls (synthetic) POM 50 x 50 x 6 mm f. BPK 55 H **
Art.Nr. : 06-6533

€493.20

incl. 20% VAT

Set of rolls (steel) 0 - 20 mm f. BPK 55 H, price per dimension **
Set of rolls (steel) 0 - 20 mm f. BPK 55 H, price per dimension **
Art.Nr. : 06-6534

€715.20

incl. 20% VAT

Set of rolls (steel) 21 - 60,3 mm f. BPK 55 H, price per dimension **
Set of rolls (steel) 21 - 60,3 mm f. BPK 55 H, price per dimension **
Art.Nr. : 06-6535

€781.20

incl. 20% VAT

Special rolls f. angle iron f. BPK 55 H**
Special rolls f. angle iron f. BPK 55 H**
Art.Nr. : 06-6023

Price on request
2-speed motor f. BPK 55 H **
2-speed motor f. BPK 55 H **
Art.Nr. : 06-6024

Price on request
