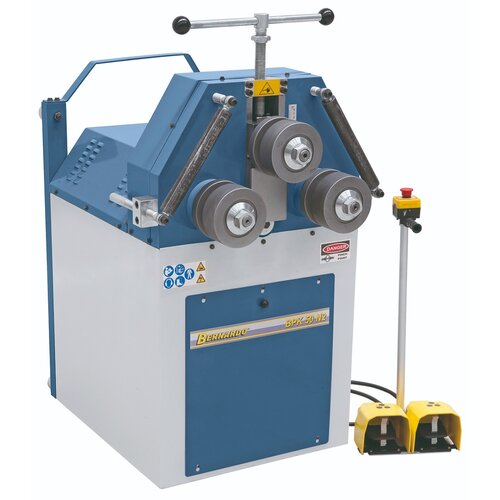

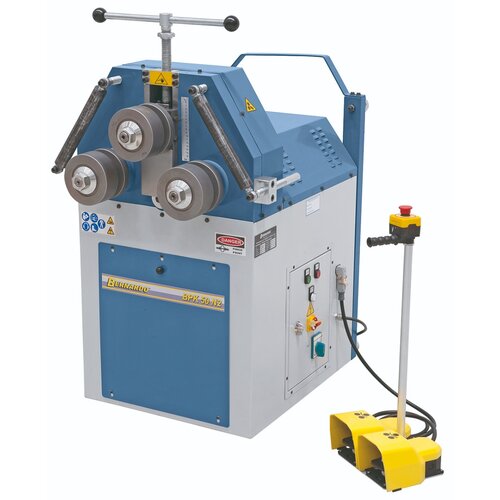

Motorized round bending machine BPK 50 N2 with 2 bending speeds *
Art. No.: 06-1199€5,100.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
- Suitable for bending pipes and profile materials made of steel, aluminum, brass,......
- Includes foot pedal for right and left rotation and integrated emergency stop

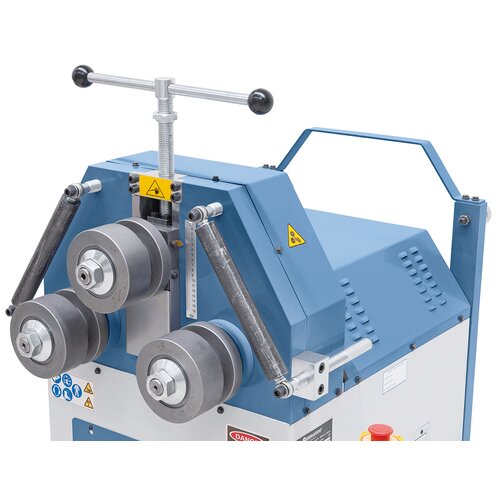

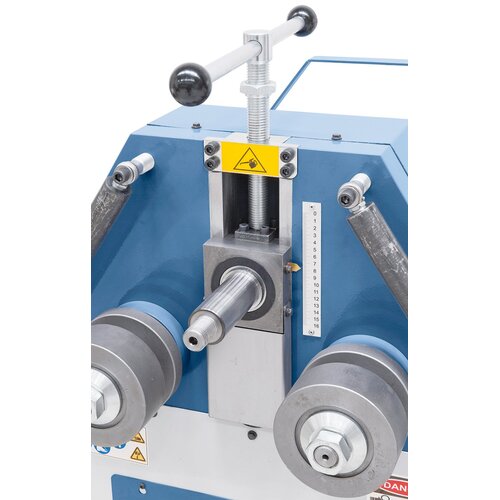

- Infeed of the top roll is done mechanically, adjustment is read off on a mm-scale
- Powerful motor and high-quality transmission gear
- Standard with roll set for machining flat, square, T and U profiles
- Extended range of use through a variety of optional roll sets
- Guiding of the upper roll by precision ground guide bars

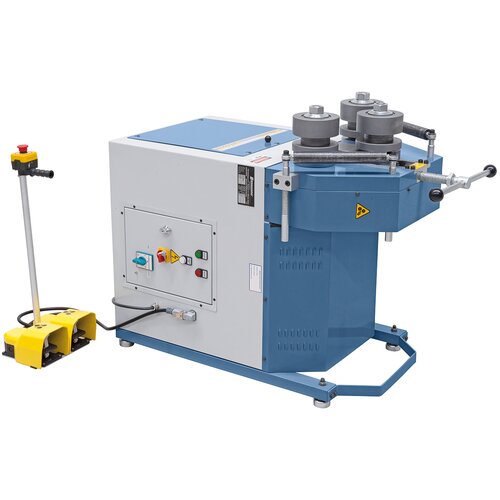

- Machine can be used both horizontally and vertically
- Precise work through solid machine body made of a steel cast iron construction
Product Specifications
|
Shaft diameter |
50 mm |
|
Roll diameter |
155 mm |
|
Bending speed |
4,5 / 9 m/min |
|
Motor power |
1,5 / 2,2 kW (400 V) |
|
Depth |
990 mm |
|
Width |
750 mm |
|
Height |
1350 mm |
|
Weight approx. |
400 kg |
Delivery Contents
- Standard roll set

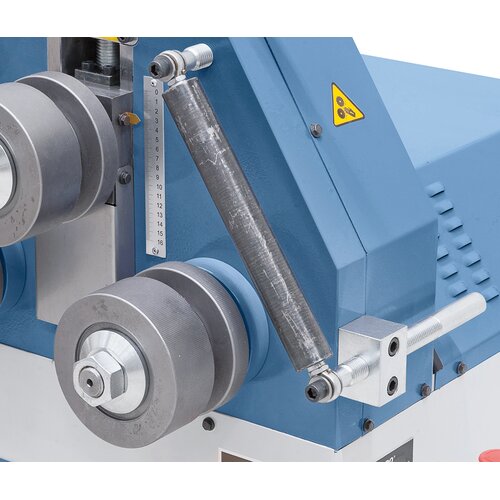

- Lateral guide rolls
- Foot pedal with emergency stop
- 2-step motor
