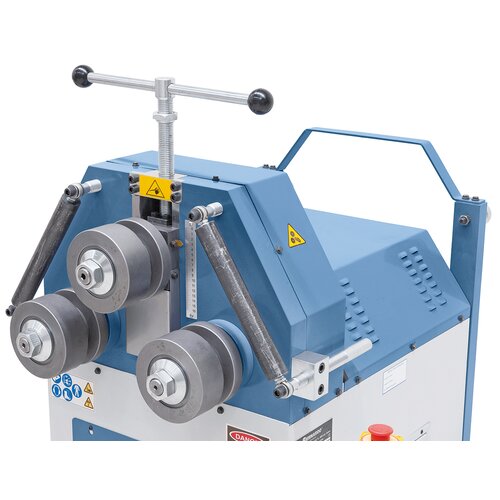

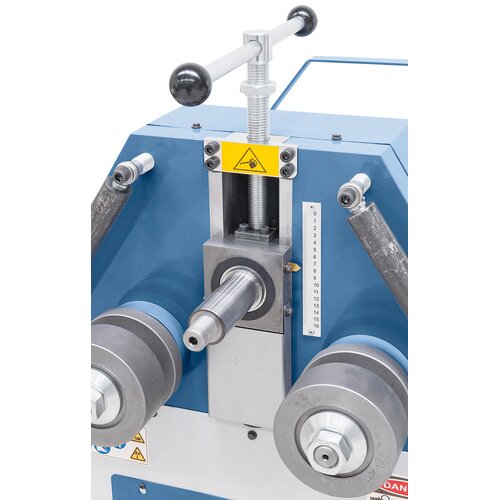

Stable guiding of the upper roll, adjustable via mm scale.
Stable guiding of the upper roll, adjustable via mm scale.

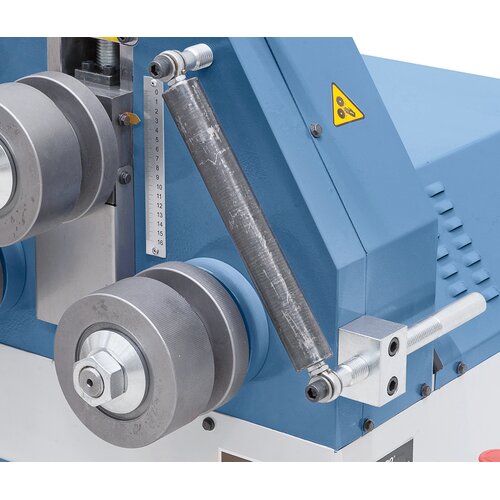

The lateral guiding rolls can be steplessly adjusted to the respective profile.
The lateral guiding rolls can be steplessly adjusted to the respective profile.
Stable guiding of the upper roll, adjustable via mm scale.
The lateral guiding rolls can be steplessly adjusted to the respective profile.

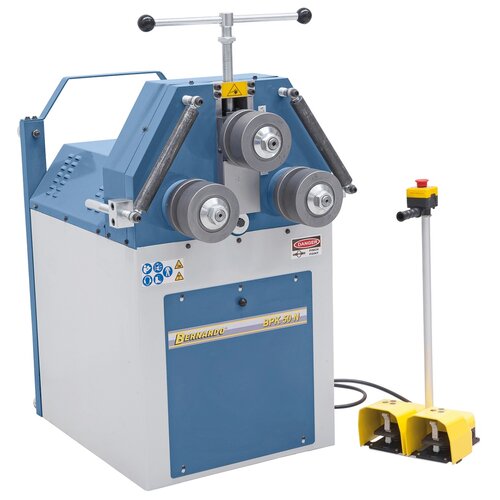

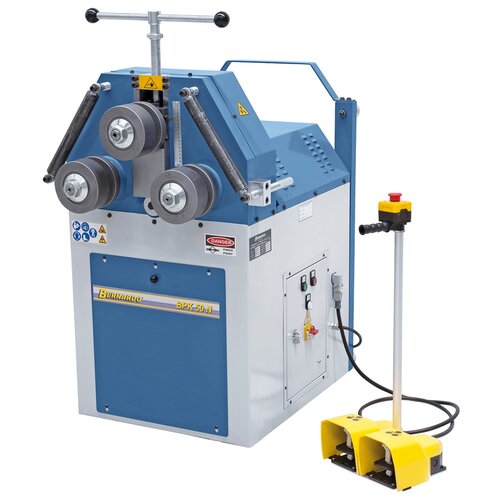

Motorized round bending machine BPK 50 N *

Art. No.: 06-1198
Wishlist Comparison List

€4,740.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  •  Suitable for bending pipes and profile materials made of steel, aluminum, brass,......

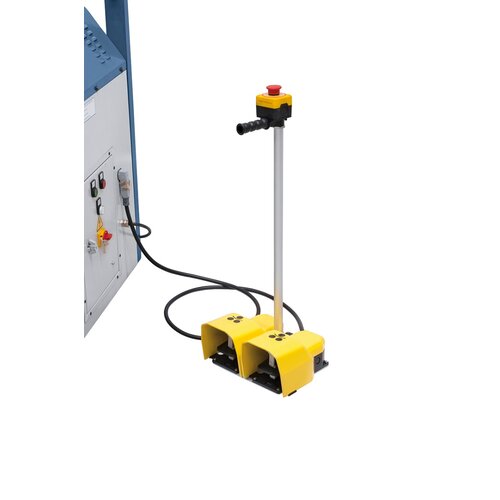

  •  Includes foot pedal for right and left rotation and integrated emergency stop
  •  Infeed of the top roll is done mechanically, adjustment is read off on a mm-scale
  •  Powerful motor and high-quality transmission gear
  •  Standard with roll set for machining flat, square, T and U profiles
  •  Extended range of use through a variety of optional roll sets
  •  Guiding of the upper roll by precision ground guide bars

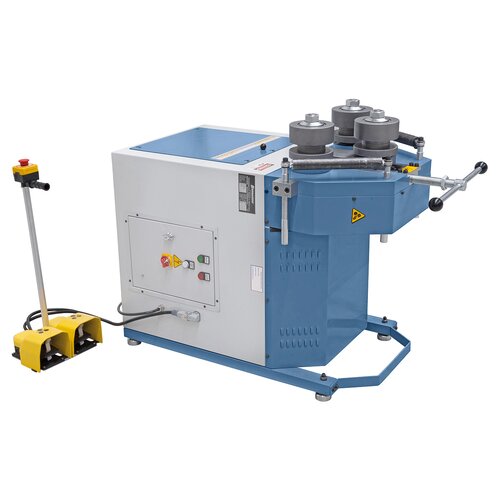

  •  Machine can be used both horizontally and vertically
  •  Precise work through solid machine body made of a steel cast iron construction

Product Specifications

Shaft diameter

50 mm

Roll diameter

155 mm

Bending speed

4,5 m/min

Motor power

1,5 (400 V)

Depth

990 mm

Width

750 mm

Height

1350 mm

Weight approx.

400 kg

Delivery Contents

  •  Standard roll set
  •  Lateral guide rolls
  •  Foot pedal with emergency stop

Suitable accessories

Bar twisting device for BPK 50 N / BPK 50 N2 *
Bar twisting device for BPK 50 N / BPK 50 N2 *
Art. No. : 06-11990

€2,268.00

incl. 20% VAT

Out of Stock
C-scroll forming device for BPK 50 N / BPK 50 N2 *
C-scroll forming device for BPK 50 N / BPK 50 N2 *
Art. No. : 06-11991

€1,944.00

incl. 20% VAT

Out of Stock
Angle lateral guide rolls for BPK 50 N / BPK 50 N2 *
Angle lateral guide rolls for BPK 50 N / BPK 50 N2 *
Art. No. : 06-11992

€1,080.00

incl. 20% VAT

Out of Stock
