Availability
Out of Stock
Product Properties
- Suitable for bending pipes and profile materials made of steel, aluminum, brass,......

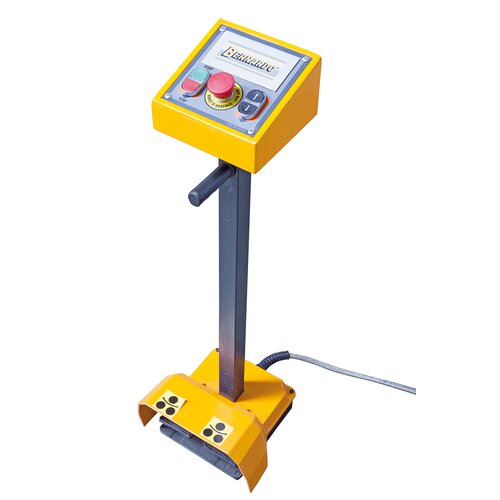

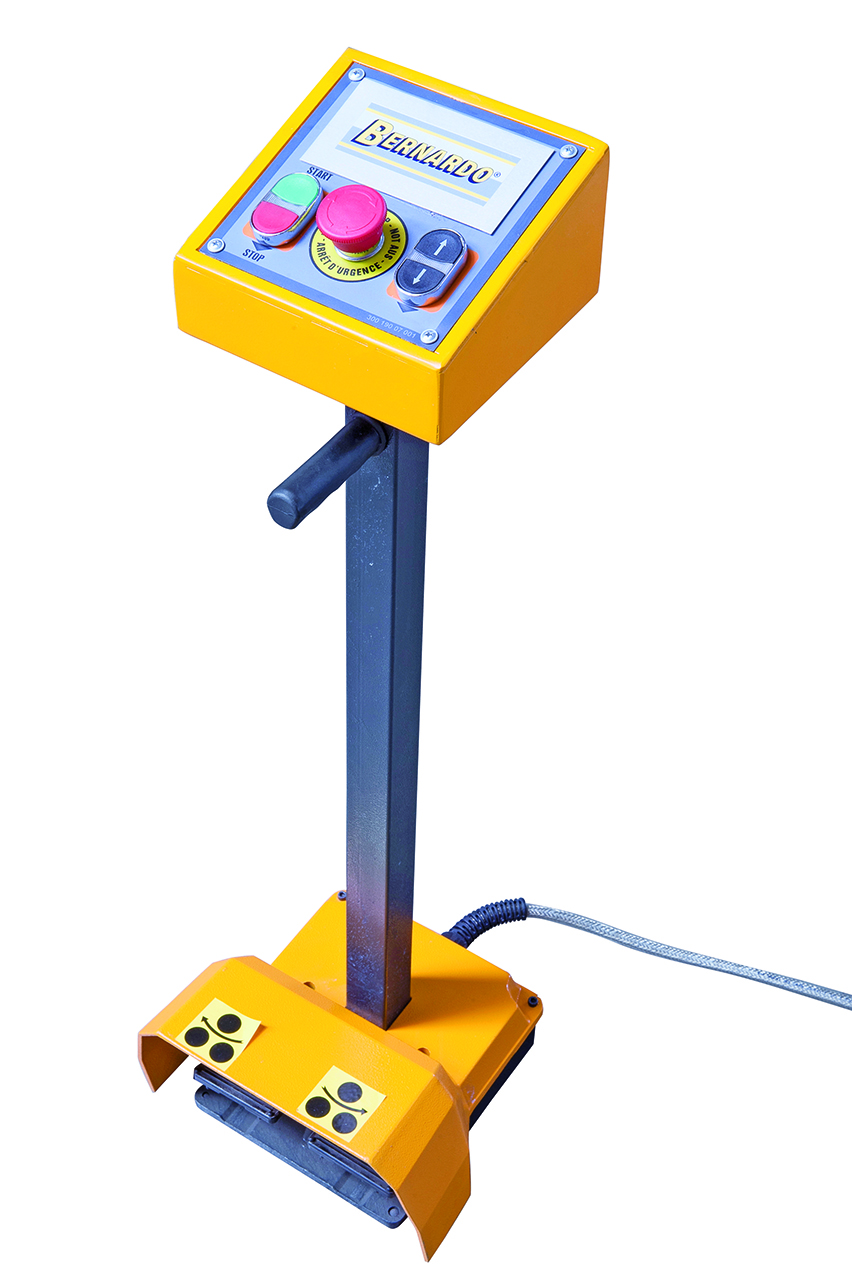

- Includes foot pedal for right and left rotation and integrated emergency stop

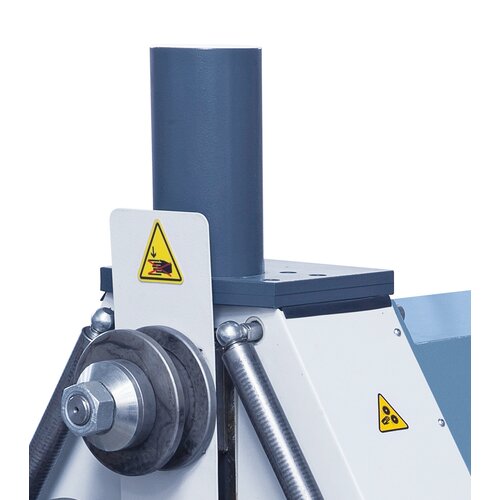

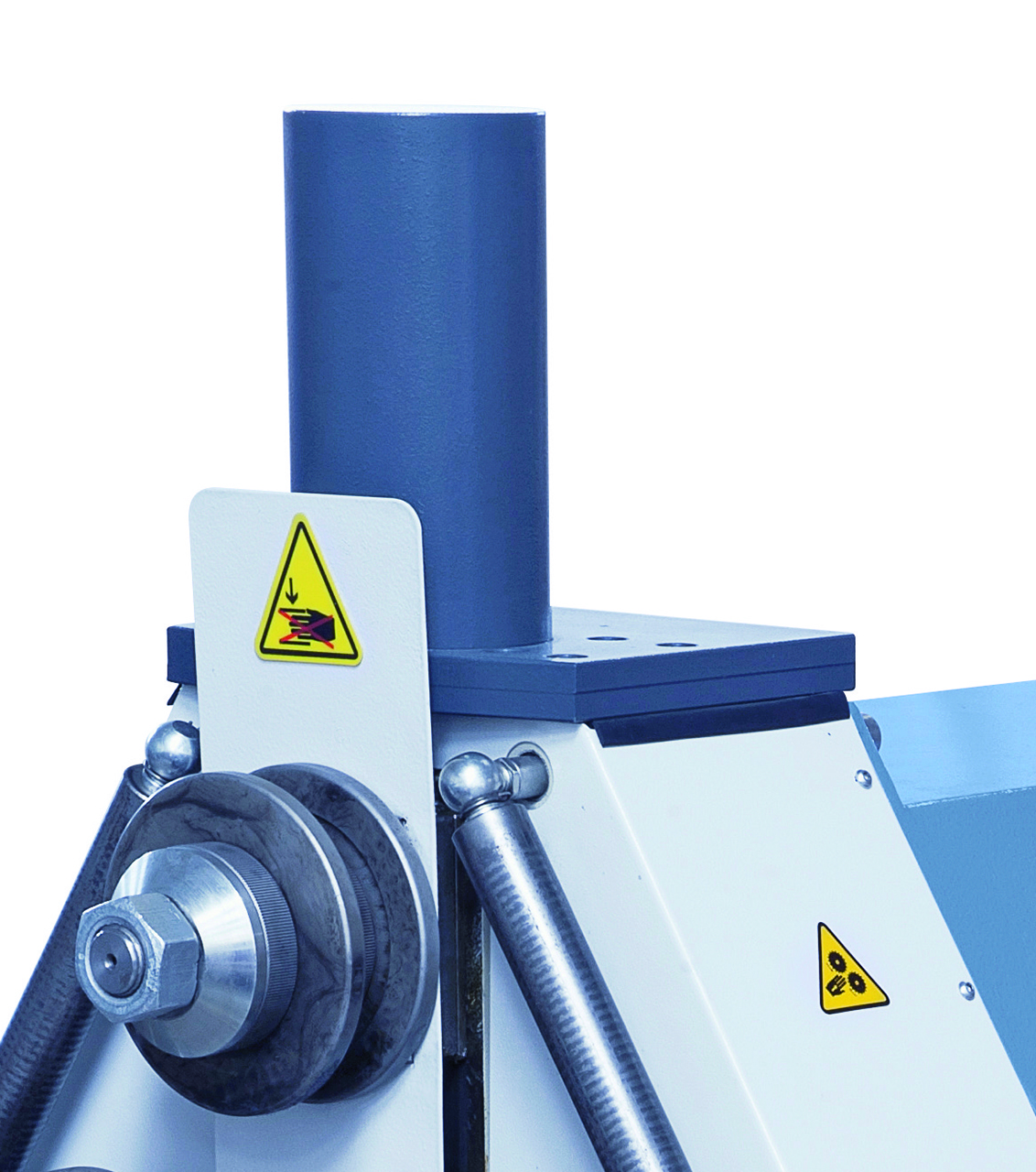

- Standard with hydraulic upper roll feed
- Powerful motor and high-quality transmission gear

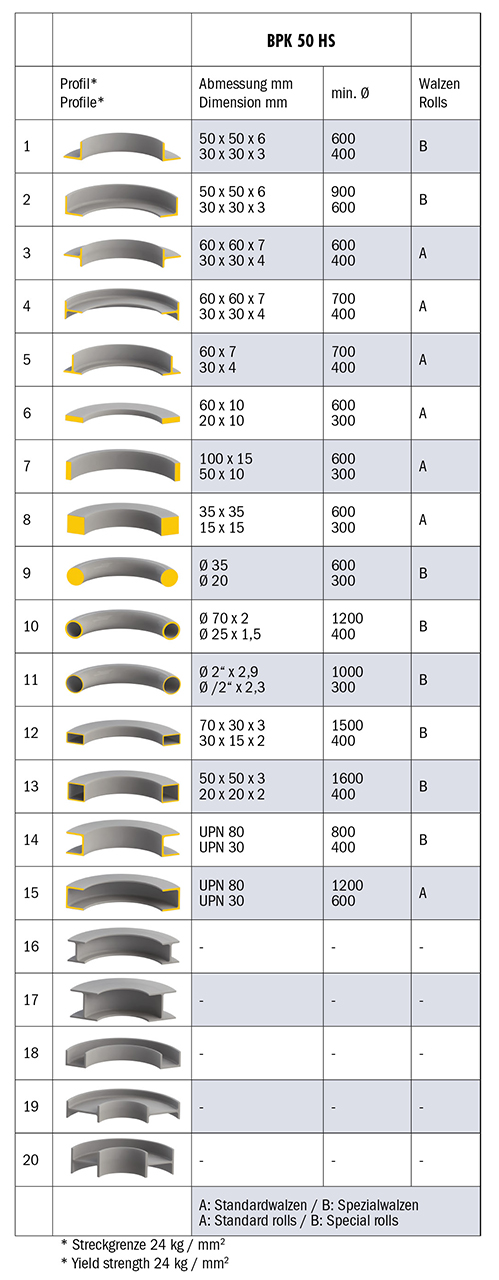

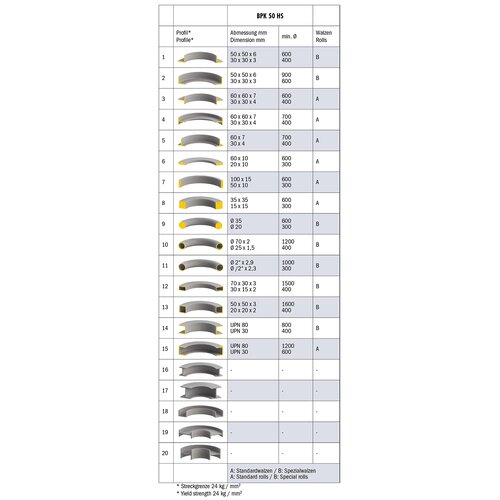

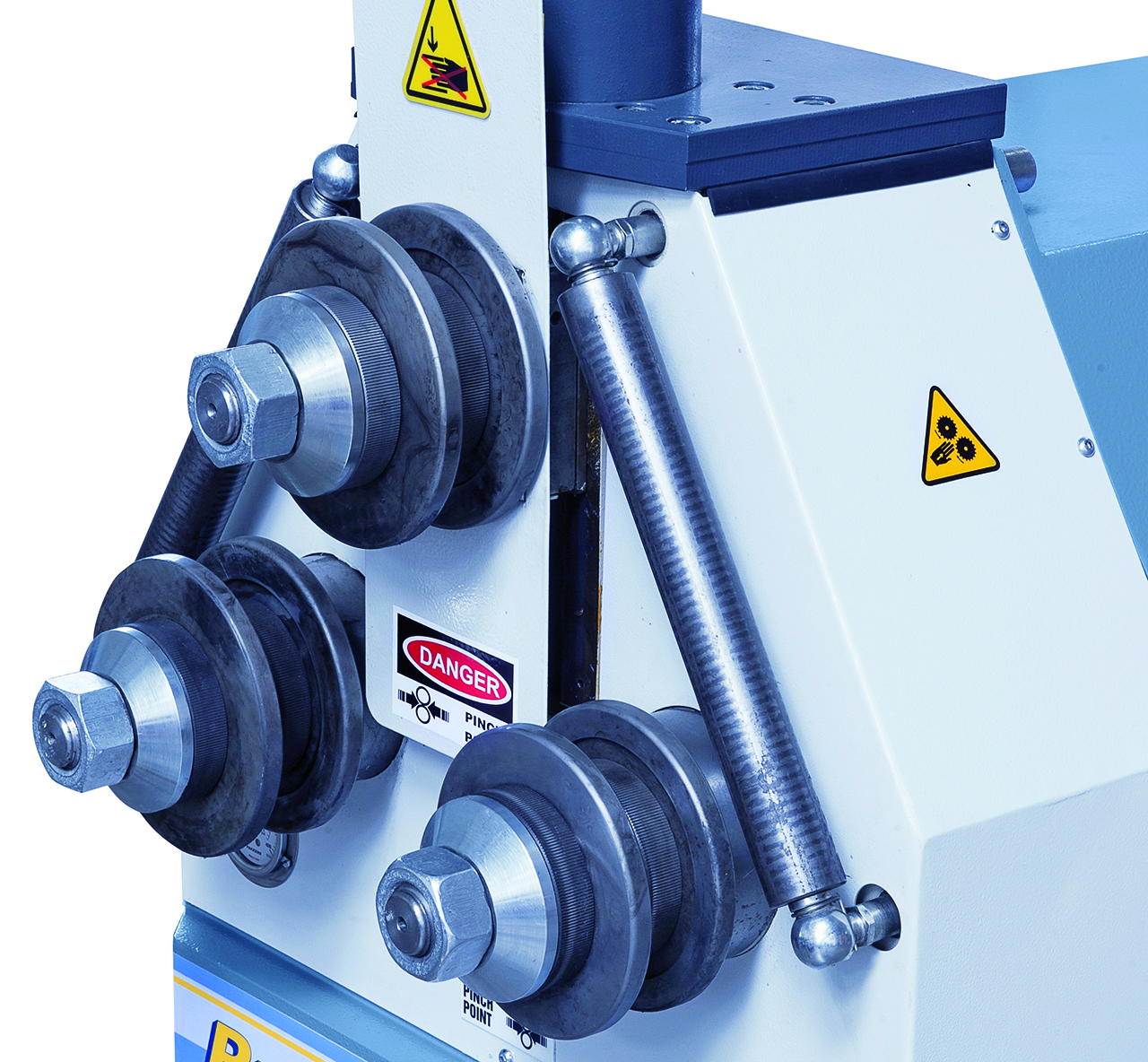

- Standard with roll set for machining flat, square, T and U profiles
- Extended range of use through a variety of optional roll sets
- Guiding of the upper roll by precision ground guide bars

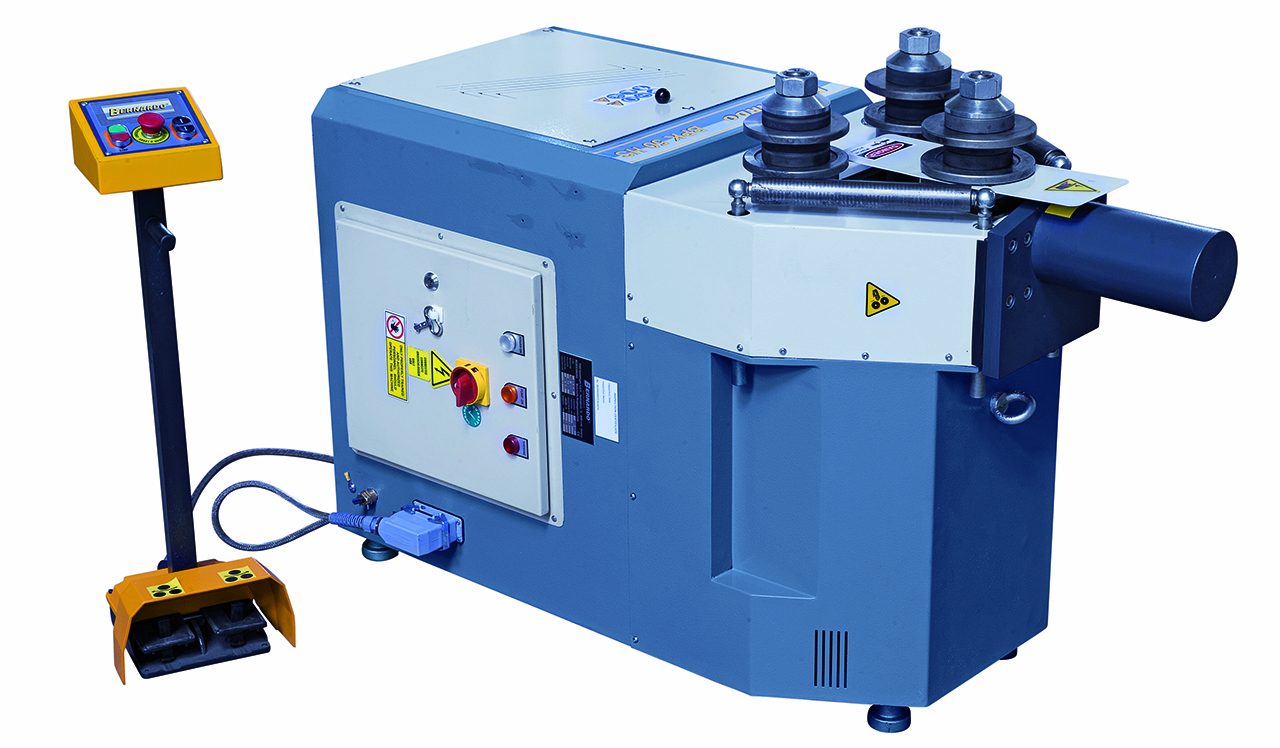

- Machine can be used both horizontally and vertically
- Precise work through solid machine body made of a steel cast iron construction
Product Specifications
|
Shaft diameter top / bottom |
50 / 50 mm |
|
Upper roll diameter |
152 mm |
|
Lower roll diameter |
162 mm |
|
Bending speed |
4,5 m/min |
|
Motor power |
1,5 kW |
|
Depth |
980 mm |
|
Width |
660 mm |
|
Height |
1510 mm |
|
Weight approx. |
510 kg |
Delivery Contents

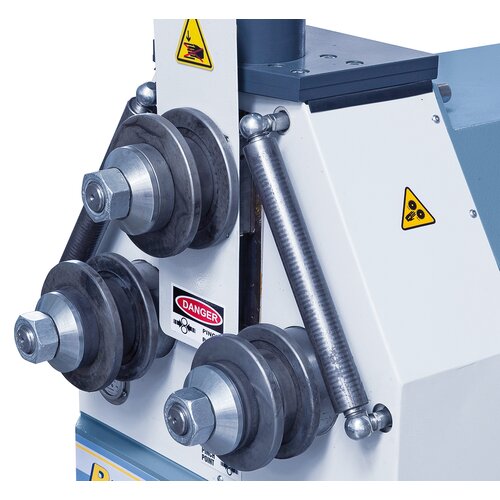

- Standard roll set
- Lateral guide rolls
- Hydraulic infeed of the upper roll
- Foot pedal with control panel
