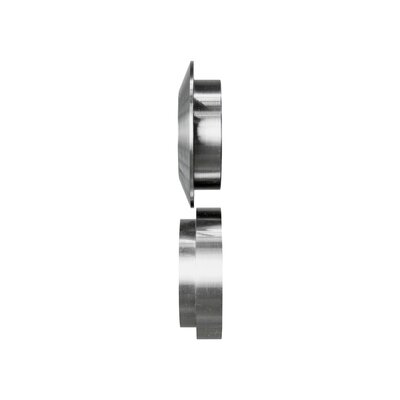

Spezial rolls

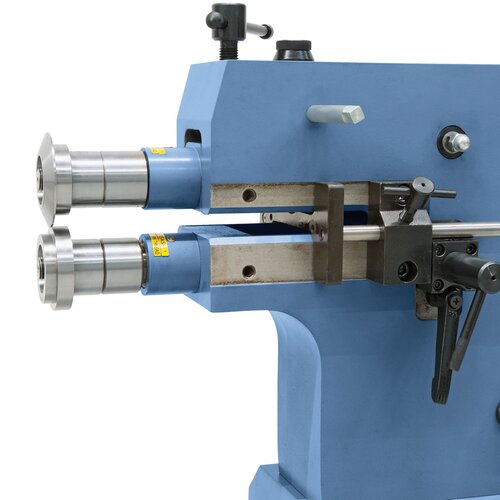

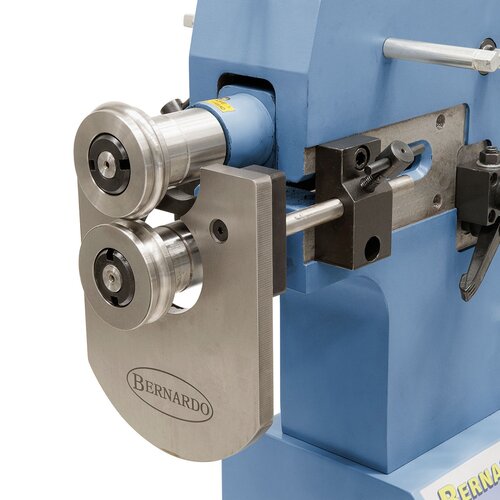

Shafts made of special steel, upper shaft adjustable

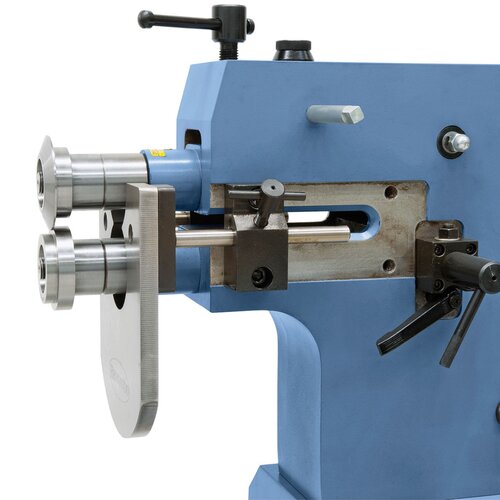

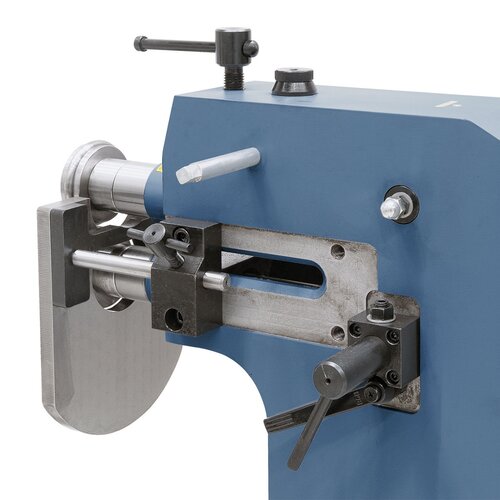

Adjustable fence for precise work and high repeatablility
Seriall with special rolls Typ A2

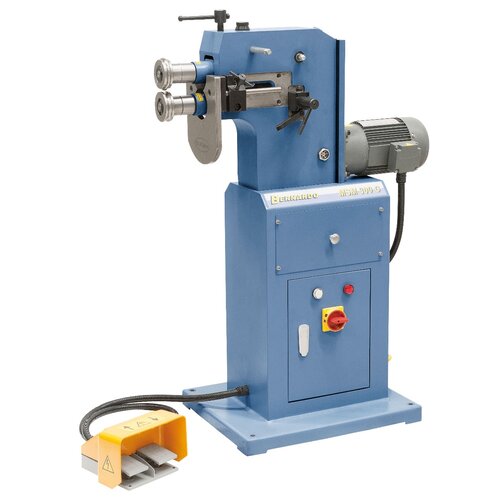

Motorized bordering machine MSM 300 C *
Art.Nr.: 06-1100€4,092.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
-

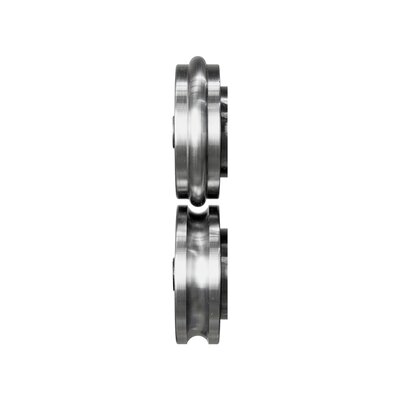

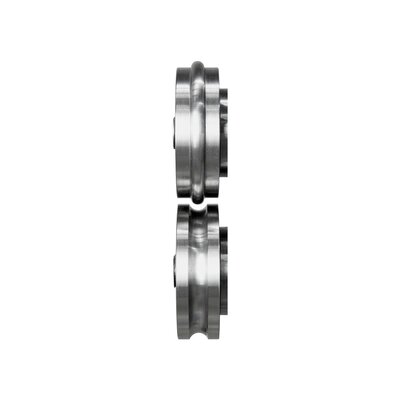

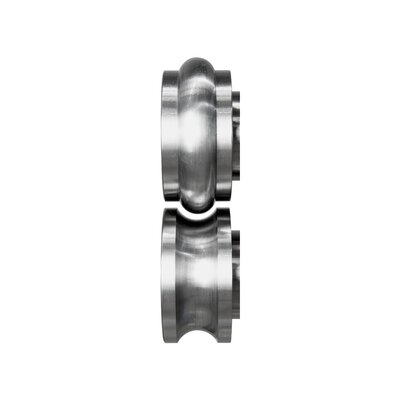

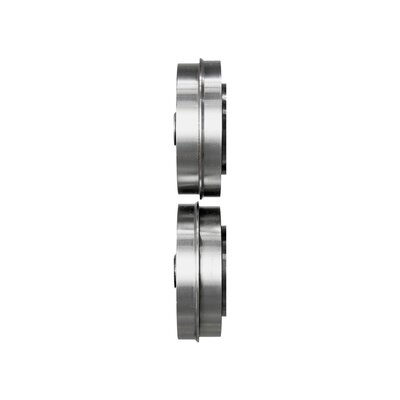

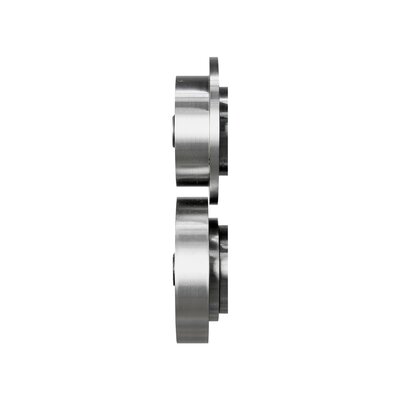

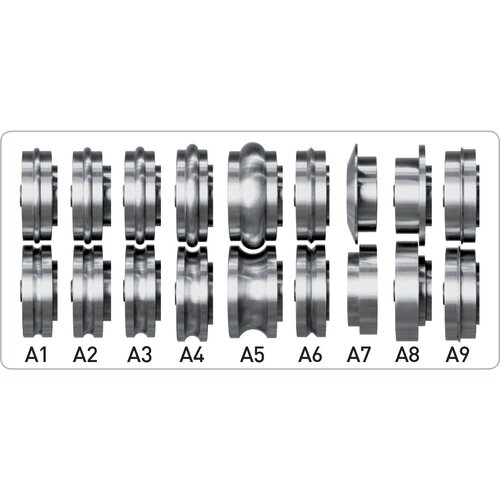

Expanded range of use through 8 different, optionally available roller pairs
- Upper roll with quick adjustment and stable clamping
- Axially movable stop plate for high repeatability
- Operation via foot pedal, thus both hands free to hold the workpiece
- Powerful drive motor for processing of sheets up to 1,6 mm sheet steel
- High accuracy due to precision bedded shafts
- For the economic producing of different bead types
Product Specifications
|
Sheet thickness* |
1,6 mm |
|
Aluminium |
2,0 mm |
|
Distance middle of the roll |
80 mm |
|
Working depth |
290 mm** |
|
Shaft diameter |
30 mm |
|
Speed |
32 rpm |
|
Motor power |
0,75 kW / 400 V |
|
Depth |
860 mm |
|
Width |
450 mm |
|
Height |
1200 mm |
|
Weight approx. |
155 kg |
|
* Material strength 400 N/mm² |
|
|
** without fence |
|
Delivery Contents
- Special rolls Typ A2
- Foot pedal
- Material fence
- Roll wrench
