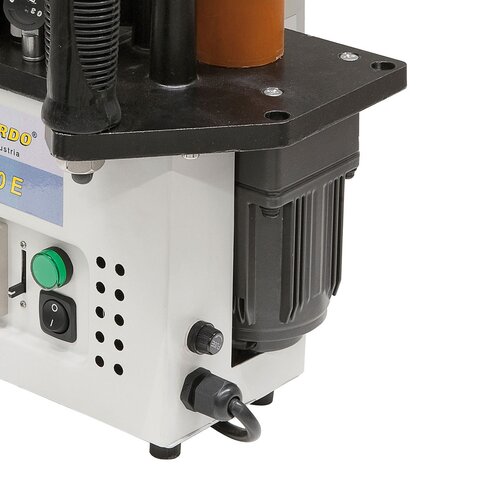

Powerful motor allows for continuous operation regardless of feed speed

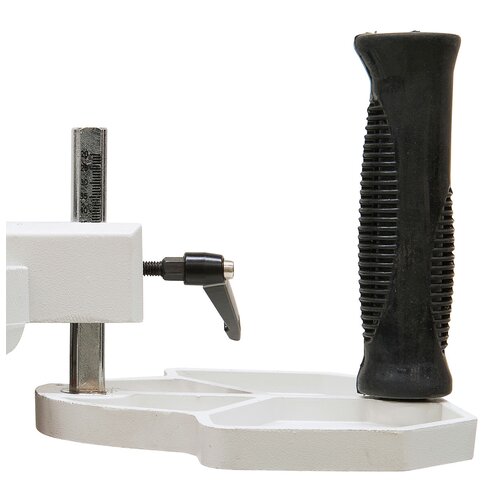

Height adjustable guide plate features scale to adjust to each workpiece

Easy adjustment of most commonly used bands (0.3 / 1 / 2 / 3 mm in width)

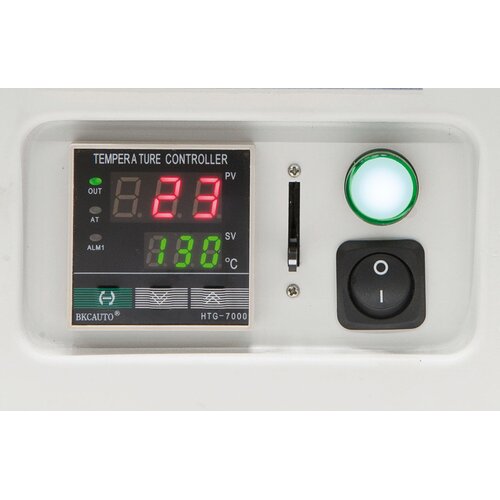

Quick adjustment of desired temperature

The adjustable guide system allows edge bands from 0.3 – 3 mm and edge heights from 10 – 55 mm

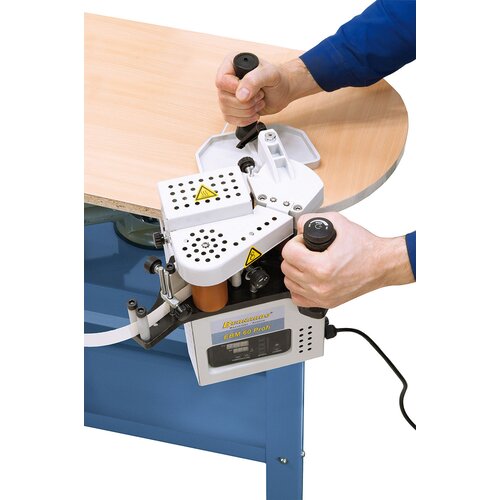

Ideal for application of adhesives onto straight or curved workpieces (whether concave or convex shapes)

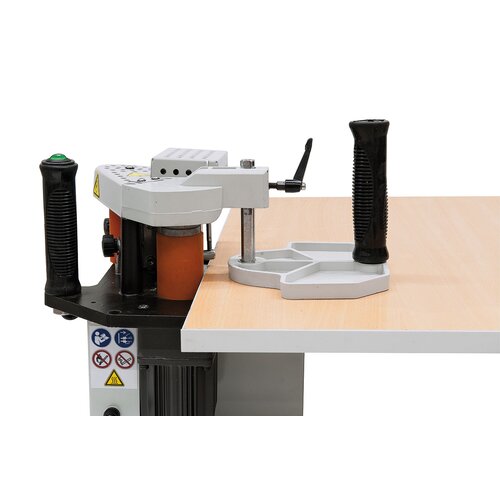

Height adjustable guide plate for panels measuring 10 – 55 mm in thickness

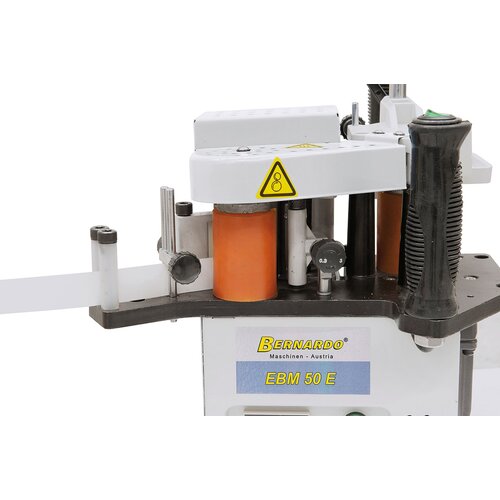

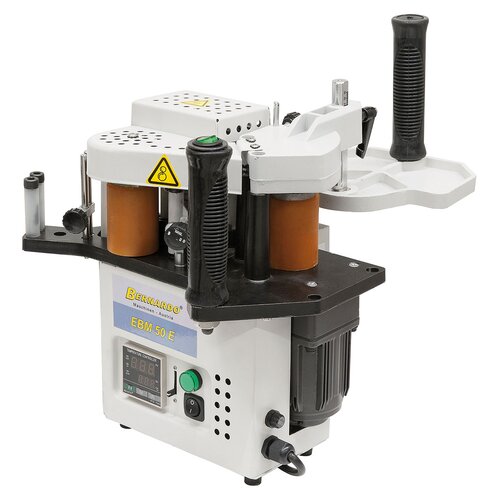

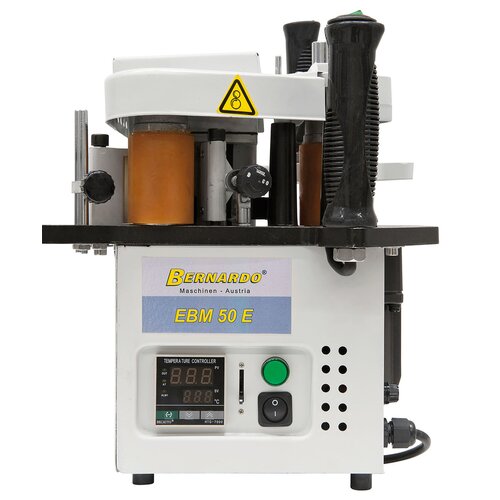

Mobile edge bending machine EBM 50 E

Art.Nr.: 14-2054B

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The EBM 50 E mobile edge banding machine is ideal for applying adhesives to straight, curved or round workpieces. Along with the low purchase price and the compact construction, this model is suitable for all types of wood processing whether fixed in workshops or as a mobile device on location. These models comes equipped with a variable feed setting.

€888.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Ideal for processing of ABS-, PVC-, melamine and veneer edges
Stepless temperature control and fast preheating allow for immediate and ease of use

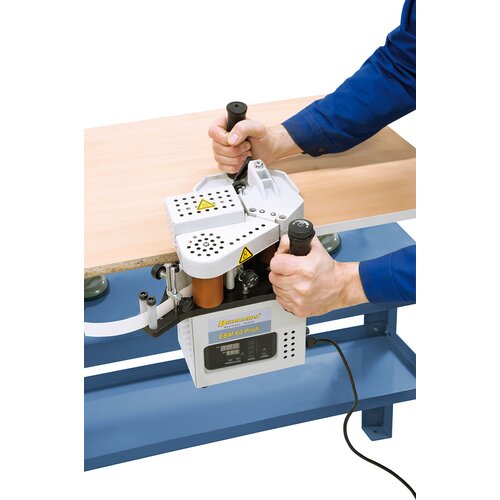

Ideal for mobile applications such as assembly or repair work
Stepless temperature control allows for variety of adhesives
These models can be used stationary

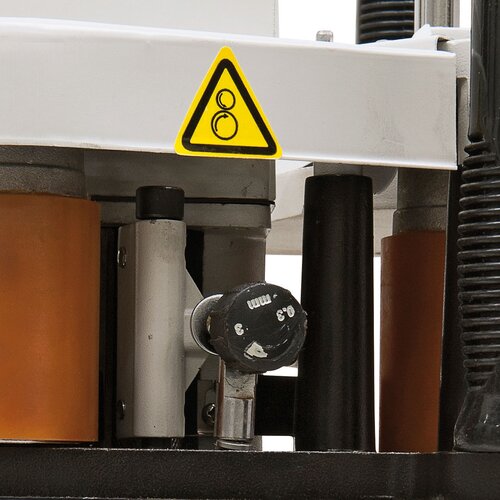

Glue application adjustable by finely adjustable knob
Special glue roller allows for even application of glue
On surfaces which are hard to access, for instance inner edges, the edge band can be pre-glued

Product Specifications

Edge thickness (PVC)	0,3 – 3,0 mm
Edge height min./max.	10 – 55 mm
Heating-up time	5 - 7 min, depend on granulate
Working temperatur	120° - 180°
Glue tank	320 g
Feed speed	2 - 6 m/min
Motor power	765 W
Voltage	230 V
Machine dimension (W x D x H)	330 x 330 x 390 mm
Weight approx.	8,5 kg
