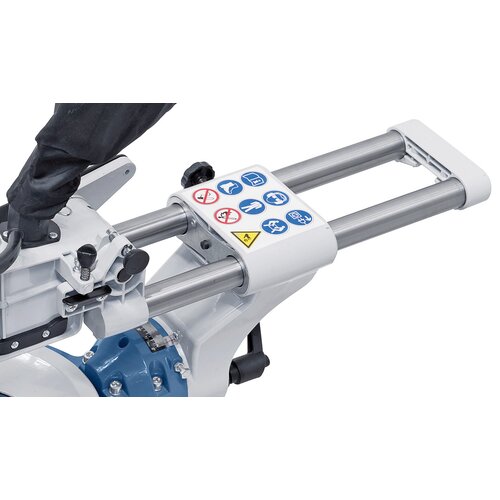

The precise double column guide allows for smooth and even travel of the saw unit.

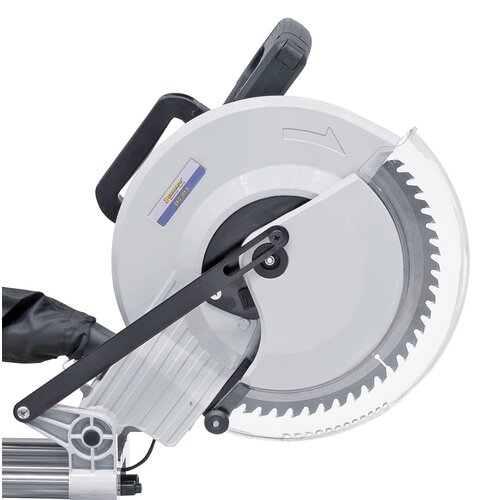

Sawblade gets covered automatically when lifting the sawblade

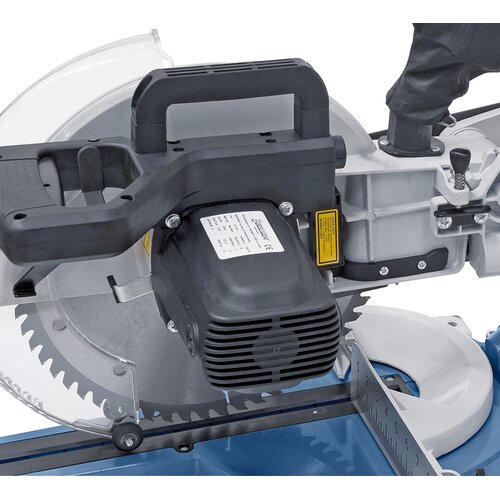

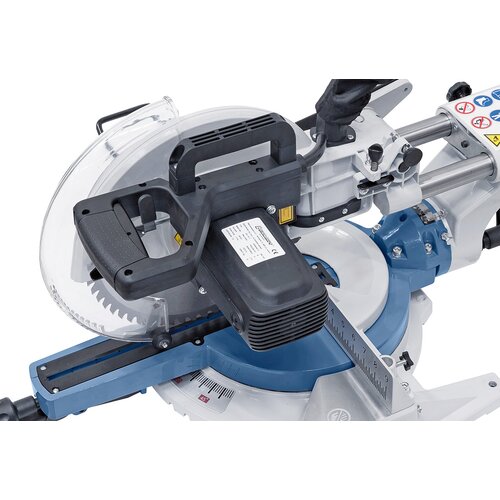

Powerful drive motor (1800 W) with electronic motor brake.

Column guiding can be locked to ensure safe transport.

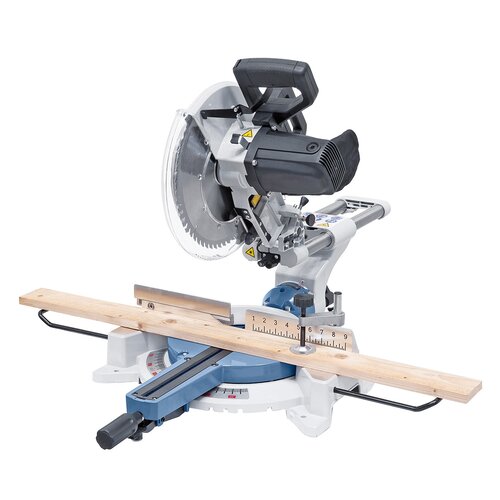

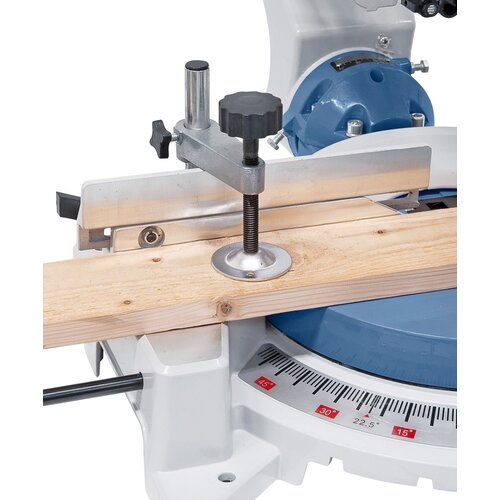

Secure mounting of workpiece with height adjustable downholder.

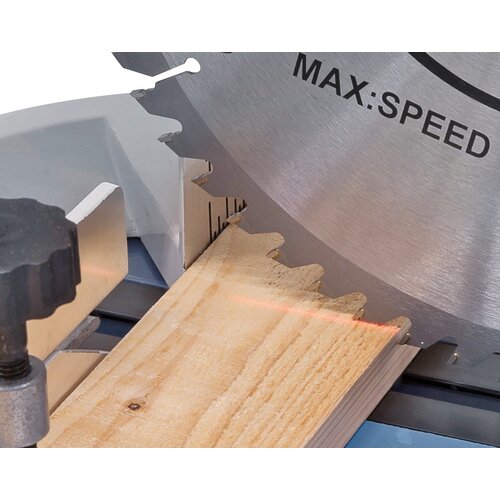

The linear laser device shows the exact position of the sawblade.

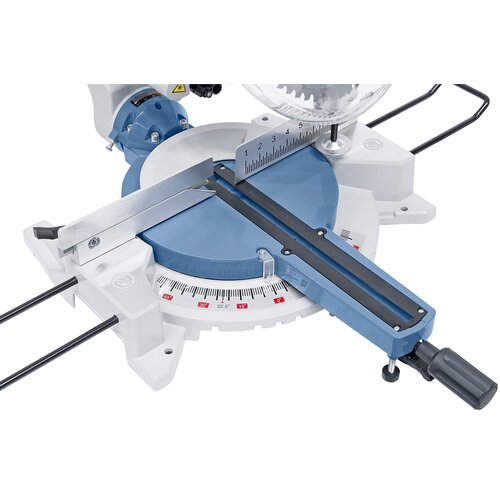

Solidly constructed rotary disc features integrated scale which tilts 45º to the left and 45º to the right when mitre cutting.

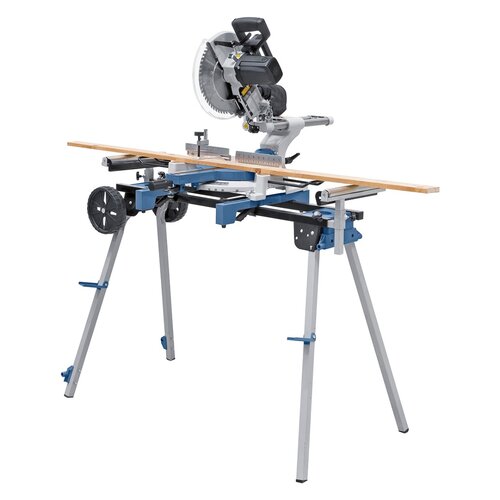

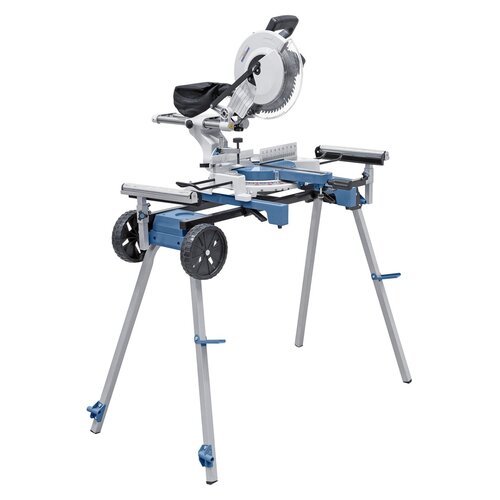

Optional extra: Universal base KSU 1100, ideal for supporting long workpieces

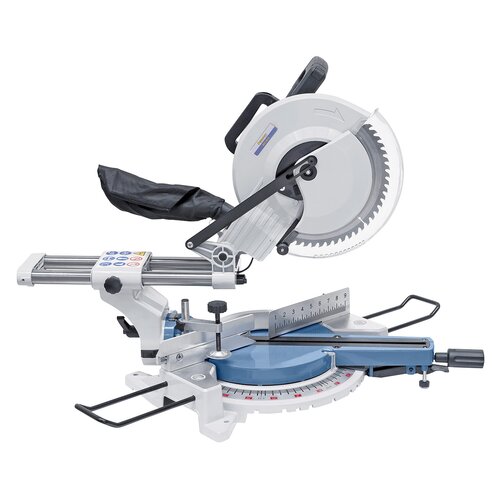

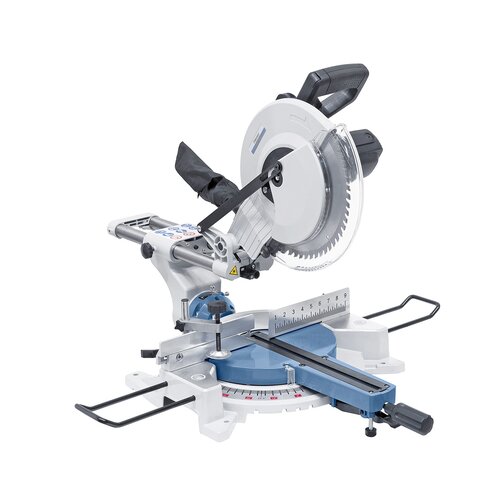

Saw head tilts 45º to the left.

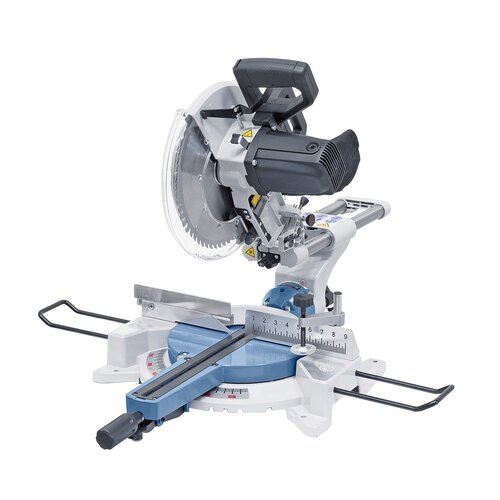

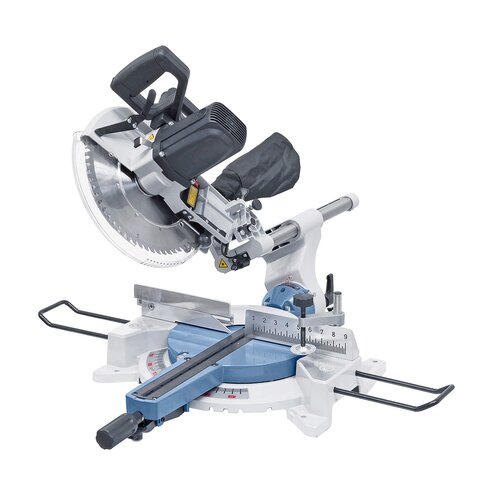

Mitre saw ZKG 305 S / 230 V

Art.Nr.: 09-10020

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The ZKG 305 S is a suitable model for cross, bevel and mitre cutting. The particularly large cutting width of 305 mm, the linar laser device for top accuracy and the high fence for safe mounting of the workpiece make this machine ideal for experienced amateurs.

€294.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Ideal for cutting of wood, plastics and non-ferrous metals
Precise double column guide for smooth and even travel
Powerful motor for best results even at long operations
Complete with carbide sawblade (60T) for high quality cutting and burr-free results
Table extensions on both sides for optimal workpiece support
Equipped with integrated cutting depth stop for groove cutting
Sawblade gets covered automatically when lifting the saw unit
Suitable for cross, bevel and mitre cutting

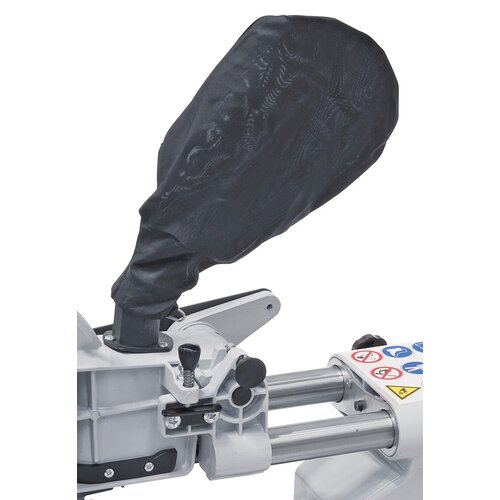

Dust port directly at saw unit comes standard
Locking device allows for quick and easy sawblade change
Rotary disc with rests at 0º / 15º / 22.5º / 30º / 45º
Low weight makes it easy to transport
Easy to read scale for bevel and mitre angles plus cutting width

Product Specifications

Sawblade diameter x bore	305 x 30 mm
No load speed	4800 rpm
Cutting capacity
Straight cuts at 90° / 90°	305 x 105 mm
Mitre cuts at 45° right / left*	210 x 105 mm
Grade cuts at 45° left**	305 x 50 mm
Double mitre cuts at 45° left	210 x 50 mm
Motor power	1,8 kW (2,4 HP)
Voltage	230 V
Machine dimension (W x D x H)	910 x 1080 x 670 mm
Weight approx.	20 kg
