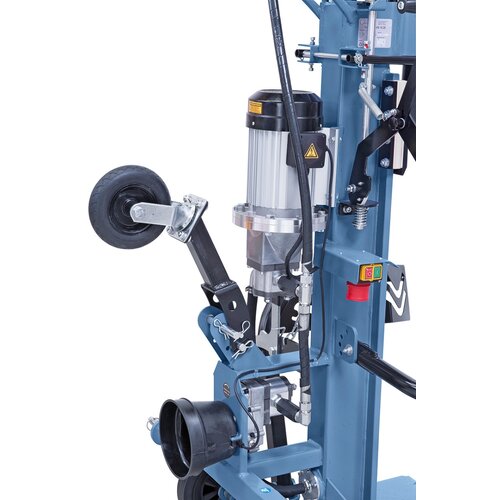

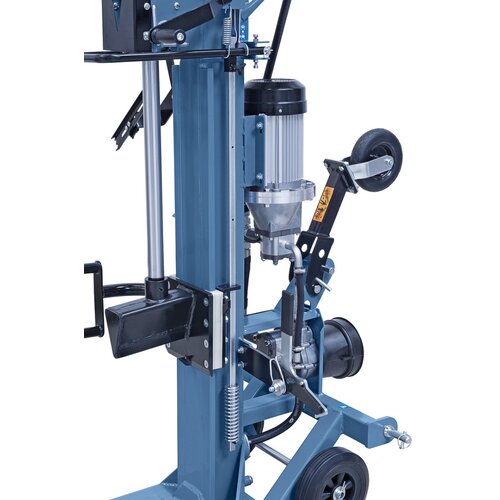

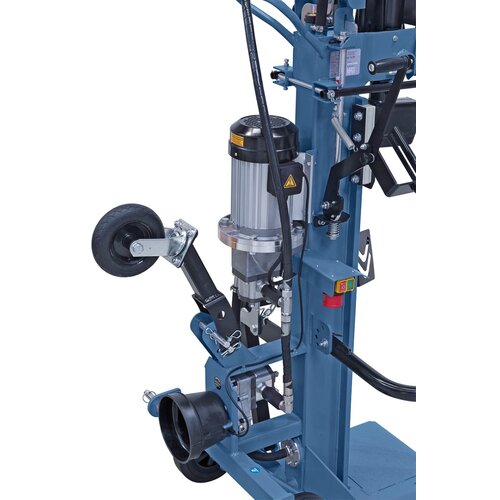

With powerful electro motor and high quality hydraulic pump.
With powerful electro motor and high quality hydraulic pump.

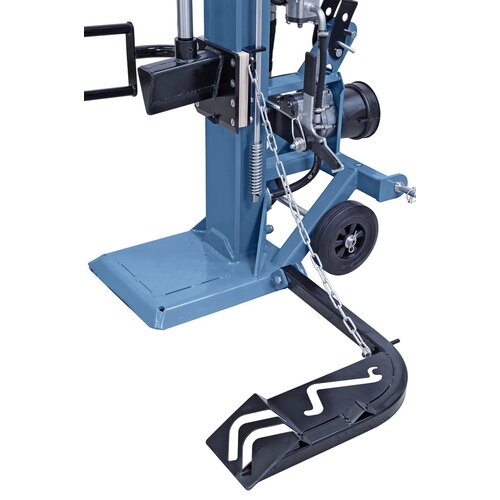

For raising of heavy logs complete with mechanic log lifter.
For raising of heavy logs complete with mechanic log lifter.
Two-handed safety operation for safe work, forward speed alternatively fast or slow.
Two-handed safety operation for safe work, forward speed alternatively fast or slow.

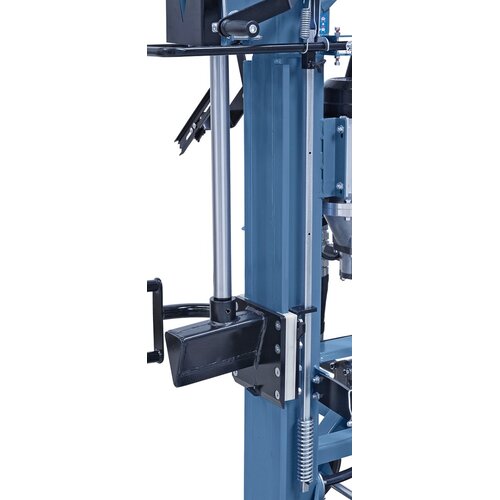

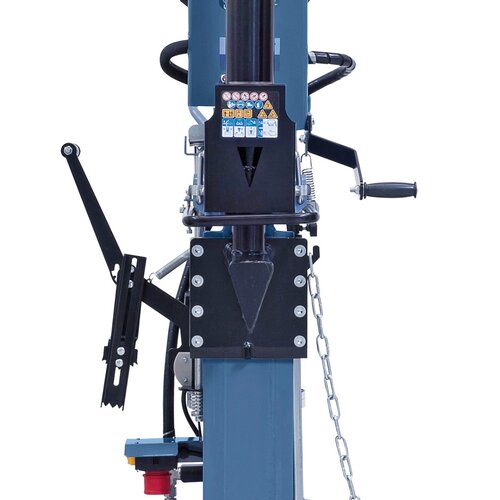

Large splitting wedge features solid, durable plastic guide.
Large splitting wedge features solid, durable plastic guide.

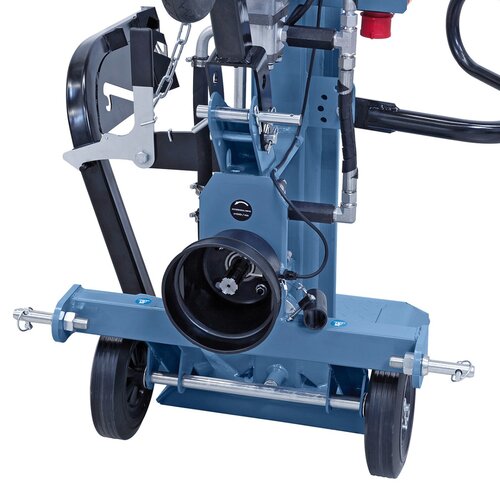

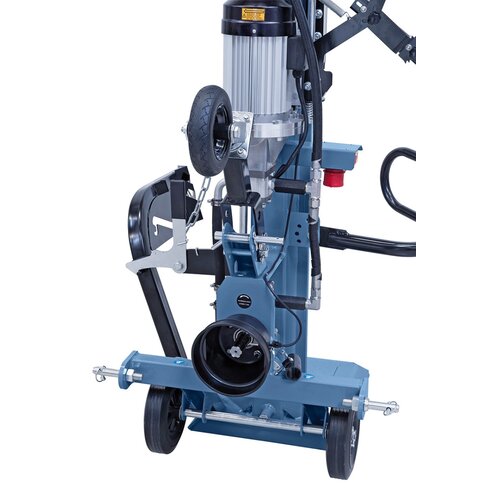

Serially with three-point attachment according to cat I/II and pins
Serially with three-point attachment according to cat I/II and pins
PTO shaft optional available
PTO shaft optional available

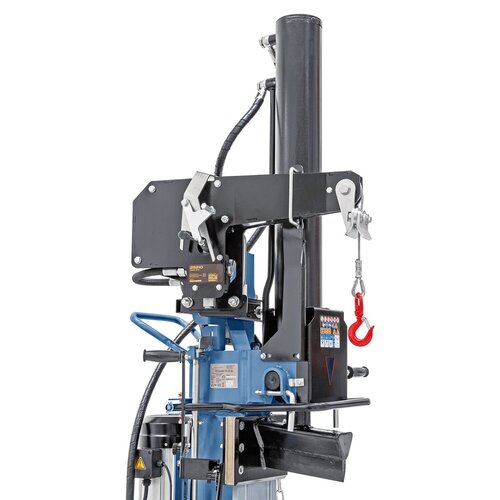

Optional available: Hydraulic winch
Optional available: Hydraulic winch
With powerful electro motor and high quality hydraulic pump.
For raising of heavy logs complete with mechanic log lifter.
Two-handed safety operation for safe work, forward speed alternatively fast or slow.
Large splitting wedge features solid, durable plastic guide.
Serially with three-point attachment according to cat I/II and pins
PTO shaft optional available
Optional available: Hydraulic winch

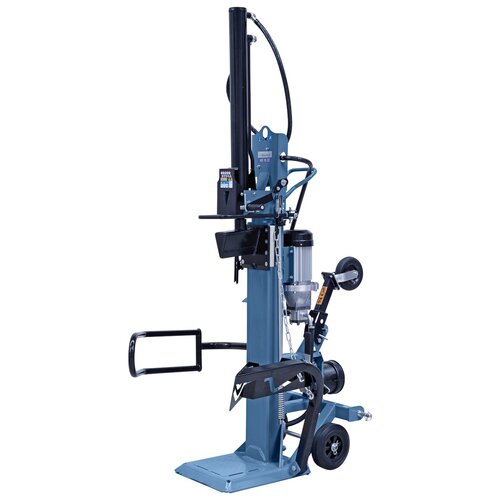

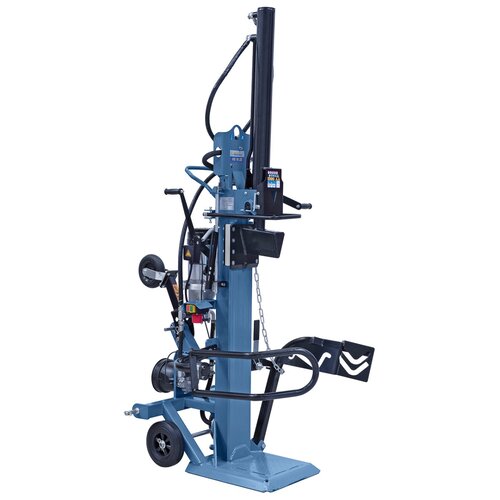

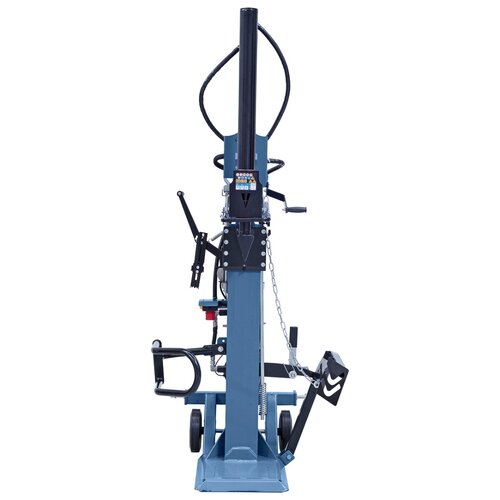

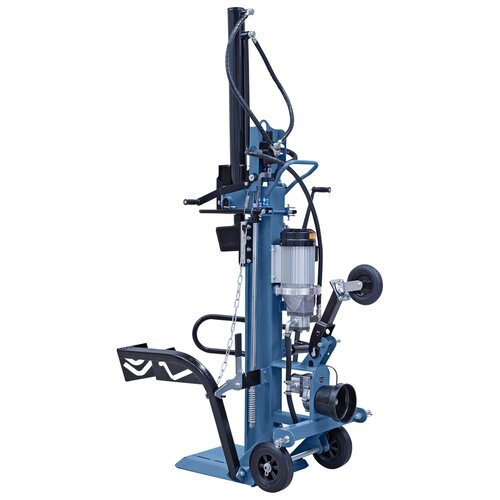

Log splitter HS 16 ZE *

Art. No.: 14-1209
Wishlist Comparison List

The HS series of log splitters comes with a choice of PTO drive or a combination of electro-/PTO drive. Innovative technology makes these models stand out, such as the two-handed safety operation, the fast cutting speed for high work efficiency, stepless adjustable cutting stroke as well as a log lifter as part of the standard accessories.

€2,220.00

€1,998.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
  • Allows for cutting of short and long logs up to 1100 mm
  • Selection of PTO drive and electro/ PTO drive
  • High quality powder coating ensures scratch proof surface
  • Large splitting wedge features solid, durable plastic guide
  • Stepless adjustable cutting stroke allows for less time consumption
  • Low base plate with bevelled edge enables more convenient loading of large logs
  • Lowerable cylinder reduces space requirements and simplifies transport
  • Powerful hydraulic unit features high quality pressure hoses

Product Specifications

Max. capacity 16 to
Log length  560 – 1100 mm
Log diameter 80 – 300 mm
Ram travel max. 948 mm
Forward speed* 14,2 cm/sec
Working speed* 4,6 cm/sec
Return speed* 6,4 cm/sec
Hydraulic pressure  27,7 Mpa
Hydraulic tank  18 l
Drive E-Motor and PTO
Motor power S6 40%  4,5 kW / 400 V
Power take-off speed  540 rpm
Tractor capacity  > 20 HP
Machine dimension (L x W x H)  1400 x 1500 x 2500 mm
Weight approx. 277 kg

* Varying speed, depending on performance of tractor

Delivery Contents

  • Two-handed safety operation
  • Three-point mounting with attachment pins
  • Log lifter
  • Switch-plug-combination
  • PTO shaft with cover
  • Oil filling
  • Carriage
  • Splitting wedge

Suitable accessories

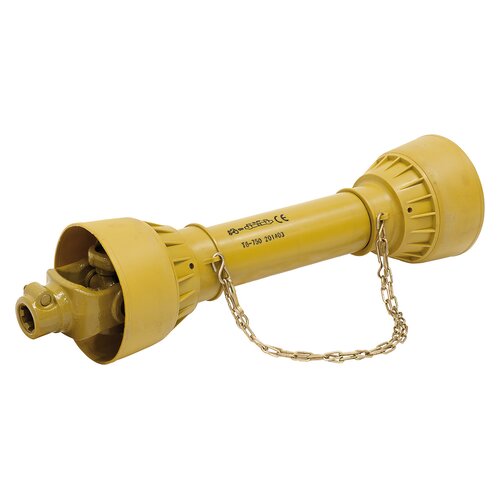

Shaft for HS-series
Shaft for HS-series
Art. No. : 14-1202

€150.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Hydraulic winch for HS-Z / HS-ZE series
Hydraulic winch for HS-Z / HS-ZE series
Art. No. : 14-1221

€708.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
