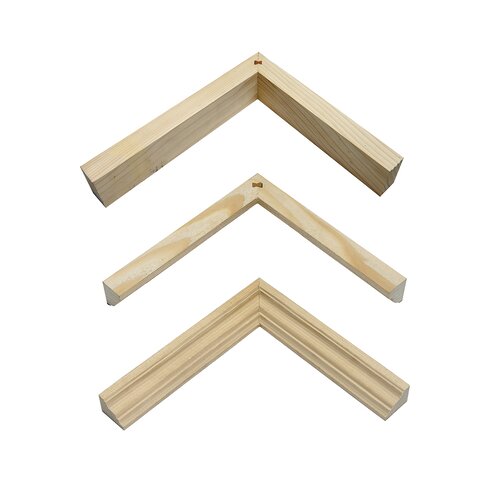

Examples of use

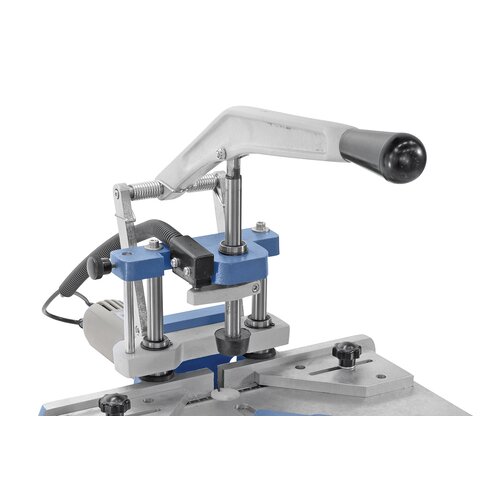

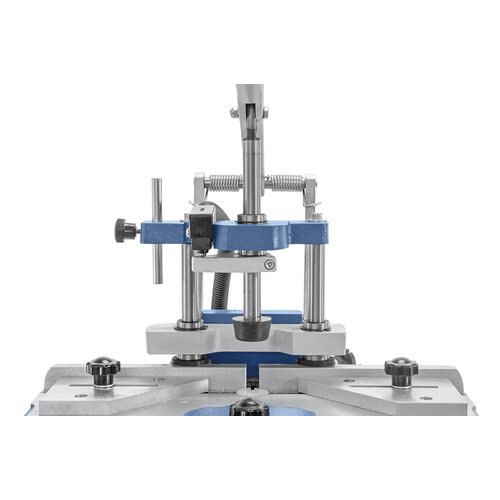

Operating mode: Lowering the lever clamps the workpiece into place. Milling cutter lowers to set depth. Lifting the lever into starting position releases the workpiece and motor stops automatically.

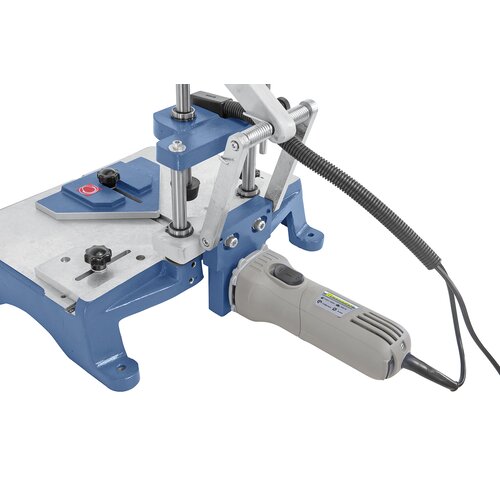

The 850 W motor is suitable for production of dovetails W-1, W-2 and W-3.

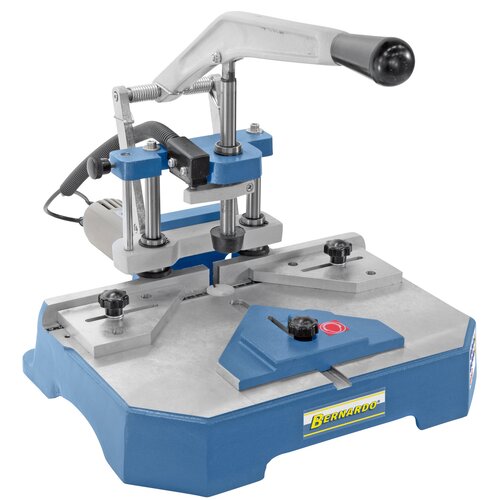

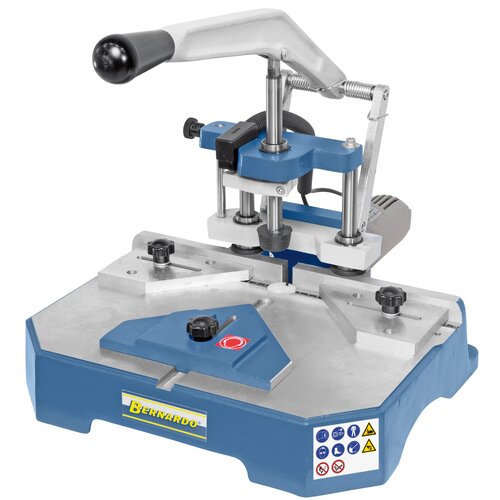

Keyway milling machine KNF 1

Art.Nr.: 14-2115

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KNF 1 manual keyway milling machine is a compact bench model for making one keyway per stroke. Various frames, such as picture frames, wreath frames, segmental arches, window frames and many more, are quickly produced at low cost.

€594.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

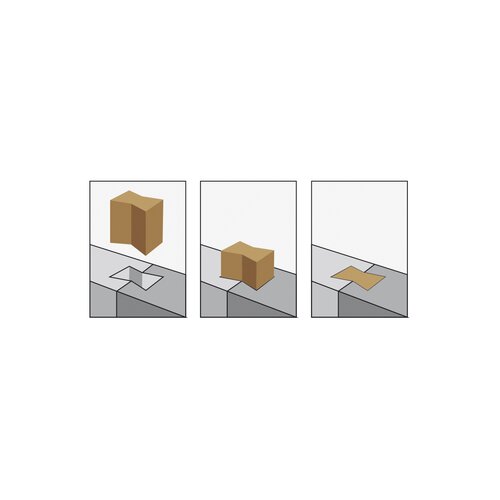

Shape and force ensure strong connection without the need of adhesives
Depending on type of application and material, dovetail milling cutters are available in various lengths
Fully equipped with adjustable fences to allow for convenient workpiece positioning
Quick and cost efficient assembly of connections, highly economical for production of small to medium sized series
Low weight makes this model ideal for transport between sites and for assembly works

Product Specifications

Mill holder Ø	6 mm
Milling depth	0 - 55 mm
Table size	380 x 220 mm
Control	manual
Workpiece clamping	manual
Fence length	390 mm
Width of profile max.	185 mm
Clearance max.	95 mm
Speed	32000 rpm
Motor power	0,85 kW
Voltage	230 V
Machine dimension (W x D x H)	400 x 620 x 535 mm
Weight approx.	10 kg
