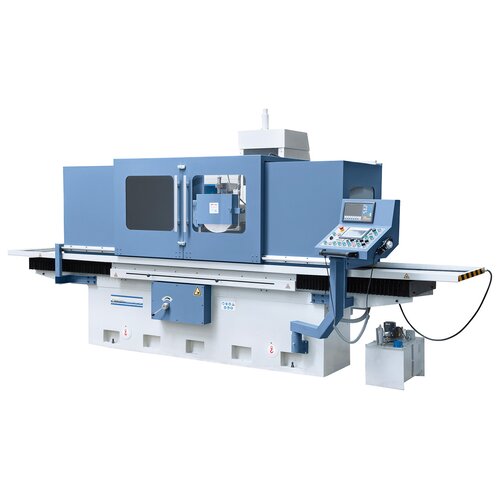

Hydraulic surface grinding machine BSG 80160 PLC with 2-axis digital readout ES-12 H **
Art.Nr.: 05-1455XL€107,880.00
Availability
Product Specifications
|
Table dimensions |
810 x 1600 mm |
|
T-slot quantity / width |
3 / 22mm |
|
Electric magnetic clamping plate |
800 x 800 (2 pcs.) |
|
Max. travel longitudinal |
1600 mm |
|
Max. travel cross |
810 mm |
|
Max. distance spindle center / table |
920 mm |
|
Max. workpiece weight* |
2000 kg |
|
Grinding wheel |
500 x 75 x 305 mm |
|
Table speed, hydraulic |
5 – 25 m/min |
|
Cross adjustment |
|
|
Automatic adjustment, cross |
1 – 30 mm / stroke |
|
Rapid feed, cross |
50-2000 mm/min |
|
Vertical adjustment |
|
|
Automatic adjustment, vertical |
0,005 – 0,05 mm/stroke |
|
Rapid feed, vertical |
50 – 2000 mm/min |
|
Motor power of sanding spindle |
18,5 kW |
|
Spindle speed |
960 rpm |
|
Motor power of hydraulic pump |
5,5 kW |
|
Length |
4800 mm |
|
Depth |
4000 mm |
|
Height |
2600 mm |
|
Weight approx. |
10000 kg |
* with magnet clamping plate
Delivery Contents
- 2-axis digital readout ES-12 H with LCD-display
- Siemens SMART-panel IE V3 with touchscreen
- Electronic handwheel
- Grinding wheel
- Flange
- LED working light
- Magnetic clamping plate
- Balancing stand
- Balancing arbor
- Protective covers
- Parallel dresser (hydraulic)
- Demagnetization device
- Coolant device
- Dressing diamond
- Machine feet
- Central lubrication
- Hydraulik air cooler
- Tools
