Availability
In Stock
Deliverable in 2-3 business days

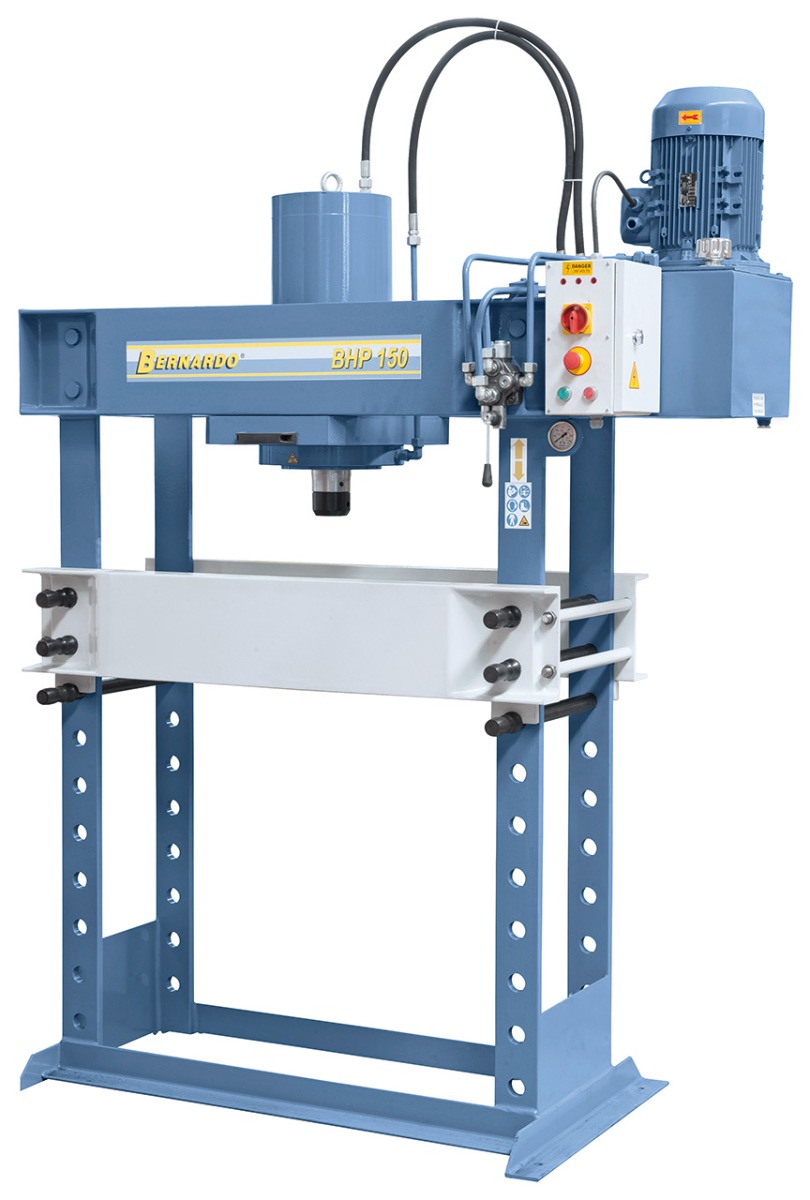

Product Properties

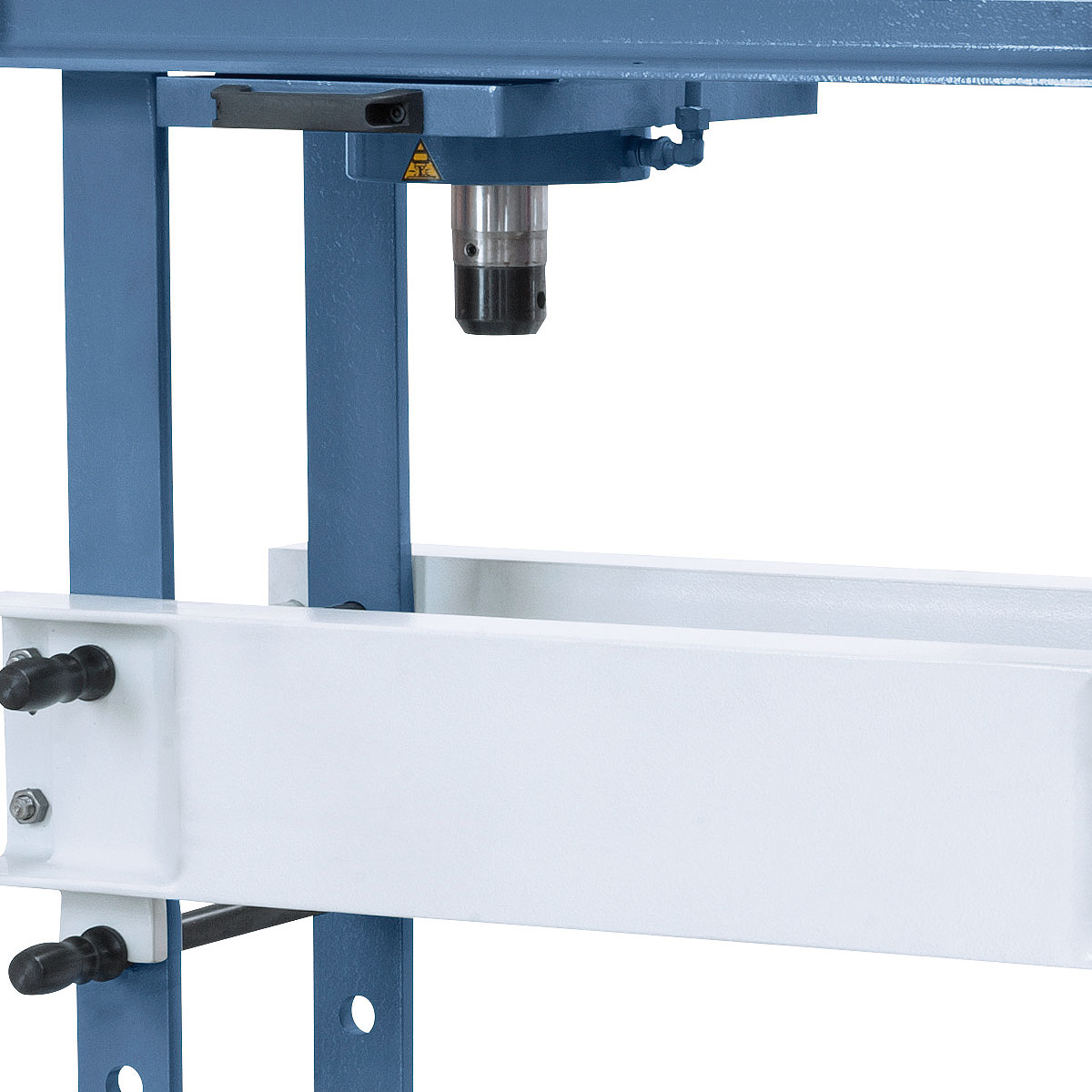

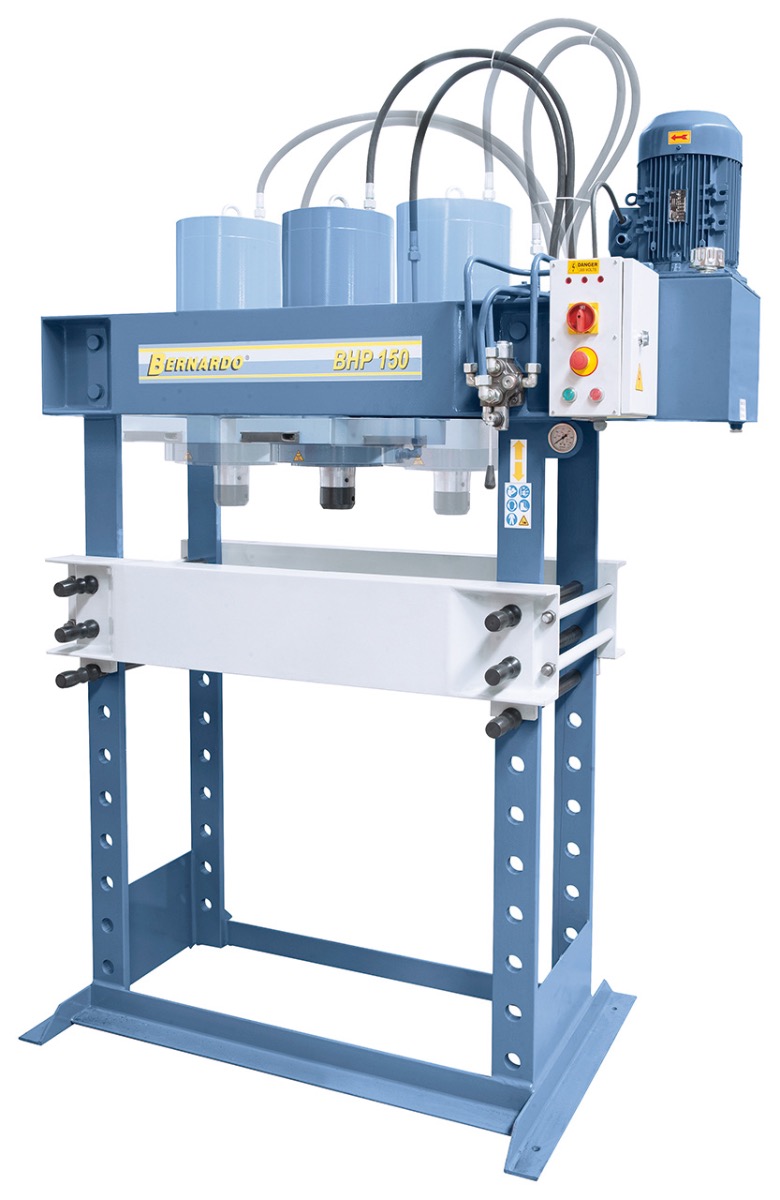

- Equipped as standard with a laterally movable cylinder

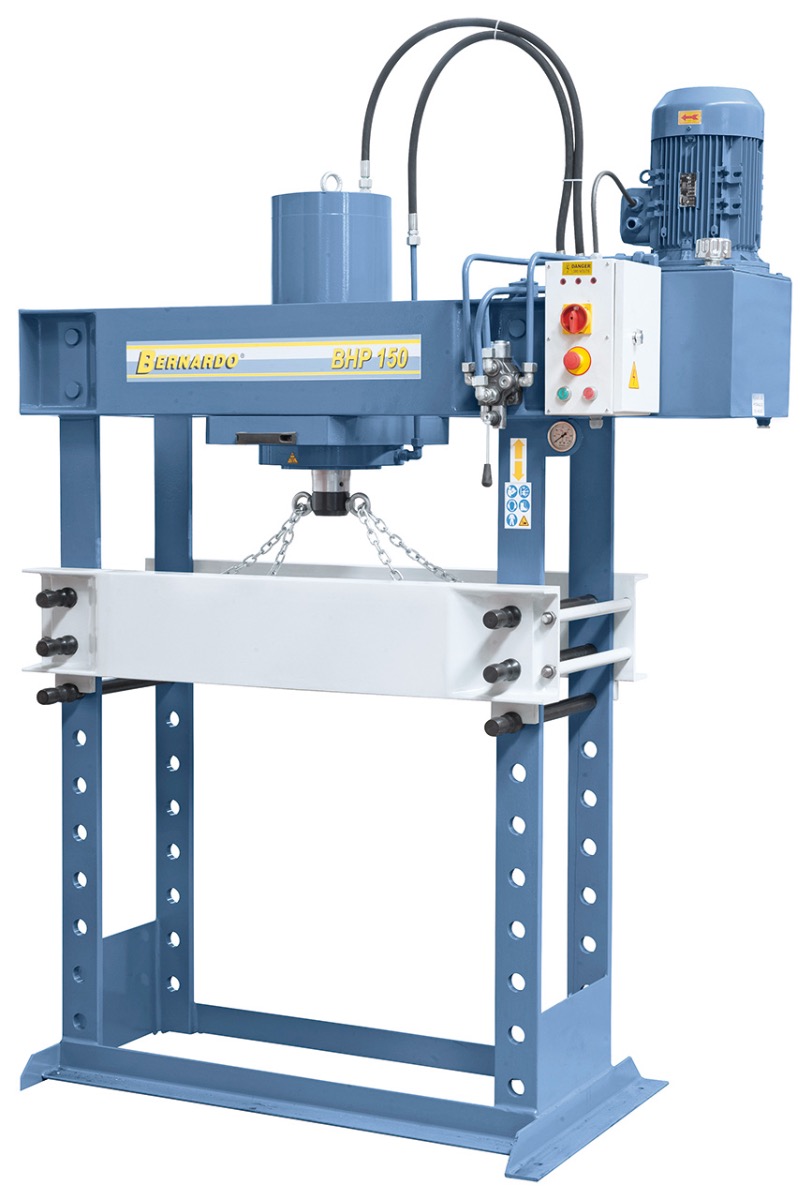

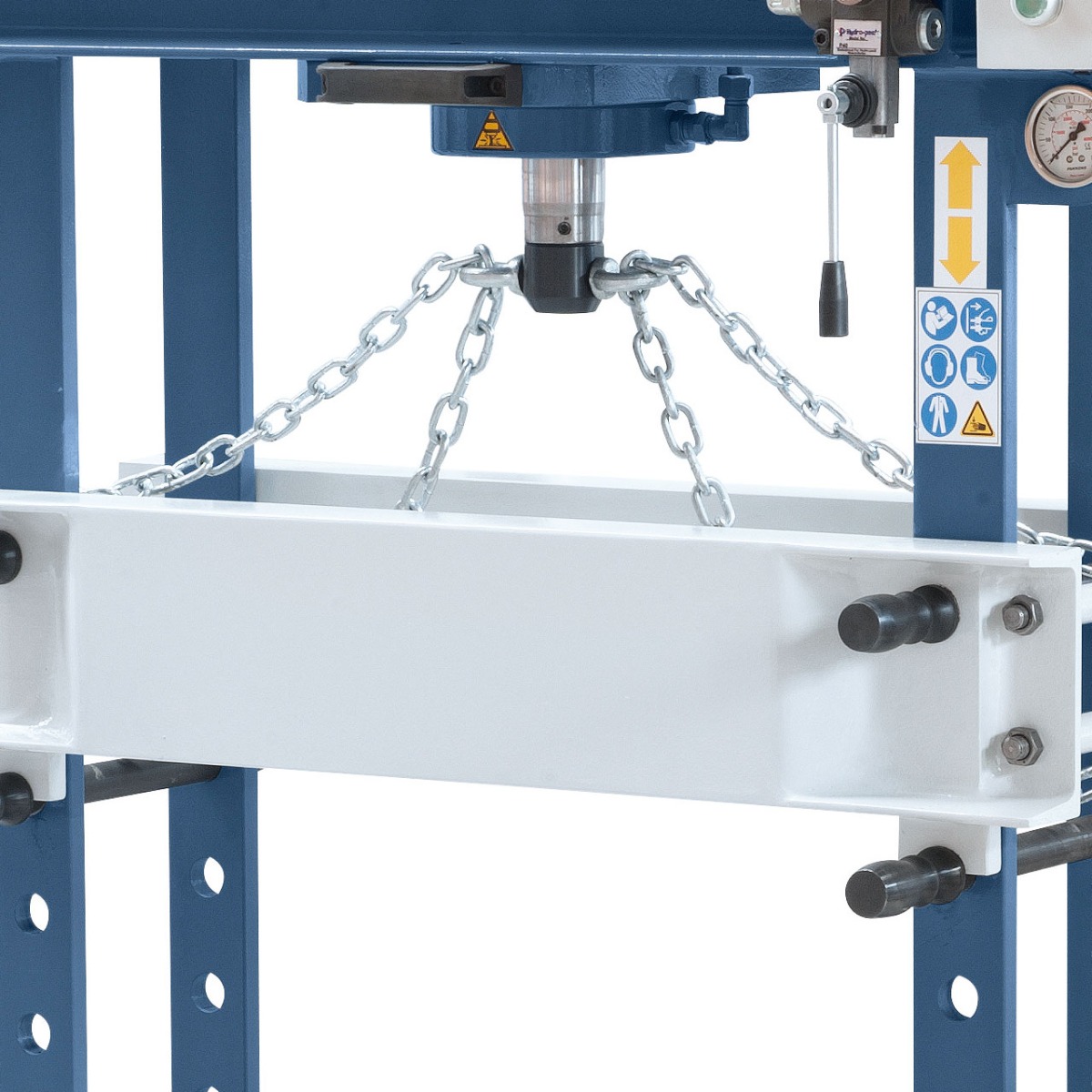

- Adjustment device for height adjustment of the work table included in delivery

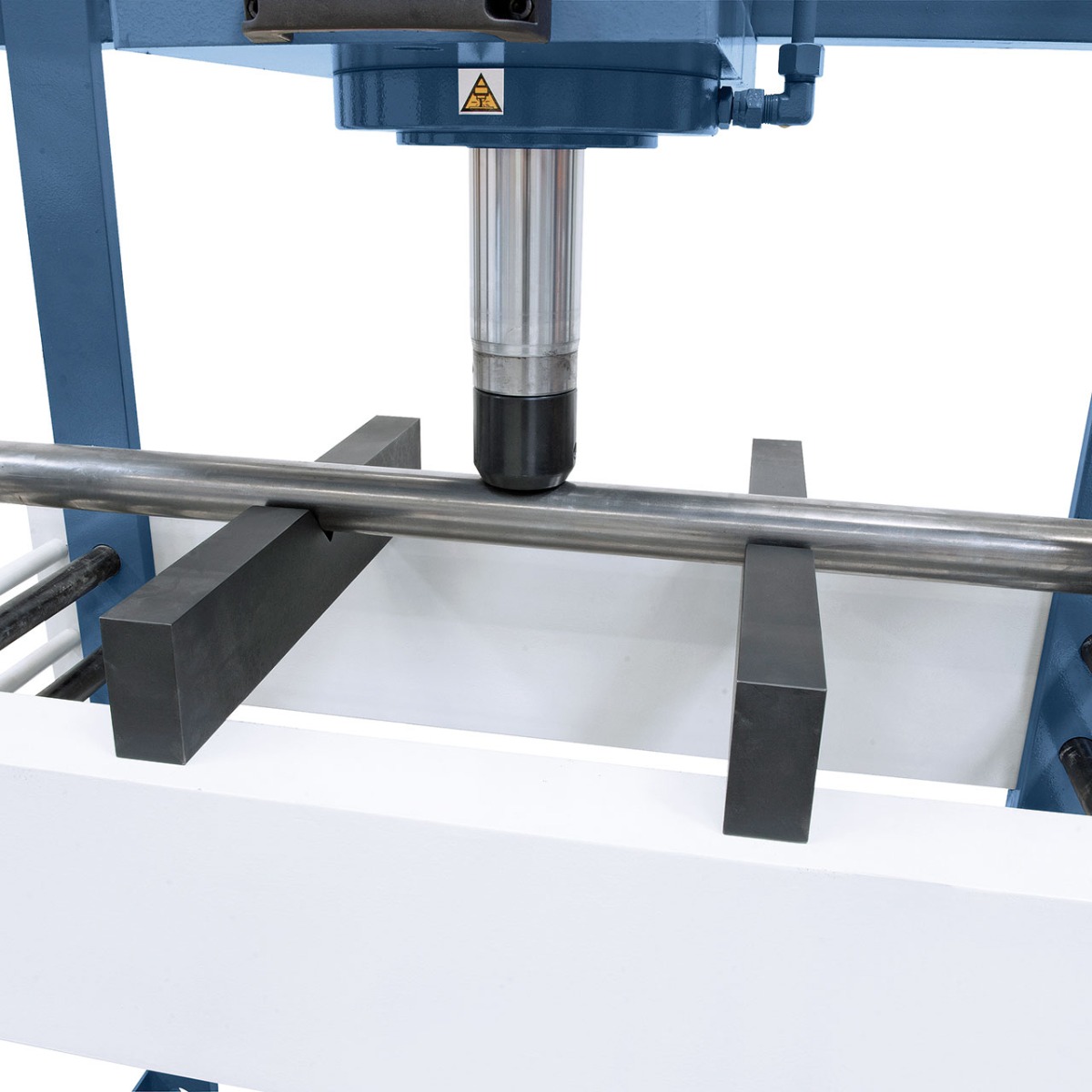

- Ideal for straightening axles, shafts, etc., but also for pressing in and out of bolts, bearings, bushings and much more
- High quality hydraulic presses for professional use

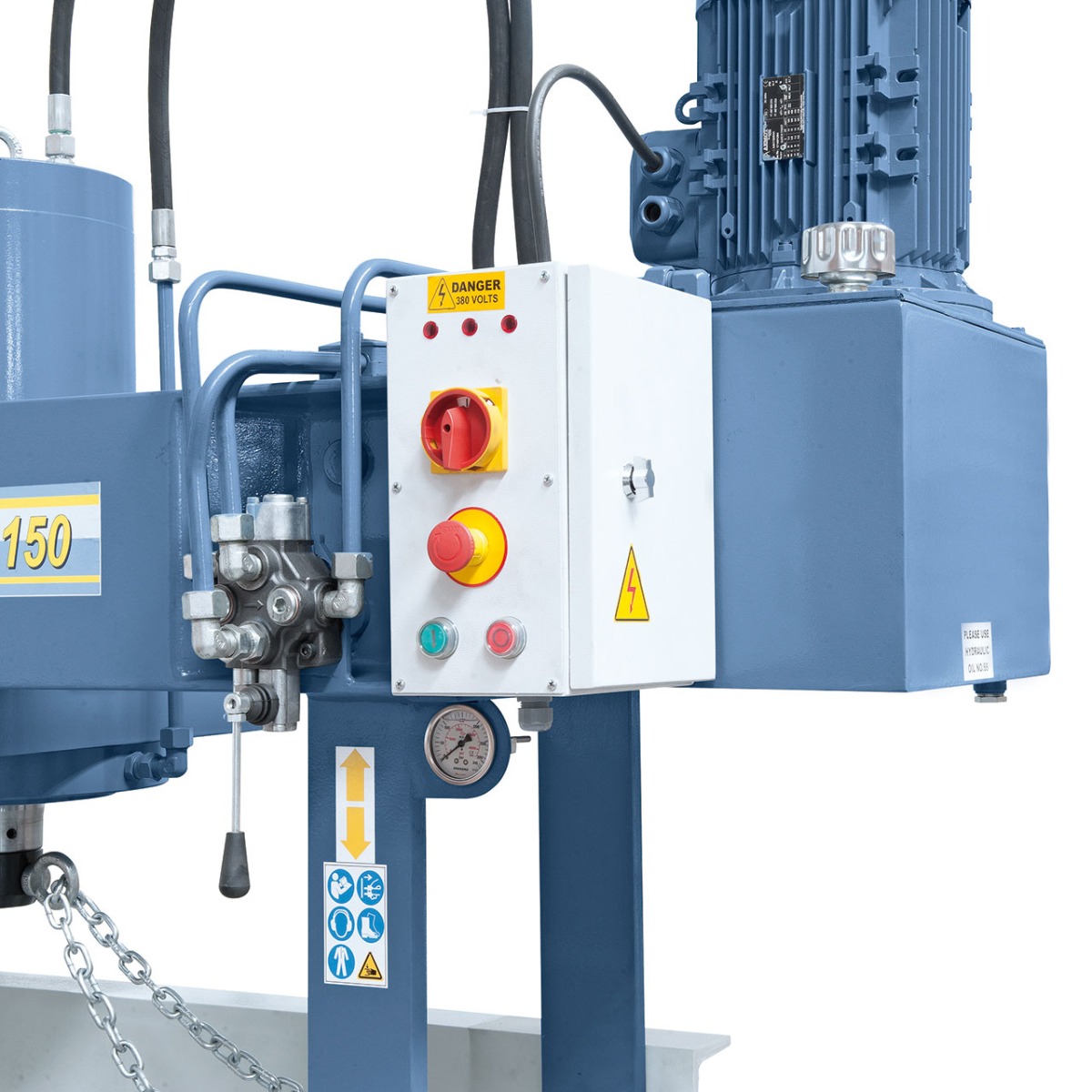

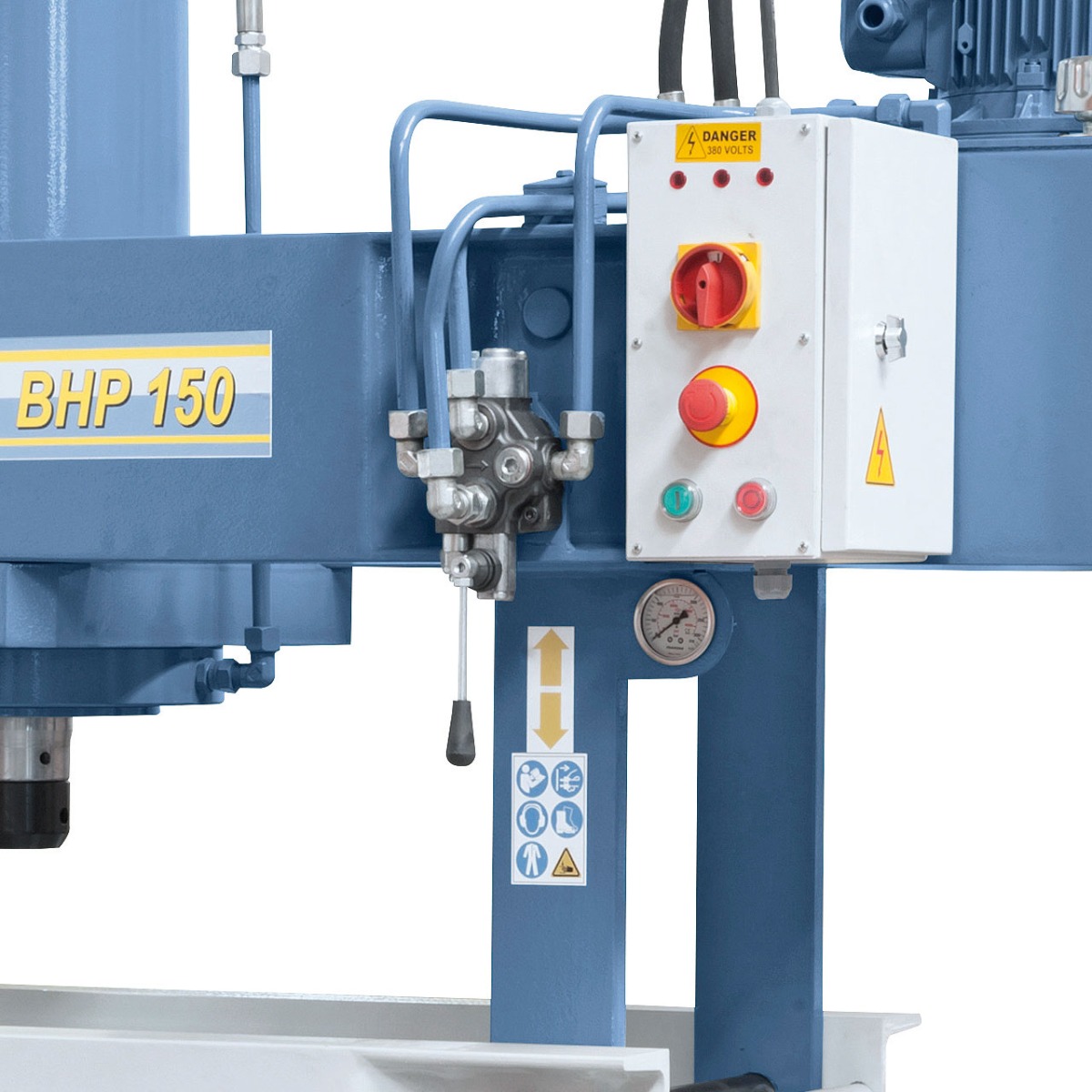

- Equipped as standard with a pressure gauge for pressure display
- Fast forward and return speeds for efficient work
- Solid frame in box construction made of welded section steel

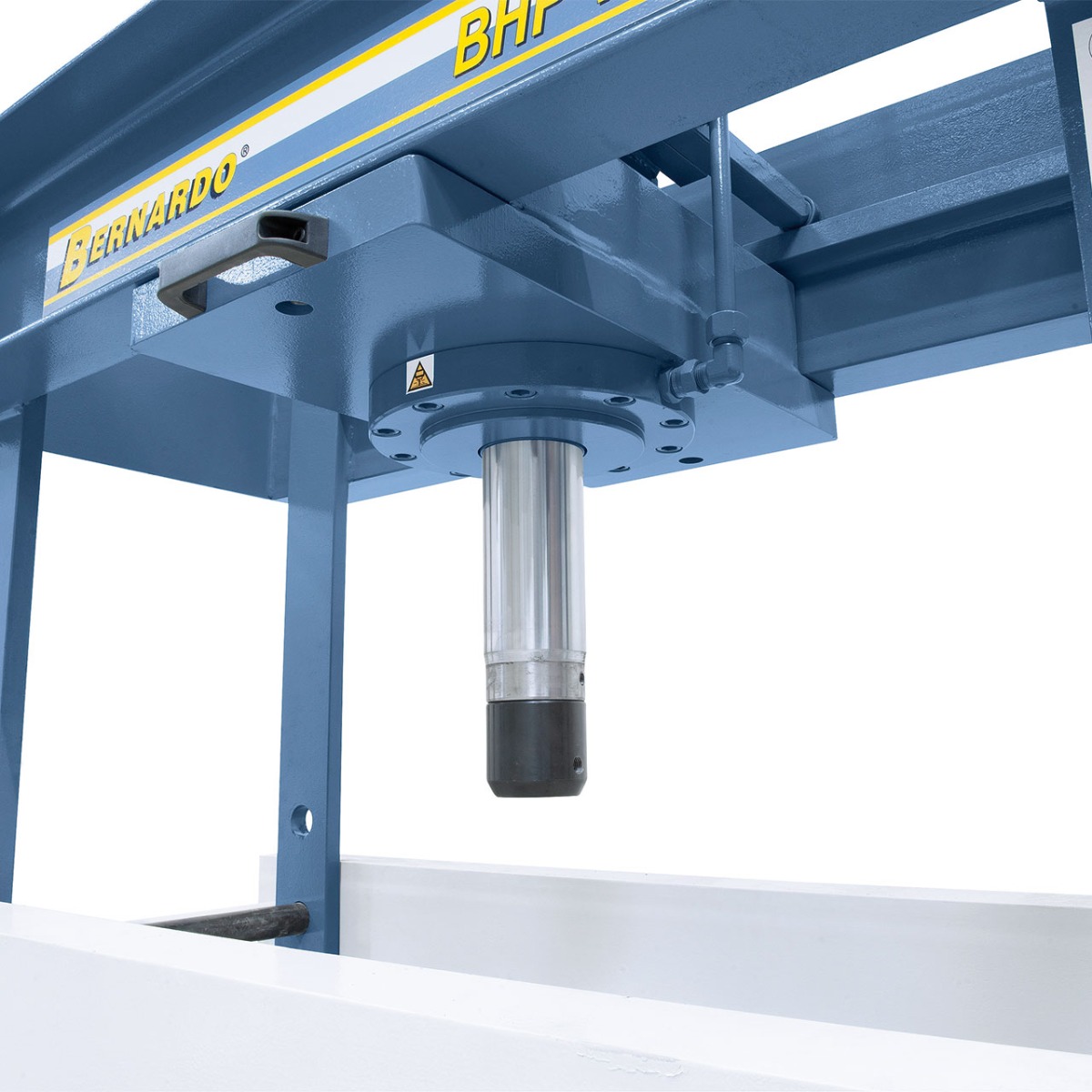

- Piston can be stopped in any position
Product Specifications
| Pressure force | 150 to |
| Passage between stand | 1100 mm |
| Piston stroke | 400 mm |
| Piston diameter | 100 mm |
| Max. pressure | 250 bar |
| Table width | 635 mm |
| Max. working height | 960 mm |
| Forward speed | 8,5 mm/sec. |
| Backward speed | 10,5 mm/sec. |
| Motor power | 5,5 kW |
| Width | 1800 mm |
| Depth | 820 mm |
| Height | 2420 mm |
| Weight approx. | 1170 kg |
Delivery Contents
- Pressure gauge
- Height adjustable work table
- Overload valve
- Moveable cylinder
- Prism supports
